Product details
Product Overview
The Emerson TREXCHPKLWP1 AMS Trex Device Communicator is a high-performance field communicator. It handles device configuration, diagnostics, and loop troubleshooting. This tool speeds up plant maintenance and reduces downtime. Its rugged design works in harsh industrial environments. The large touchscreen and fast processor make navigation simple. It supports multiple industrial protocols for broad compatibility.
Key Features & Benefits
- High-Speed Processor: 800 MHz ARM Cortex A8/NXP ensures quick startup and fast communication.
- Large Storage Capacity: 2GB NAND and 32GB extended flash store documents, logs, and configurations.
- Wireless Connectivity: Built-in W option for Wi-Fi allows remote access and firmware updates.
- Bright Display: 640 x 480 pixel screen readable indoors and outdoors.
- Extended Battery Life: Rechargeable Li-Ion Power Module supports full shift usage.
- All-in-One Tool: Combines a HART modem, communicator, and digital multimeter (DMM).
- Premium Support: Includes 1 Year Premium Support (P1) for software and technical assistance.
Technical Specifications
- Brand: Emerson
- Model: TREXCHPKLWP1
- Product Type: AMS Trex Device Communicator
- Microprocessor: 800 MHz ARM Cortex A8/NXP
- Memory: 512 MB DDR3 SDRAM
- Internal Flash: 2GB NAND and 32GB extended flash
- Operating System: Windows Embedded Compact 2013
- Display: 640 x 480 pixel color touchscreen
- Communication Protocols: HART, Foundation Fieldbus, Profibus PA
- Measurement Ranges: Voltage 0-100V DC, Current 0-100mA, Loop power 24V
- Frequency Response: Signal detection up to 25 kHz
- Sensitivity & Linearity: High precision for HART signals, 0.1% accuracy on DMM
- Environmental Tolerance: IP54 rated, operates -20°C to 55°C
- Anti-interference: Complies with industrial EMC standards
- Certifications: ATEX, CSA (US/Canada), IECEx Intrinsically Safe
- Wireless: 802.11 b/g/n Wi-Fi
Installation & Setup
- Quick Start: Power on, connect to device via leads or clips.
- Interface: Use touchscreen or keypad for navigation.
- Wireless Setup: Connect to plant Wi-Fi for asset management sync.
- No Software Installation: Ready to use out of the box.
Compatibility & Integration
- HART: Fully compatible with HART 5, 6, 7 devices.
- Foundation Fieldbus & Profibus PA: Supported with communication module.
- AMS Device Manager: Seamless integration for configuration and documentation.
- Third-party devices: Works with most HART-enabled instruments.
Diagnostic Capabilities
- Device Status: Reads HART device diagnostics and alerts.
- Loop Diagnostics: Checks for ground faults, noise, and power supply issues.
- Built-in Multimeter: Measure voltage, current, and continuity without extra tools.
- Report Generation: Create PDF reports of device configuration and diagnostics.
Typical Applications
- Process Plants: Configure transmitters, valves, and analyzers.
- Maintenance Shutdowns: Quick loop checks and device replacement.
- Offshore Platforms: Intrinsically safe for hazardous areas.
- Water Treatment: Commission and troubleshoot instrumentation.
- Packaging Lines: Validate sensor settings and wiring.
Frequently Asked Questions
- Q: Can this model communicate with Foundation Fieldbus devices?A: Yes. The C communication module supports HART, FF, and Profibus PA. The H application includes HART, but the hardware handles multiple protocols.
- Q: How long does the battery last on a full charge?A: The rechargeable Li-Ion module typically lasts 8-10 hours under normal use. You can hot-swap if you have a spare.
- Q: Is the device safe to use in explosive atmospheres?A: Absolutely. It has KL certifications: ATEX, CSA, and IECEx Intrinsically Safe, suitable for Zone 0/1 areas.
- Q: Does it come with a warranty?A: Yes. Includes 12 months warranty against manufacturing defects. The Premium Support (P1) adds software updates and priority help.
- Q: Can I connect to the Trex wirelessly?A: Yes, the W radio option enables Wi-Fi for network access and remote collaboration.
- Q: What’s the difference between TREXCHPKLWP1 and TREXCHPPLP1?A: The key difference is the KL vs PL certifications. KL covers ATEX, CSA, IECEx. Choose KL for global hazardous locations. Also, W (Wireless) is included in this model.
- Q: Which shipping carriers do you use?A: We ship via FedEx, UPS, and DHL. Express options available at checkout.
- Q: Is there any experience-based advice for first-time users?A: Update the firmware immediately via Wi-Fi to get the latest device descriptions. Use the built-in camera to document wiring before disconnecting. It saves time during reconnection.
- Q: How do I choose between this and the basic Trex model?A: If you work with HART only, a basic model might suffice. Choose this TREXCHPKLWP1 if you need wireless, extended flash memory, and multi-protocol capability for future needs. The intrinsic safety certification is broader, making it suitable for international projects.

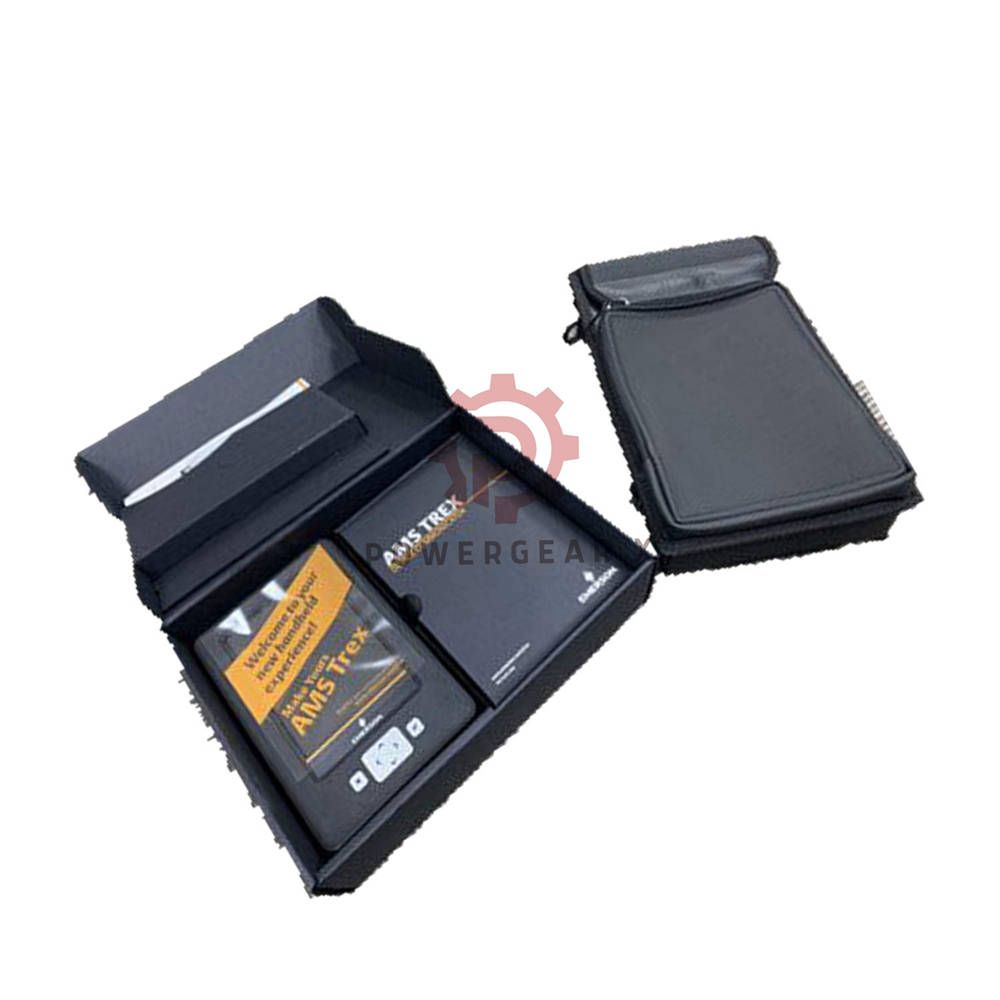

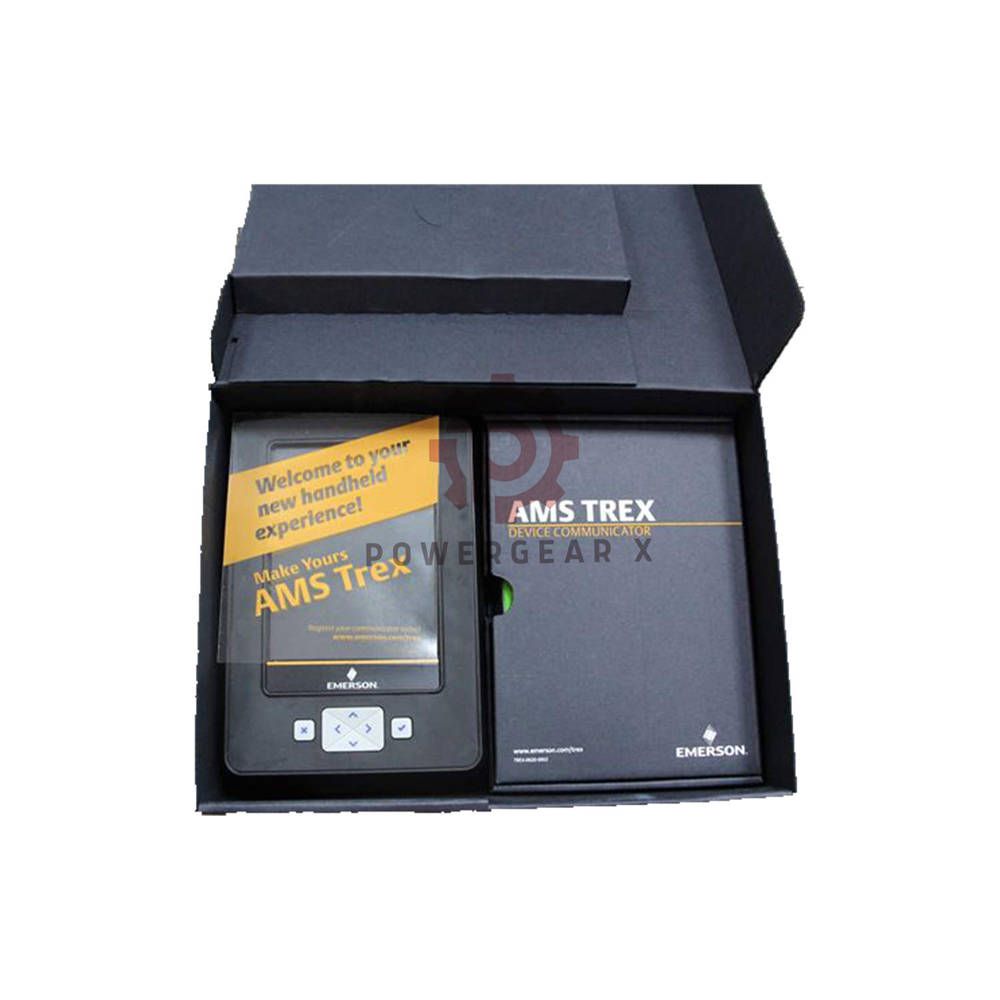

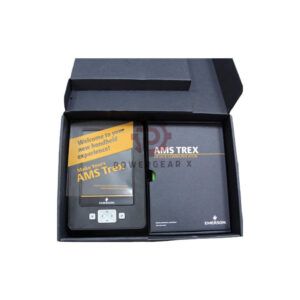

Package Contents
- 1x Emerson TREXCHPKLWP1 Communicator
- 1x Rechargeable Li-Ion Power Module (installed)
- 1x AC Power Adapter with cords
- 1x USB Cable for PC connection
- 1x HART resistive load leads
- 1x Test leads with alligator clips
- 1x Getting Started Guide
- 1x Carrying case with strap
- Premium Support 1 Year (P1) activation
Ordering & Logistics
- Warranty: 12 months limited hardware warranty.
- Shipping Methods: FedEx, UPS, DHL – worldwide express.
- Support Contact: For inquiries: sales@powergearx.com
- WhatsApp Support: +86 18030005825 (click to chat)
There are no reviews yet.
