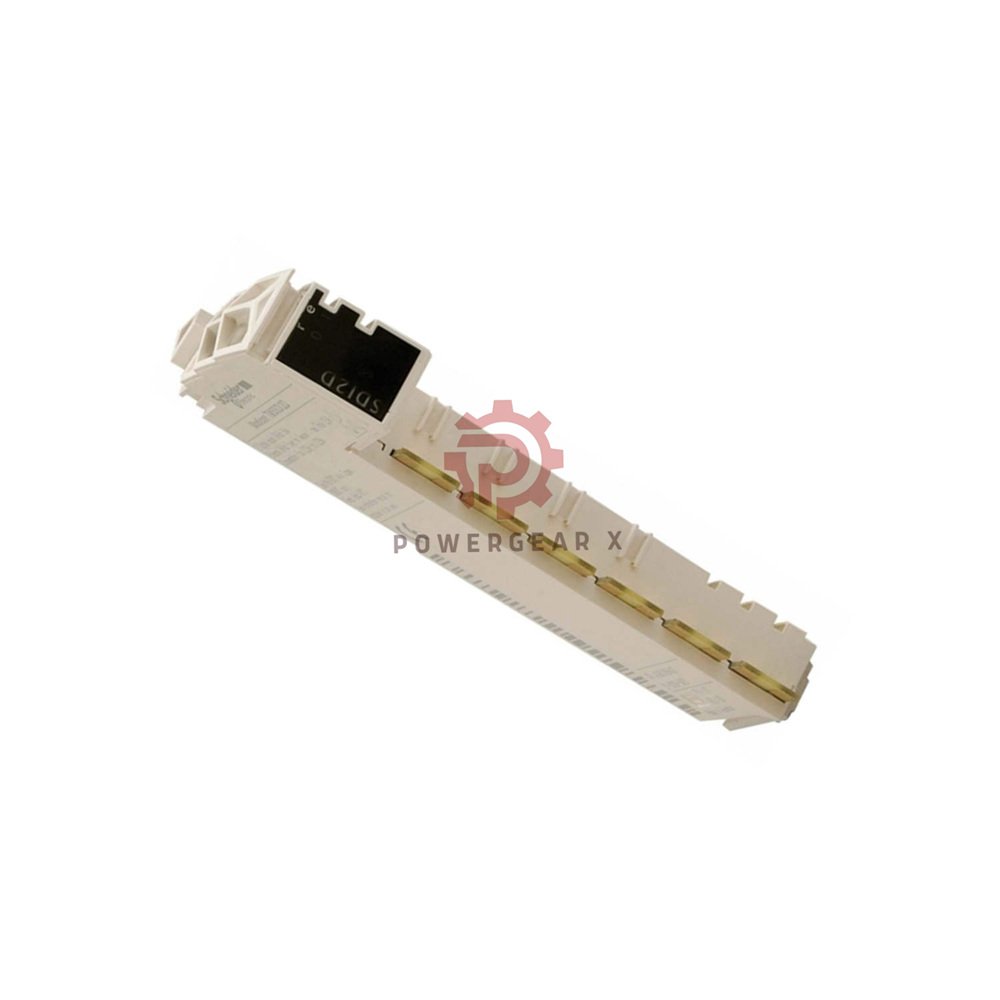

TM5SDO8TA Schneider Digital Output Module | 8-Channel 24V DC 2A | Modicon TM5

Product Description

• TM5SDO8TA – a compact digital output module from the Modicon TM5 Series.
• Provides 8 transistor outputs (24V DC, 2A per channel) for precise ON/OFF control.
• Built for motion and logic controllers, ideal for machine builders and system integrators.
• Delivers reliable switching up to 500 Hz (resistive) with fast response ≤300 µs.
• Integrated short-circuit, overload, and reverse polarity protection ensure safe operation.

Key Features

• 8 digital outputs – sourcing (PNP) transistor type, 2A per channel.
• Wide voltage range – 20.4…28.8 V DC (nominal 24 V).
• High switching frequency – 500 Hz max for resistive loads.
• Fast response – ≤300 µs both ON→OFF and OFF→ON.
• Protection – short-circuit, overload, and reverse polarity.
• Local diagnostics – 8 yellow LEDs for output status, 1 red + 1 green for power.
• Compact & lightweight – only 0.025 kg, 1-wire connection.

Technical Specifications

• Brand – Schneider Electric
• Model – TM5SDO8TA
• Series – Modicon TM5 (Modular I/O system)
• Module type – Digital output (discrete)
• Outputs – 8 channels, source logic (PNP)
• Output voltage – 24 V DC (20.4…28.8 V range)
• Current per channel – 2 A (continuous), peak 12 A
• Total common current – ≤8 A
• Switching frequency – ≤500 Hz (resistive load)
• Response time – ≤300 µs (both transitions)
• Leakage current (off) – 5 µA
• Protection – short-circuit, overload, reverse polarity
• Power consumption – 44 mA (5 V bus), 0 mA (24 V I/O)
• Power dissipation – ≤1.5 W
• Local signalling – 8 yellow (out), 1 red + 1 green (power)
• Connection – 1-wire electrical
• Weight – 0.025 kg
• Colour – White

Environmental & Certifications

• Operating temperature – 0…60 °C (derating horizontal), 0…55 °C (horizontal no derating), 0…50 °C (vertical)
• Storage temperature – -25…70 °C
• Humidity – 5…95 % non-condensing
• IP rating – IP20 (per IEC 61131-2)
• Pollution degree – 2 (IEC 60664)
• Operating altitude – 0…2000 m
• Vibration resistance – 3.5 mm (5…8.4 Hz), 1 gn (8.4…150 Hz) on DIN rail
• Shock resistance – 15 gn for 11 ms
• EMC immunity
  • ESD – 8 kV air / 4 kV contact (EN/IEC 61000-4-2)
  • Radiated field – 10 V/m (80…2000 MHz), 1 V/m (2…2.7 GHz)
  • Fast transients – 2 kV (power), 1 kV (shielded cable/I/O)
  • Surge – 1 kV common mode, 0.5 kV differential
• Certifications – CSA, C-Tick, cULus, GOST-R, CE
• Standards – CSA 22-2 No 142/213, IEC 61131-2, UL 508

Compatibility

• Controllers – Modicon LMC058, M258, and logic/motion controllers
• Isolation – No channel-to-channel; 500 Vrms between channel and bus

Installation & Maintenance

• Mounting – DIN rail installation (horizontal or vertical)
• Derating – follow temperature curves for vertical/horizontal mounting
• Diagnostics – LED indicators for fast troubleshooting
• Maintenance – no special tools; clean with dry cloth

Packaging & Delivery

• Package includes – 1 TM5SDO8TA module, user manual (digital)
• Warranty – 12 months against manufacturing defects
• Shipping – 12‑24 hours dispatch via FedEx, UPS, or DHL

Expert Review

• Manager’s Insight: “The TM5SDO8TA offers a balanced mix of power and protection. Its 2A per channel and built-in diagnostics reduce downtime. A solid choice for discrete control in small to mid-size machines.”

Applications

• Suitable for – conveyor systems, packaging lines, assembly stations, and simple actuator control
• Typical devices – solenoids, relays, indicator lights, and small DC motors

FAQ

• Q: What is the maximum output current per channel?
  A: 2 A continuous, 12 A peak.
• Q: Can I use this module with a 24V AC supply?
  A: No, it requires 24V DC (20.4…28.8 V).
• Q: Is the module short-circuit proof?
  A: Yes, it has built-in short-circuit, overload, and reverse polarity protection.
• Q: Which controllers are compatible?
  A: Modicon LMC058, M258, and other logic/motion controllers.
• Q: What is the response time?
  A: ≤300 µs for both ON and OFF transitions.
• Q: How do I mount the module?
  A: Snap it onto a DIN rail. Ensure proper derating for vertical installation.
• Q: Does it come with cables?
  A: No, cables are sold separately. Use 1‑wire shielded cables.
• Q: What is the warranty period?
  A: 12 months from date of purchase.
• Q: How soon can I get delivery?
  A: We dispatch within 12‑24 hours via FedEx, UPS, or DHL.

Selection Guide

• Choose TM5SDO8TA if:
  • You need 8 sourcing outputs at 2A each.
  • Your application requires fast switching (≤500 Hz).
  • You prefer integrated diagnostics and protection.
• Consider alternatives for:
  • Higher current per channel (>2A) – choose TM5 output modules with higher rating.
  • Isolated outputs – select modules with channel‑to‑channel isolation.
• Pro tip: For 24V DC applications with moderate power, this module offers the best value and reliability.
