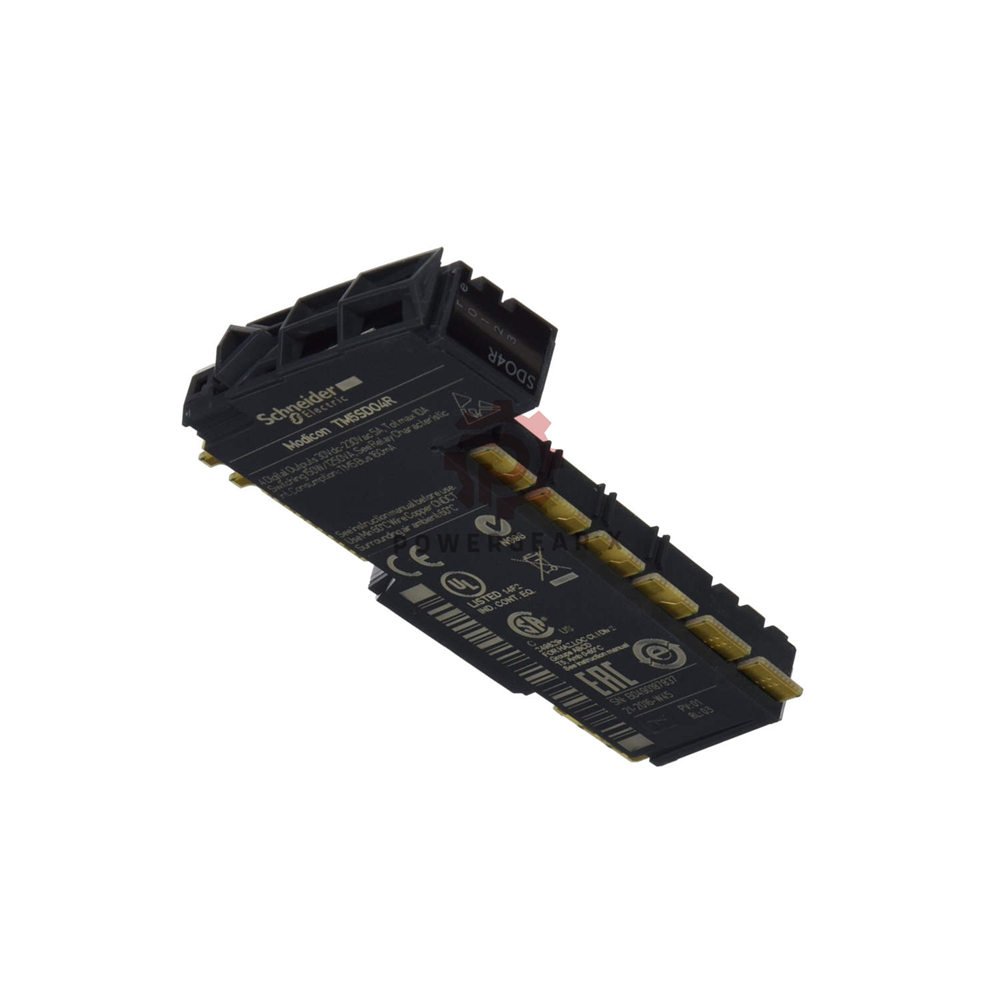

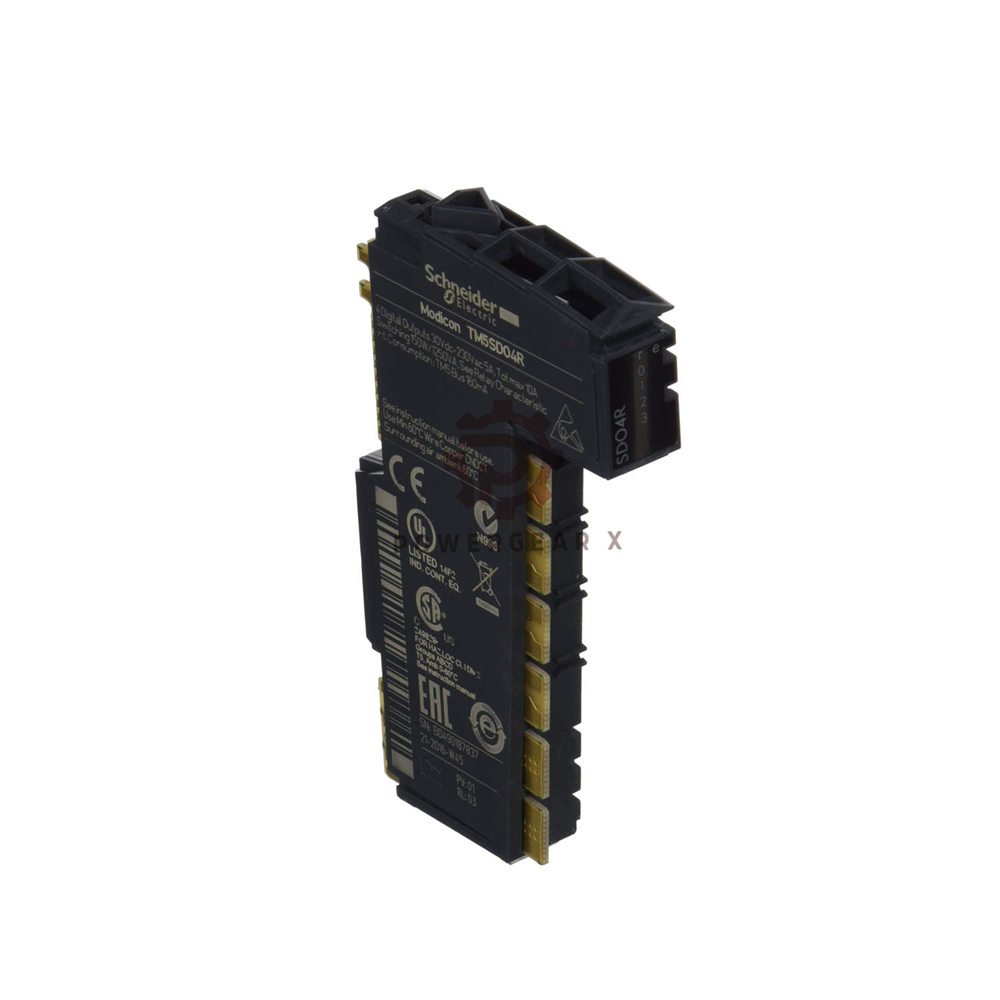

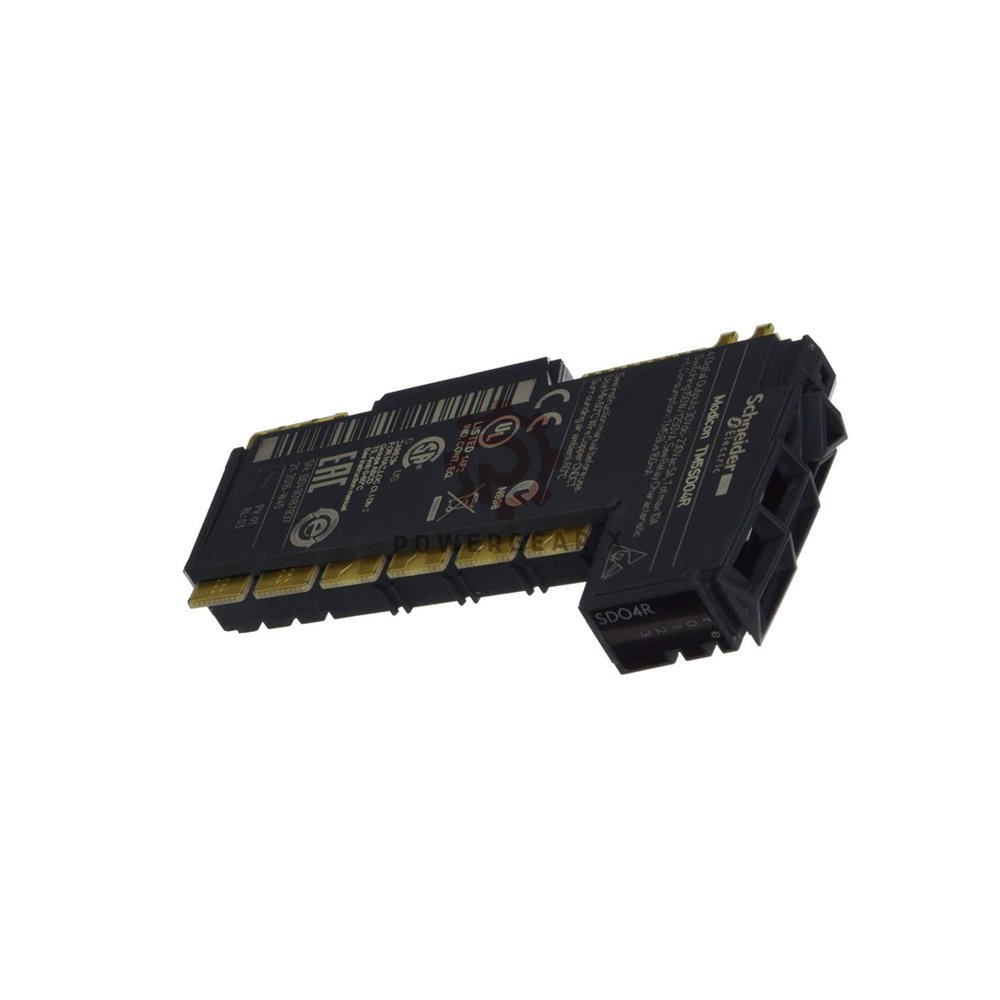

Name: TM5SDO4R Schneider Modicon TM5 Relay Output Module 4NO 5A
SKU: TM5SDO4R
Price: 234.00 USD
Availability: InStock

Product details

Product Overview

TM5SDO4R is a digital output module from the Modicon TM5 range.
It comes from Schneider Electric, a trusted name in industrial automation.
The module offers 4 relay outputs with 4 NO contacts.
Each channel handles up to 5 A.
It switches both 30 V DC and 230 V AC loads.
This makes it useful for mixed AC and DC control panels.
Relay outputs isolate the load from the control side.
A compact black body saves space on the DIN rail.
Fast 10 ms response supports many machine tasks.
It pairs well with PacDrive LMC motion controllers.

Technical Specifications

Brand: Schneider Electric
Model: TM5SDO4R
Series: Modicon TM5
Module Type: Digital output module
Output Count: 4 digital outputs
Output Type: Relay, 4 NO
Output Voltage: 230 V AC and 30 V DC
Output Voltage Limits: 184…276 V AC and 24…36 V DC
Current per Channel: 5 A
Maximum Current per Common: 10 A
Response Time: <= 10 ms from state 0 to 1, and <= 10 ms from state 1 to 0
Protection: Reverse polarity protection, no short circuit protection, no overload protection
Insulation: No insulation between channels, 500 Vrms AC between channel and bus
Mechanical Durability: 20,000,000 cycles
Electrical Durability: 500,000 cycles at 5 A
Current Consumption: 160 mA at 5 V DC bus
Maximum Power Dissipation: 2.3 W
Color: Black
Weight: 0.025 kg
Marking: CE

Core Performance Data

Switching Range: 30 V DC and 230 V AC loads.
Response Speed: 10 ms or less per output.
Current Rating: 5 A per channel, 10 A per common.
Service Life: 20 million mechanical cycles.
Electrical Life: 500,000 cycles at full 5 A load.
Operating Temperature: -10…55 °C without derating, horizontal mount.
Derated Range: -10…60 °C with derating, horizontal mount.
Vertical Mount Range: -10…50 °C.
Storage Temperature: -40…70 °C.
Humidity: 5…95 % without condensation.
Ingress Protection: IP20 per IEC 61131-2.
Pollution Degree: 2 per IEC 60664.
Noise Immunity: 4 kV contact and 8 kV air ESD per IEC 61000-4-2.
RF Immunity: 10 V/m at 80…2000 MHz per IEC 61000-4-3.
Burst Immunity: 2 kV on supply line per IEC 61000-4-4.
Surge Immunity: 1 kV common mode per IEC 61000-4-5.

Installation Guide

Mount the module on a standard DIN rail.
Keep the required clearance for airflow and wiring.
Use removable spring terminals for fast wiring.
Follow TM5 cable size advice for spring terminal blocks.
Add an external slow blow fuse, type T, 5 A, 250 V.
Use an external 100…240 V AC supply for AC loads.
Use an external 24 V DC supply for DC loads.
Add inductive load protection to extend relay life.
Check the 24 V DC I/O power segment inside the bus base.
Confirm polarity before you power the module.

Setup and Maintenance Ease

Relay outputs need no special configuration software.
Clear wiring diagram speeds up first time setup.
Spring terminals reduce wiring time and errors.
Reverse polarity protection lowers damage risk.
No short circuit protection means you must add fuses.
Check relay contact wear after heavy switching cycles.
Replace the module fast if a channel fails.
Keep spare units for critical machine lines.
Log electrical cycles to plan maintenance.
Clean the module with a dry cloth only.

Compatibility Notes

Works with the Modicon TM5 system.
Compatible with PacDrive LMC motion controllers.
Supports PacDrive LMC Pro 2.
Supports PacDrive LMC Eco.
Supports PacDrive LMC Pro.
Fits standard TM5 bus bases.
Uses 24 V DC I/O power from the bus base.
Handles both AC and DC load circuits.
Not for high speed pulse outputs.
Check relay life before you use it for fast cycling loads.

Certifications and Standards

CE marking for European conformity.
CSA C22.2 No 213 and C22.2 No 142.
cULus and UL 508 for North America.
GOST-R for Russia.
C-Tick for Australia and New Zealand.
IEC 61131-2 for programmable controllers.
IEC 61000-4-2 for ESD immunity.
IEC 61000-4-3 for radiated field immunity.
IEC 61000-4-4 for fast transient immunity.
IEC 61000-4-5 for surge immunity.
IEC 61000-4-6 for conducted RF immunity.
CISPR 11 for conducted and radiated emissions.

Green Premium and Environmental Data

Green Premium product status.
REACh declaration available.
No SVHC substances.
EU RoHS proactive compliance.
No toxic heavy metals.
Mercury free.
China RoHS declaration.
PVC free.
WEEE rules apply in EU markets.
Dispose through a special method, not normal waste.

Packing List

TM5SDO4R digital output module, 1 piece.
Product datasheet and wiring guide.
Export carton with protection foam.
Product weight: 0.025 kg.
Check the box on arrival.
Report damage within 48 hours.
Keep the original packing for claims.
Ask sales@powergearx.com for bulk packing needs.
Message +86 18030005825 on WhatsApp for order help.
We reply fast during business hours.

Warranty and Shipping

Warranty: 12 months.
Dispatch: 12-24 hours after order confirmation.
Couriers: FedEx, UPS, DHL.
Tracking number shared after dispatch.
Packaging meets standard export rules.
Contact sales@powergearx.com for shipping questions.
Call or message +86 18030005825 for urgent orders.
Ask about stock before large orders.
We help with compatibility checks.
Share your application for a tailored quote.

Expert Review

The TM5SDO4R is a solid relay output module for TM5 systems.
It handles both AC and DC loads with ease.
The 5 A per channel rating covers many industrial loads.
Relay isolation protects the control side well.
20 million mechanical cycles show strong build quality.
10 ms response suits most machine control tasks.
No short circuit protection means fuses are a must.
Spring terminals make wiring quick and clean.
It fits PacDrive LMC projects without trouble.
A good pick for mixed voltage panels.

Manager’s Insight

Buy this module when you need 4 relay outputs in a small space.
It saves time with removable spring terminals.
Stock spare units for high cycle machines.
Add external fuses to protect each channel.
Use inductive load protection to extend relay life.
Check the derating curve for vertical mounting.
Plan 24 V DC I/O power from the bus base.
Order early to meet 12-24 hour dispatch.
Ask sales@powergearx.com for volume pricing.
Message +86 18030005825 for fast support.

Best Fit Equipment and Applications

PacDrive LMC motion control cabinets.
Packaging lines with AC solenoid valves.
Material handling systems with relay loads.
Assembly machines with mixed AC and DC outputs.
Food processing panels that need relay isolation.
Water treatment skids with pump contactors.
Textile machines with heater and motor loads.
Automotive test stands with lamp and valve banks.
General factory automation with TM5 I/O.
Any TM5 system needing 4 relay outputs.

FAQ

Q: What is the TM5SDO4R used for?
A: It switches 4 relay outputs in Modicon TM5 systems.
Q: How many outputs does it provide?
A: It provides 4 digital outputs with NO contacts.
Q: What voltages can it switch?
A: It handles 30 V DC and 230 V AC loads.
Q: How much current per channel?
A: Each channel carries up to 5 A.
Q: What is the maximum current per common?
A: The common carries up to 10 A.
Q: How fast does it respond?
A: It responds in 10 ms or less.
Q: Does it have short circuit protection?
A: No, you must add external fuses.
Q: What fuse should I use?
A: Use a type T slow blow fuse, 5 A, 250 V.
Q: What is the mechanical life?
A: It reaches 20 million mechanical cycles.
Q: What is the electrical life?
A: It reaches 500,000 cycles at 5 A.
Q: Which controllers work with it?
A: PacDrive LMC Eco, LMC Pro and LMC Pro 2.
Q: What is the operating temperature?
A: It runs at -10…55 °C without derating in horizontal mount.
Q: Can I mount it vertically?
A: Yes, but limit the range to -10…50 °C.
Q: What certifications does it hold?
A: CE, CSA, cULus, GOST-R and C-Tick.
Q: How fast do you ship?
A: We dispatch in 12-24 hours via FedEx, UPS or DHL.
Q: What is the warranty?
A: The warranty is 12 months.
Q: Does it need external power?
A: Yes, use 100…240 V AC or 24 V DC as needed.
Q: How do I get selection help?
A: Email sales@powergearx.com or message +86 18030005825.
