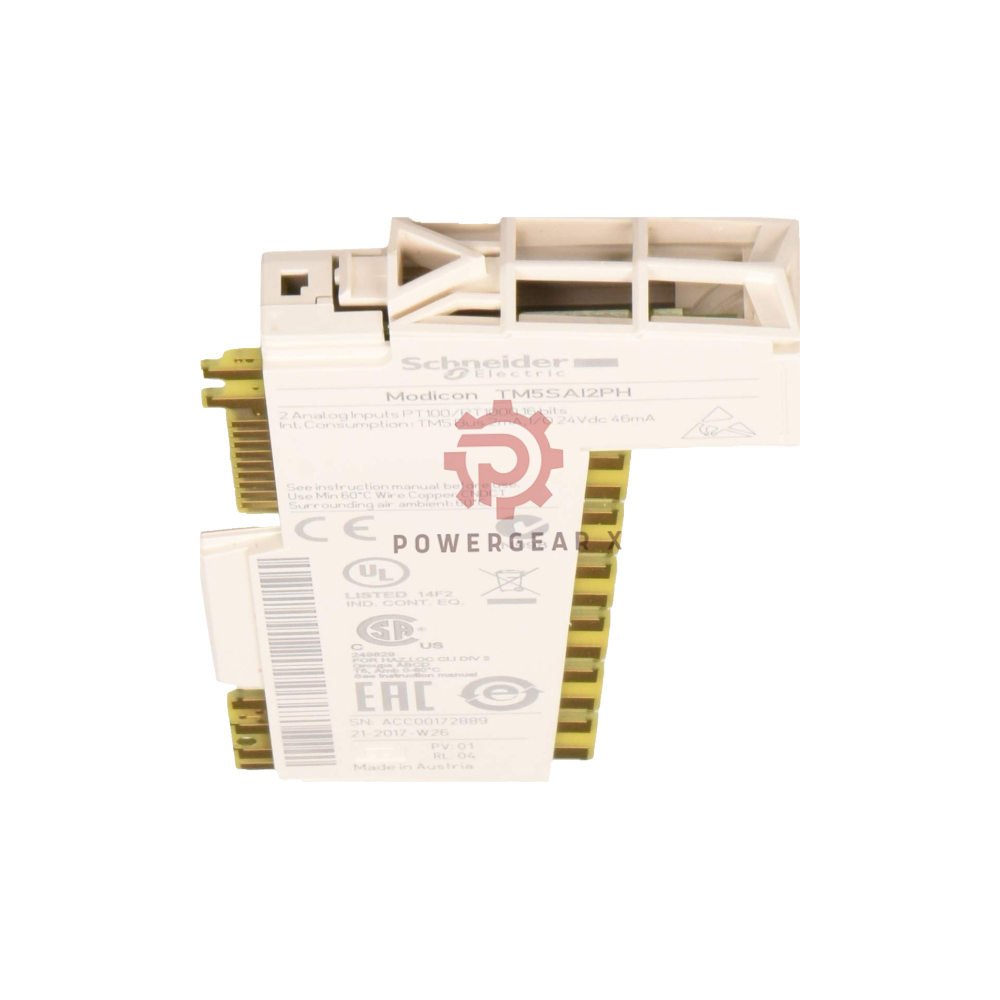

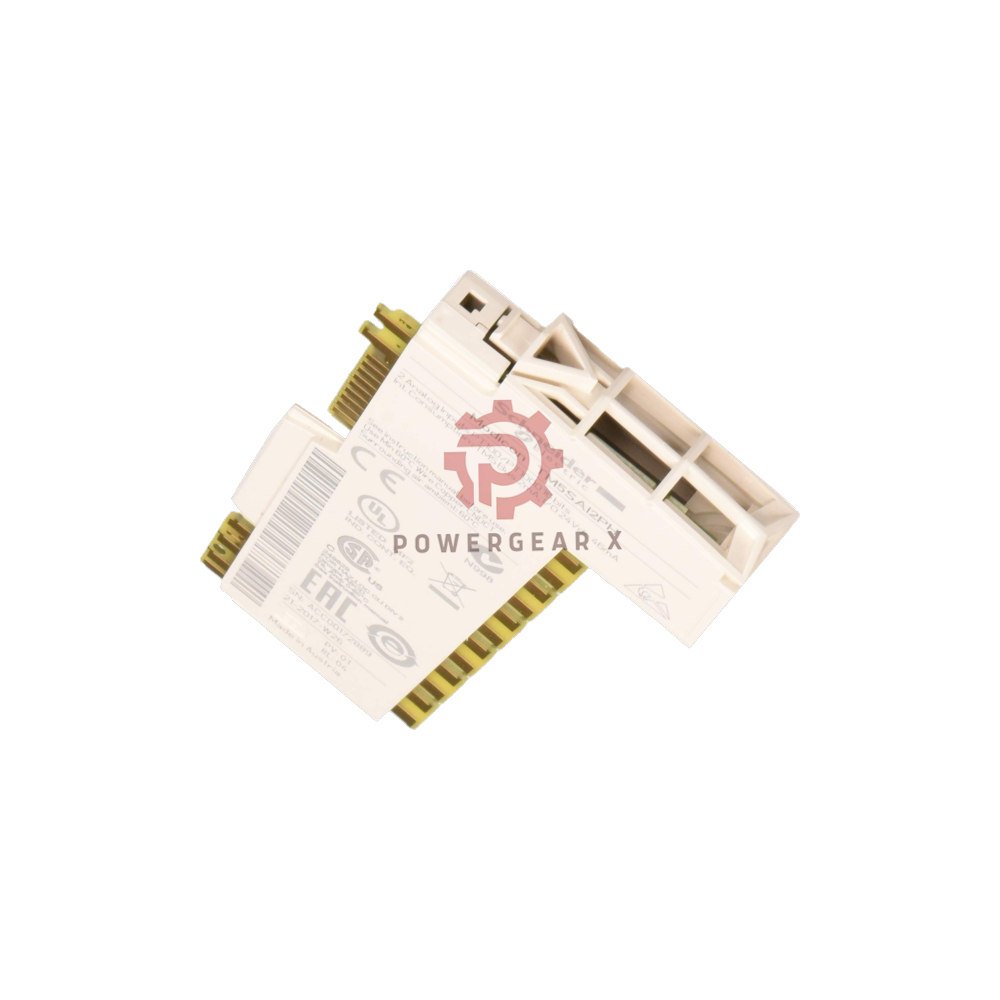

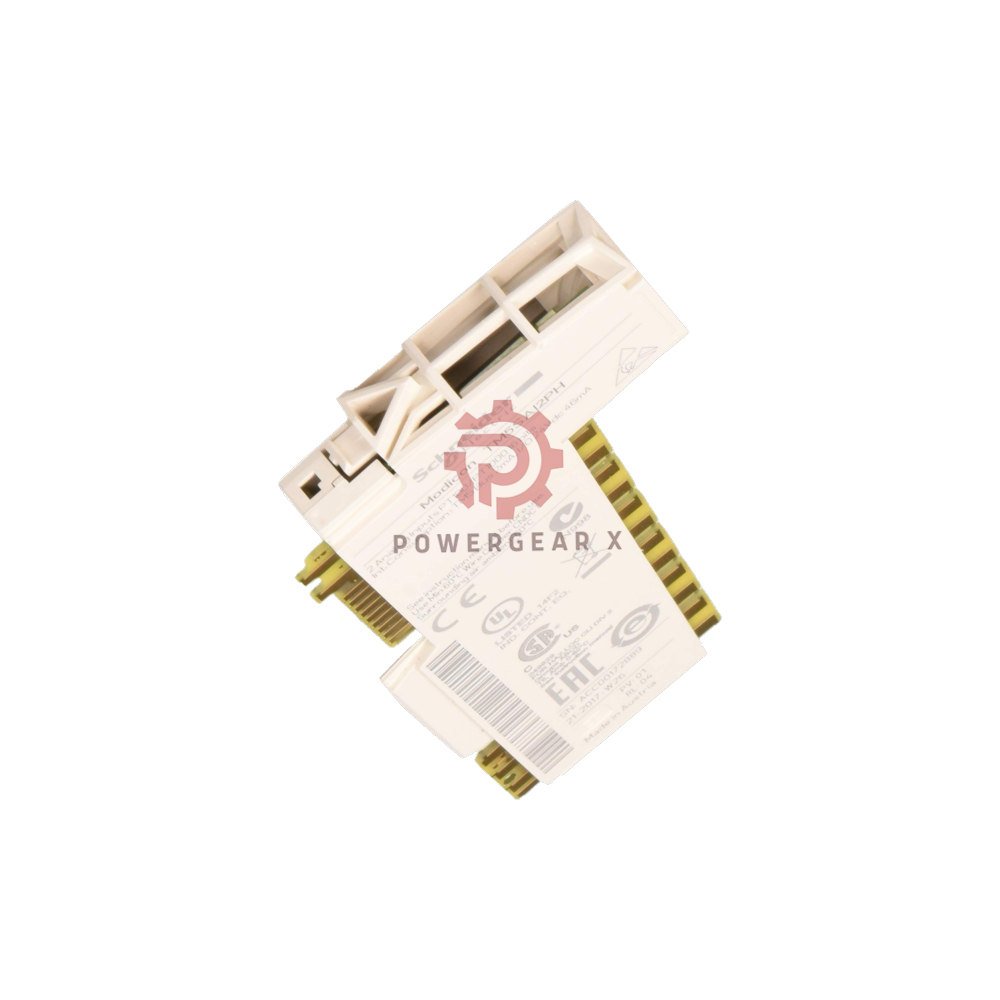

TM5SAI2PH Schneider Modicon TM5 2 Channel PT100 Analog Input Module

TM5SAI2PH Modicon TM5 Analog Input Module – 2 Channel PT100/PT1000 Temperature Probe – 16 Bit

Brand: Schneider Electric | Model: TM5SAI2PH | Series: Modicon TM5

The TM5SAI2PH is a compact analog input module for precise temperature measurement. It reads two PT100 or PT1000 probes. The module offers 16 bit resolution and 0.1 °C measurement resolution. It fits Modicon M258 and LMC058 controllers. This white module suits logic and motion control systems.

Key Advantages

• High accuracy: Measurement error below 0.037 % full scale at 25 °C.
• Fine resolution: 16 bit analog input and 0.1 °C display step.
• Wide range: Supports -200 to 850 °C temperature probes.
• Strong noise immunity: Common mode rejection above 95 dB.
• Simple wiring: Uses shielded cable for stable signals.

Technical Data

• Brand: Schneider Electric
• Model: TM5SAI2PH
• Series: Modicon TM5
• Module type: Analog input module
• Input count: 2
• Input type: PT100 / PT1000 temperature probe
• Measurement range: -200 to 850 °C
• Resolution: 16 bit
• Measurement resolution: 0.1 °C
• Accuracy: Less than 0.037 % full scale at 25 °C
• Temperature coefficient: 0.004 %FS/°C
• Non-linearity: 0.00015 %FS
• Frequency response: Suitable for slow temperature signals
• Sensitivity: Detects small probe changes with 0.1 °C steps
• Linearity: 0.00015 %FS for temperature probes
• Isolation: 500 Vrms AC between channel and bus
• Channel isolation: No insulation between channels
• Power supply: Internal
• Rated voltage: 24 V DC -15 to +20 %
• Current draw: 2 mA at 5 V DC bus
• Current draw: 46 mA at 24 V DC input/output per channel
• Max power dissipation: 1.11 W
• Color: White
• Net weight: 0.025 kg

Environmental Tolerance

• Operating temperature: 0 to 55 °C without derating
• Operating temperature: 0 to 60 °C with derating
• Operating temperature: 0 to 50 °C vertical mounting
• Storage temperature: -25 to 70 °C
• Relative humidity: 5 to 95 % non-condensing
• Protection degree: IP20 to IEC 61131-2
• Pollution degree: 2 to IEC 60664
• Operating altitude: 0 to 2000 m
• Storage altitude: 0 to 3000 m

Noise and Surge Immunity

• Common mode rejection: Above 95 dB
• Static discharge: 4 kV contact, 8 kV air to IEC 61000-4-2
• Electromagnetic field: 1 V/m from 2 to 2.7 GHz
• Electromagnetic field: 10 V/m from 80 to 2000 MHz
• Transient burst: 1 kV for I/O and shielded cable
• Transient burst: 2 kV for power lines
• Surge: 0.5 kV differential mode
• Surge: 1 kV common mode
• EMC: EN/IEC 61000-4-6
• Emission: CISPR 11

Installation Guide

• Mount the module on a DIN rail.
• Use shielded cable for probe wiring.
• Keep signal wires away from power lines.
• Check the 24 V DC supply before startup.
• Confirm the LED status after power on.

Commissioning and Maintenance

• Green LED shows power supply status.
• Red LED shows power supply fault.
• Green input LEDs show channel status.
• Replace probes only when power is off.
• Clean the module surface with a dry cloth.

Compatibility

• Works with Modicon M258 logic controllers.
• Works with Modicon LMC058 motion controllers.
• Fits Modicon TM5 system racks.
• Accepts standard PT100 and PT1000 probes.

Certifications

• CE
• UL 508
• CSA C22.2 No 142
• CSA C22.2 No 213
• IEC 61131-2
• cULus
• CSA
• GOST-R
• C-Tick

Package List

• 1 x TM5SAI2PH analog input module
• Package height: 2.000 cm
• Package width: 6.000 cm
• Package length: 10.500 cm
• Package weight: 40.000 g
• Package unit: 1 PCE

Warranty and Shipping

• Warranty: 12 months
• Dispatch: 12 to 24 hours
• Courier: FedEx, UPS, DHL
• Inquiries: sales@powergearx.com
• WhatsApp: +86 18030005825

Expert Review

The TM5SAI2PH gives machine builders a clean path to accurate temperature control. Two PT100 or PT1000 inputs cover most industrial heating and cooling tasks. The 16 bit resolution and 0.1 °C step help detect small process changes. The high common mode rejection blocks electrical noise. This module suits food processing, packaging, plastic molding, and test benches. It also fits drying ovens, heat exchangers, and cold storage rooms. For teams using Modicon M258 or LMC058, this module is a practical choice.

Manager’s Insight

Buyers often need fast delivery and clear traceability. This TM5SAI2PH ships in 12 to 24 hours by FedEx, UPS, or DHL. It carries CE, UL, CSA, and GOST-R marks. The 12 month warranty lowers risk. The white housing makes cabinet layout easy. For system integrators, this module reduces wiring time and improves temperature stability. Contact sales@powergearx.com or +86 18030005825 for stock and pricing.

Suitable Equipment and Applications

• Food and beverage processing lines
• Packaging machines
• Plastic injection molding machines
• Industrial ovens and dryers
• Heat exchangers and HVAC systems
• Cold storage and refrigeration units
• Test and measurement benches
• Modicon M258 and LMC058 control panels

FAQ

Q: What probes does the TM5SAI2PH support?

A: It supports PT100 and PT1000 temperature probes.

Q: What is the temperature range?

A: The range is -200 to 850 °C.

Q: How accurate is this module?

A: Error stays below 0.037 % full scale at 25 °C.

Q: Does it need external power?

A: No. It uses internal power from the bus.

Q: Can I use unshielded cable?

A: Shielded cable is strongly recommended for stable readings.

Q: What controllers work with this module?

A: Modicon M258 and LMC058 controllers work with it.

Q: How fast is shipping?

A: Orders leave in 12 to 24 hours by FedEx, UPS, or DHL.

Q: Is there a warranty?

A: Yes. The warranty covers 12 months.

Q: Experienced buyer tip. What should I check first?

A: Check probe type, cable shielding, and 24 V DC supply before installation.

Q: Experienced buyer tip. How do I avoid noise issues?

A: Route signal cables away from motors and power lines. Ground the shield at one end.

Q: Buying advice. When should I choose this module?

A: Choose it for two channel temperature control in Modicon TM5 systems.

Q: Buying advice. What else should I order?

A: Order shielded cable, PT100 or PT1000 probes, and a DIN rail mount kit.

Buying Guide

• Confirm your controller supports Modicon TM5 modules.
• Match the probe type to PT100 or PT1000.
• Check the temperature range covers your process.
• Use shielded cable for long runs.
• Plan for 24 V DC supply and DIN rail space.
• Order spare probes for fast maintenance.
