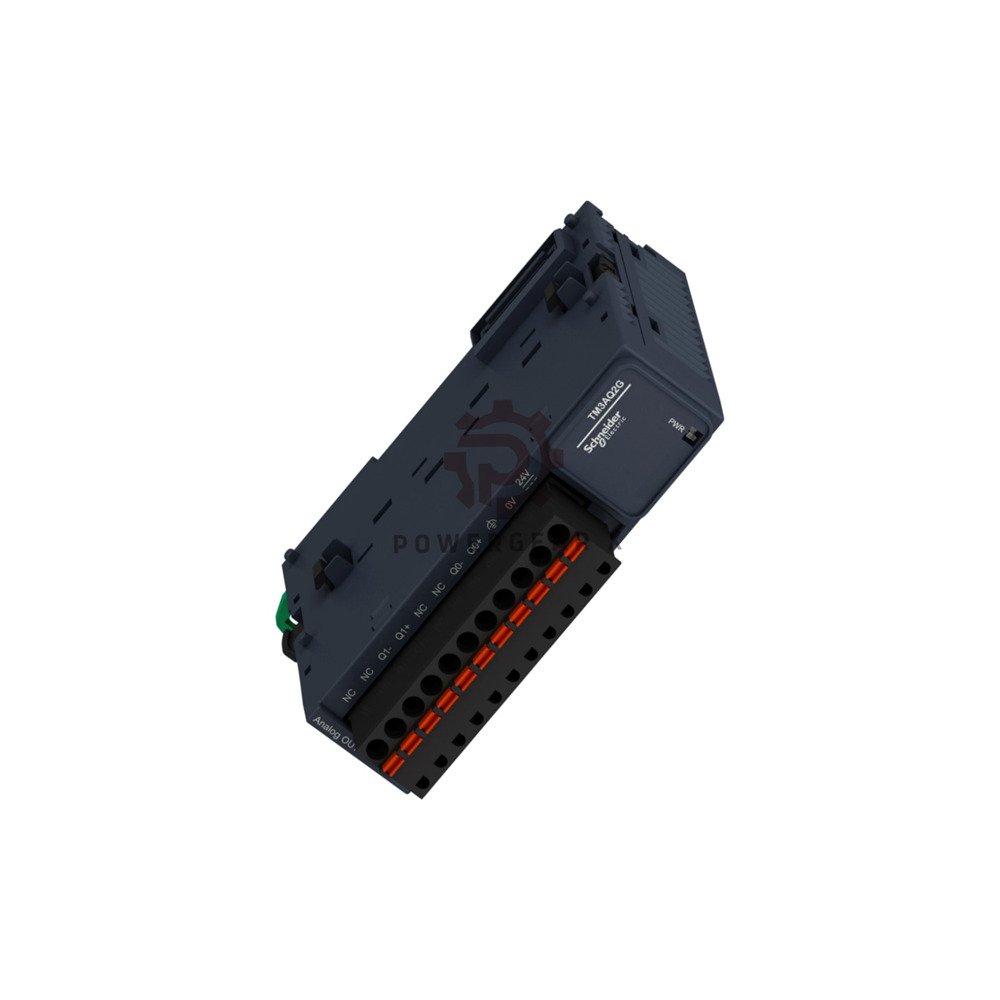

TM3AQ2G Schneider Modicon Analog Output Module 2 Channel

TM3AQ2G Schneider Electric Modicon Analog Output Module – 2 Channel, High Precision

Brand: Schneider Electric
Model: TM3AQ2G
Series: Modicon TM3
Type: Analog Output Module

Get precise analog control for your Modicon system. The TM3AQ2G delivers two independent output channels. Moreover, it supports voltage and current signals. Therefore, this module fits M221, M241, and M251 controllers. As a result, it is ideal for industrial automation tasks. In addition, it saves panel space. Furthermore, it installs in minutes. Besides, it needs no calibration. Consequently, it cuts setup time. Similarly, it lowers wiring effort. For example, it fits tight cabinets. Also, it works with existing racks. Thus, it upgrades old lines fast.

Technical Data

• Brand: Schneider Electric
• Model: TM3AQ2G
• Series: Modicon TM3
• Output Channels: 2 analog outputs
• Output Signal Types: 0…10 V, -10…10 V, 0…20 mA, 4…20 mA, thermistor
• Resolution: 11 bits + sign, 12 bits
• Lowest Bit Value: 2.44 mV (0…10 V), 4.88 mV (-10…10 V), 4.88 µA (0…20 mA), 3.91 µA (4…20 mA)
• Load Type: Resistive
• Load Impedance: 1 kOhm (voltage), 300 Ohm (current)
• Settling Time: 1 ms
• Conversion Time: 1 ms + 1 ms per channel + 1 controller cycle
• Absolute Accuracy Error: ±0.1% full scale at 25 °C, ±1% full scale
• Temperature Drift: ±0.006% FS/°C
• Repeat Accuracy: ±0.4% FS
• Non-Linearity: ±0.01% FS
• Output Ripple: 20 mV
• Crosstalk: ≤ 1 LSB
• Supply Voltage: 24 V DC
• Supply Voltage Limits: 20.4…28.8 V
• Cable Type: Shielded twisted pair, 30 m for output circuit
• Power Consumption: 40 mA at 5 V DC (full load, bus), 35 mA at 5 V DC (no load, bus), 30 mA at 24 V DC (no load, external), 70 mA at 24 V DC (full load, external)
• Local Signaling: 1 green LED for PWR
• Electrical Connection: 11 x 2.5 mm² spring removable terminal block, 5.08 mm pitch
• Isolation: 500 V AC between output and internal logic, 1500 V AC between outputs and supply
• Marking: CE
• Shock Wave Resistance: 1 kV common mode, 0.5 kV differential mode, 1 kV output common mode (EN/IEC 61000-4-5)
• Mounting: Top hat TH35-7.5 rail (IEC 60715), plate or panel with kit
• Dimensions (H x D x W): 90 mm x 70 mm x 23.6 mm
• Weight: 0.1 kg

Environmental & Immunity Data

• Standards: EN/IEC 61131-2, EN/CEI 61010-2-201
• Electrostatic Discharge: 4 kV contact, 8 kV air (EN/IEC 61000-4-2)
• Radiated Electromagnetic Fields: 10 V/m (80 MHz…1 GHz), 3 V/m (1.4…2 GHz), 1 V/m (2…3 GHz) per EN/IEC 61000-4-3
• Magnetic Fields: 30 A/m (EN/IEC 61000-4-8)
• Fast Transients: 1 kV I/O (EN/IEC 61000-4-4)
• Conducted Disturbances: 10 V (0.15…80 MHz) per EN/IEC 61000-4-6
• Radio Frequency Fields: 3 V at test frequencies per marine approvals (LR, ABS, DNV, GL)
• Radiated Emissions: 40 dBμV/m QP Class A (10 m, 30…230 MHz), 47 dBμV/m QP Class A (10 m, 230…1000 MHz) per EN/IEC 55011
• Micro-Outage Immunity: 10 ms
• Operating Temperature: -10…55 °C (horizontal), -10…35 °C (vertical)
• Storage Temperature: -25…70 °C
• Relative Humidity: 10…95% non-condensing (operation and storage)
• Ingress Protection: IP20
• Pollution Degree: 2
• Operating Altitude: 0…2000 m
• Storage Altitude: 0…3000 m
• Vibration Resistance: 3.5 mm (5…8.4 Hz), 3 gn (8.4…150 Hz) on DIN rail
• Mechanical Shock Resistance: 15 gn for 11 ms

Sustainability & Compliance

• Environmental Status: Green Premium product
• RoHS: Compliant since week 1415 – Schneider Electric declaration
• REACh: No SVHC above threshold
• Product Environmental Profile: Available
• End-of-Life Instructions: Available
• Contractual Warranty: 18 months

Installation Guide

• Mount on TH35-7.5 DIN rail or panel with kit.
• Use shielded twisted pair cable. Also, keep length under 30 m.
• Connect via 11-pin spring terminal block. Meanwhile, check the 5.08 mm pitch.
• Supply voltage must be 24 V DC. Therefore, keep range at 20.4…28.8 V.
• Keep horizontal for full temperature range. However, vertical reduces max temp to 35 °C.

Debugging & Maintenance

• Check green PWR LED for power status.
• Verify wiring with a multimeter before power-up.
• Use stable 24 V supply to avoid output ripple.
• Clean terminals only with dry air. Therefore, do not use liquids.
• No calibration needed. Thus, the module is factory-tested.

Compatibility

• Works with Modicon M221, M241, and M251 controllers.
• Fits Modicon TM3 expansion series.
• Supports standard industrial analog actuators and drives.

Certifications

• CE marked.
• Meets EN/IEC 61131-2 and EN/CEI 61010-2-201.
• Marine approvals: LR, ABS, DNV, GL.
• Green Premium – RoHS and REACh compliant.

Package List

• 1 x TM3AQ2G analog output module
• 1 x terminal block (11-pin, spring type)
• 1 x quick start guide
• 1 x mounting kit for panel or plate

Warranty & Shipping

• Warranty: 12 months from Powergear X.
• Dispatch: 12–24 hours after payment.
• Couriers: FedEx, UPS, DHL.
• Tracking number provided after shipment.

Expert Review

The TM3AQ2G is a solid choice for compact analog control. It offers fast settling time and low ripple. Moreover, the 12-bit resolution gives smooth signal output. Temperature drift is very low. This module handles both voltage and current loops. Furthermore, it fits marine and industrial environments. For M221/M241/M251 users, it is a plug-and-play expansion. The spring terminals save wiring time. Therefore, no special tools are needed. In short, this is a reliable workhorse for machine builders. Consequently, it keeps your line running. Besides, it lowers long-term costs. Similarly, it reduces spare part needs. Also, it cuts training time. Thus, it pays back fast.

Manager’s Insight

We see strong demand for this module in packaging and textile lines. Customers like the wide signal support. The TM3AQ2G reduces spare part count. One module covers 0-10V, ±10V, and 4-20mA. Consequently, that cuts inventory costs. Shipping is fast. We keep stock ready for 12–24 hour dispatch. For OEMs using Modicon, this is a safe, long-life part. In addition, it carries marine approvals, so it works in tough places. As a result, downtime stays low. Therefore, your team saves money. Furthermore, stock stays simple. Likewise, service stays quick. For example, one part covers many jobs. Also, it lowers training needs.

Best Fit Devices & Applications

• Modicon M221, M241, M251 PLC systems
• Analog valves and dampers
• Variable frequency drives (VFDs)
• Temperature and pressure transmitters
• Marine control panels
• Packaging and labeling machines
• Textile and printing equipment

FAQ

Q: What controllers work with this module?
A: It works with Modicon M221, M241, and M251. Therefore, no extra adapter is needed.

Q: Can I use both voltage and current outputs at the same time?
A: Yes. Each channel is independent. Moreover, you can mix signal types.

Q: How long can the output cable be?
A: Use shielded twisted pair. In addition, keep it under 30 meters.

Q: Does it need external power?
A: Yes. It needs 24 V DC. Therefore, keep the range at 20.4 to 28.8 V.

Q: What is the settling time?
A: It is 1 ms. Thus, it is fast for most control loops.

Q: Is this module marine approved?
A: Yes. It holds LR, ABS, DNV, and GL approvals.

Q: How do I know it is powered?
A: A green LED marked PWR lights up.

Q: Can I mount it vertically?
A: Yes. However, max operating temperature drops to 35 °C.

Q: What is the warranty?
A: Powergear X offers 12 months warranty.

Q: How fast do you ship?
A: We dispatch in 12–24 hours via FedEx, UPS, or DHL.

Q: Do you provide tracking?
A: Yes. We send tracking after shipment.

Q: Is calibration required?
A: No. The module is factory-calibrated.

Q: What is the resolution?
A: 11 bits plus sign, or 12 bits depending on range.

Q: Can it drive a 4-20 mA valve?
A: Yes. It supports 4…20 mA current output.

Q: What is the load impedance for current output?
A: 300 Ohm maximum.

Q: What is the load impedance for voltage output?
A: 1 kOhm minimum.

Q: Does it come with a terminal block?
A: Yes. An 11-pin spring terminal block is included.

Q: What is the IP rating?
A: IP20. Therefore, keep it in a clean cabinet.

Q: How many outputs does it have?
A: Two independent analog outputs.

Q: What is the supply current draw?
A: Up to 70 mA at 24 V DC under full load.

Buying Guide

• Check your PLC model. Thus, it must be M221, M241, or M251.
• Count your analog outputs. This module gives two.
• Match signal type. It covers voltage, current, and thermistor.
• Confirm panel space. Module is 23.6 mm wide.
• Order spare terminal blocks for fast service.
• For marine use, verify approvals match your class.
• Buy from a trusted stockist. Powergear X ships fast.
