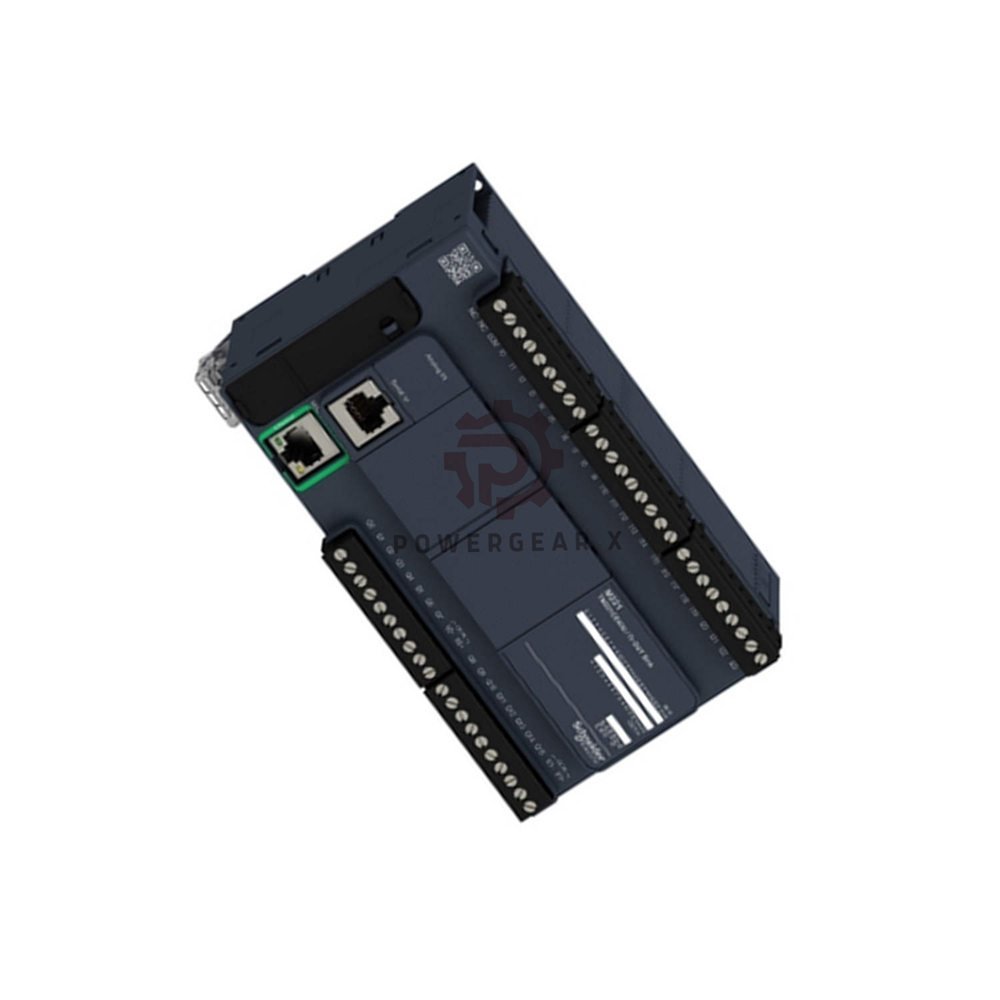

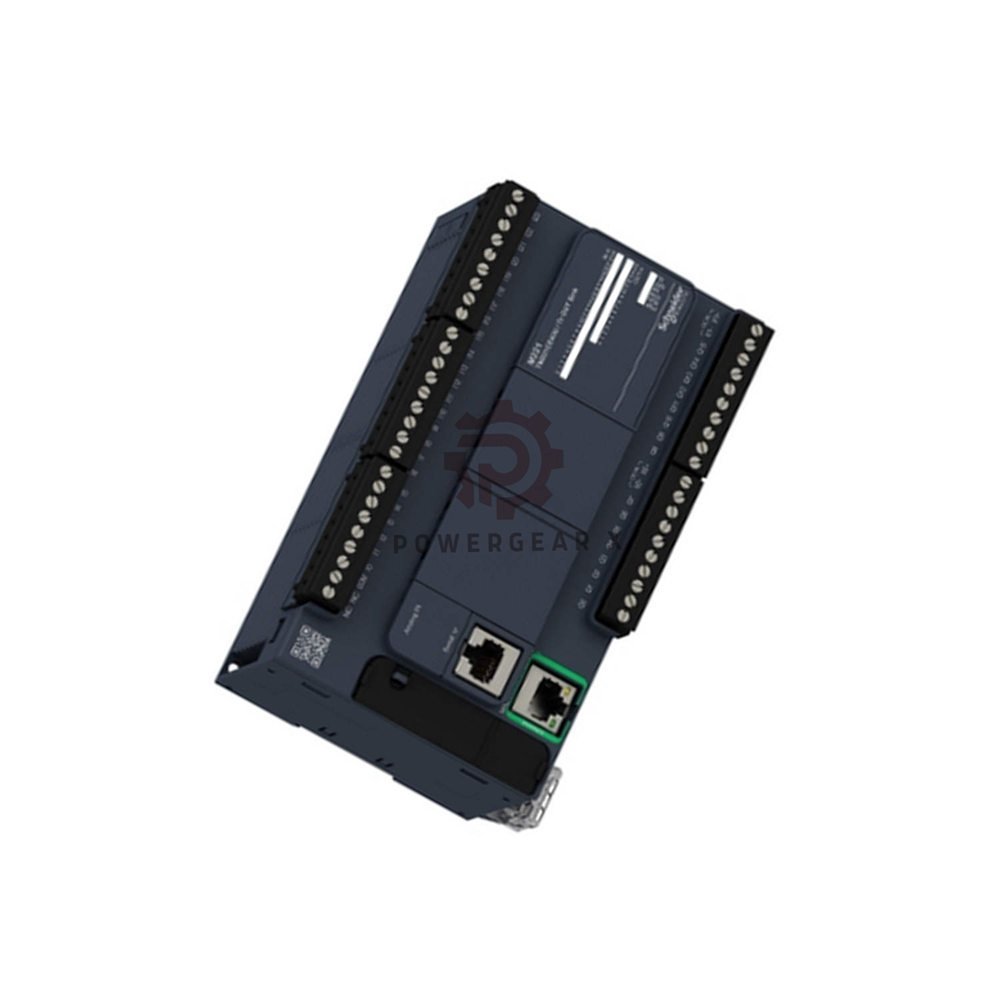

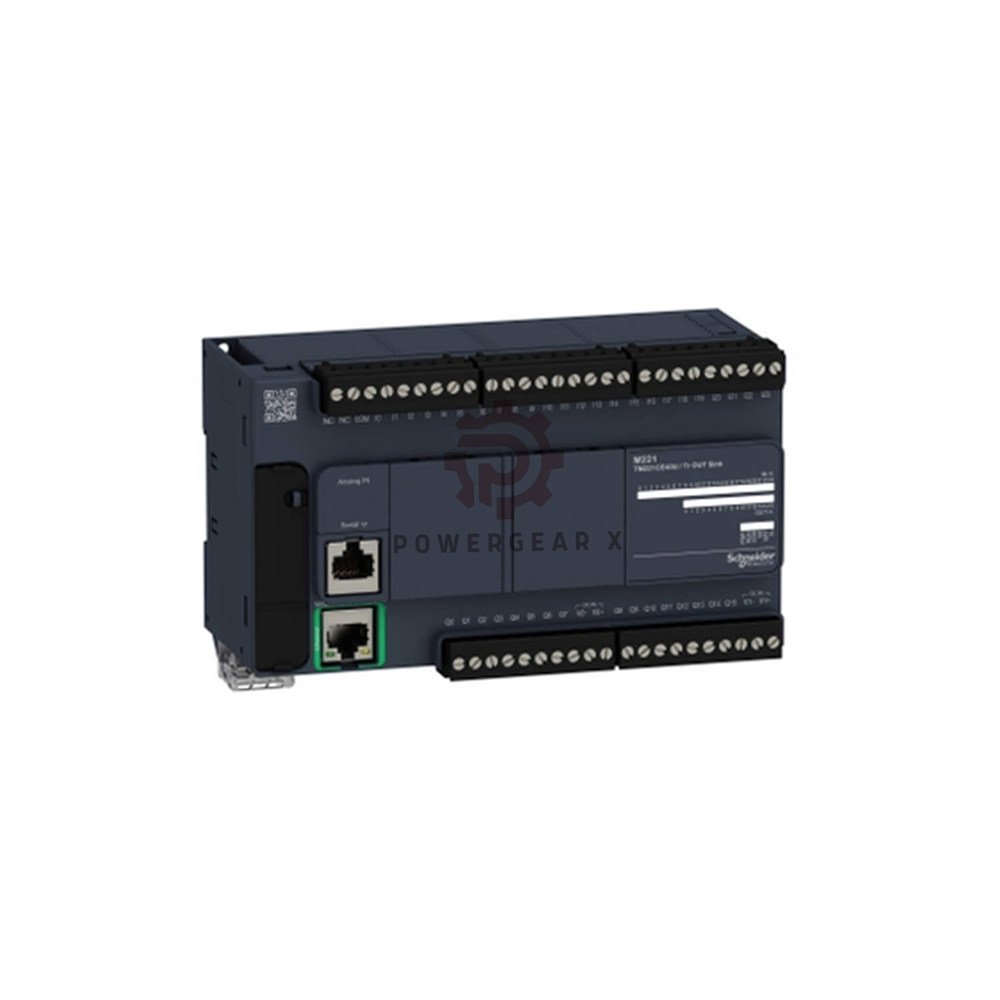

TM221CE40U Modicon M221 Logic Controller – 40 I/O, Ethernet, Transistor Outputs

TM221CE40U – Modicon M221 Logic Controller

40 discrete I/O. 2 analog inputs. Ethernet built-in. Transistor outputs. Compact and powerful for small machines.

This controller handles logic, motion, and communication in one unit. Designed for OEMs and panel builders. Easy to program and maintain.

Key Features

• • 24 digital inputs (4 fast)
• • 16 transistor outputs (4 fast)
• • 2 analog inputs (0…10 V)
• • Ethernet port for networking
• • USB programming port
• • RS232/RS485 serial link
• • SD card slot for data backup
• • Real-time clock built-in

Technical Specifications

• Brand: Schneider Electric / Modicon
• Model: TM221CE40U
• Series: M221 Logic Controller
• Power supply: 24 V DC (20.4…28.8 V)
• Discrete I/O: 40 (24 in / 16 out)
• Analog inputs: 2 (0…10 V, 10-bit)
• Output type: Transistor (sink)
• Output current: 0.5 A per channel
• Fast outputs: 4 (PWM/PTO up to 100 kHz)
• Fast inputs: 4 (HSC up to 100 kHz)
• Memory: 256 kB (application + data)
• Execution speed: 0.3 ms per 1K instructions
• PID loops: Up to 14 simultaneous
• Communication: Ethernet, USB, RS232/RS485
• Protocols: Modbus TCP, Modbus RTU, Ethernet/IP
• Expansion: Up to 7 I/O modules
• Mounting: DIN rail or panel
• Dimensions: 160 × 90 × 70 mm
• Weight: 0.78 kg

Environmental Ratings

• Operating temp: -10…55 °C (horizontal)
• Storage temp: -25…70 °C
• Humidity: 10…95% (non-condensing)
• Protection: IP20 (with cover)
• Vibration: 3.5 mm / 1 gn
• Shock: 147 m/s² (11 ms)

Certifications

• • CE, cULus, CSA
• • EAC, RCM, DNV-GL
• • LR, ABS, IACS E10
• • EN/IEC 61131-2 compliant

Expert Review

“The M221 is a workhorse for small automation tasks. Its fast outputs handle PWM and positioning with ease. The Ethernet port makes connectivity simple. A solid choice for packaging and conveyors.”

Manager’s Insight

“We stock this model because it is reliable and easy to support. The 12-month warranty gives peace of mind. With 24-hour shipping, you get it fast. FedEx, UPS, or DHL – your choice.”

Typical Applications

• • Conveyor belts and material handling
• • Packaging machines
• • Small assembly lines
• • Pump and fan control
• • HVAC systems
• • Solar tracking and renewable energy

Frequently Asked Questions

• Q: What is the difference between fast and standard outputs?
• A: Fast outputs (Q0…Q3) support PWM and PTO up to 100 kHz. Standard outputs run at 0.1 kHz.
• Q: Can I use this controller with a touchscreen HMI?
• A: Yes. Use Ethernet or Modbus serial to connect to most HMIs.
• Q: Does it support remote monitoring via internet?
• A: Yes. The Ethernet port supports Modbus TCP and Ethernet/IP for remote access.
• Q: How do I back up my program?
• A: Use the SD card slot or the built-in flash memory. Both store application and data.
• Q: What happens during a power failure?
• A: The real-time clock and backup battery retain data for about 1 year.
• Q: Is the controller suitable for marine use?
• A: Yes. It has LR, ABS, and DNV-GL marine certifications.
• Q: What is the warranty period?
• A: 12 months from date of purchase. Covers parts and labor.
• Q: How fast can you ship?
• A: We dispatch within 12 to 24 hours. Choose FedEx, UPS, or DHL.
• Q: Which software do I need to program it?
• A: Use EcoStruxure Machine Expert Basic or SoMachine.
• Q: Can I expand I/O later?
• A: Yes. Add up to 7 expansion modules for relay, analog, or digital I/O.

Purchasing Guide

• • Confirm your power supply is 24 V DC.
• • Check if you need fast outputs for PWM or positioning.
• • Choose shielded cable for analog and fast signals.
• • Order an SD card if you need extra data storage.
• • Consider expansion modules for extra relays or analog inputs.

Shipping & Warranty

• Warranty: 12 months (parts and labor).
• Dispatch: 12–24 hours after order.
• Carriers: FedEx, UPS, DHL – trackable worldwide.
• Packaging: Industrial anti-static box.

Package Contents

• • 1 × TM221CE40U logic controller
• • 1 × Removable terminal block set
• • 1 × Quick-start guide
• • 1 × Software DVD
• • 1 × Mounting clips for DIN rail

Compare with Other Models

• • TM218LDA40DR4PHN – 40 I/O, relay outputs, 2 analog inputs
• • TM221CE16R – 16 I/O, relay outputs, compact size
• • M241 PLC – Advanced motion control, higher speed
