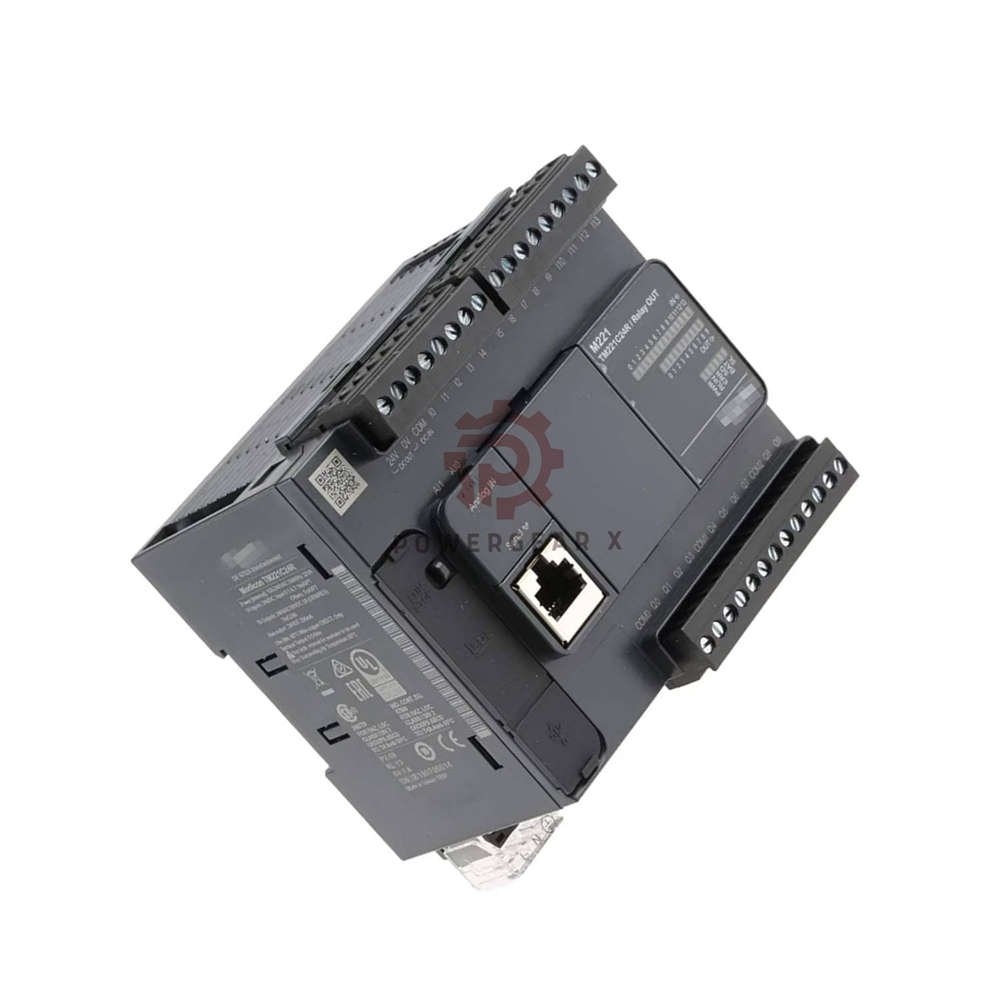

TM221C24R Modicon Controller – Schneider Electric Compact PLC

Controller Overview

• TM221C24R – Modicon series controller
• Schneider Electric, compact & high-performance
• 24 V DC power supply
• 14 digital inputs, 10 relay outputs (NO/NC)
• 2 analog inputs: 0‑10 V

Core Technical Specs

• Processor – 32‑bit, 22 ns per instruction
• Memory
  • 256 kB program memory
  • 64 kB retention memory
• I/O expansion – supports additional modules
• Clock – built‑in real‑time clock for time tasks
• Temperature – -10 °C to 55 °C
• Mounting – DIN rail, 130 x 95 mm (L x W)
• Weight – 0.45 kg (1.00 lbs)

Key Features & Benefits

• Fast 32‑bit CPU for precise logic control
• Relay outputs handle high‑current loads
• Analog inputs for sensors or potentiometers
• Retention memory saves data during power loss
• Real‑time clock enables scheduled actions

Installation & Maintenance

• Snap onto DIN rail – no extra brackets
• Removable terminal blocks for easy wiring
• LED indicators show I/O and fault status
• Program via EcoStruxure Machine Expert
• Firmware updates via USB or Ethernet

Compatibility & Applications

• Works with sensors, relays, actuators
• Ideal for conveyors, packaging, pumps
• Supports Modbus TCP/IP and serial
• Expand with I/O modules for more points
• Use in control panels, small machines

Expert Review

• “A reliable workhorse for small to mid‑size automation. The 22 ns speed handles fast sequences. Analog inputs reduce the need for extra converters. Easy to program and debug.” – Senior Controls Engineer

Manager’s Insight

• “This controller cuts engineering time. Its compact size fits tight panels. The retention memory protects critical data. A cost‑effective choice for OEMs and system integrators.” – Product Line Manager

FAQ – Professional Q&A

• Can this controller handle high‑speed counting?
  Yes, it supports up to 2 high‑speed counters (100 kHz).
• What programming software is required?
  Use EcoStruxure Machine Expert – Basic (free version available).
• Is the real‑time clock battery‑backed?
  Yes, it retains time for at least 10 days without power.
• How many expansion modules can I add?
  Up to 7 additional I/O modules per system.
• Does it support Ethernet/IP?
  No, but it does support Modbus TCP/IP.

Experience & Selection Guide

• Choose this for relay‑based outputs (10 relays).
• For transistor outputs, see TM221C24T model.
• Need more analog inputs? Add expansion modules.
• Always use 24 V DC regulated power supply.
• Check temperature range: -10 to 55 °C.

Comparison with Similar Models

• TM221C16R – 16 I/O, fewer analog points
• TM221C24T – 24 V DC transistor outputs
• TM241C24R – larger memory, more communication ports

Package & Warranty

• Includes: controller, terminal blocks, quick guide
• Warranty: 12 months against defects
• Shipping: 12‑24 hours via FedEx, UPS, or DHL
