Name: TM218LDAE40DRPHN Modicon M218 Logic Controller | Schneider Electric
SKU: TM218LDAE40DRPHN
Price: 266.00 USD
Availability: InStock

Product details

Product Description

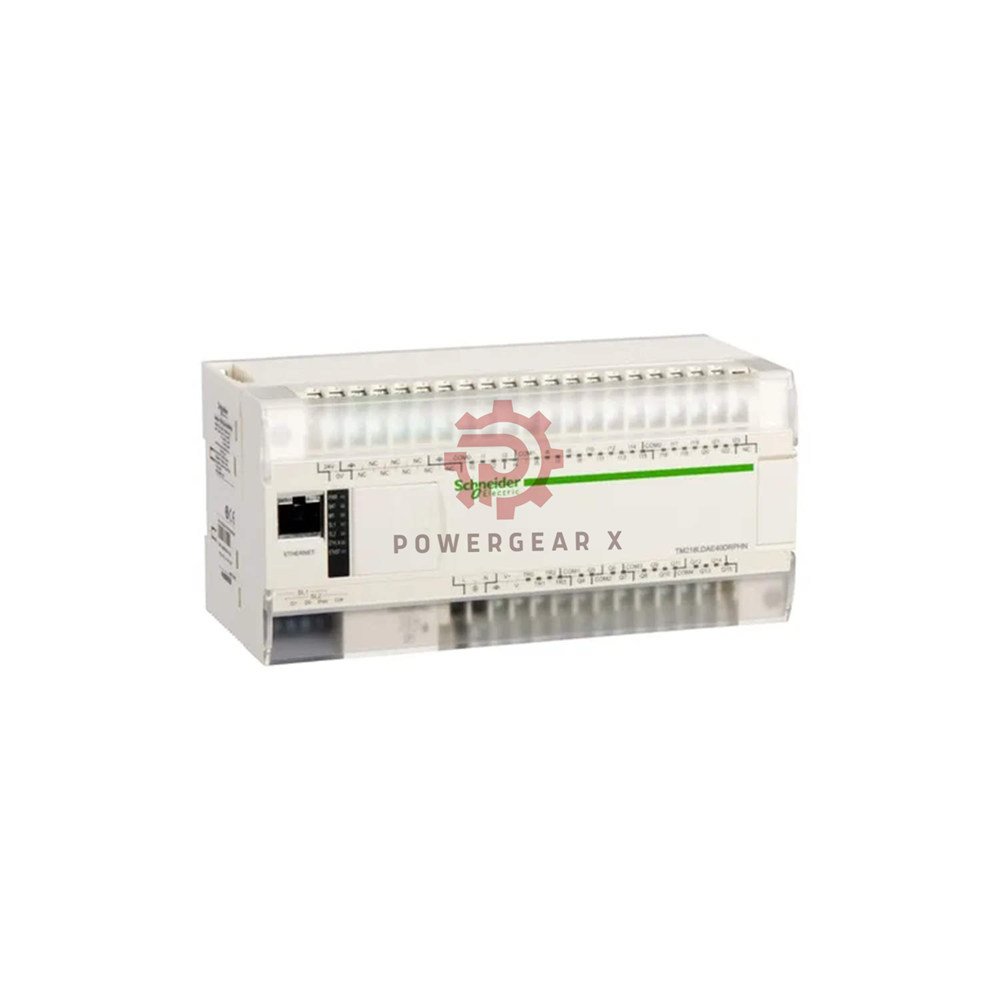

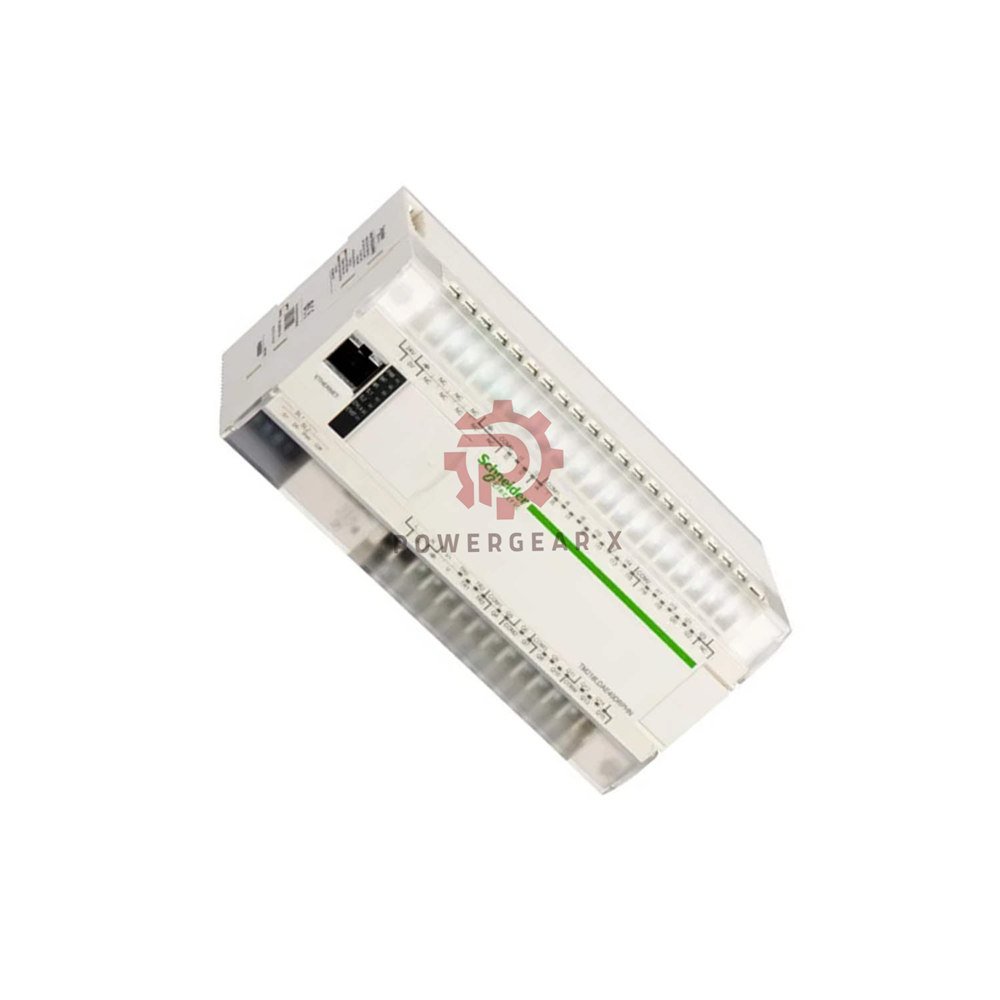

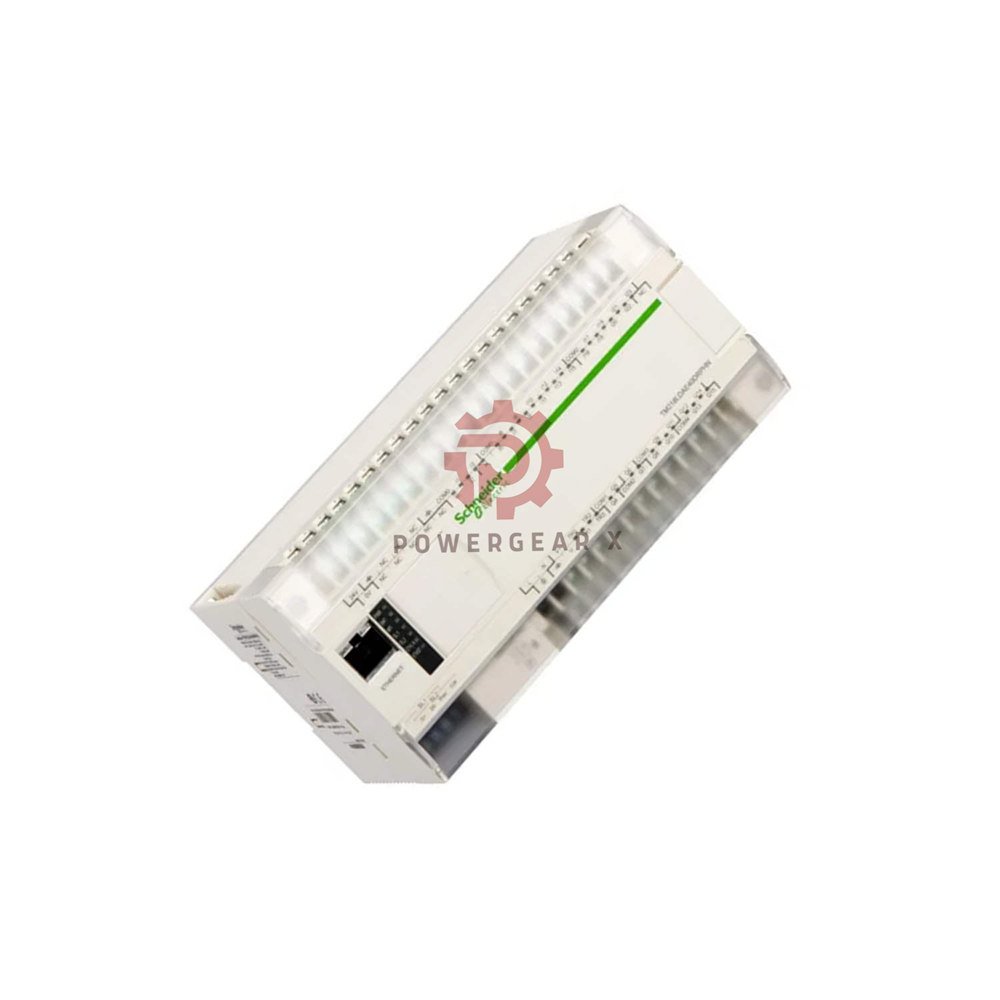

TM218LDAE40DRPHN belongs to the Modicon M218 series.
It is a compact logic controller from Schneider Electric.
This controller handles up to 248 I/O points.
Supports up to 7 expansion modules for flexible system growth.
Offers 20 regular and 4 fast digital inputs (HSC).
Provides 12 relay and 4 fast digital outputs (PTO/PWM/FG).
Lacks built-in analog I/O, ideal for digital-centric applications.

Technical Specifications

Brand: Schneider Electric
Model: TM218LDAE40DRPHN
Series: Modicon M218
Product Type: Logic Controller
Rated Voltage: 100…240 Vac (85…264 Vac limit)
Frequency: 50/60 Hz
Power Interruption: 10 ms at 100 Vac
Inrush Current: 30 A at 110 Vac, 60 A at 240 Vac
Continuous Output Power: 34 W
Isolation (AC to logic/IO/PE): 1780 Vac / 2500 Vdc
Max Relay Outputs: 90
Max I/O Points: 248

Key Performance & Environment

Measurement range: Digital I/O only (no analog)
Frequency response: Supports fast HSC and PTO/PWM/FG
Sensitivity: High-speed input captures quick signals
Linearity: Digital logic ensures stable performance
Resolution: 16-bit for fast counters
Temperature range: 0…55 °C (operating)
Environmental tolerance: Resists vibration and humidity
Noise immunity: High isolation reduces interference

Installation & Commissioning

Mounting: Easy DIN-rail or panel installation
Wiring: Removable terminal blocks for quick connection
Programming: Use EcoStruxure Machine Expert Basic
Debug: Built-in diagnostic LEDs and online monitoring
Maintenance: Hot-swappable modules reduce downtime

Compatibility & Certification

Software: Compatible with SoMachine and EcoStruxure
Expansion: Works with TM2, TM3, and TM4 I/O modules
Communication: Serial, Ethernet (via add-on)
Certification: CE, UL, CSA, and RoHS compliant
Environment: Meets industrial EMC standards

Package & Logistics

In the box: Controller, terminal blocks, user manual
Warranty: 12 months from delivery date
Shipping: 12-24 hours dispatch via FedEx, UPS, or DHL
Tracking: Provided within 24 hours of shipment

Expert Review

“Reliable digital controller for small to mid-size machines. Fast inputs and outputs handle motion and counting precisely. Easy to program with EcoStruxure. Excellent value for digital control.”

Manager’s Insight

“Choose this controller for cost-effective digital I/O control. It reduces wiring with modular expansion. Great for production lines and packaging machines. Downtime is minimal with quick replacement.”

Applicable Devices & Scenarios

Packaging machines – precise output control
Conveyor systems – high-speed counting and positioning
Textile machinery – reliable relay switching
HVAC systems – digital control for fans and pumps
Small automation cells – cost-effective logic solution

Frequently Asked Questions (FAQ)

Q: Does it support analog input?
A: No. This model has no analog I/O. Use expansion modules for analog.
Q: Can I use it with 24 Vdc?
A: No. Rated for 100…240 Vac only.
Q: What is the maximum number of expansion modules?
A: Up to 7 modules, total I/O up to 248 points.
Q: How fast are the fast inputs?
A: They support high-speed counting up to 20 kHz.
Q: Is programming software included?
A: Software not included. Download EcoStruxure Machine Expert Basic free.
Q: What is the inrush current at 240 Vac?
A: 60 A, ensure proper circuit protection.

Experience-based FAQ & Selection Guide

Q: Which controller for simple digital applications?
A: This model is perfect. It provides plenty of digital I/O without analog.
Q: Need fast motion control?
A: Use the 4 fast outputs (PTO) for stepper/servo pulses.
Q: Can I expand later?
A: Yes, add up to 7 modules for future needs.
Selection tip: If you need analog, choose TM218LDAE40DRPHN plus analog expansion.
Selection tip: For high-speed counting, this controller is ideal with 4 HSC inputs.
Selection tip: Verify your power supply is 100-240 Vac before ordering.
