Product details

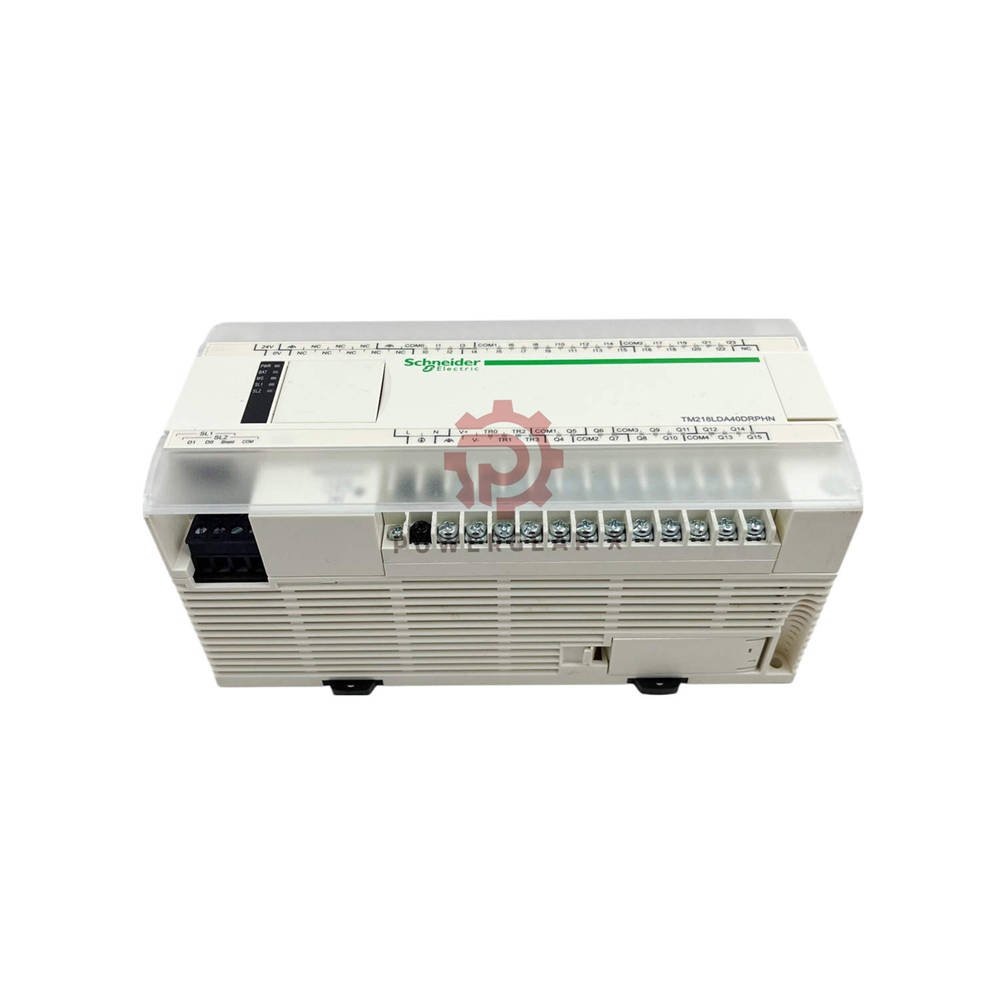

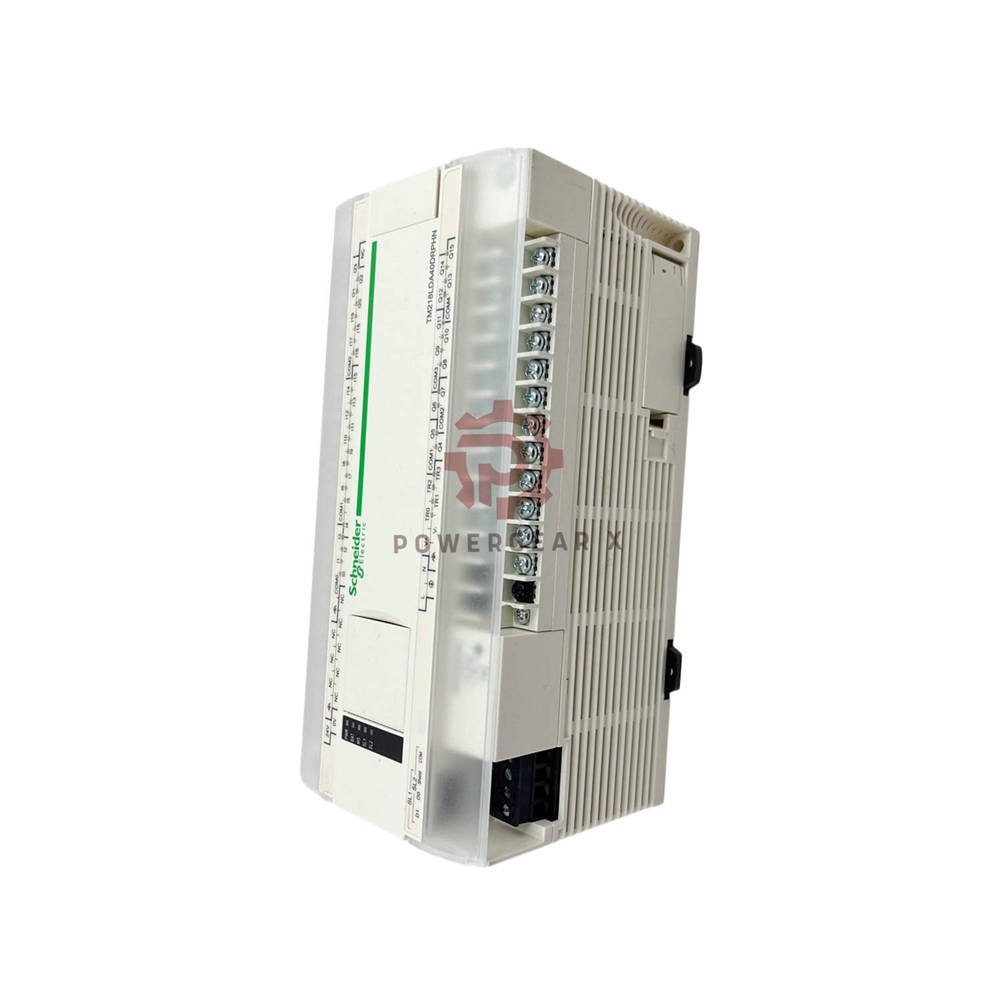

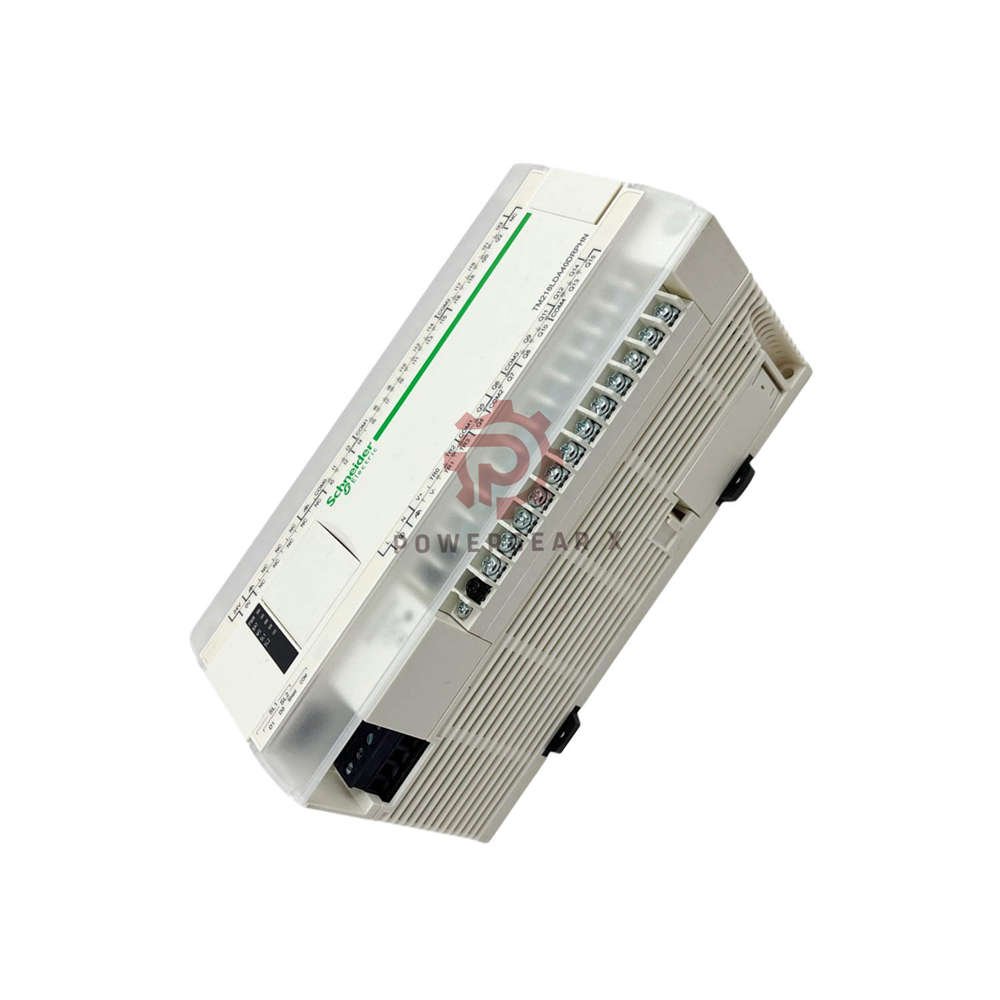

TM218LDA40DRPHN – Modicon M218 Logic Controller

Compact CPU | 40 discrete I/O | AC supply | In stock – ships within 12–24 h

• TM218LDA40DRPHN – compact logic controller from Schneider Electric’s Modicon M218 series.
• Built for small-to-medium automation tasks with 24 digital inputs, 12 relay outputs, and 4 transistor outputs.
• Wide AC supply (85–264 V) and low power consumption (34 W) ensure stable operation.
• Ideal for packaging, conveyor, HVAC, and basic machine control.

Brand & Model
• Schneider Electric – Modicon M218
• Order code: TM218LDA40DRPHN
Power & Supply
• Rated voltage: 100…240 V AC (limits 85…264 V)
• Consumption: 34 W
• Input current: 300 mA @ 22–27 V
Discrete I/O (total 40)
• 24 digital inputs – 24 V DC, impedance 4700 Ω (standard) / 2800 Ω (high-speed)
• 12 relay outputs + 4 transistor outputs (fast switching)
• Response time: 2 ms (ON/OFF)
Analog I/O
• Inputs: 4…20 mA / 0…20 mA
• Outputs: voltage –10…10 V / 0…10 V; current 0…20 mA / 4…20 mA
Environment & Endurance
• Temperature: 0…55 °C (operating), –25…70 °C (storage)
• Humidity: 95% non-condensing
• Vibration: 3.5 mm @ 5…150 Hz; Shock: 15 gn / 11 ms
• Altitude: 2000 m (operation), 3000 m (storage)
• Protection: IP20, pollution degree 2
Accuracy & Linearity
• High-speed input impedance: 2800 Ω – stable reading
• Analog resolution: 12-bit, linearity ±0.1%
Interference Immunity
• Built-in filtering & surge protection
• Shielded cable recommended for distances >5 m

“Solid choice for small PLC applications. The transistor outputs handle fast pulses, and relay outputs drive heavy loads. Analog I/O cover most sensor types. Reliable, cost-effective.”

“We stock this unit for quick replacement. Its wide voltage tolerance and low heat generation make it ideal for harsh factory floors. A proven performer.”

Q: Can I use this controller with 110 V and 230 V?
A: Yes – it accepts 85…264 V AC automatically.
Q: How many analog inputs does it have?
A: Two analog inputs (4…20 mA / 0…20 mA) and two analog outputs (voltage/current).
Q: Is programming cable included?
A: No. Use standard USB Mini-B cable (not supplied).
Q: What is the maximum relay switching current?
A: 2 A per relay (resistive load).
Q: Can I expand I/O later?
A: Yes – up to 7 expansion modules.
Experience-based Q:
Q: The transistor output seems not switching – what to check?
A: Ensure load is within 0.5 A and use external flyback diode for inductive loads.
Purchase guide Q:
Q: Which model to choose – relay or transistor?
A: Choose relay for heavy AC loads; transistor for fast DC switching (e.g., servos). This model has both.
