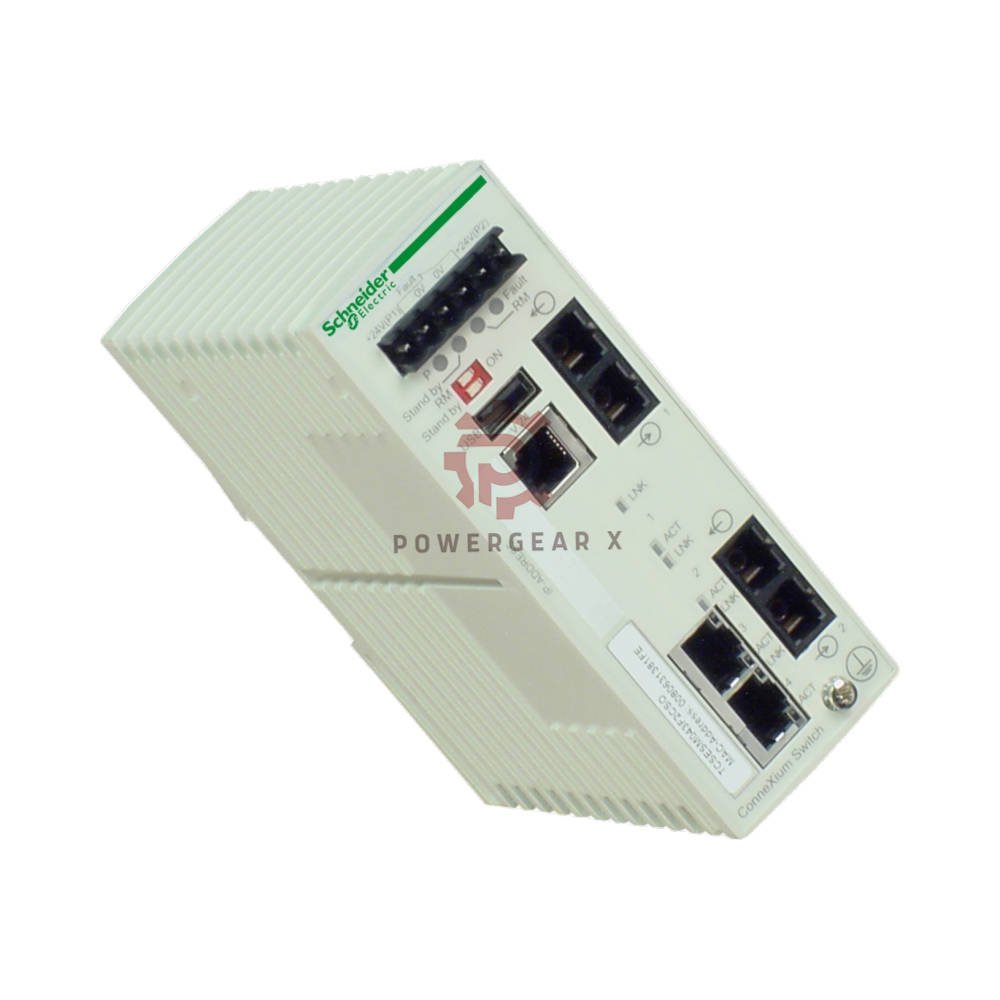

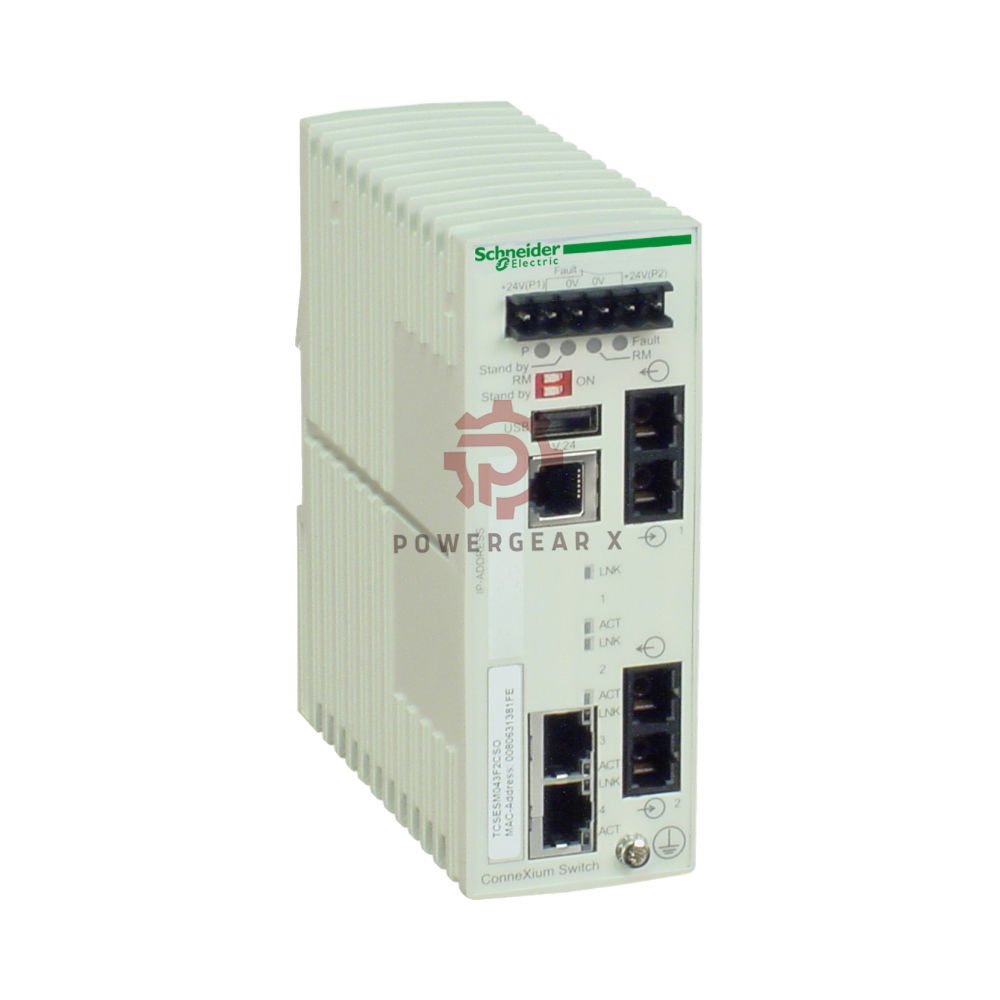

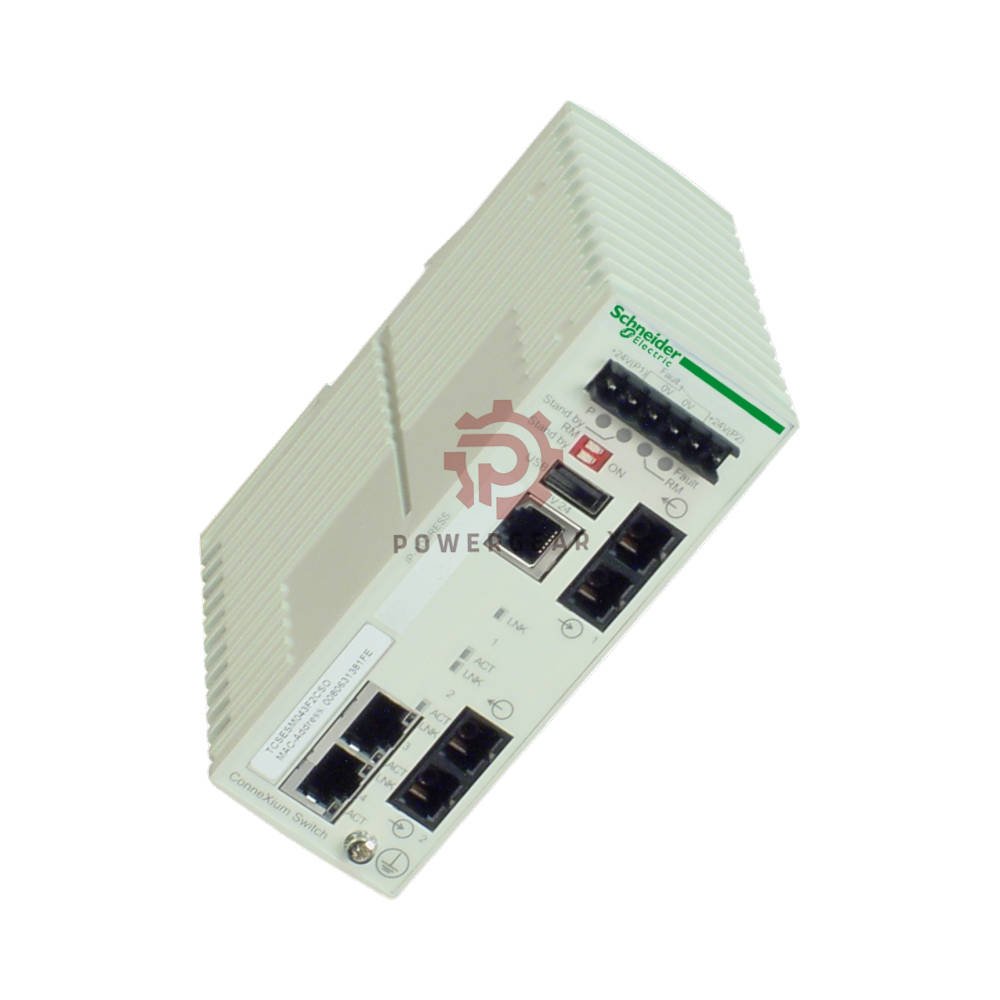

TCSESM043F2CS0 Schneider ConneXium Ethernet Switch 2 Copper 2 Fiber

TCSESM083F2CS0 | Schneider Electric | ConneXium Managed Ethernet Switch

Looking for a tough switch for your factory network? The TCSESM083F2CS0 from Schneider Electric is a managed Ethernet switch. It belongs to the ConneXium family. You get 6 copper ports and 2 single-mode fiber ports. This mix lets you link control cabinets over long distances. The fiber ports use SC connectors. The copper ports run at 10/100 Mbps. This switch supports HiPER ring and RSTP for fast recovery. You can build rings with up to 50 nodes. Security features include port hardening. The unit runs on 24V DC. It snaps onto a 35 mm DIN rail. The IP20 rating suits clean panels. This is a solid pick for industrial automation and SCADA networks.

Buy from Powergear X Automation Limited. We ship in 12 to 24 hours via FedEx, UPS, or DHL. You get a 12-month warranty. Need help? Email sales@powergearx.com or chat on WhatsApp at +86 18030005825.

Technical Data

• Brand: Schneider Electric
• Model: TCSESM083F2CS0
• Series: ConneXium
• Product Type: Managed Ethernet switch
• Concept: Transparent Ready
• Ports:
  • 6 × RJ45 10/100BASE-TX copper
  • 2 × 100BASE-FX single-mode fiber (SC)
• Protocol Support: Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, RS232, LLDP, Telnet, SNTP, MRP
• Redundancy: HiPER ring, RSTP
• Max Ring Nodes: 50
• Cybersecurity: Port hardening
• Switching Capacity: 5.6 Gbps
• MAC Table Size: 8K entries
• Jumbo Frame: 9216 bytes
• Supply Voltage: 24V DC
• Protection Rating: IP20
• Mounting: 35 mm symmetrical DIN rail
• Lifecycle: Active (in production, ConneXium range)
• Last Verified: 2026-09

Installation Guide

• Snap the switch onto a 35 mm DIN rail. No tools needed.
• Connect the 24V DC power supply. Check polarity first.
• Plug copper cables into the 6 RJ45 ports. Use shielded cable in noisy areas.
• Attach fiber cables to the 2 SC ports. Keep bend radius in mind.
• Use HiPER ring for fast recovery. Set up RSTP as a backup.
• Enable port hardening to block unused ports.
• Keep the unit in a dry place. The IP20 rating is for cabinets only.

Commissioning & Maintenance

• Access the web interface via HTTP or HTTPS.
• Use SSH or Telnet for command-line setup.
• Monitor the network with SNMP.
• Check link status LEDs on each port.
• Save your configuration after changes.
• Clean the unit with a dry cloth. Do not use liquids.
• No moving parts. Maintenance is minimal.

Compatibility Notes

• Works with Ethernet TCP/IP networks.
• Fits standard 35 mm DIN rail (EN 60715).
• Supports MRP for ring redundancy.
• Uses SC fiber connectors. Not LC or ST.
• Copper ports auto-negotiate 10/100 Mbps.
• Pairs with other ConneXium switches.
• Works with Transparent Ready architectures.

Certifications & Packaging

• Certifications: CE, UL (check local standards).
• Packaging List: 1 × TCSESM083F2CS0 switch, 1 × user guide.
• Warranty: 12 months from Powergear X.
• Shipping: 12–24 hours via FedEx, UPS, or DHL.

Manager’s Insight

The TCSESM083F2CS0 solves a common problem. You need copper for local devices. You need fiber for long runs. This switch gives you both. The 2 single-mode fiber ports reach far. The 6 copper ports handle nearby PLCs and drives. The HiPER ring recovers fast if a cable breaks. RSTP adds another layer of safety. The 5.6 Gbps switching capacity moves data without bottlenecks. The 8K MAC table handles many devices. The 9216-byte jumbo frame support helps with large data packets. Port hardening keeps unwanted devices out. This is a smart choice for plant floors, substations, and process lines. The 24V DC supply matches most control panels. The DIN rail mount saves space. For network engineers, this switch is a reliable workhorse.

Expert Review

I have set up many industrial networks. The ConneXium line is a favorite. The TCSESM083F2CS0 stands out for its fiber mix. Single-mode fiber is rare in this price class. You can span kilometers between cabinets. The SC connectors are sturdy. The 6 copper ports cover most local needs. The managed features are rich. You get SNMP, LLDP, and MRP. The HiPER ring is fast. The 50-node limit fits most plants. The port hardening feature is a plus for security. The 24V DC power is standard. The IP20 rating is fine for cabinets. One note: this switch needs a dry, clean panel. It is not for wet or dirty areas. The 8K MAC table is generous. The jumbo frame support helps with vision systems. I recommend this switch for factory automation, power utilities, and transportation networks.

Ideal Applications

• Factory automation — link PLCs, drives, and HMIs.
• SCADA systems — connect remote RTUs over fiber.
• Substation networks — use single-mode fiber for long runs.
• Process lines — build ring topologies with HiPER.
• Water treatment — span distance between buildings.
• Transportation — tunnel and roadside control cabinets.
• Building management — connect HVAC and lighting controllers.

FAQ

Q: What makes this switch different from unmanaged models?
A: It supports HiPER ring, RSTP, SNMP, and port hardening. You get control and visibility.

Q: How many fiber ports does it have?
A: It has 2 single-mode fiber ports with SC connectors.

Q: Can I use multi-mode fiber?
A: No. This model is for single-mode fiber only.

Q: What is the ring recovery time?
A: HiPER ring recovers in under 20 ms for up to 50 nodes.

Q: How do I power the switch?
A: Use a 24V DC supply. Check polarity before connecting.

Q: Does it support VLANs?
A: Yes. Managed features include VLAN, QoS, and IGMP snooping.

Q: What is the IP rating?
A: It is IP20. Keep it in a clean, dry cabinet.

Q: How do I mount it?
A: Snap it onto a 35 mm DIN rail. No screws needed.

Q: Is this product still available?
A: Yes. The ConneXium range is active. Last verified in 2026-09.

Q: What is the switching capacity?
A: It is 5.6 Gbps. That handles full wire speed on all ports.

Q: How many MAC addresses does it store?
A: The MAC table holds 8K entries.

Q: Does it support jumbo frames?
A: Yes. It handles frames up to 9216 bytes.

Q: Do you ship fast?
A: Yes. We ship in 12–24 hours via FedEx, UPS, or DHL.

Q: What is the warranty?
A: 12 months from Powergear X Automation Limited.

Q: How do I reach you?
A: Email sales@powergearx.com or WhatsApp +86 18030005825.

Buying Guide

• Check your fiber type. This switch needs single-mode. Not multi-mode.
• Count your copper devices. You get 6 RJ45 ports.
• Plan your ring. HiPER supports up to 50 nodes.
• Confirm power. The switch runs on 24V DC.
• Check cabinet space. It fits 35 mm DIN rail.
• Review security needs. Port hardening is included.
• Need more ports? Look at other ConneXium models.
• Buy from a trusted source. Powergear X ships fast and offers warranty.
