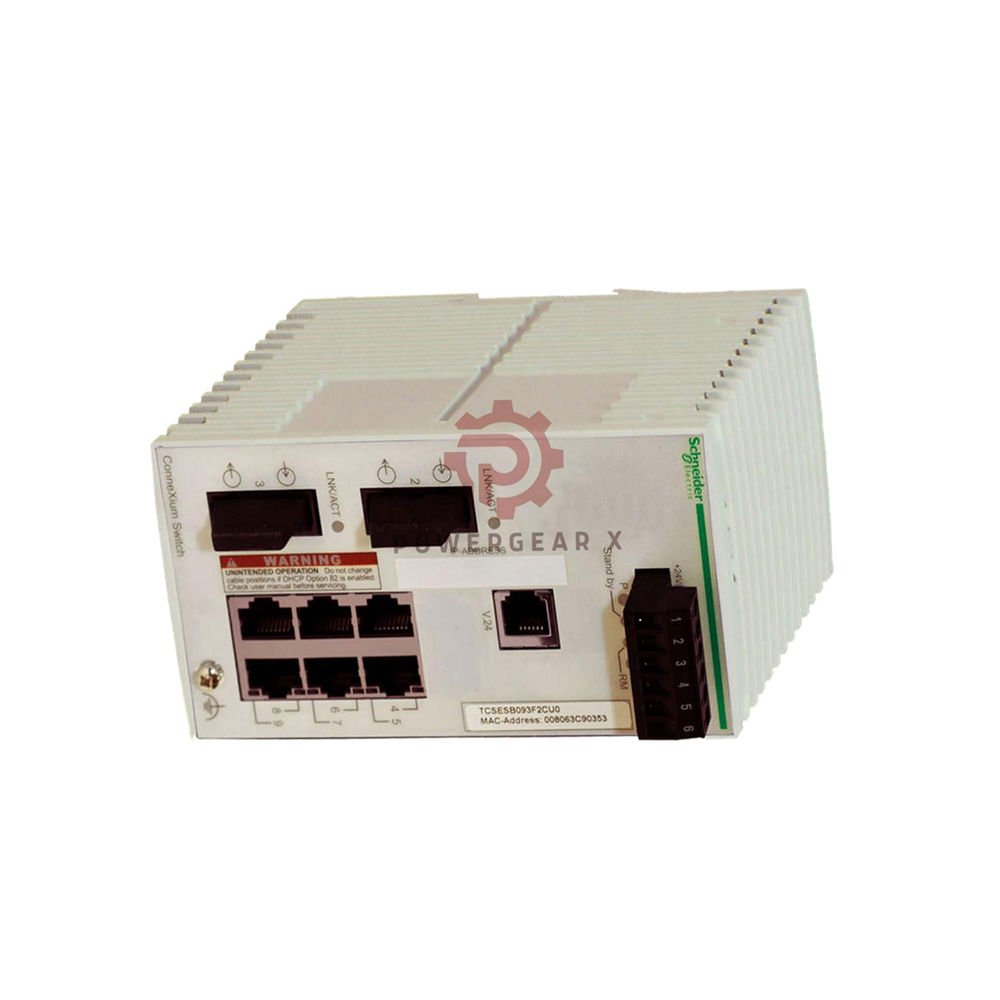

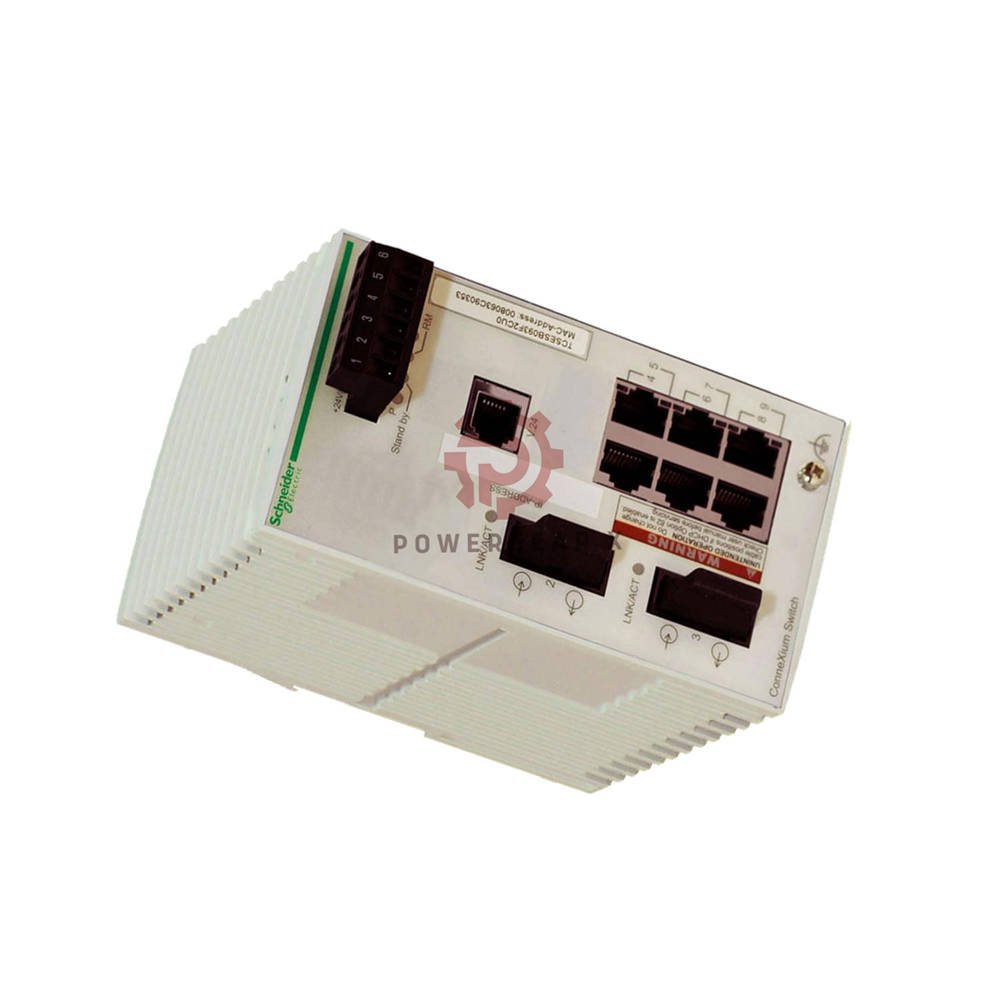

TCSESB083F2CU0 ConneXium Managed Switch 6TX/2FX Multimode

Product Brief

• TCSESB083F2CU0 – ConneXium managed switch
• 6 x 10/100BASE-TX copper + 2 x 100BASE-FX multimode fiber
• Transparent Ready, Ethernet TCP/IP basic managed
• Unlimited cascade, 50 switches ring, redundant power
• Web config, IGMP, RSTP, multicast filtering

Key Features

• Industrial grade – 0…60 °C, 95% RH non‑condensing
• Redundancy – dual power inputs, single ring, ring coupling
• Security – secure port, SMTP V3, SNTP client
• Diagnostics – fault relay, port LEDs, ring manager LED
• Installation – 35 mm DIN rail, removable 6‑way power

Technical Specifications

• Brand – Schneider Electric
• Model – TCSESB083F2CU0
• Series – ConneXium
• Type – managed Ethernet switch, Transparent Ready
• Ports
  • 6 x RJ45 10/100BASE‑TX (copper, shielded)
  • 2 x SC duplex 100BASE‑FX (multimode fiber)
• Cable & distance
  • Copper: CAT 5E twisted shielded pairs
  • Fiber: 50/125 µm (8 dB) or 62.2/125 µm (11 dB)
• Power
  • 9.6…32 V DC SELV, 8 W max
  • Removable 6‑way connector
• Environmental
  • Operating temp: 0…60 °C
  • Humidity: 0…95% non‑condensing
  • IP20 protection
• Standards & certs
  • EN/IEC 61131‑2, UL 508, UL 1604 Cl.1 Div.2
  • CSA C22.2 No.213 & 214
  • CE marked
• Dimensions & weight
  • 74 x 131 x 111 mm (W x H x D)
  • 0.41 kg

Installation & Maintenance

• Snap onto 35 mm DIN rail – no tools needed
• Removable power plug for quick wiring
• LEDs show fault, power, ring, port activity & status
• Web server configuration, no extra software
• Firmware updates via standard TFTP

Compatibility & Applications

• Works with any Ethernet TCP/IP device
• Ideal for factory automation, SCADA, PLC networks
• Supports ring coupling and redundant single ring
• Compatible with Transparent Ready architecture
• Use with multimode fiber for long‑distance links

Expert Review

• “Rock‑solid managed switch for critical industrial networks. RSTP and IGMP ensure fast recovery and smooth multicast. The dual power input adds safety. Easy web interface saves time.” – Senior Automation Engineer

Manager’s Insight

• “This switch lowers downtime risk. Its redundancy and rugged design make it a top choice for production lines. The unlimited cascade gives flexibility for plant‑wide expansion.” – Product Manager, Powergear X

FAQ – Frequent Questions

• What is the maximum number of switches in a ring?
  Up to 50 switches in a single ring.
• Can I use this switch outdoors?
  No, it is rated IP20 for indoor use only.
• Does it support PoE?
  No, this model does not provide PoE.
• How do I reset to factory defaults?
  Use the web interface or a hardware reset button (if available).
• What fiber cable do I need?
  Use 50/125 µm or 62.2/125 µm multimode with SC connectors.

Experience & Selection Guide

• For long runs (up to 2 km) choose multimode fiber ports.
• If you need PoE or Gigabit, consider other ConneXium models.
• For harsh temperatures, check extended‑range variants.
• Always use SELV power supply (9.6‑32 V DC).
• Use shielded CAT 5E cable to reduce interference.

Package & Warranty

• Includes: switch, 6‑way power connector, quick start guide
• Warranty: 12 months against defects
• Shipping: 12‑24 hours dispatch via FedEx, UPS, or DHL
