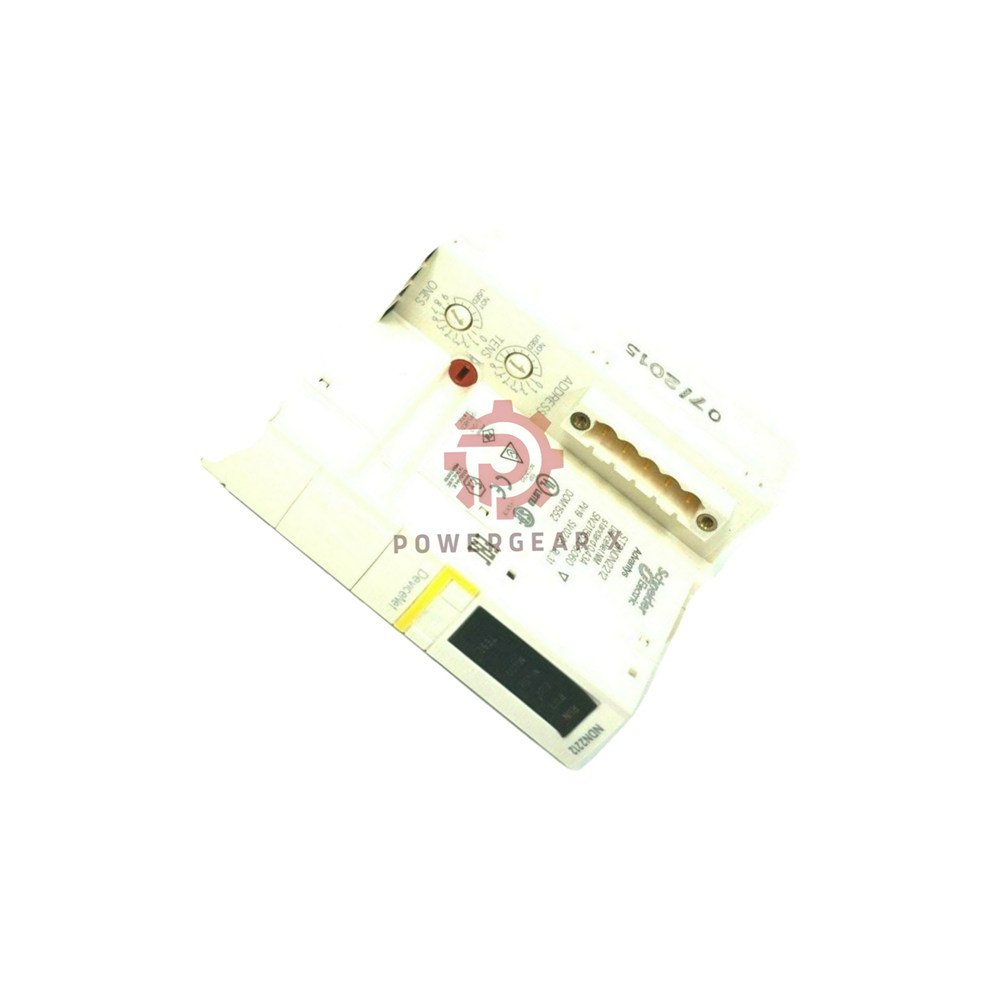

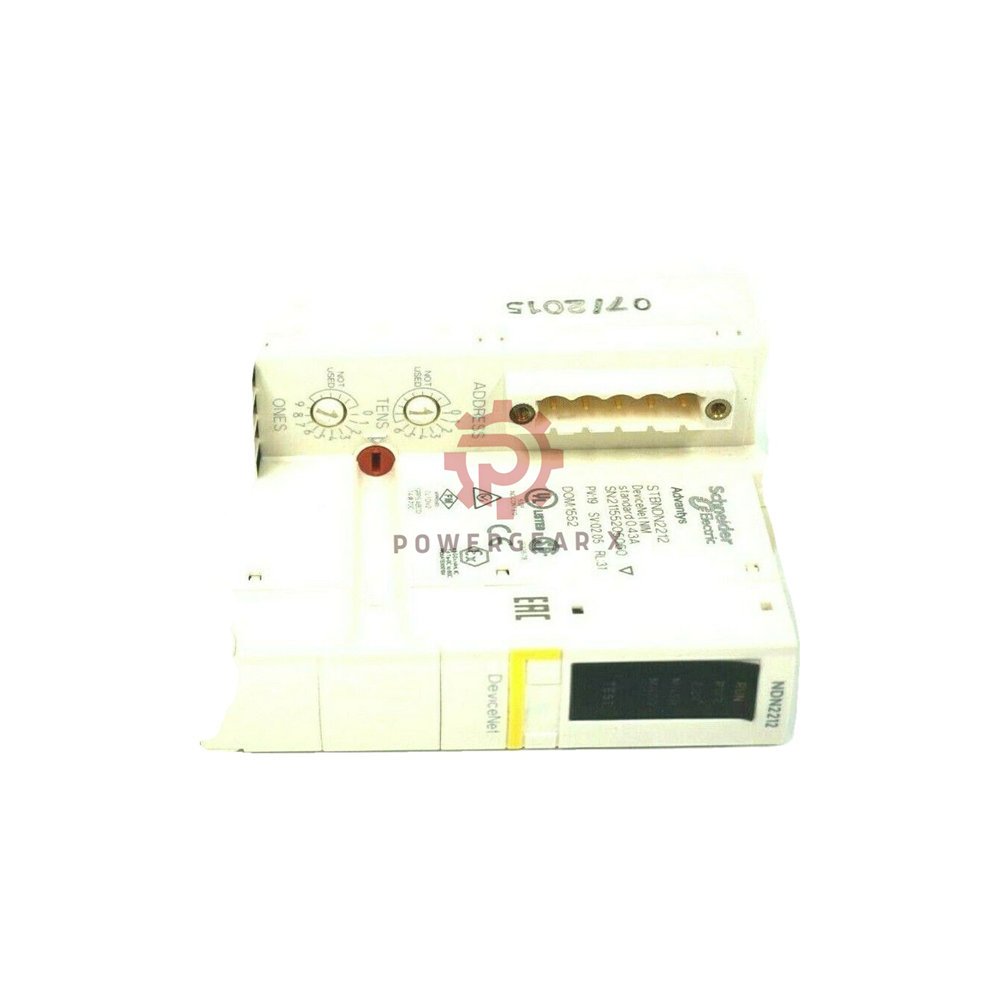

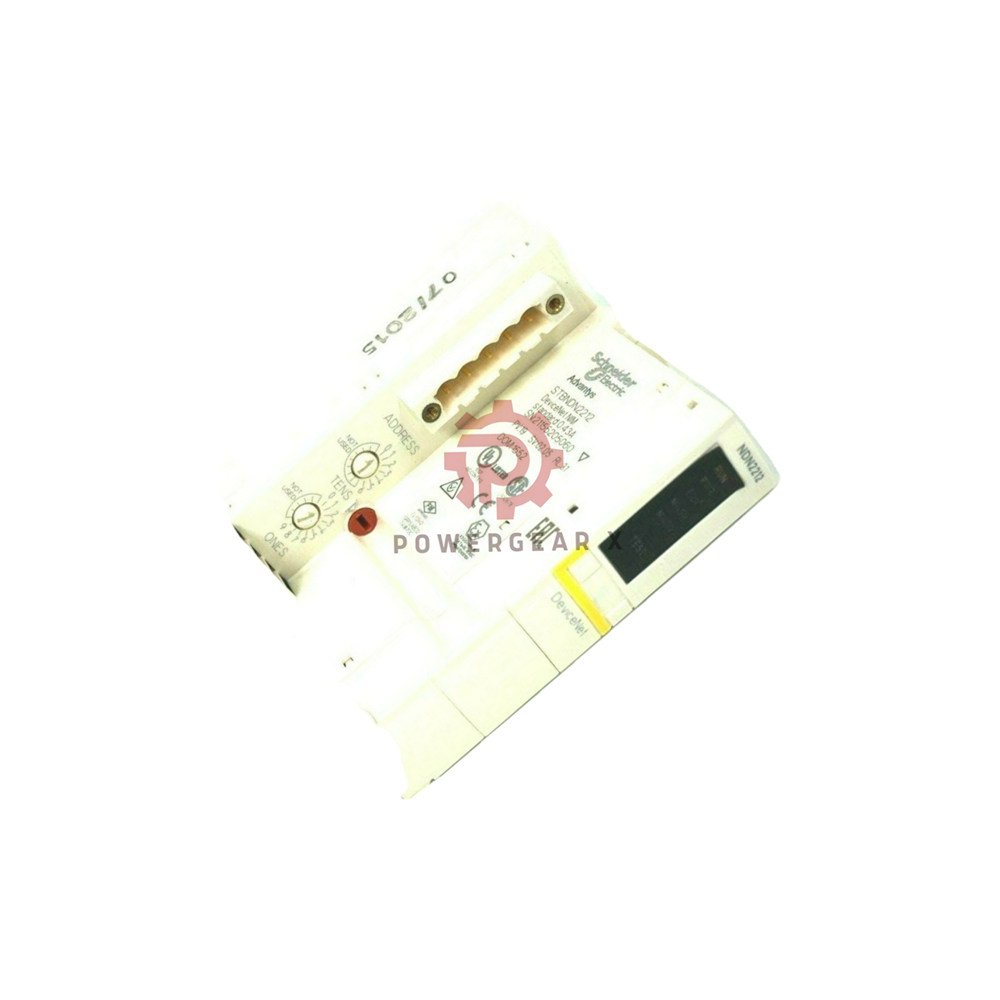

STBNDN2212 Schneider Electric Advantys STB DeviceNet Network Interface Module
The STBNDN2212 is a standard network interface module for the Advantys STB island. It connects your I/O island to a DeviceNet network. A built-in RS232 debug port helps with setup and service. This module supports hot-swap, so you can replace parts with less downtime. It is now discontinued and superseded by the Modicon X80 range.
Why It Matters
- Connects Advantys STB islands to DeviceNet networks.
- Supports up to 32 addressable I/O modules per island.
- Includes a 5-pin DeviceNet connector and an RS232 debug port.
- Hot-swap support reduces maintenance time.
- Compact size saves panel space.
- IP20 protection suits clean industrial cabinets.
Technical Data
- Brand: Schneider Electric
- Model: STBNDN2212
- Series: Advantys STB
- Module type: Standard Network Interface Module (NIM)
- Protocol: DeviceNet
- Built-in ports: 5-pin connector (DeviceNet) + RS232 debug port
- Supply voltage: 24V DC
- Addressable I/O modules: Max 32 per island
- Operating temperature: Not available
- Storage temperature: Not available
- Protection rating: IP20
- Dimensions (H×W×D): 128.3 × 70 × 40 mm
- Weight: 0.145 kg
- Lifecycle: Discontinued, superseded by Modicon X80 range
- Last verified: 2026-09
Installation Guide
- Mount the module in a clean, dry cabinet.
- Keep IP20 limits in mind. Avoid dust and water.
- Use a stable 24V DC supply.
- Connect the DeviceNet cable to the 5-pin port.
- Use the RS232 debug port for local checks.
- Plan the island before adding I/O modules.
- Do not exceed 32 addressable I/O modules.
- Follow Schneider Electric wiring rules.
Setup and Maintenance
- The RS232 port simplifies first-time setup.
- Hot-swap support helps replace modules fast.
- Label cables clearly to reduce errors.
- Check connections during routine service.
- Keep spare modules for critical lines.
Compatibility Notes
- Works with Advantys STB islands.
- Uses the DeviceNet protocol.
- Supports up to 32 I/O modules per island.
- Superseded by the Modicon X80 range.
- Check your network and PLC compatibility first.
Certifications and Compliance
- CE and RoHS information may apply by batch.
- Confirm documents before regulated use.
- Ask our team for available compliance files.
Package List
- 1 × STBNDN2212 module
- Protective packaging
- Order documents as needed
Warranty and Shipping
- 12-month warranty included.
- Ships in 12-24 hours after order confirmation.
- Shipping by FedEx, UPS, and DHL.
- Tracking details shared after dispatch.
Expert Review
The STBNDN2212 is a practical choice for legacy Advantys STB systems. DeviceNet support and hot-swap help keep lines running. The RS232 debug port saves time during service. Since it is discontinued, buyers should plan for long-term spares. For new designs, the Modicon X80 range is the better path.
Manager’s Insight
This module fits plants that still run Advantys STB islands. It suits maintenance teams that need quick replacements. It also helps system integrators support existing DeviceNet networks. If you are building a new line, choose the newer Modicon X80 platform instead.
Best Fit Devices and Applications
- Advantys STB I/O islands
- DeviceNet networks
- Legacy factory automation lines
- Packaging and assembly machines
- Material handling systems
- Process control panels
- Maintenance and spare parts programs
FAQ
Q: What is the STBNDN2212 used for?
A: It links an Advantys STB island to a DeviceNet network.
Q: How many I/O modules can it support?
A: It supports up to 32 addressable I/O modules per island.
Q: Does it have a debug port?
A: Yes, it has a built-in RS232 debug port.
Q: Is hot-swap supported?
A: Yes, hot-swap support helps reduce downtime.
Q: What is the supply voltage?
A: It uses 24V DC.
Q: What is the protection rating?
A: It has an IP20 rating.
Q: What are the dimensions?
A: 128.3 × 70 × 40 mm.
Q: What is the weight?
A: 0.145 kg.
Q: Is this module still active?
A: No, it is discontinued and superseded by Modicon X80.
Q: Can I use it in a new project?
A: It is best for legacy support. For new builds, use Modicon X80.
Q: How fast do you ship?
A: We ship in 12-24 hours after order confirmation.
Q: Which couriers do you use?
A: We use FedEx, UPS, and DHL.
Q: What warranty do you offer?
A: We offer a 12-month warranty.
Q: How do I confirm compatibility?
A: Share your island setup and network details with our team.
Q: Can you help with spare parts planning?
A: Yes, we can help you plan spare coverage for legacy lines.
Q: What should I check before buying?
A: Check your protocol, island size, and replacement needs.
Buying Guide
- Confirm your network uses DeviceNet.
- Count your I/O modules. Stay within 32.
- Check cabinet space for 128.3 × 70 × 40 mm.
- Plan for a 24V DC supply.
- Buy spares if your line still uses Advantys STB.
- Choose Modicon X80 for new installations.
- Contact us for stock and lead time.
