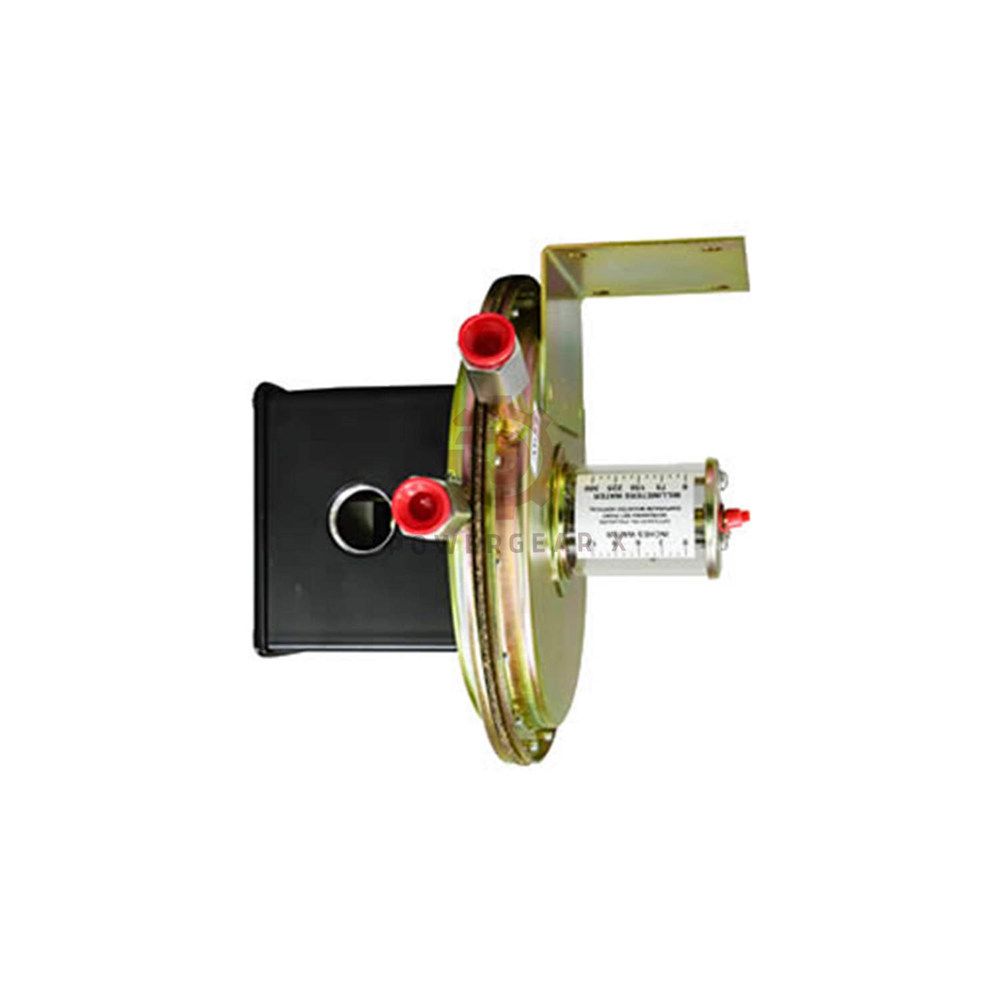

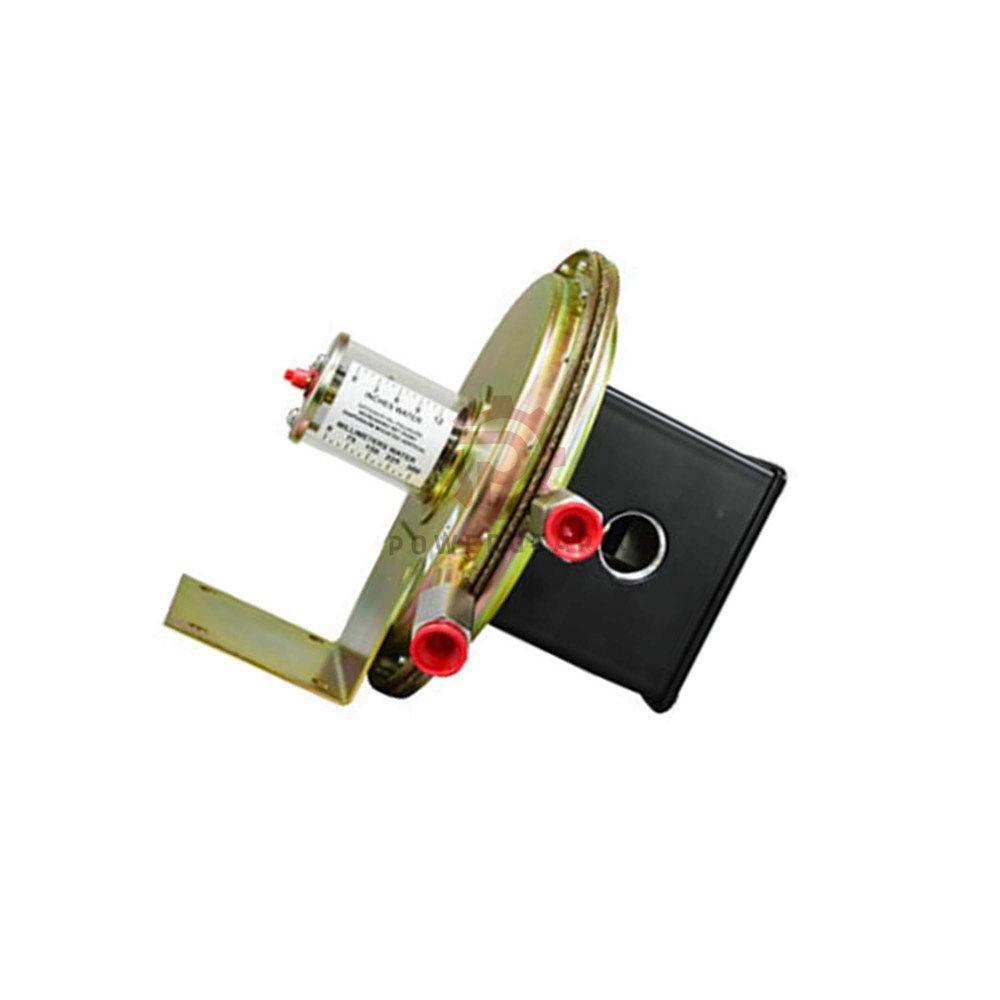

Name: SOR 107AL-N12-P1-F0A-X Low Differential Pressure Switch NEMA 4
SKU: 107AL-N12-P1-F0A-X
Availability: InStock

Product details

The SOR 107AL-N12-P1-F0A-X is a high-precision low differential pressure switch designed for air and gas monitoring.
It features a rugged 6063-T5 aluminum housing with a Weathertight NEMA 4 rating for harsh environments.
The unit utilizes a high-quality SPDT snap-action switching element for reliable electrical performance.
Engineers prefer the 107 Series for its exceptional repeatability and fine set point resolution in draft ranges.
This switch is essential for maintaining safety in burner management and industrial HVAC ventilation systems.

Brand: SOR (Static-O-Ring)
Model Number: 107AL-N12-P1-F0A-X
Measurement Type: Low Differential Pressure (Draft Range)
Resolution: Fine Set Point resolution with a high-accuracy visual scale.
Linearity & Repeatability: High repeatability with a narrow dead band for precise control.
Temperature Range: Operating limits from -40 to 150°F (-40 to 65°C).
Max System Pressure: 10 psig (0.69 bar) with vacuum protection to 30” Hg.
Wetted Materials: Buna-N, brass, aluminum, cork, stainless steel, and plated cold-rolled steel.
Housing Material: Corrosion-resistant 6063-T5 aluminum.
Pressure Connection: 1/8” NPT(F) standard (F1A option available for 1/4” NPT).
Electrical Connection: 3/4” NPT(F) with heavy-duty screw terminals.
Interference Resistance: Rugged mechanical design offers superior vibration and noise immunity.
Weight: Approximately 2.3 kg (5 lb).

The SOR 107AL-N12-P1-F0A-X stands out due to its external set point adjustment capability.
This feature allows field technicians to calibrate the switch without opening the electrical enclosure.
Our technical review confirms its reliability in burner management systems and draft control.
It is highly compatible with low-pressure air handlers and industrial exhaust monitoring equipment.
Contact our team at sales@powergearx.com for advanced integration support.

Mount the 107AL-N12-P1-F0A-X vertically to ensure the highest accuracy of the visual scale.
Ensure all pressure lines are clear of debris before connecting to the 1/8” NPT(F) ports.
Wiring is simplified via standard screw terminals located within the NEMA 4 housing.
Regularly check the visual scale to confirm the set point aligns with system requirements.
Maintenance is minimal due to the rugged design and high-quality wetted materials.
For real-time troubleshooting, WhatsApp our specialists at +86 18030005825.

Package Contents: 1 x SOR 107AL-N12-P1-F0A-X Pressure Switch, Installation Manual.
Dispatch: Rapid shipping within 24-48 hours from order confirmation.
Logistics: Global express delivery via FedEx, UPS, and DHL.
Warranty: Guaranteed with a 12-month quality assurance policy.
Diagnostic Capability: Immediate mechanical feedback via the external visual scale.
Certification: Fully UL Listed and CSA Certified for industrial safety standards.

What is the primary application for this switch?
It is primarily used for monitoring draft pressures in HVAC and burner management systems.
Can I adjust the set point while the system is live?
Yes, the external adjustment allows for safe calibration without exposing the internal wiring.
Is this model suitable for outdoor installation?
The NEMA 4 Weathertight housing provides excellent protection against rain and dust.
What if I need a different port size?
You can request the F1A modification to obtain a 1/4” NPT(F) connection size.

Confirm that your process media is compatible with Buna-N and brass components.
Verify that your maximum system pressure does not exceed 10 psig.
Select the 107AL series for applications requiring high repeatability and fine resolution.
Ensure the electrical load matches the SPDT snap-action ratings for safe operation.
