Product details

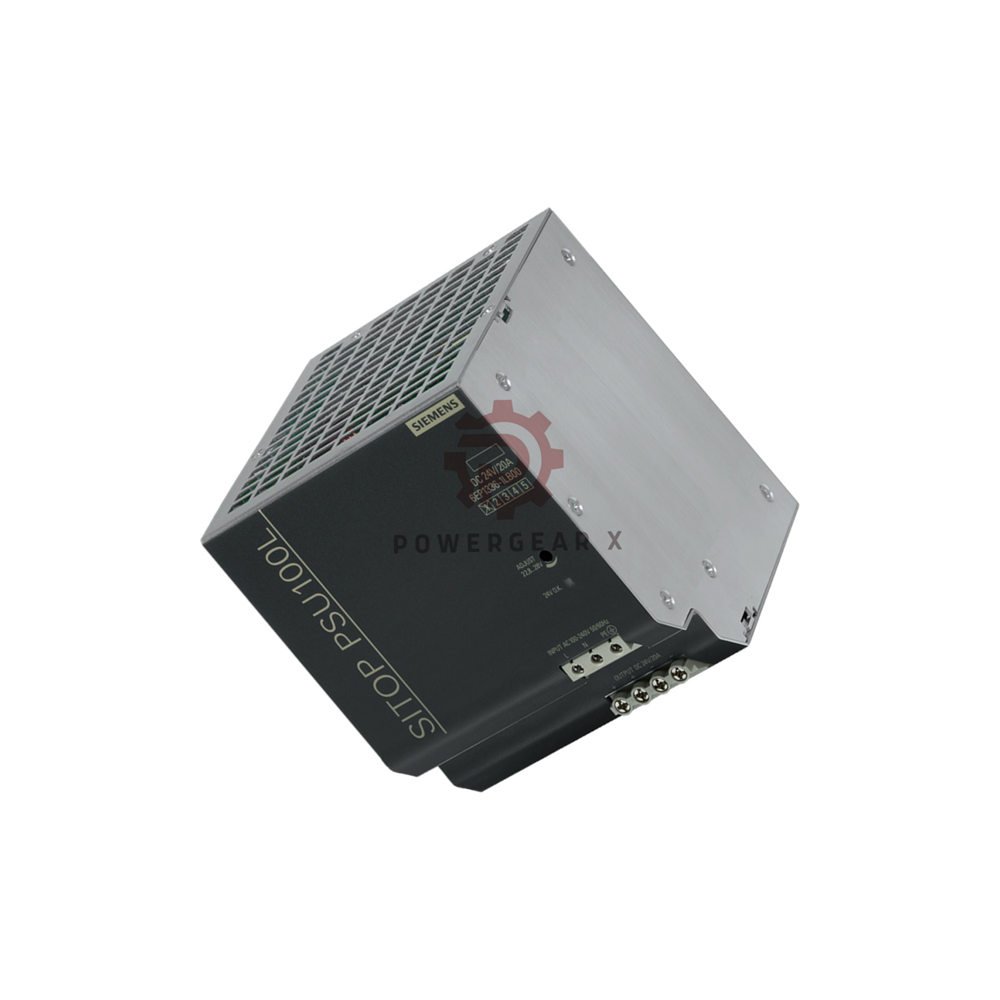

6EP1336-1LB00 – SITOP PSU100L 24V/20A Power Supply
This SITOP PSU100L power supply delivers 24 V DC at 20 A. It works with 1-phase AC or DC input (85-264 V AC, 88-370 V DC). The unit is reliable, efficient (92%), and built for industrial use.
Key Features
- 20 A rated output current
- Wide-range input 85-264 V AC / 88-370 V DC
- 92% efficiency – low power loss (45 W)
- Adjustable output 22.8 – 26.4 V via potentiometer
- Green LED for 24 V OK status
- Short-circuit proof with constant current limit
- Parallel operation up to 2 units for more power
Technical Data – Tree Structure
- Input
- Type: 1-phase AC or DC
- Voltage AC: 85 … 264 V (nominal 100-240 V)
- Voltage DC: 88 … 370 V (nominal 100-240 V)
- Wide-range input: Yes
- Buffering time: ≥20 ms (at 93/187 V)
- Frequency: 47 … 63 Hz (50/60 Hz rated)
- Input current: 5.55 A at 120 V / 2.35 A at 230 V
- Inrush current limit: 45 A max (25 °C)
- I²t: 3.3 A²·s max
- Fuse: T 10 A/250 V (internal)
- MCB recommendation: 10 A, characteristic C
- Output
- Voltage: 24 V DC (adjustable 22.8 … 26.4 V)
- Total tolerance: ±3%
- Ripple: ≤150 mV (typ. 50 mV)
- Peak: ≤240 mV (typ. 100 mV)
- Current: 20 A rated (0 … 20 A)
- Derating: 2.5%/K above +45 °C (up to +70 °C)
- Power: 480 W typical
- Soft start: no overshoot
- Response delay: ≤1.5 s
- Voltage rise time: typ. 20 ms
- Efficiency & Losses
- Efficiency: 92%
- Power loss: 45 W (at rated output)
- Protection & Monitoring
- Overvoltage protection: <33 V (typ. 24 A clamp)
- Short-circuit proof: yes (constant current)
- Enduring short-circuit current: typ. 24 A
- LED indicator: green for 24 V OK
- Safety & Isolation
- Galvanic isolation: input/output
- SELV output (EN 60950-1, EN 50178)
- Protection class: I
- Leakage current: max 3.5 mA (typ. 0.8 mA)
- IP rating: IP20
- Approvals
- CE, UL/cULus (File E197259), CSA
- EAC, BIS (R-41184349), CB certificate
- Not: NEC Class 2, ATEX, IECEx, shipbuilding
- EMC
- Emissions: EN 55022 Class B
- Harmonics: EN 61000-3-2
- Immunity: EN 61000-6-2
- Environment
- Operating temp: -25 … +70 °C (natural convection)
- Transport/storage: -40 … +85 °C
- Climate class: 3K3 (5 … 95% RH, non-condensing)
- Mechanics
- Connection: screw terminals (input L,N,PE / output +,-)
- Wire size: 0.5 … 2.5 mm²
- Dimensions (WxHxD): 110x125x125 mm
- Spacing: top/bottom 50 mm, left/right 0 mm
- Weight: 1.8 kg
- Mounting: DIN rail (EN 60715 35×7.5/15)
Installation Guide
- Snap the unit onto a DIN rail (35 mm).
- Keep 50 mm free space above and below for cooling.
- Connect L, N, and PE to the input terminals.
- Connect the load to the output terminals (+ and -).
- Use a 10 A circuit breaker (characteristic C) upstream.
- Adjust output voltage with the potentiometer if needed.
Debugging & Maintenance
- The green LED shows normal 24 V output.
- If LED is off, check input voltage and fuse.
- Short-circuit protection is constant current – remove fault to recover.
- Clean the unit with dry air – avoid liquids.
- No regular maintenance is required.
Compatibility
- Works with any load that needs 24 V DC, up to 20 A.
- Parallel up to 2 units for 40 A total.
- Suitable for PLCs, sensors, actuators, and drives.
- Compatible with SITOP extension modules (e.g., redundancy).
Expert Review
“The 6EP1336-1LB00 is a workhorse for 24 V systems. Its wide input range handles unstable grids well. The 92% efficiency keeps heat low. I trust it for critical machinery. A solid choice for any control panel.” – Senior Automation Specialist
Manager’s Insight
“This SITOP supply offers great value. It is easy to install and operates reliably in hot environments (up to 70 °C). The 20 A output is enough for most mid-size applications. We stock it for fast delivery.” – Product Manager, PowergearX
Applications & Suitable Devices
- PLC control panels (Siemens, Allen-Bradley, etc.)
- Sensor and actuator power for factory automation
- Small DC motors and drives
- Test and measurement equipment
- Packaging and material handling machines
Professional FAQ
- What is the derating curve for this unit?
Full 20 A from -25 °C to +45 °C. Reduce by 2.5% per °C above +45 °C, up to +70 °C.
- Can I use it with a 110 V supply?
Yes, it works from 85 V AC. At 110 V, input current is about 5.5 A.
- Is the output isolated from the input?
Yes, full galvanic isolation. The output is SELV rated.
- How to connect multiple units in parallel?
Connect outputs in parallel (same voltage). Use up to 2 units. Ensure identical settings.
- What if the green LED is blinking?
This model has steady green for normal. Blinking may indicate overload or fault – check load and wiring.
Experience-based Q&A
- My unit trips the breaker on startup.
The inrush current can be high (45 A). Use a C-characteristic breaker (not B).
- Output voltage shows 22 V, not 24 V.
Adjust the potentiometer on the front. It can be set from 22.8 to 26.4 V.
- Can this unit run at full load in a closed cabinet?
Ensure 50 mm clearance top/bottom. For high ambient, derate or add forced cooling.
Selection Guide (Buying Tips)
- Check your total load current – stay under 20 A (or 16 A at 60 °C).
- For higher power, use two units in parallel (max 40 A).
- If your grid is unstable, the wide input range helps (85-264 V AC).
- For outdoor or wet areas, choose a higher IP rated supply.
- Always use the recommended MCB (10 A, C-curve) to avoid nuisance trips.
Warranty & Shipping
- Warranty: 12 months against defects.
- Dispatch: 12-24 hours after order.
- Carriers: FedEx, UPS, DHL – tracking provided.
