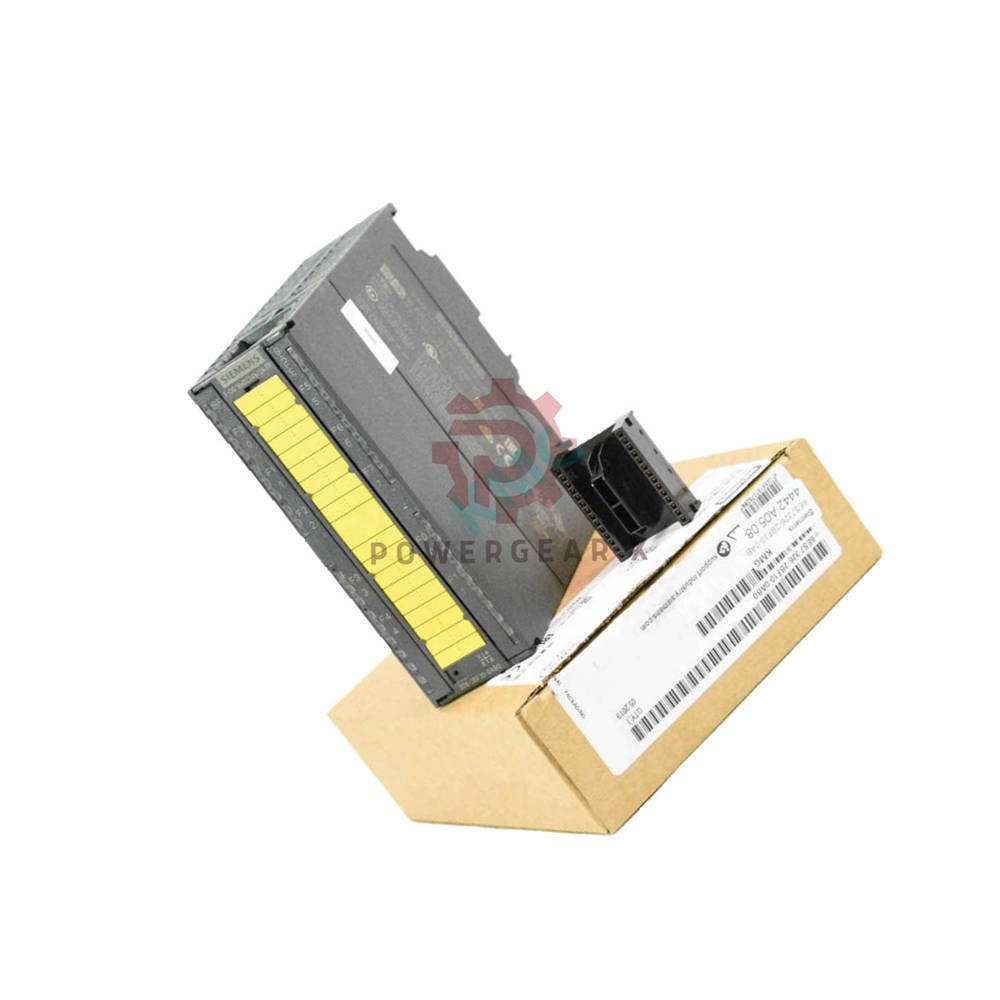

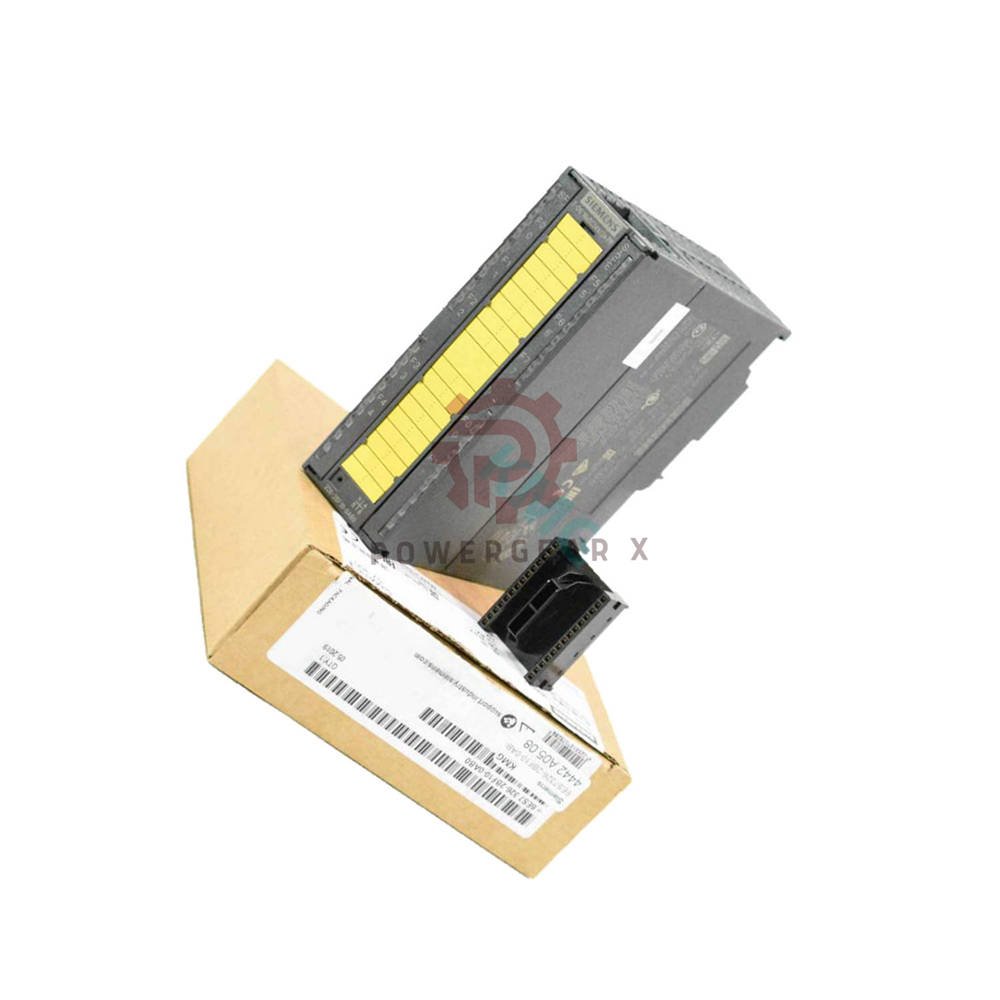

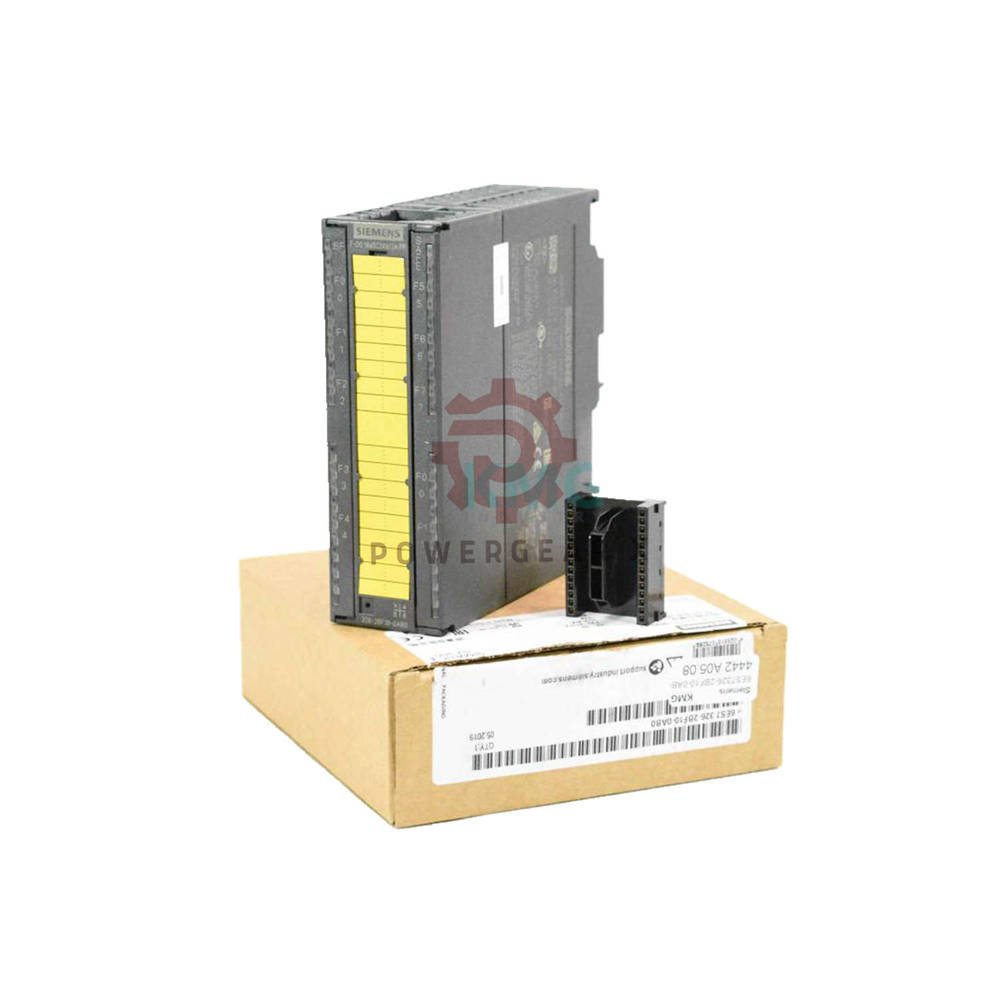

SIMATIC S7-300 6ES7326-2BF10-0AB0 Safety Output 10ch 24V Cat.4

Product Overview

• 6ES7326-2BF10-0AB0 – fail-safe digital output module for SIMATIC S7‑300.
• Part of the S7‑300 F‑system (safety‑related).
• Provides 10 digital outputs (24 V DC, 2 A per channel).
• Supports diagnostic alarm and load voltage monitoring (LVV).
• Safety等级: Cat. 4 (EN 954‑1), SIL 3 (IEC 61508), PLe (ISO 13849).
• 1x 40‑pin front connector required (not included).

Key Technical Data

• Supply voltage:
  • Rated: 24 V DC (1L+).
  • Reverse polarity protection: yes (1L+).
• Load voltage (L+):
  • Rated: 24 V DC (2L+, 3L+).
  • Reverse polarity protection: no.
• Current consumption (max):
  • 1L+ supply: 100 mA.
  • 2L+ (no load): 100 mA.
  • 3L+ (no load): 100 mA.
  • Backplane bus 5 V DC: 100 mA.
• Power loss: typ. 6 W.
• Digital outputs:
  • Number: 10.
  • Short‑circuit protection: yes.
  • Lamp load capacity: max. 5 W.
  • Output voltage for “1”: min. L+ (‑1.0 V).
  • Rated output current: 2 A.
  • Current range for “1” (0‑40 °C): 7 mA … 2.4 A.
  • Current range for “1” (40‑60 °C): 7 mA … 2.4 A.
  • Residual current for “0”: max. 0.5 mA.
• Switching frequency (max):
  • Resistive load: 25 Hz.
  • Inductive load: 25 Hz.
  • Lamp load: 10 Hz.
• Total current per group:
  • Horizontal (≤40 °C): 10 A.
  • Horizontal (≤60 °C): 6 A.
  • Vertical (≤40 °C): 5 A.
• Cable length (max):
  • Shielded: 1000 m.
  • Unshielded: 600 m.
• Diagnostics & alarms:
  • Diagnostic alarm: yes.
  • Diagnostic information readable: yes.
  • LED indicators: fail‑safe operation, group error (SF).
• Isolation:
  • Between channels: yes (groups of 5).
  • Channels to backplane bus: yes.
  • Channels to electronics supply: yes.
  • Test voltage: 370 V for 1 minute.
• Dimensions & weight:
  • Width: 40 mm, Height: 125 mm, Depth: 120 mm.
  • Weight: approx. 330 g.

Installation & Commissioning

• Insert the module into an S7‑300 rack.
• Connect 24 V DC supply to 1L+, 2L+, 3L+.
• Use a 40‑pin front connector for wiring.
• Configure the F‑system in STEP 7 (safety program).
• Check diagnostic LEDs after power‑up.

Maintenance & Service

• Diagnostic alarms help locate faults quickly.
• Read diagnostic info via STEP 7.
• No regular calibration needed.
• Replace module only when system is de‑energized.

Compatibility

• Works with SIMATIC S7‑300 F‑systems (fail‑safe).
• Requires STEP 7 with safety package.
• Supports PROFIBUS and PROFINET networks (via CPU).
• Can be used with ET 200M distributed I/O.

Certifications & Safety Standards

• EN 954‑1: Category 4.
• IEC 61508: SIL 3.
• ISO 13849‑1: Performance Level e.
• DIN VDE 0801: AK 5 & 6.

Package Contents

• SM 326 F‑DO10x module (6ES7326‑2BF10‑0AB0).
• No front connector included – order separately.
• Manual and documentation (digital).

Warranty & Logistics

• Warranty: 12 months from delivery.
• Shipping: 12‑24 hours dispatch.
• Carriers: FedEx, UPS, DHL (tracked).

Expert Review

• “This module is reliable for safety tasks. The 2 A per channel is enough for most actuators. The diagnostic alarm saves troubleshooting time. We use it in press and conveyor systems.” – Safety Systems Engineer

Manager’s Insight

• “The F‑DO10x meets high safety levels (SIL3/Cat.4). It simplifies certification for machine builders. The group current limits are clear – plan your load distribution carefully.” – Product Line Manager

Typical Applications

• Emergency stop circuits and safety interlocks.
• Machine guarding (light curtains, safety doors).
• Conveyor systems with fail‑safe stops.
• Process plants requiring SIL‑3 rated outputs.
• Replacement/upgrade for existing safety modules.

Frequently Asked Questions

• Can I use this module with a standard S7‑300 CPU?
  No – it needs a fail‑safe CPU (e.g., 315F‑2DP) and safety software.
• What is the total current per group?
  Horizontal mounting: 10 A (40 °C) / 6 A (60 °C). Vertical: 5 A (40 °C).
• How do I connect the outputs?
  Use a 40‑pin front connector. Each channel has two terminals (L+ and load).
• Is the module hot‑swappable?
  No – power down the rack before removing or inserting.
• What happens if an output shorts?
  The module has short‑circuit protection and will report a diagnostic alarm.

Selection Guide

• Choose this module for SIL3/Cat.4 safety applications.
• If you need fewer outputs, consider F‑DO4x (4‑channel).
• For higher switching frequency, use standard DO modules (non‑safety).
• Always check total group current against your load.
• Verify cable length limits for your installation.

Comparison with Similar Models

• 6ES7326‑2BF10‑0AB0 (this model) – 10ch, 2A, SIL3/Cat.4.
• 6ES7326‑2BF40‑0AB0 – 8ch, 2A, same safety level.
• 6ES7322‑1BL00‑0AA0 – standard DO, 32ch, no safety.
• 6ES7326‑1BK00‑0AB0 – fail‑safe input module (F‑DI).
