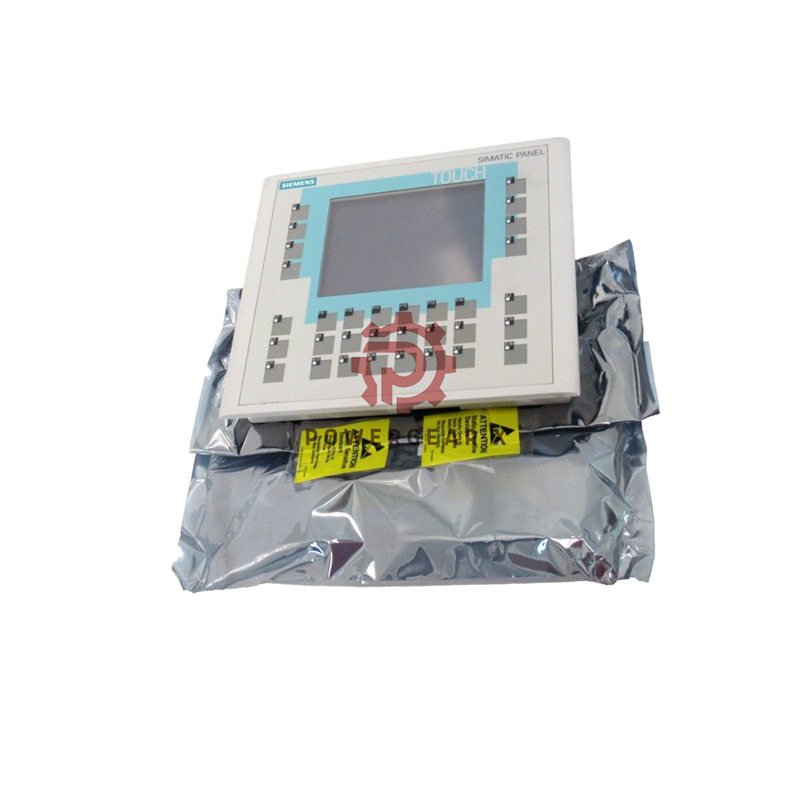

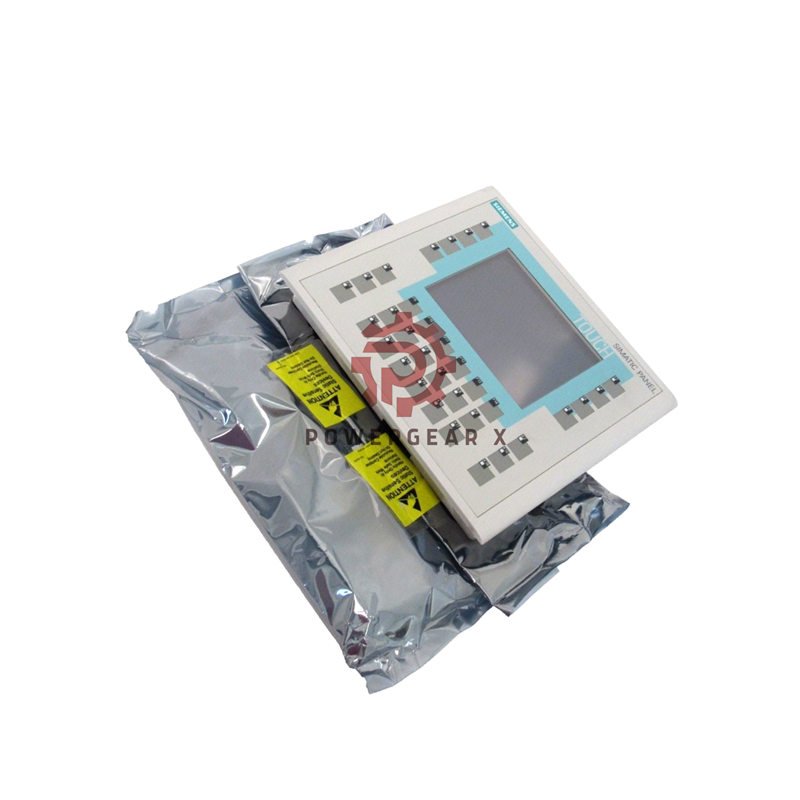

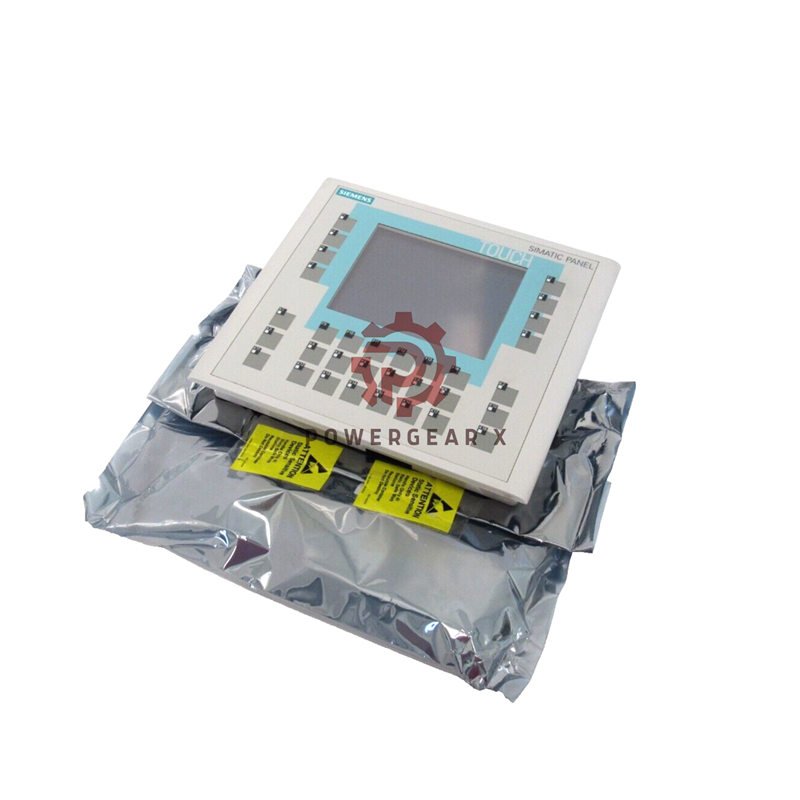

Siemens 6AV6642-0DC01-1AX1 | SIMATIC OP177B 6″ DP Blue Mode STN Display
Author: Powergear X Automation
The Siemens SIMATIC OP177B (6AV6642-0DC01-1AX1) is a 5.7-inch touch and key-operated operator panel designed for industrial automation. It offers fast data processing, a clear blue STN display, and flexible communication via MPI and PROFIBUS-DP. Ideal for factory and process control applications.
Key Specifications
- Display: 5.7” STN Blue Mode, 320×240 pixels
- Touch + 32 function keys (26 with LEDs)
- Processor: ARM 200 MHz
- Memory: 2048 KB Flash/RAM
- Backlight life: 50,000 hours
- Interfaces: RS422, RS485, USB
- Supply voltage: 24 V DC, 0.24 A
- Operating system: Windows CE
- Configuration: WinCC flexible 2005 or higher
Performance Highlights
- Fast communication with Siemens PLCs (S7-200, S7-300/400)
- Durable and reliable under harsh industrial environments
- Support for multiple runtime languages (up to 5)
- High IP65 protection on the front panel
- Long service life and minimal maintenance needs
Certifications & Safety
- Protection class: IP65 (front), IP20 (rear)
- Approvals: CE, UL, CSA, DNV, GL, ABS, FM Class I Div.2
- EX zone 2 and 22 certified
- Operating temperature: -20°C to +60°C
- Mounting: Vertical position, ±35° angle limit
Warranty & Delivery
- Warranty: 12 Months
- Shipping methods: FedEx / UPS / DHL
- Global delivery support
Extended Functions
- Sm@rtServer support
- Alarm and message logging
- Recipe handling and data recording
- USB printer support and simulation functions
- Supports WinCC flexible Compact/Standard/Advanced
Professional FAQs
Q1: Can the OP177B connect to both S7-200 and S7-300 controllers?
A: Yes, it supports both through MPI and PROFIBUS-DP interfaces.
Q2: How often should I replace the display backlight?
A: Typically after 50,000 hours of use, depending on brightness settings.
Q3: Can I configure the device with TIA Portal?
A: Yes, WinCC Comfort and Advanced in TIA Portal are compatible.
Q4: What is the maximum storage temperature for this model?
A: It can safely handle between -20°C and +60°C during storage or transport.
Q5: Is it suitable for hazardous environments?
A: Yes, it’s approved for EX Zone 2 and 22, with high-level safety certifications.
