6XV1870-8AH50 IE Connecting Cable M12-180/M12-180 – Industrial Ethernet

Siemens | IE FC Trailing Cable GP | M12-180/M12-180 with 5.0 m length, D-coded, IP65/67, Cat5e.

Description

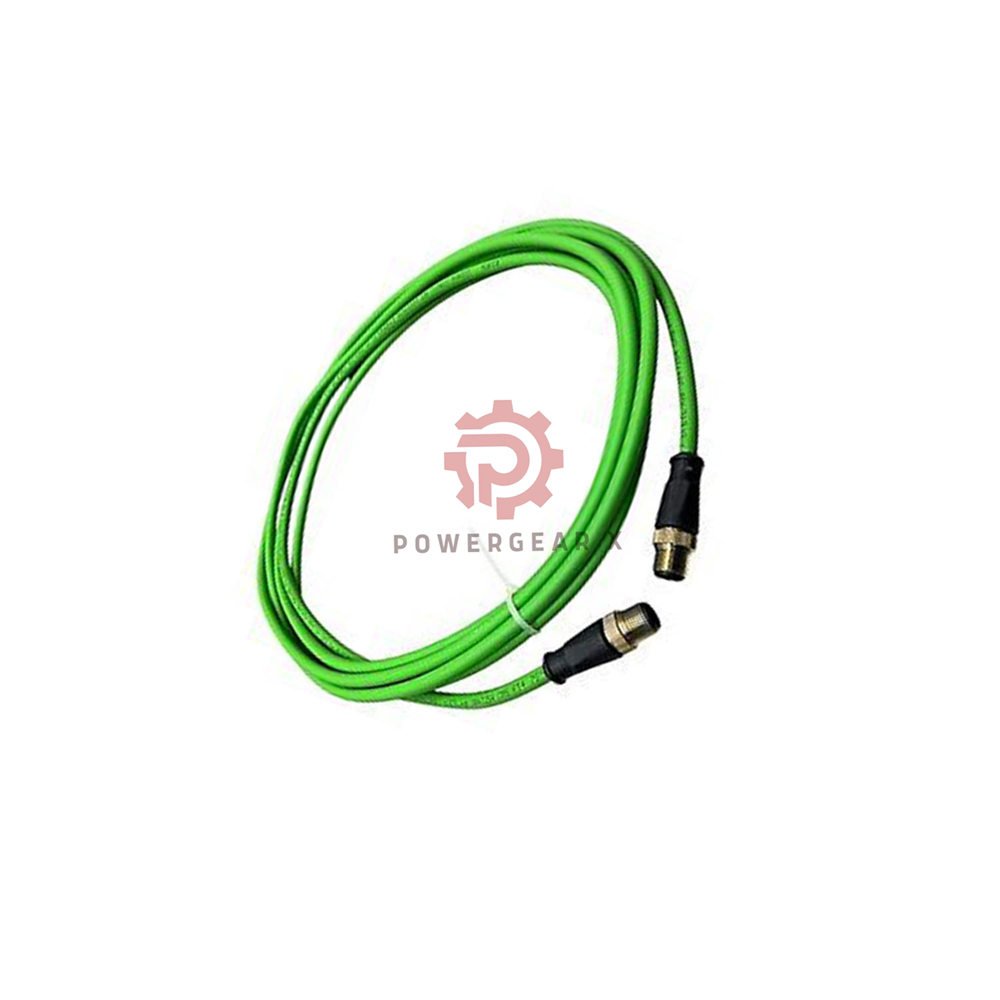

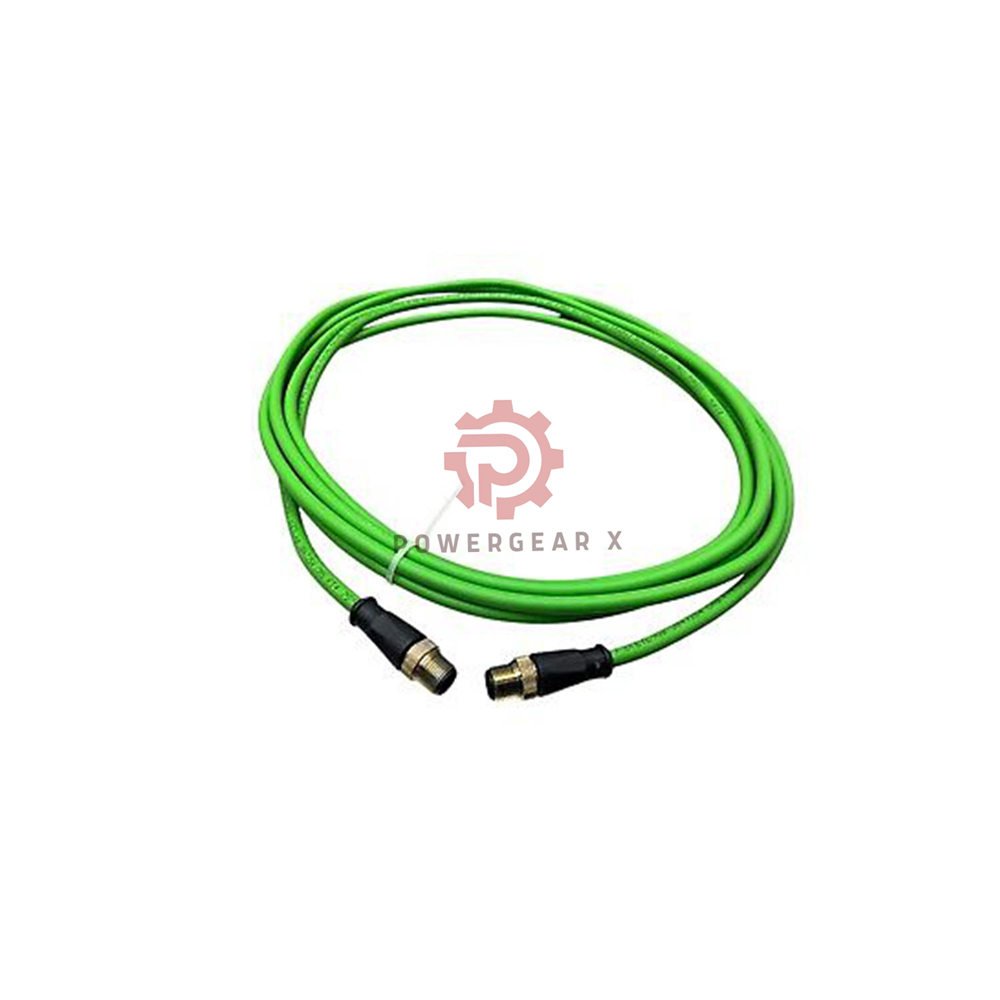

The 6XV1870-8AH50 is a flexible plug-in cable for Industrial Ethernet. It has two 4-pole M12 connectors (D-coded, 180° outlet). Length: 5.0 m. Suitable for IP65/67 environments. Connects devices like SIMATIC ET200 and SCALANCE XP-200. Cable design: 2YY (ST) CY 2x2x0,75/1,5-100 LI GN. Shield: overlapped aluminum foil + braided screen. Fire resistant per UL 1685 (CSA FT 4). RoHS compliant, CE marked.

Technical Specifications

• Product Type: IE Connecting Cable M12-180/M12-180
• Manufacturer: Siemens
• Part Number: 6XV1870-8AH50
• Length: 5.0 m
• Connectors: 2 x M12, D-coded, 180°
• Protection Class: IP65, IP67
• Attenuation: 0.063 dB/m @10 MHz, 0.213 dB/m @100 MHz
• Impedance: 100 Ω (1–100 MHz), tolerance ±5%
• Loop Resistance: ≤120 mΩ/m
• Operating Voltage: 80 V RMS
• NVP Value: 66%
• Cores: 4, AWG22 (0.75 mm)
• Outer Diameter: 6.5 mm
• Bending Radius (single): 32.5 mm
• Bending Cycles: 3,000,000 (drag chain)
• Tensile Load: 150 N max
• Weight: 68 kg/km
• Temperature Range: -25°C to +75°C (op/storage/transport)
• Installation Temp: -10°C to +60°C

Installation & Compatibility

• Mounting: Plug-and-play M12 connectors.
• Compatibility: SIMATIC ET200, SCALANCE XP-200, IP65/67 devices.
• Fire Behavior: Flame resistant per UL 1685 (CSA FT 4).
• Chemical Resistance: Conditional to mineral oil and grease.

Maintenance & Debugging

• No tools needed: Screw-lock connectors.
• Visual check: Green sheath, color-coded wires.
• Flexible design: Suitable for continuous bending.

Expert Review – Manager’s Insight

“The 6XV1870-8AH50 is a top choice for rugged industrial Ethernet. Its 3 million bending cycles and IP67 rating make it ideal for moving machinery. The 5 m length is practical, and Cat5e performance ensures reliable data. I recommend it for automation cells and conveyor systems.”

Applications & Suitable Devices

• Industrial Ethernet networks
• SIMATIC ET200 distributed I/O
• SCALANCE XP-200 switches
• Robotic cells and conveyors
• IP65/67 rated field devices

Comparison with Similar Models

• 6XV1870-8AH50 – 5 m M12-180/M12-180, IP67, Cat5e.
• 6XV1870-8AH60 – 10 m length, same connectors.
• 6XV1870-8AH30 – 2 m length, M12-180/M12-180.
• 6XV1870-8AE50 – M12-180/RJ45, 5 m.

Frequently Asked Questions (FAQ)

What is the cable length?

5.0 meters.

Can I use it in a drag chain?

Yes, rated for 3 million bending cycles.

What is the protection class?

IP65 and IP67.

Is it RoHS compliant?

Yes, RoHS compliant.

What devices is it compatible with?

SIMATIC ET200, SCALANCE XP-200, and other M12 D-coded devices.

Selection Guide – What to Consider

• Need long life in moving parts? 3 million bending cycles.
• Harsh environments? IP67, -25°C to +75°C.
• Fire safety? UL 1685 flame resistant.
• Easy installation? M12 screw-lock connectors.

Packaging & Delivery

• Package includes: 1 x 6XV1870-8AH50 cable (5 m).
• Warranty: 12 months from purchase.
• Shipping: 12–24 hours dispatch via FedEx, UPS, or DHL.
• Returns: Not returnable (check policy).

Certifications & Approvals

• CE, RoHS, EAC
• UL/ETL: c(ETL)us, CMG FT4, PLTC, Sun Res, OIL RES
• cRUus AWM 21694 AWM I A/B 60°C 600V FT2
• Cat5e structured cabling standard

Ordering Information

• Reference Code: WG (IEC 81346-2)
• Reference Code 2019: WGB
