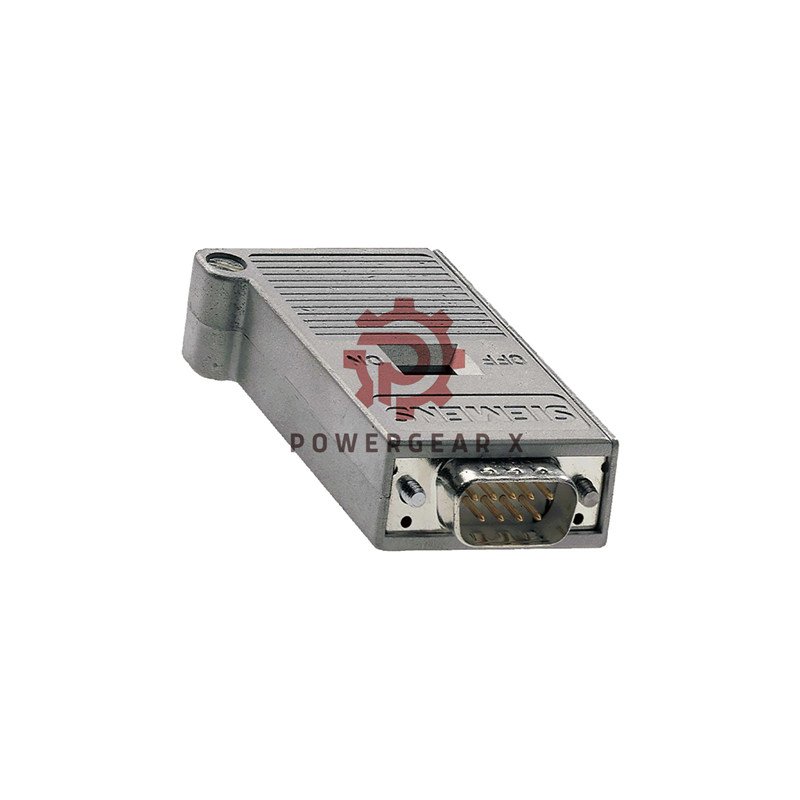

Siemens 6GK1500-0EA02 PROFIBUS Connector – Axial Cable Output, Metal Shell, 12 Mbit/s
The Siemens 6GK1500-0EA02 PROFIBUS connector offers fast, stable, and secure data transmission up to 12 Mbit/s. Built with a strong metal housing and an axial cable outlet (180°), this connector is ideal for industrial PCs, SIMATIC OP panels, and OLM modules. It includes an integrated isolating termination resistor and delivers reliable fieldbus performance in harsh environments.
⚙️ Product Highlights
- Model: 6GK1500-0EA02
- Manufacturer: Siemens
- Series: PROFIBUS Components
- Bus Type: PROFIBUS-DP
- Transfer Rate: 9.6 kbit/s to 12 Mbit/s
- Cable Outlet Angle: 180° (Axial)
- Connector Type: SUB-D 9-pin male
- Terminating Resistor: Integrated with isolating function
- Enclosure: Full metal for high durability
- FastConnect Support: No
📏 Mechanical & Electrical Data
- Connection to Bus Cable: Screw terminal
- Connection to Device: SUB-D plug (9-pin)
- Width: 15 mm
- Height: 57 mm
- Depth: 39 mm
- Weight: 100 g
- Locking Type: Fixed screw
- Protection Class: IP20
🌡 Environmental Ratings
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -25°C to +80°C
- Transport Temperature: -25°C to +80°C
- Relative Humidity (max 25°C): 75% (non-condensing)
- Silicone-Free: Yes
🚀 Key Advantages
- Reliable PROFIBUS connectivity up to 12 Mbit/s
- Integrated resistor with isolation for easy maintenance
- Strong metal casing protects against industrial stress
- Compact and lightweight, ideal for limited spaces
- Quick installation with clear wiring terminals
- Compliant with RoHS environmental standards
📦 Warranty & Shipping
- Warranty: 12 Months
- Shipping: FedEx, UPS, DHL worldwide
- Inquiries: sales@powergearx.com
- WhatsApp: +86 18030005825
💬 FAQ
- Q1: What devices can I connect with the 6GK1500-0EA02?
- A: It connects PROFIBUS cables to industrial PCs, SIMATIC OPs, and OLM modules.
- Q2: Does it support high-speed data?
- A: Yes, it supports up to 12 Mbit/s transfer rate with stable performance.
- Q3: Is the connector suitable for outdoor use?
- A: It is rated IP20, ideal for indoor control cabinets or protected environments.
- Q4: How do I activate the termination resistor?
- A: Slide the integrated switch to enable or disable the resistor with isolation.
- Q5: Does it support FastConnect cable?
- A: No, this model uses screw terminals for secure contact.
