Product details

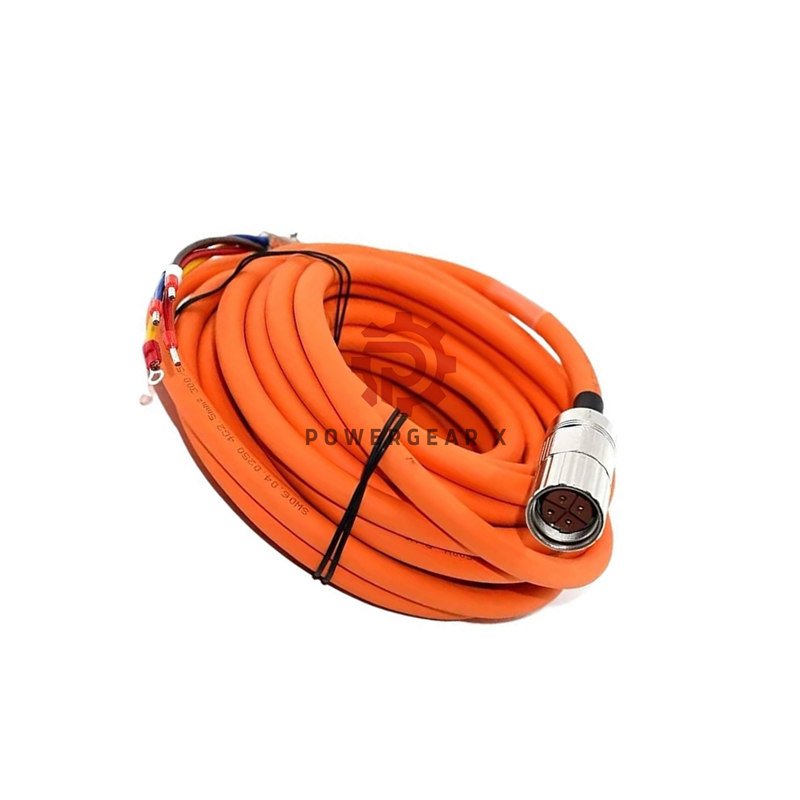

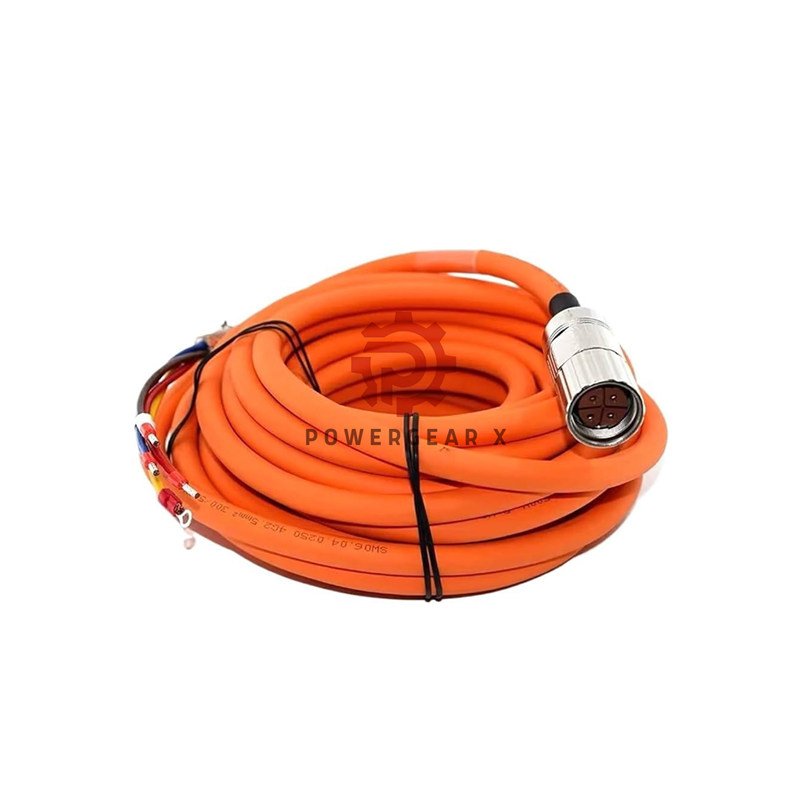

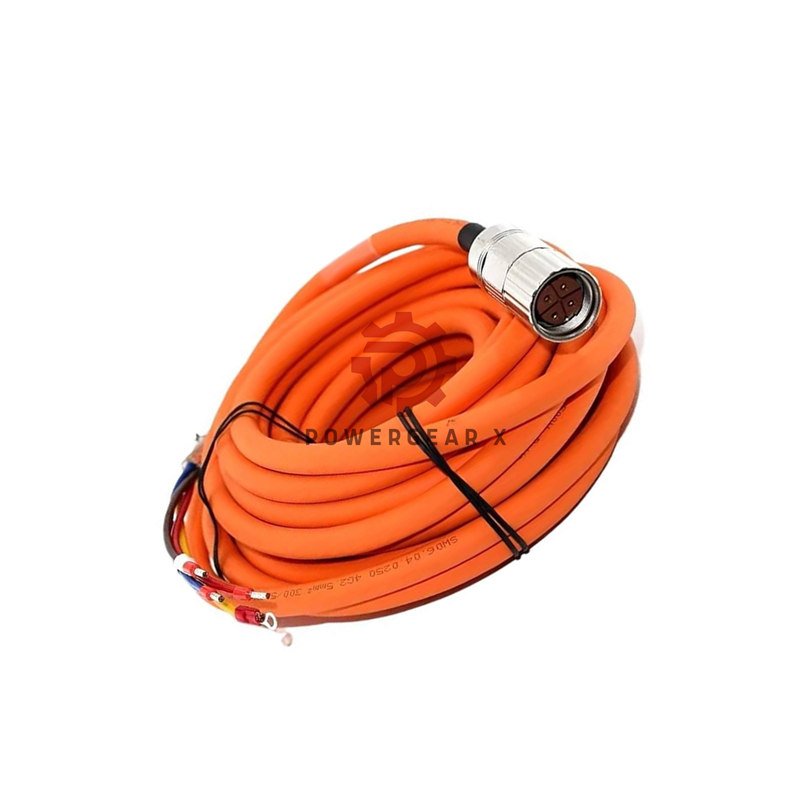

Siemens 6FX3002-5CL12-1CA0 Power Cable
Durable Siemens motor power cable designed for high mechanical load and long life in industrial automation. Reliable and safe performance for SINAMICS and SINUMERIK systems.
🔌 Product Overview
- Model: Siemens 6FX3002-5CL12-1CA0
- Type: Power Cable with Straight Connector
- Cable Length: 20.0 m
- Core Configuration: 4 × 2.5 mm²
- Connector Orientation: Fixed outlet direction
⚙️ Electrical Characteristics
- Rated Voltage (U0/U): 600 V / 1000 V (EN 50395)
- Test Voltage (rms): 4000 V
- Max Power Rating: Industrial-grade continuous operation
- Insulation Resistance: >200 MΩ·km
- Operating Frequency: 50 / 60 Hz
🧩 Mechanical Properties
- Min. Bend Radius (Fixed): 6 × cable diameter
- Min. Bend Radius (Flexible): 155 mm
- Max. Bending Cycles: 1,000,000
- Tensile Strength (Fixed): 50 N/mm²
- Tensile Strength (Dynamic): 20 N/mm²
- Torsional Load: ±30°/m
- Outer Sheath: Oil and abrasion resistant
🌟 Key Features
- Excellent mechanical durability and flexibility
- Stable signal and power transfer under vibration
- Easy to install with preassembled straight connector
- Long service life even under continuous motion
- Perfect match for Siemens drives and motion systems
📦 Warranty & Delivery
- Warranty: 12-month quality assurance
- Condition: New & Original Siemens cable
- Delivery: Fast global shipping via FedEx, UPS, or DHL
📞 Contact Information
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
💬 FAQ
- Q1: What type of connector does the 6FX3002-5CL12-1CA0 cable use?
A: It uses a fixed straight connector for secure, stable installation. - Q2: Can this cable be used for moving applications?
A: Yes, it’s rated for up to 1 million bending cycles, ideal for drag chain use. - Q3: What’s the recommended installation radius?
A: For flexible setups, maintain a minimum 155 mm bend radius. - Q4: How can I ensure long cable life in motion applications?
A: Avoid excessive twist or tension and follow Siemens routing standards. - Q5: What’s a common maintenance practice from the field?
A: Regularly check connector locking and sheath condition for wear or stress marks.
