Product details
Reliable Power Connection Solution

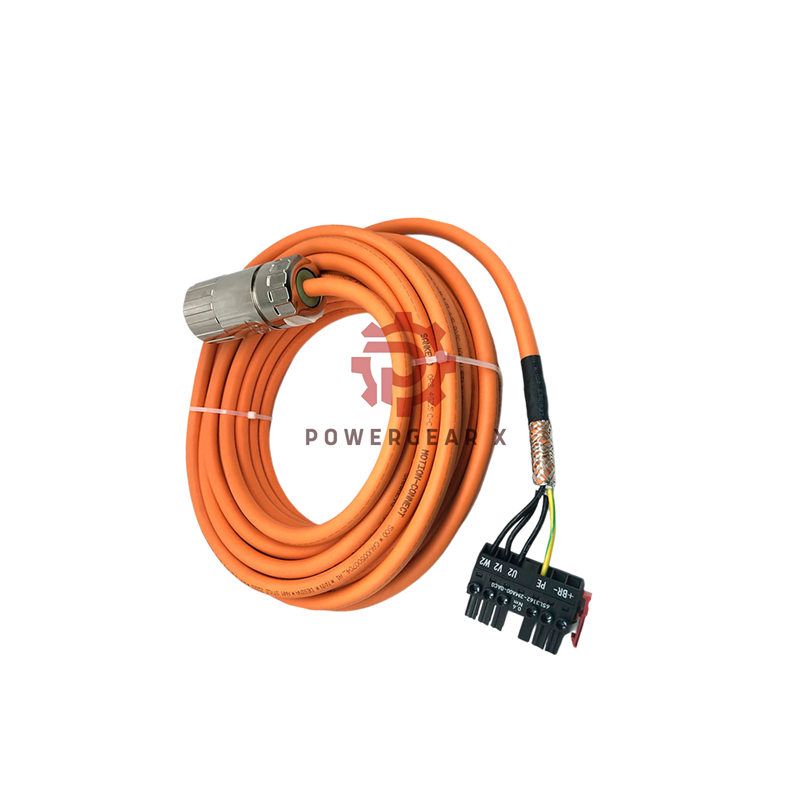

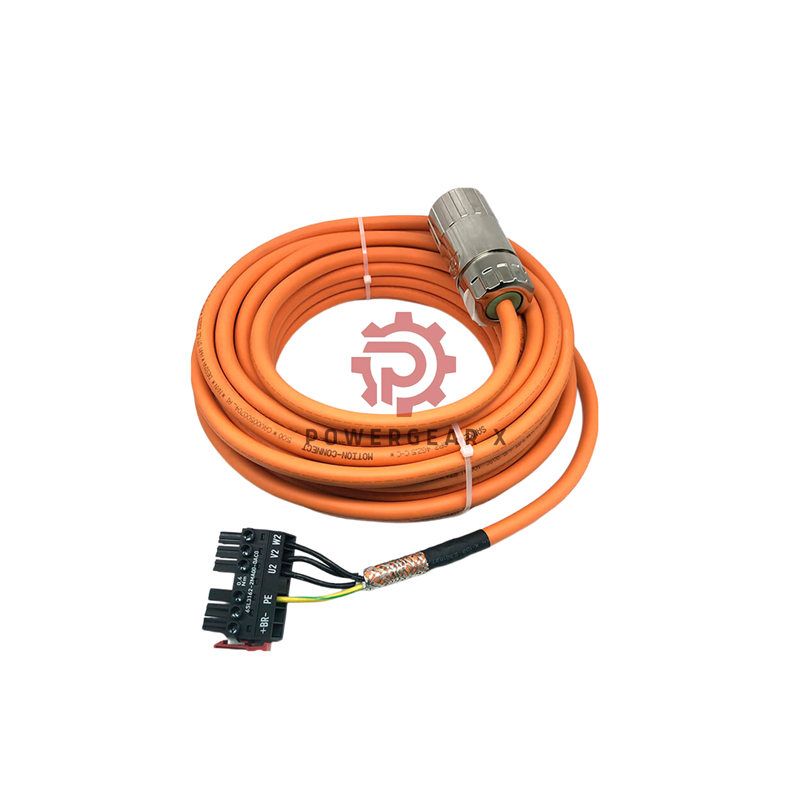

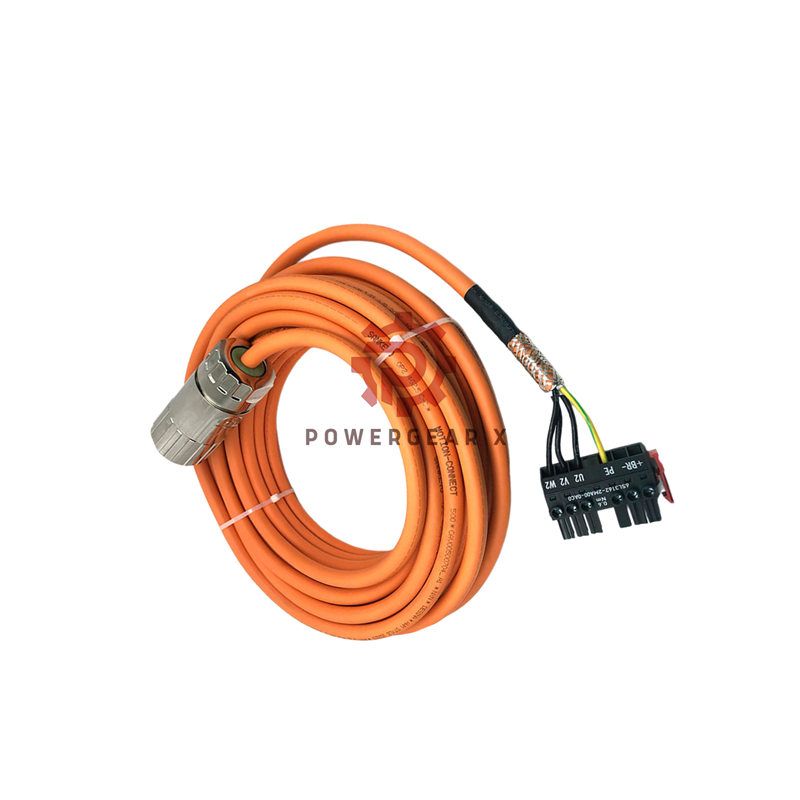

This Siemens M23 connector 6FX5002-5DN06-1BA0 provides ready-to-use power connectivity. The 6-pole design works with SINAMICS S120 drives. It comes with a 10-meter shielded cable. This pre-wired solution saves installation time and effort.
Key Benefits & Features
- Pre-wired design for quick installation
- M23 connector with 6 poles for complete connectivity
- 10-meter shielded cable provides flexibility
- IP66/67 protection against dust and water
- Nickel-plated housing resists corrosion
- Suitable for SINAMICS S120 drives and motors
6FX5002-5DN06-1BA0 Technical Specifications
- Connector Type: M23, 6-pole, straight female
- Cable Length: 10 meters
- Power Core Capacity: 12A (1.5mm²), 15A (2.5mm²)
- Brake Core Capacity: 5A (1.5mm²)
- Voltage Rating: 630V AC/DC maximum
- Protection Rating: IP66, IP67
- Tightening Torque: 2 Nm
- Thread Size: M23 x 1
- Surge Voltage: 6 kV rated
- Operating Temperature: -25°C to +85°C
- Housing Material: Zinc die-casting
- Coating: Nickel plated for durability
- Locking Material: Brass
- Pollution Degree: 3
- Material Group: I
Environmental Performance
- Works in extreme temperatures from -25°C to 85°C
- Resistant to chemicals and oils
- Nickel plating prevents rust and corrosion
- Shielded design reduces electrical interference
- Robust construction for industrial environments
- Maintains performance in harsh conditions
Service & Support
- 12-month quality warranty included
- Global shipping via FedEx, UPS, DHL available
- Custom cable lengths upon request
- Technical support for installation questions
Expert Guidance
- What drive systems is this cable compatible with?
It is designed specifically for Siemens SINAMICS S120 drives and compatible motors.
- Can I use this connector in wet environments?
Yes, the IP67 rating allows temporary immersion in water.
- What is the maximum current for power transmission?
The power cores handle up to 15 amps depending on wire size.
- How durable is the nickel plating?
Nickel plating provides excellent resistance to industrial corrosion and wear.
- Can I get different cable lengths?
Yes, we can provide custom lengths to meet your specific installation needs.
Get Professional Advice
- Email: sales@powergearx.com
- Technical Support: +86 18030005825
- Our team can help select the right connector for your application
