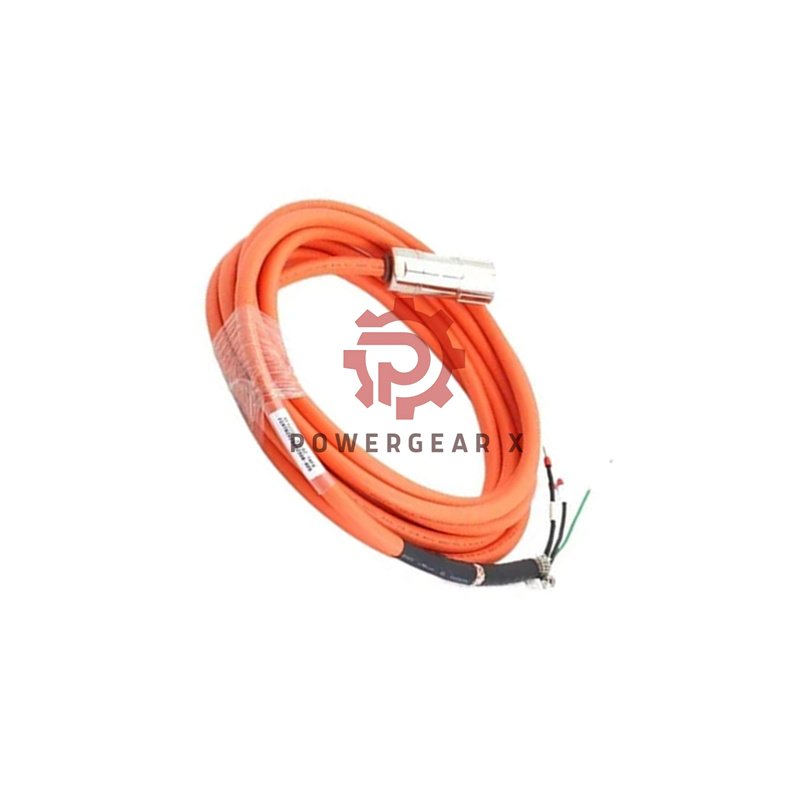

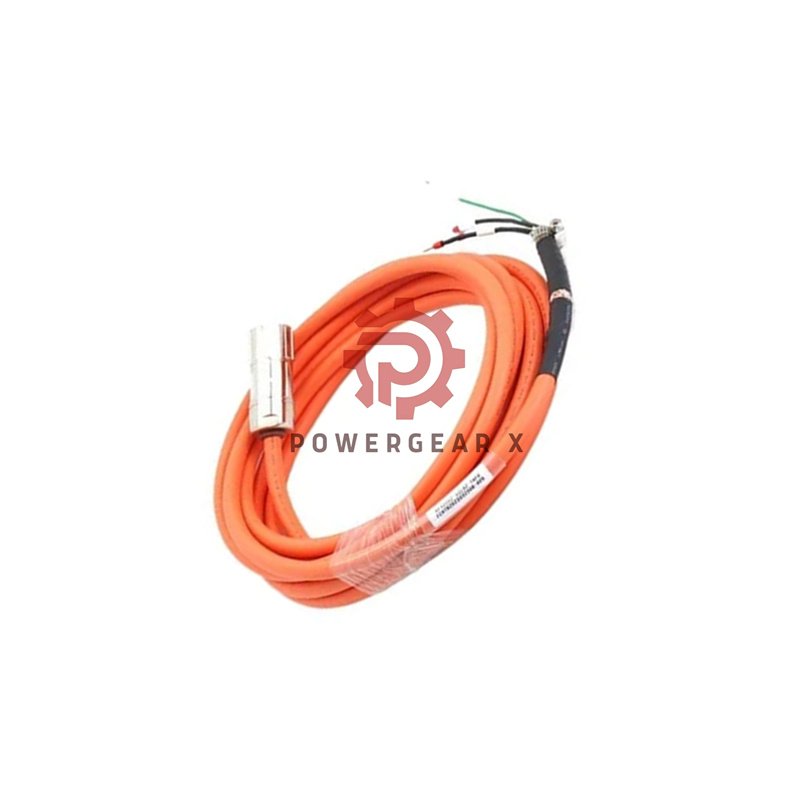

Siemens 6FX3002-5CL02-1BA0 | Pre-Assembled Power Cable 10m
Product Overview
The 6FX3002-5CL02-1BA0 power cable from Siemens is designed for S-1FL6 HI 400V motors paired with V70/V90 frame size AA. It ensures reliable energy transfer, stable performance, and effortless setup in automation systems.
- Model: 6FX3002-5CL02-1BA0
- Length: 10 meters
- Voltage Rating: 600V / 1000V
- Conductor: 4 x 1.5 mm²
- Connector Type: Straight connector
- Diameter: 8.1 mm
- Sheath Material: PVC
- Insulation Type: PVC
- Protection: IP65
- Warranty: 12 Months
- Shipping: FedEx, UPS, DHL
Electrical Features
- • Rated voltage: 600V/1000V
- • Test voltage (rms): 4,000V
- • Conductor resistance: ≤12.1 Ω/km
- • Insulation resistance: ≥100 MΩ·km
- • Flame resistance: EN 60332-1-1 to 1-3 compliant
Mechanical Performance
- • Fixed bend radius: 6 × diameter
- • Flexible bend radius: 155 mm
- • Max bends: 1,000,000 cycles
- • Torsion limit: ±30°/m
- • Tensile strength (fixed): 50 N/mm²
- • Tensile strength (flexible): 20 N/mm²
Environmental Data
- • Temperature range: -25°C to +80°C
- • Oil resistance: Mineral oil (EN 60811-2-1)
- • Fire safety: Flame-resistant
- • Compliance: CE, RoHS certified
Key Benefits
- Ready-to-use pre-assembled design for quick installation.
- Strong PVC insulation extends service life.
- Stable operation in high-vibration environments.
- High test voltage ensures insulation integrity.
- Perfect for Siemens V70/V90 servo systems.
Author: Powergear X Automation
Contact Information
Inquiries: sales@powergearx.com |
+86 18030005825
FAQ Section
- Q1: Is the 6FX3002-5CL02-1BA0 cable compatible with all Siemens motors?
It’s designed mainly for S-1FL6 HI 400V motors with V70/V90 drives. - Q2: What connector does this cable use?
It uses a straight connector with a fixed outlet direction for simple installation. - Q3: Can this cable handle dynamic motion?
Yes, it supports up to one million bending cycles for flexible installations. - Q4: Is this model flame-resistant?
Yes, it meets EN 60332 flame resistance standards. - Q5: Does it have UL certification?
This version does not include UL approval but meets CE and RoHS standards.
