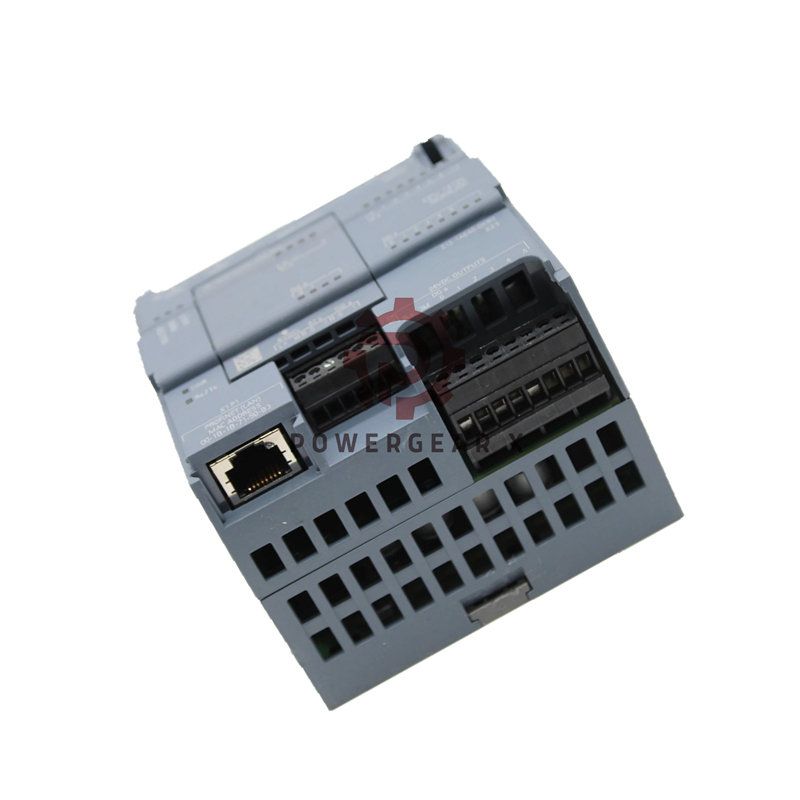

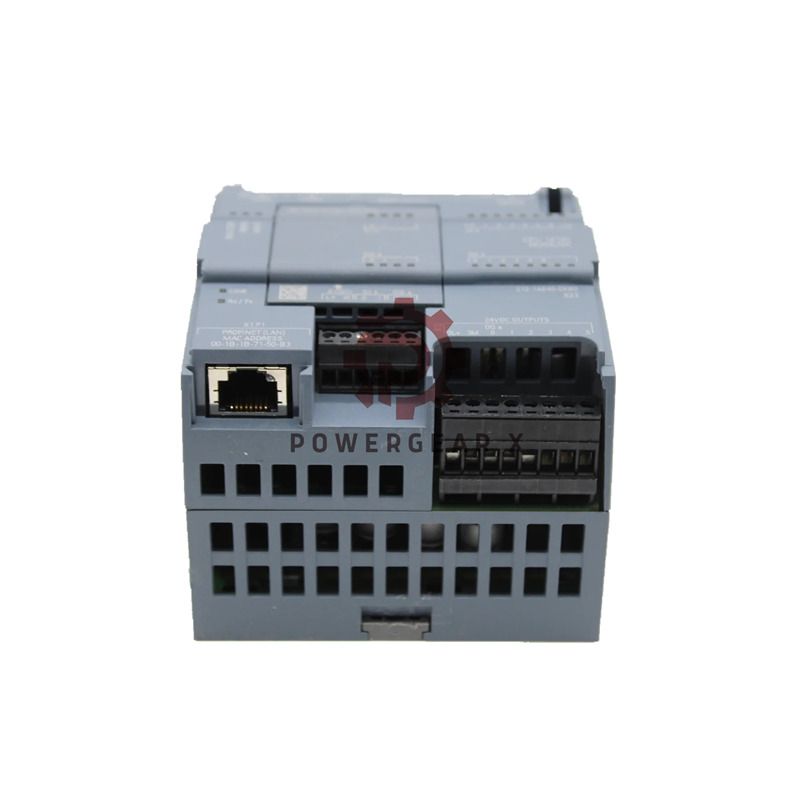

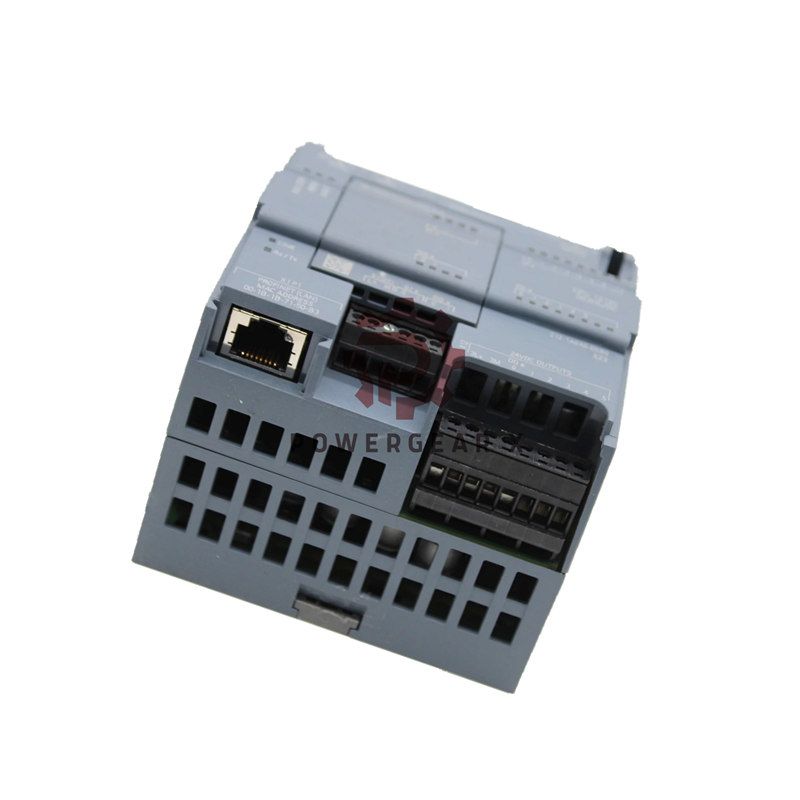

Siemens 6ES7212-1AE40-0XB0 Industrial PLC — CPU 1212C Compact Controller

Product Overview

Powergear X Automation presents the 6ES7212-1AE40-0XB0 compact PLC with robust onboard I/O and fast processing. You will deploy this CPU 1212C in S7-1200 systems for precise control and strong reliability everywhere.

Technical Specifications

• Brand: Siemens
• Model: 6ES7212-1AE40-0XB0
• Series: S7-1200 Compact CPU Family
• Power Supply: DC 20.4–28.8 V rated with reverse polarity protection
• Onboard I/O: 8 DI 24 V DC, 6 DO 24 V DC, 2 AI 0–10 V DC
• Work Memory: 100 KB | Load Memory: 2 MB integrated
• CPU Speed: Bit 0.08 μs | Word 1.7 μs | Float 2.3 μs per instruction
• Analog Input Range: 0–10 V | 10-bit Resolution | ≥100 kΩ Resistance
• Digital Output Capacity: 0.5 A resistive load per channel | 100 kHz pulse output
• Communication: PROFINET, OPC UA (license required), MODBUS, PROFIBUS via CM
• Environmental Protection: IP20 | Humidity ≤95% non-condensing | Vibration-tested to IEC 60068-2-6
• Dimensions: 90×100×75 mm | Weight: 370 g | Package: 11.00×10.10×8.50 cm

Installation Guide

• Mount CPU 1212C on a DIN rail with correct orientation and secure lock.
• Connect DC 24 V supply between L+ and M within voltage limits and fuse protection.
• Wire 8 DI and 6 DO channels according to your IO mapping plan.
• Use twisted and shielded cables for the 2 AI inputs to prevent interference.
• Configure PROFINET and assign device names via STEP 7 V18 or higher before start-up.
• Enable hardware clock and set password protections for secure operation.

Packaging Contents

• 1 × 6ES7212-1AE40-0XB0 Compact CPU Unit
• Quick Start Wiring Guide
• Safety and Reference Leaflet
• SIMATIC Memory Card Slot (Card sold separately)

Shipping and Delivery

• Global express shipping available via FedEx, UPS, or DHL.
• Expedited options ensure minimum downtime during replacement or upgrades.
• Contact our sales team for lead time confirmation and multi-unit orders.

FAQ

• Q: What software is required to program this CPU?
  A: Use Siemens STEP 7 V18 or newer for configuration and programming.
• Q: Does it include OPC UA server functions?
  A: Yes, the OPC UA server is available with a valid runtime “Basic” license.
• Q: How many modules can be attached?
  A: Supports 3 communication modules, 1 signal board, and 2 signal modules.
• Q: Can I connect encoders directly?
  A: Yes, 24 V encoder supply is supported with stable output.
