Product details

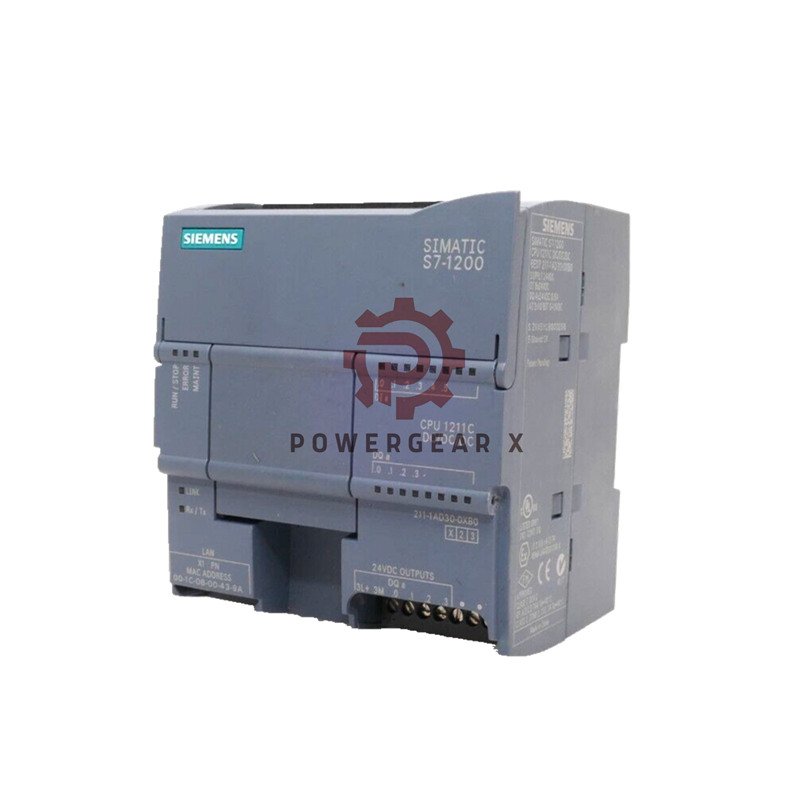

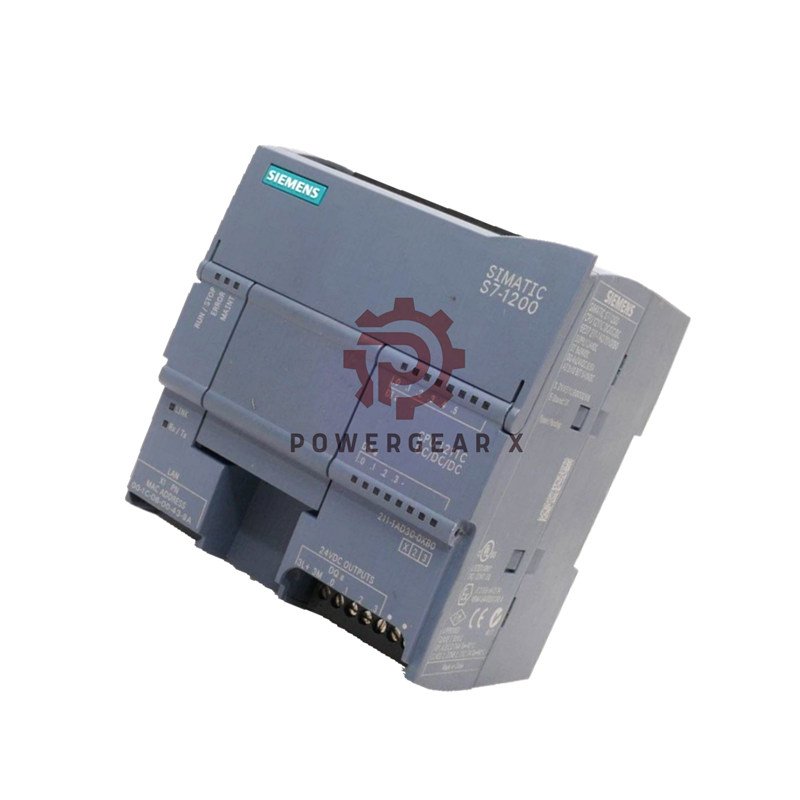

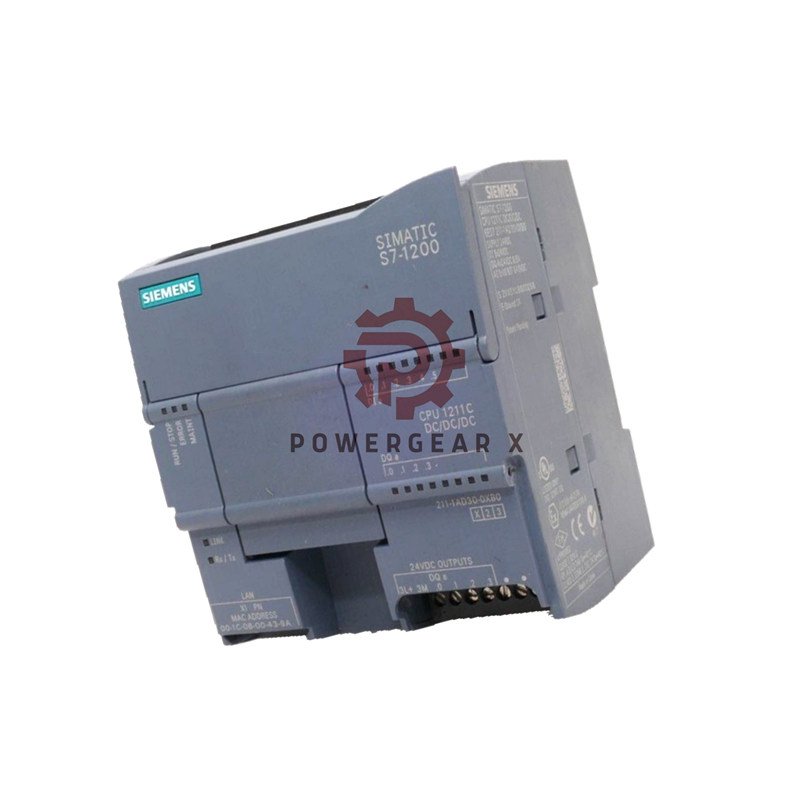

Siemens 6ES7211-1AD30-0XB0 Compact Controller
This powerful 6ES7211-1AD30-0XB0 CPU brings smart automation to compact spaces. The SIMATIC S7-1200 series delivers reliable performance for industrial applications. Its integrated I/O and communication capabilities make installation straightforward.
Core Technical Specifications
- Manufacturer: Siemens Automation
- Product Series: SIMATIC S7-1200
- Model: 6ES7211-1AD30-0XB0
- Memory Capacity: 25 KB program storage
- Digital Inputs: 6 channels at 24V DC
- Digital Outputs: 4 channels at 24V DC
- Analog Inputs: 2 channels for 0-10V signals
- Power Requirements: 20.4-28.8V DC
Performance Features
- Operating temperature range: -20°C to 60°C
- Storage temperature: -40°C to 70°C
- Shielded cable support up to 50 meters
- Multiple international certifications included
- Compact dimensions: 38x62x21 mm
- Lightweight design at only 35 grams
Digital Expansion Capabilities
- Signal Board 1222 adds 4 digital outputs
- 5V DC operation at 200kHz frequency
- MOSFET solid-state switching technology
- Maximum 0.1A output current capacity
- Status indication through LED diagnostics
Installation Advantages
- Simple mounting process saves time
- Direct connection to expansion modules
- Flexible horizontal or vertical placement
- Robust construction withstands vibration
- Easy integration with existing systems
Shipping & Support
- Package size: 10.9×10.2×8.6 cm
- Product weight: 0.35 kg
- Express delivery: FedEx, UPS, DHL
- 12-month manufacturer warranty
- Technical support available
Common Questions
- What expansion modules work with this CPU?
The 6ES7211-1AD30-0XB0 connects seamlessly with SIMATIC S7-1200 signal boards and modules for flexible expansion.
- Can it handle high-speed counting applications?
Yes, the CPU supports high-speed counters through its digital inputs for motion control tasks.
- What programming software is required?
Siemens TIA Portal software programs the controller using ladder logic and function blocks.
- Is Ethernet communication built-in?
The CPU includes PROFINET Ethernet port for network connectivity and device integration.
- What protection features are included?
Electrical isolation and short-circuit protection ensure safe operation in industrial environments.
