Product details

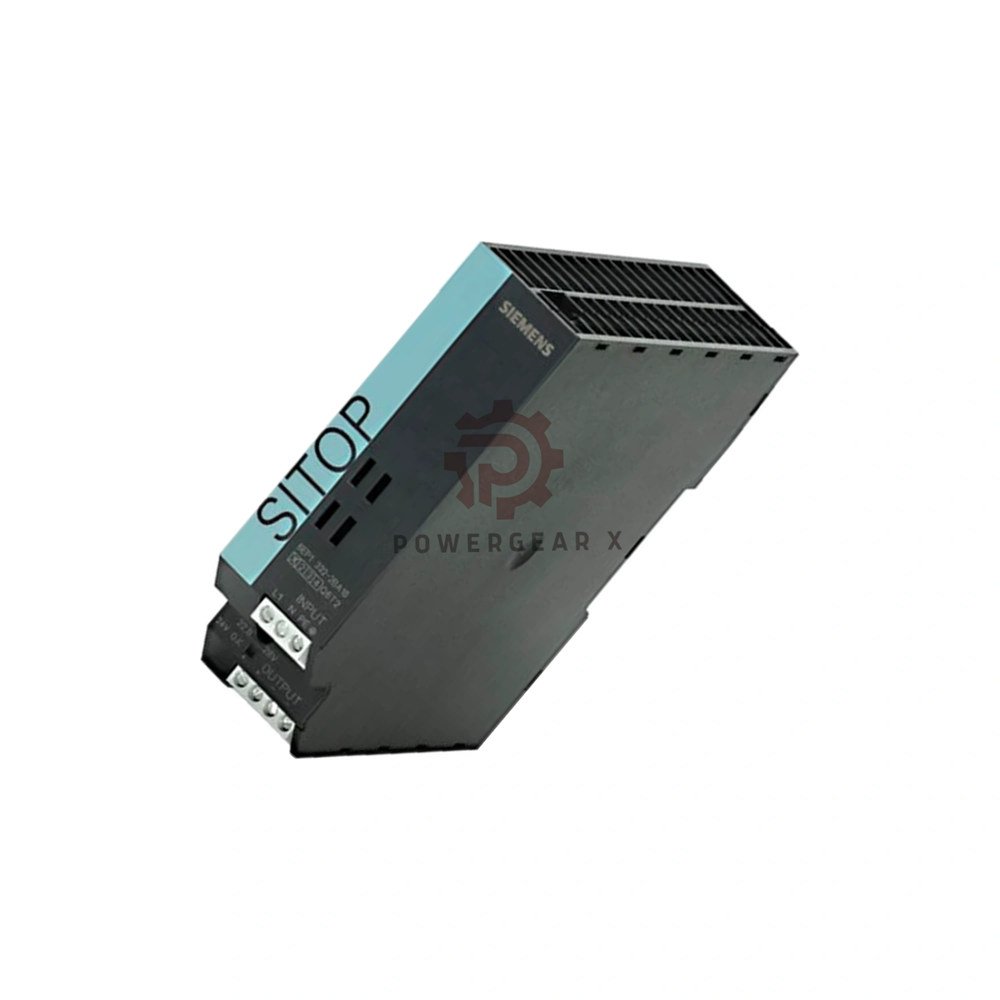

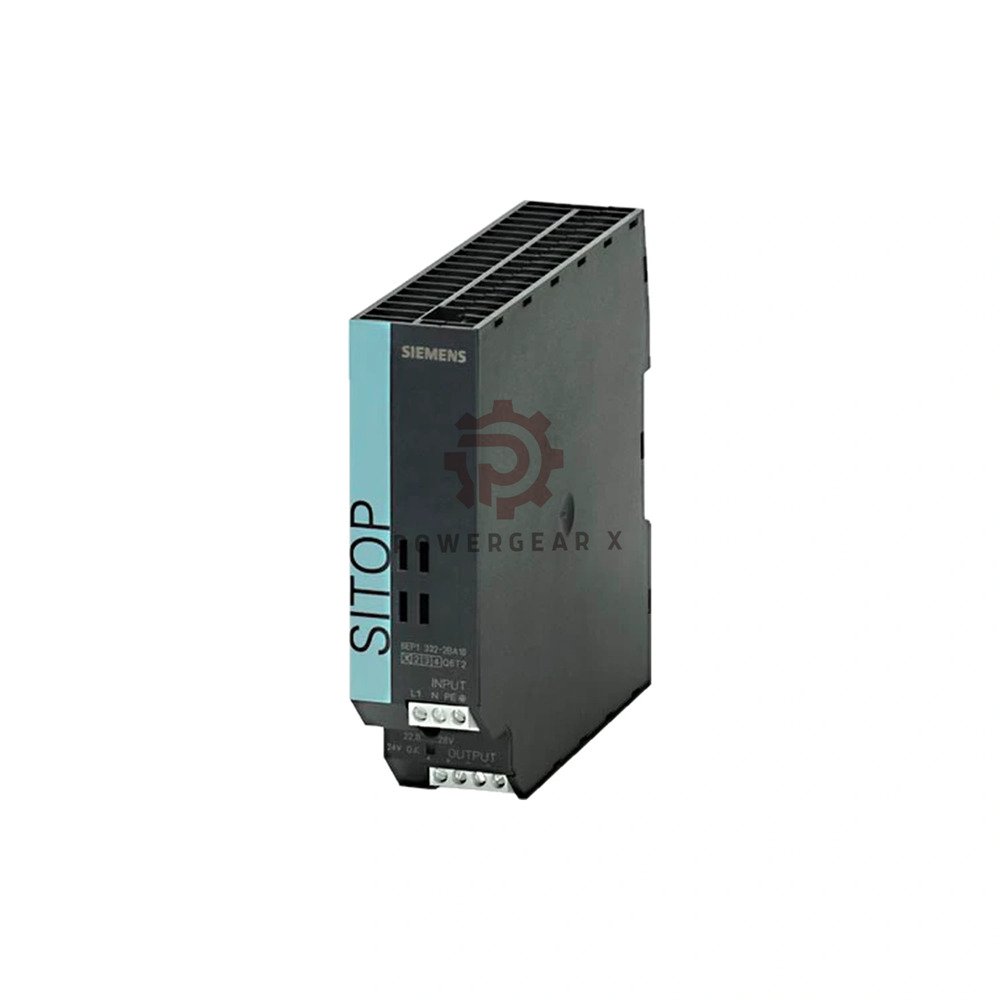

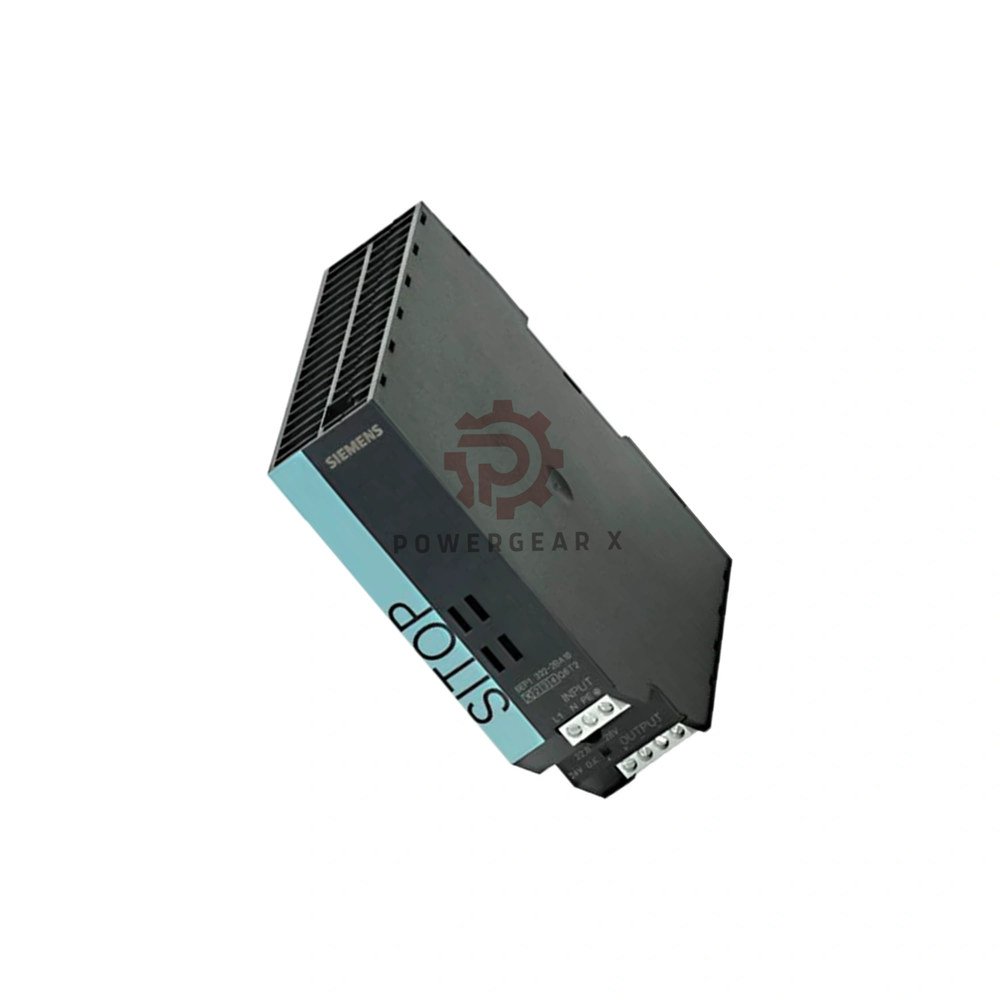

Siemens 6EP1332-2BA10 – Stabilized Power Supply
This power supply converts AC to regulated DC for industrial controls. It delivers 24 V / 2.5 A with high efficiency and global certifications. Suitable for automation panels, PLC systems, and field devices.
Technical Data – Tree Structure
- Input
- Nominal voltage: AC 120/230 V (reconnectable)
- Range: AC 85…132 V and 170…264 V
- Single-phase AC systems only
- Output
- Nominal voltage: DC 24 V (adjustable 22.8…28 V)
- Total tolerance: ±3 %
- Residual ripple: < 150 mVss
- Nominal current: 2.5 A (3 A up to +45 °C)
- Efficiency & Protection
- Efficiency: approx. 85 % (at nominal values)
- Protection class: I
- IP rating: IP20
- Isolation: SELV (EN 60950)
- Environment & Compliance
- Ambient temperature: 0 … +60 °C
- RFI class: B (EN 55022)
- Certifications: CE, UL/cUL, GL, ATEX
Expert Review – Performance & Reliability
This unit stands out for its wide input range and stable DC output. The 85 % efficiency reduces heat loss. Its ATEX and GL approvals make it safe for hazardous and marine areas. The adjustable voltage adds flexibility for sensitive loads.
Manager’s Insight – Practical Value
For system builders, this power supply simplifies panel design. The 3 A capability up to 45 °C gives headroom for short-term peaks. Its compact size and SELV isolation lower installation costs. A trusted choice for long-term industrial use.
Best Suited For
- PLC and I/O power in automation cabinets
- Sensor and actuator supplies in factories
- Marine electronics (GL certified)
- Hazardous area equipment (ATEX)
- Test benches and laboratory setups
Frequently Asked Questions (FAQ)
- What is the output voltage adjustment range?
You can set it from 22.8 V to 28 V DC using the built-in potentiometer. - Can I use this supply at high ambient temperatures?
Yes, up to 60 °C. At 45 °C it delivers 3 A, above that derate linearly. - Does it come with a warranty?
Yes, 12 months from purchase date. Covers manufacturing defects. - What shipping carriers do you use?
We dispatch via FedEx, UPS, or DHL within 12–24 hours. - Is this supply suitable for 24 V DC motor loads?
Yes, but ensure inrush current stays within the 3 A short-term limit.
Experience-Based Buying Guide
- Check your input voltage – this unit accepts 120 or 230 V AC (reconnectable).
- Calculate total load current – nominal 2.5 A, but 3 A available up to 45 °C.
- For sensitive electronics, use the adjustable output to fine-tune voltage.
- Verify ambient temperature – derating applies above 45 °C.
- Select ATEX version if installing in potentially explosive atmospheres.
Ordering & Delivery
- Warranty: 12 months
- Dispatch: Within 12–24 hours (business days)
- Carriers: FedEx, UPS, DHL (tracked express)
