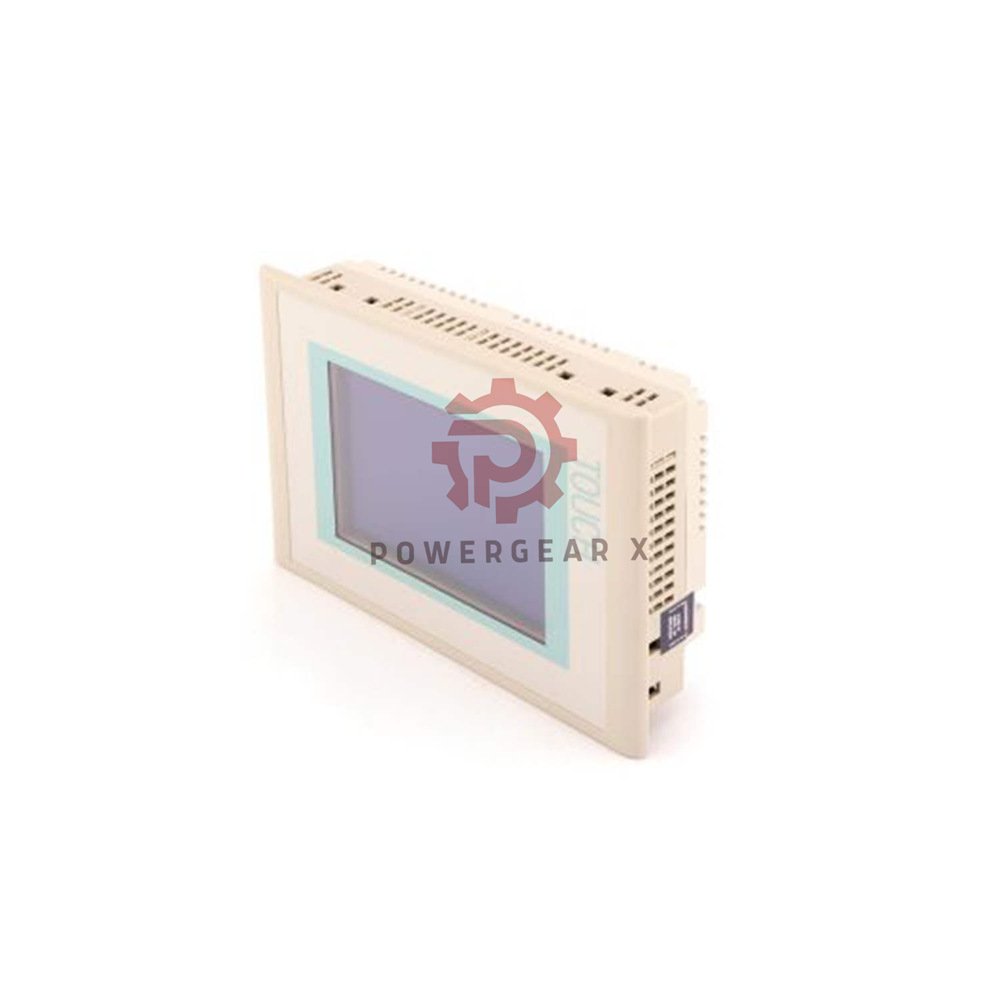

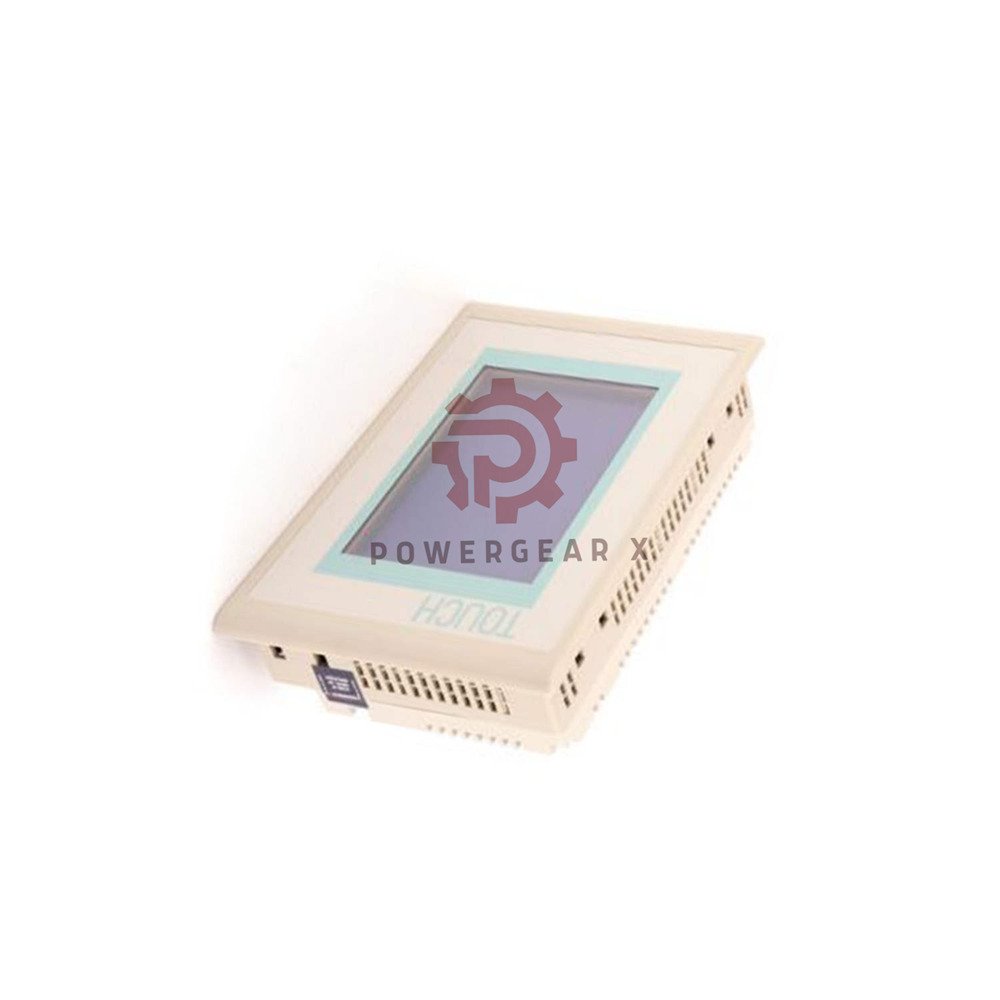

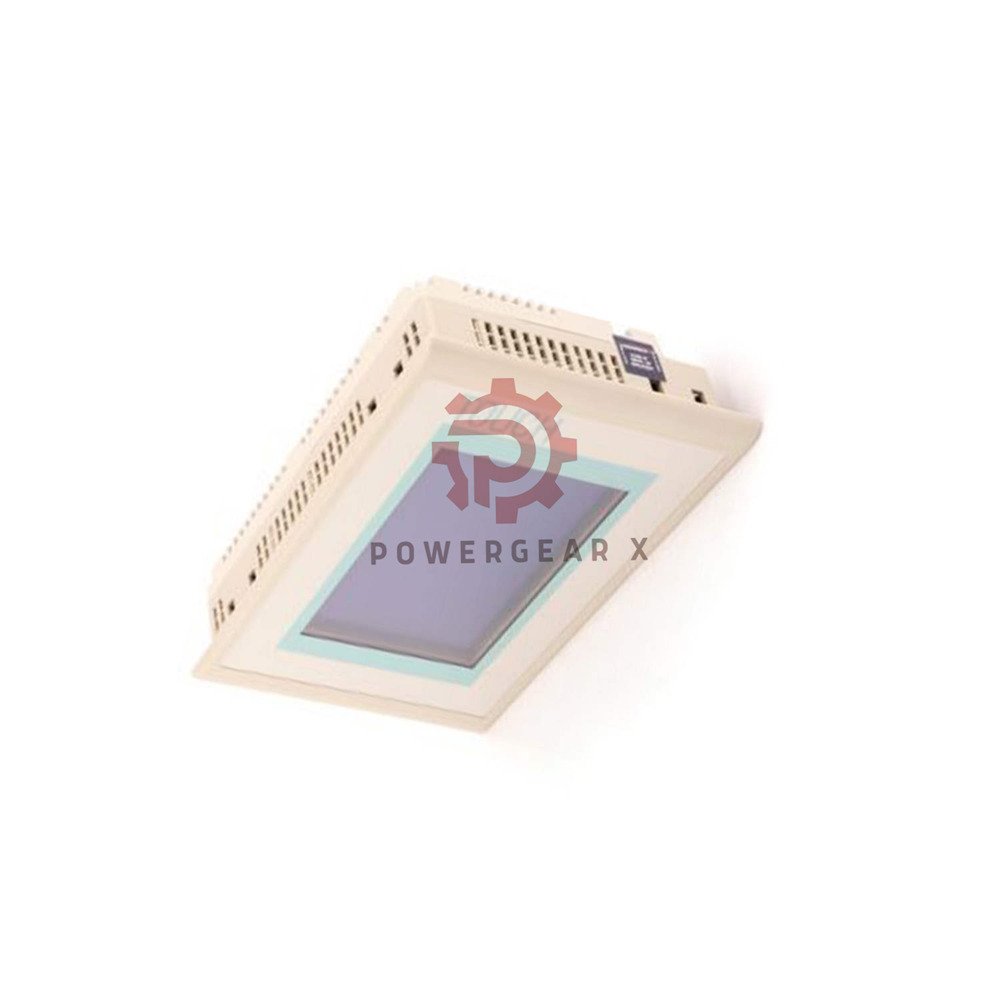

Siemens 6AV6642-0BA01-1AX1 TP177B HMI Panel 6 in Touchscreen PN/DP Interface

Product Description

• Brand: Siemens
• Model: 6AV6642-0BA01-1AX1
• Series: SIMATIC TP177B HMI Panel
• This operator panel delivers reliable industrial visualization and control.
• It features a 6-inch color touchscreen with intuitive operation.
• The device supports PROFINET, PROFIBUS, MPI, and Ethernet.
• It ensures stable performance in demanding automation environments.
• The compact design fits control cabinets and machine panels easily.

Technical Data

• Display: 5.7-inch STN color, 320 x 240 pixels, 256 colors
• Touch Type: Analog resistive touchscreen
• Processor: ARM 200 MHz
• Memory: Flash/RAM, 2 MB user data
• Supply Voltage: 24 VDC
• Current Consumption: 0.24 A nominal
• Interfaces: RS485, RS422, USB, Ethernet RJ45
• Communication: TCP/IP, MODBUS, EtherNet/IP
• Protection Rating: Front IP65, Rear IP20
• Temperature Range: 0°C to 50°C operation
• Humidity: Up to 90% non-condensing
• Resolution: 320 x 240 pixels
• Environmental Resistance: Shock and vibration resistant design
• Anti-Interference: Industrial EMC compliance

Key Functional Capabilities

• Supports up to 2000 alarm messages with acknowledgment.
• Provides recipe management with 100 recipes.
• Displays process values and trends in real time.
• Offers flexible visualization with 500 configurable screens.
• Includes password protection and user group management.

Installation Guidelines

• Mount vertically within a control panel cutout.
• Ensure proper ventilation for heat dissipation.
• Maintain inclination below 35 degrees.
• Use stable 24 VDC power supply.

Commissioning & Maintenance

• Quick setup using WinCC flexible software.
• Supports USB and Ethernet configuration transfer.
• Provides touch calibration and clean screen function.
• Backup and restore available for fast recovery.

Compatibility

• Works with Siemens S7-200, S7-300, S7-400 PLCs.
• Supports Allen Bradley, Mitsubishi, Omron, Modicon systems.
• Integrates with industrial Ethernet networks.

Certifications

• Certified with CE, UL, CSA, FM Class I Div.2.
• Approved for ATEX Zone 2 and Zone 22.
• Marine certifications include ABS, DNV, BV.

Packaging & Warranty

• Standard industrial packaging with full protection.
• Includes HMI panel and basic accessories.
• 12-month warranty provided.
• Shipping via FedEx, UPS, DHL.
• 24-48 hours fast dispatch.

Typical Applications

• Factory automation systems
• Packaging machinery
• Process control systems
• Energy and utilities monitoring

Diagnostics Capability

• Real-time alarm monitoring and logging.
• System message display for PLC communication.
• Error detection through integrated diagnostics.

FAQ

• How to configure this HMI?
• Use WinCC flexible software for configuration and download.
• Can it connect to non-Siemens PLCs?
• Yes, it supports multiple industrial protocols.
• What storage options are supported?
• Supports MMC and SD cards with limited capacity.
• What is a common installation mistake?
• Ignoring ventilation causes overheating issues.
• How to select the right HMI?
• Match screen size, protocol, and PLC compatibility.

Powergear X Automation’s Insight

• This model suits compact industrial visualization needs.
• It balances performance, compatibility, and durability.
• Ideal for legacy system upgrades and multi-protocol environments.
