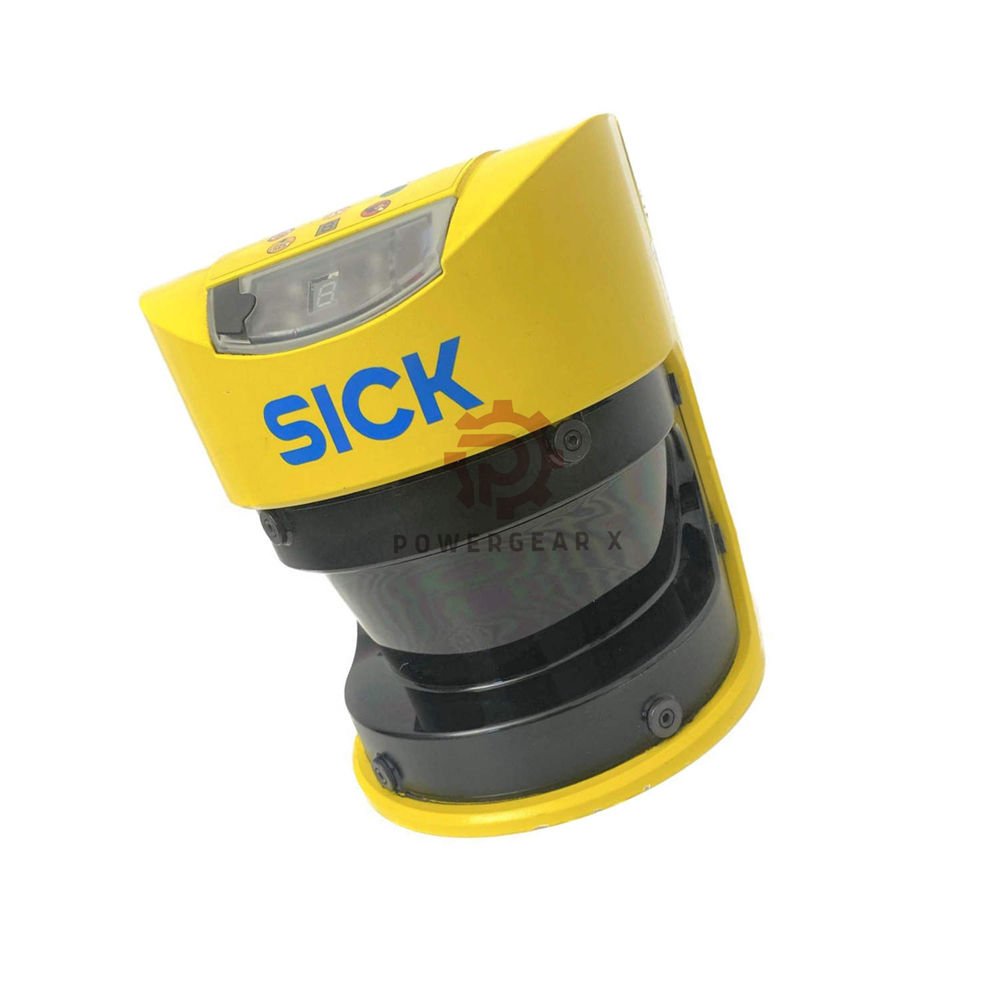

SICK S30A-6111CP Safety Laser – S3000 PROFINET IO Advanced

S30A-6111CP – Safety Laser Scanner (PROFINET IO)

Brand: SICK | Model: S30A-6111CP | Series: S3000 Advanced | Type: PROFINET IO Safety Laser Scanner

This scanner operates exclusively on PROFINET networks. It has no local I/O but integrates fully with controllers. It offers a 190° scanning angle and up to 49 m warning range. Additionally, it supports dual field sets and 4 monitoring cases. Consequently, it is ideal for complex safety applications in automated environments.

Key Features

• PROFINET IO integration – with PROFIsafe profile
• Wide scanning – 190° angle, 49 m measuring range
• Dual field sets – 4 sets with 8 fields total
• Configurable resolution – 30 to 150 mm
• Fast response – 60 ms with multiple sampling
• Rugged design – IP65, aluminum die cast housing

Technical Specifications

• Protective field – 5.5 m
• Warning field – 49 m (20 m at 20% reflectivity)
• Measuring range – 49 m
• Scanning angle – 190°
• Resolution – 30, 40, 50, 70, or 150 mm (configurable)
• Angular resolution – 0.5° or 0.25° (range dependent)
• Response time – 60 ms
• Multiple sampling – 2 to 16 (configurable)
• Auto reset delay – 120 ms to 4,920 ms
• Protective field supplement – 100 mm
• Supply voltage – 24 V DC (16.8 to 28.8 V)
• Power consumption – ≤0.8 A
• Protection class – III
• Weight – 3.3 kg
• Dimensions – 155 x 185 x 160 mm

Safety Ratings

• Type – 3 (IEC 61496)
• SIL – 2 (IEC 61508)
• Category – 3 (EN ISO 13849)
• Performance Level – PL d
• PFHD – 8.0 x 10⁻⁸
• Mission time – 20 years
• Laser class – 1 (safe for eyes)

PROFINET Interface

• Protocol – PROFINET IO with PROFIsafe
• Connection – 2 x RJ45 push-pull (copper)
• Switch – 2-port real-time switch
• Cycle time – 4, 8, 16, or 32 ms
• GSDML – V2.25 compliant
• Conformance – Class B
• Features – auto-negotiation, auto-crossover, auto-polarity

Installation & Environment

• Mounting – bracket mount (not included)
• Application – indoor use only
• IP rating – IP65
• Operating temp – -10 to +50 °C
• Storage temp – -25 to +50 °C
• Housing – aluminum die cast (yellow RAL 1021)
• Front screen – polycarbonate with scratch-resistant coating

Manager’s Insight

“The S30A-6111CP is built for networked safety. Its PROFINET integration is seamless. The dual field sets add flexibility. The 20-year mission time ensures long-term reliability. It is a solid choice for modern smart factories.”

Expert Review

“We use this scanner on AGVs and robotic stations. The PROFIsafe profile works perfectly with Siemens and other PLCs. Configuration is easy via GSDML. The IP65 housing handles dust and washdown well.”

Applications

• Automated guided vehicles (AGV)
• Robotic workcells with PROFINET
• Packaging lines
• Conveyor systems
• Warehouse automation
• Access control zones

Comparison Models

• S30A-6111CP – PROFINET IO (this model)
• S30A-7011CA – standard I/O version
• S30A-6111CA – without PROFINET
• S30A-6111CQ – with Ethernet/IP

FAQ

• Does this scanner have local outputs?
  No, it only communicates via PROFINET with a controller.
• What is the maximum protective field range?
  5.5 meters for the protective field.
• Can I use it outdoors?
  No, it is designed for indoor applications only.
• How do I configure it?
  Use the GSDML file and your PROFINET engineering tool.
• What is the response time?
  60 ms, adjustable with multiple sampling settings.

Buying Guide

• Network – ensure your PLC supports PROFINET and PROFIsafe.
• Range – verify protective field (5.5 m) meets your needs.
• Environment – indoor use only; check temperature range.
• Cables – order RJ45 push-pull cables separately.
• Spare – keep a spare scanner to minimize downtime.

Warranty & Shipping

• Warranty – 12 months against defects.
• Shipping – dispatched within 12-24 hours.
• Carriers – FedEx, UPS, DHL with tracking.
