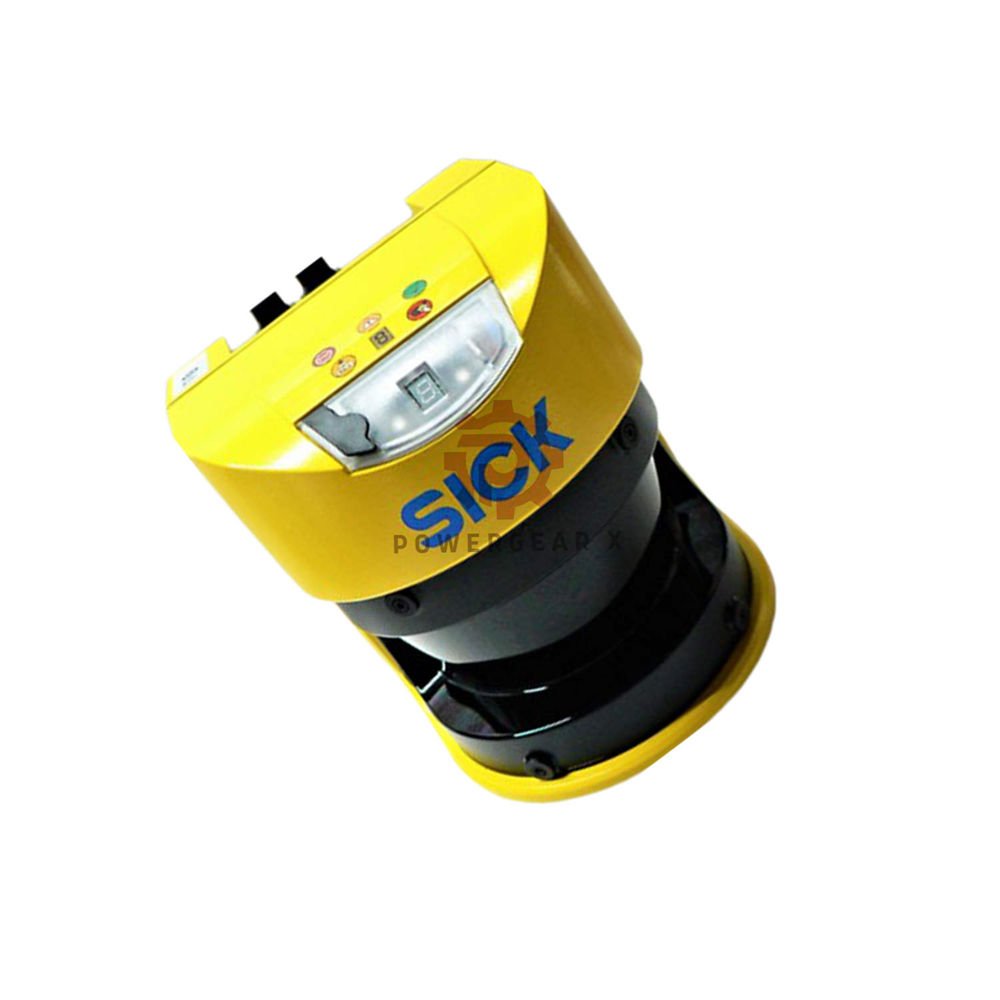

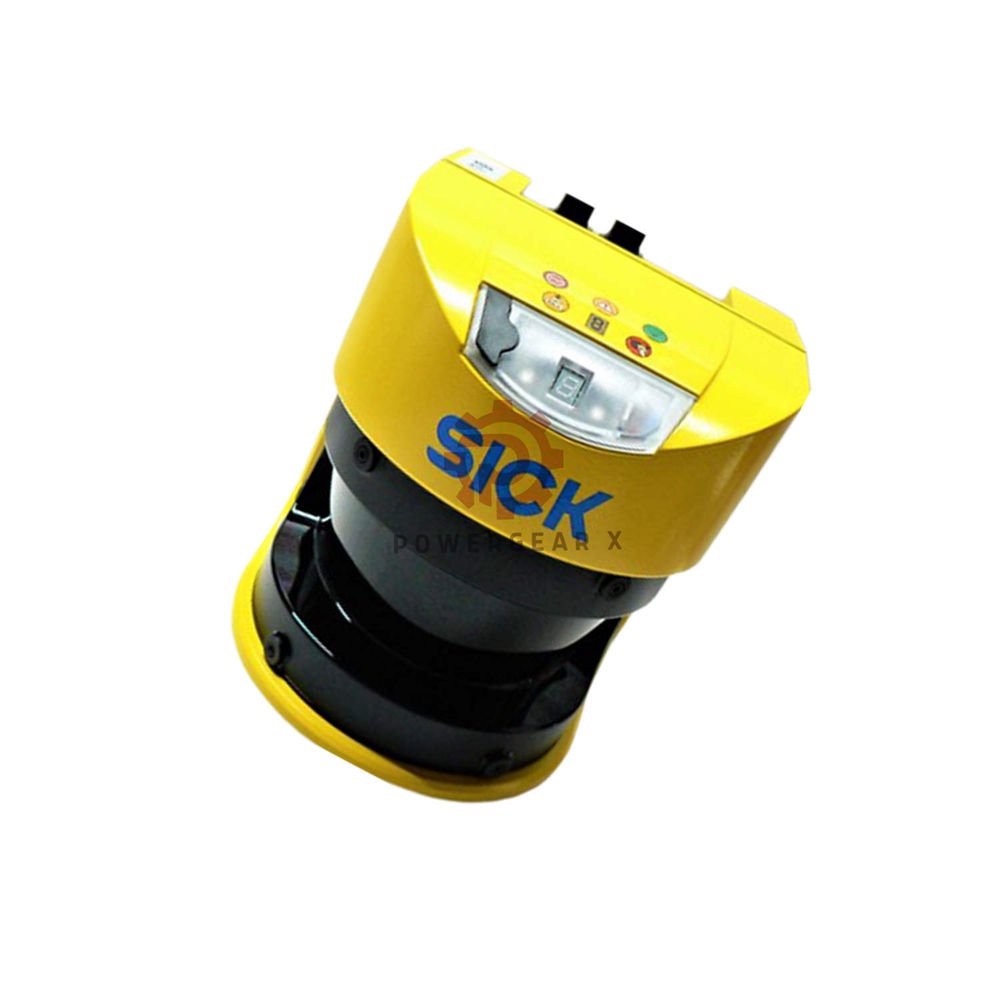

SICK S30A-4111DP S3000 Safety Scanner – PROFINET, 4m Range

Product Brief

SICK S30A-4111DP is a rugged safety laser scanner from the S3000 series. It offers a 4 m protective field and 49 m warning range. With a 190° scanning angle and 60 ms response, it ensures fast hazard detection. This PROFINET model supports PROFIsafe for safe communication. Ideal for stationary and mobile machine guarding.

Technical Data – Hierarchical Tree

• Manufacturer: SICK Sensors
  • Product Type: Safety Laser Scanner
    • Model: S3000
      • Part Number: 1045651
        • Sub Model: S30A-4111DP
          • Control Interface: PROFINET with PROFIsafe

Key Features & Benefits

• Wide Angle: 190° covers large areas
• Long Range: 4 m protective, 49 m warning field
• Fast Response: 60 ms ensures quick safety reaction
• Flexible Resolution: 30 mm to 150 mm configurable
• Multiple Fields: 8 field sets, 16 monitoring cases
• PROFINET & PROFIsafe: Seamless integration
• Rugged Design: IP65, aluminum housing

Technical Specifications

• Protective Field Range: 4 m
• Warning Field Range: 49 m (max)
• Scanning Angle: 190°
• Angular Resolution: Configurable
• Response Time: ≤60 ms
• Resolution Options: 30, 40, 50, 70, 150 mm
• Field Sets: 8 (dual field sets)
• Monitoring Cases: 16
• Simultaneous Protective Fields: 2
• Dimensions (W x H x D): 155 x 185 x 160 mm
• Weight: 3.3 kg

Electrical & Environmental Data

• Supply Voltage: 24 V DC (16.8 … 28.8 V DC)
• Protection Class: III (VDE 0106, EN 60950)
• Enclosure Rating: IP65 (EN 60529)
• Operating Temperature: -10°C … +50°C
• Laser Class: 1 (IEC 60825-1)
• Safety Integrity Level: SIL2 (IEC 61508), SILCL2 (EN 62061)
• Performance Level: PL d (EN ISO 13849)
• Category: Category 3 (EN ISO 13849)
• Mission Time (TM): 20 years
• PFHd: 8.0 x 10⁻⁸

Expert Review – Manager’s Insight

“The S30A-4111DP is a workhorse for heavy industry. Its 49 m warning field gives operators plenty of time to react. We installed it on a palletizer – the 190° scan covered the entire danger zone. PROFINET setup took under 10 minutes. For applications needing PL d and SIL2, this scanner delivers reliability and ease of use.” – Senior Automation Manager

Application Scenarios

• Machine Guarding: Presses, conveyors, and packaging lines
• Mobile Robots: AGV collision avoidance
• Warehouse Automation: Palletizing and sorting areas
• Logistics: Loading docks and shuttle systems
• Hazardous Area Protection: Vertical and horizontal access guarding

Compatible Equipment

• PLC with PROFINET (Siemens, Rockwell, Beckhoff)
• Safety controllers (SICK Flexi Soft, Pilz PNOZ)
• Industrial robots (KUKA, ABB, Fanuc)
• AGV systems (NDC, BlueBotics)
• Conveyor control systems

Comparison with Similar Models

• S30A-4011DP: 4 m range, without PROFIsafe – View details
• S30A-4111DP (this unit): Full PROFINET + PROFIsafe
• S30A-6111DP: 5.5 m protective field, longer range – Compare now
• S3000 Standard: Basic version with RS-232 – Learn more

Frequently Asked Questions (FAQ)

• Can I use this scanner outdoors?
• No. It is rated for indoor use only. Operating temperature is -10°C to +50°C.
• What is the minimum object size it detects?
• Set resolution as low as 30 mm. This detects small parts or fingers reliably.
• How do I configure field sets?
• Use SICK CDS software. Connect via RS-232 or TCP port 9000.
• Does it support emergency stop over PROFINET?
• Yes. PROFIsafe handles emergency stop and safety signals over the network.
• Is the scanner easy to align?
• Yes. The 190° angle and 0.1° resolution make alignment simple. Use the built-in LEDs.

Purchase Guidance & Selection Tips

• Choose S30A-4111DP for PROFINET systems needing PROFIsafe and PL d.
• Select 30 mm resolution for personnel protection, 70 mm for material detection.
• Consider the optional heating kit for environments below -10°C.
• Use SICK’s configuration tool to pre-set field sets before installation.
• Mount the scanner at 200 mm height for optimal ground detection.

Warranty & Logistics

• Warranty: 12 months against manufacturing defects
• Dispatch: 12-24 hours (business days)
• Shipping Partners: FedEx, UPS, DHL (tracking included)
• Packaging: Anti-static bag + foam-lined carton
