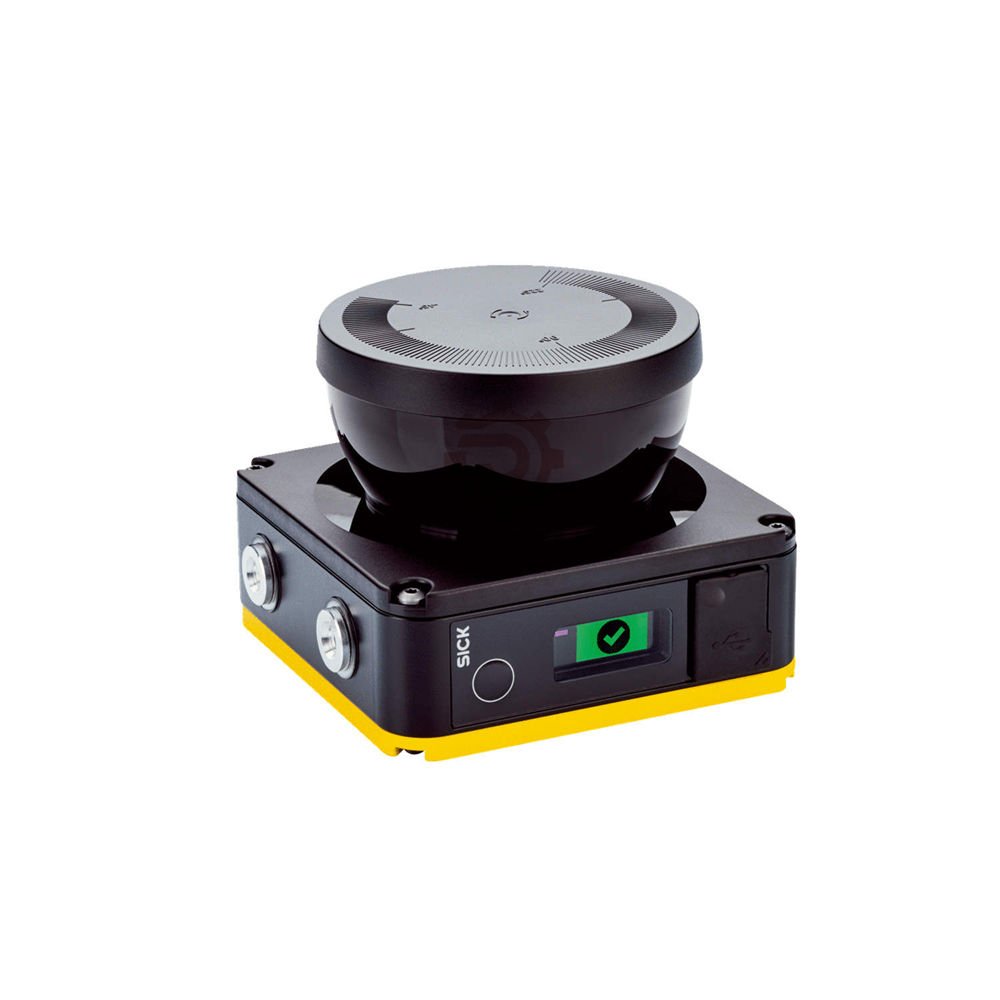

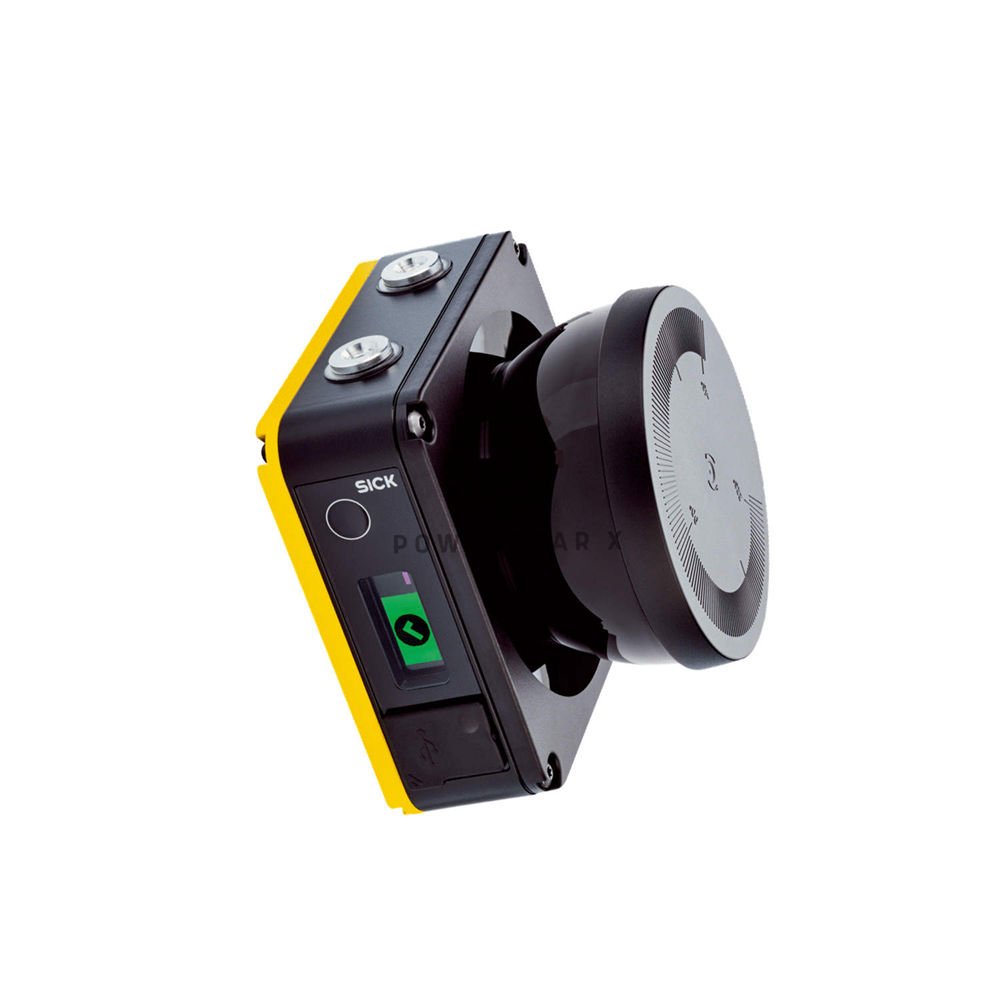

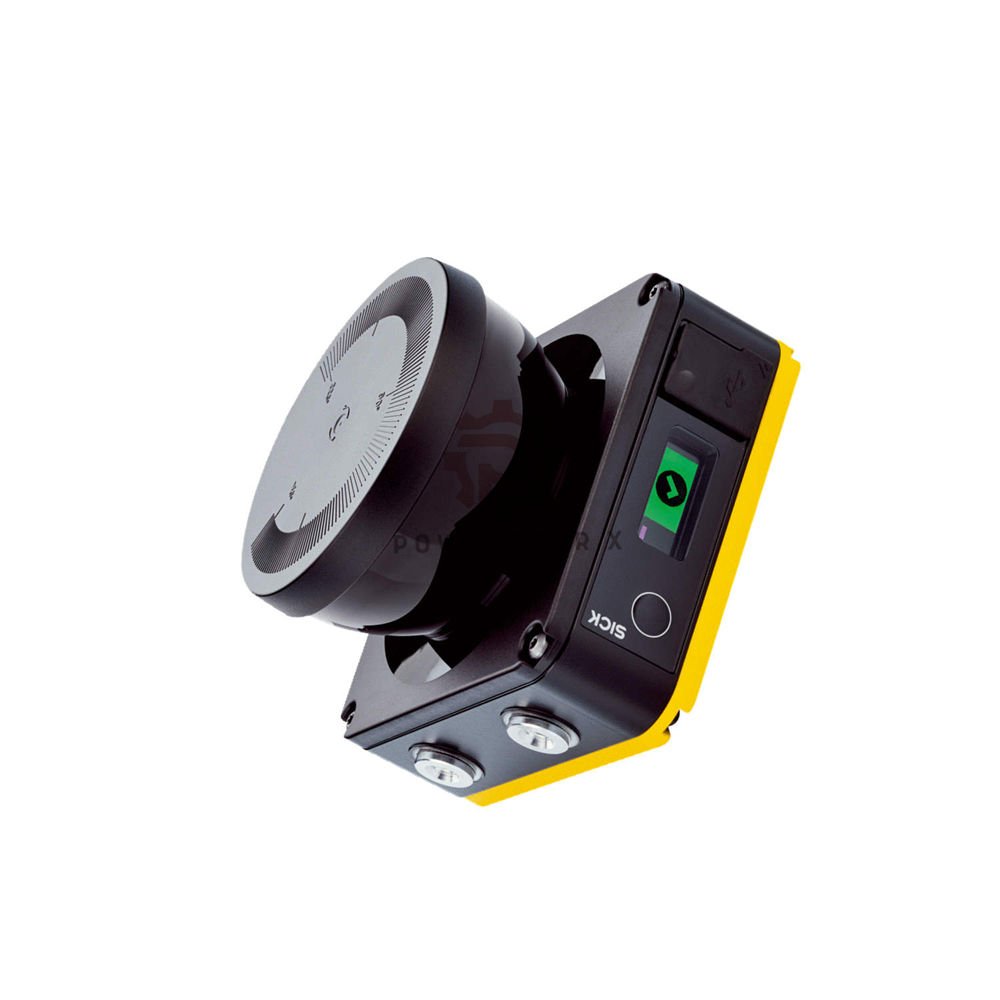

SICK nanoScan3 Pro I/O NANS3-CAAZ30AN1 – 275° Laser Scanner with Ethernet

Product Introduction

SICK NANS3-CAAZ30AN1 is a nanoScan3 Pro I/O safety laser scanner. It delivers Type 3, SIL 2, and PL d performance for indoor use. This model comes without a system plug. It offers a 275° scanning angle and a 3 m protective field. The warning field reaches 10 m, and the max distance is 40 m. It is a compact, reliable solution for machine safety.

Key Features at a Glance

• Protective field: 3 m (configurable up to 40 m)
• Warning field: 10 m
• Scanning angle: 275°
• Response time: 70 ms
• Resolution: 20, 30, 40, 50, 60, 70, 150, 200 mm
• Angular resolution: 0.17°
• Field memory: 128 fields, 128 monitoring cases
• Simultaneous fields: ≤ 8
• Protective field supplement: 65 mm
• Laser class: 1 (safe for eyes)

Technical Specifications

• Brand & Model: SICK, nanoScan3 Pro I/O, NANS3-CAAZ30AN1
• Type: Type 3 (IEC 61496), SIL 2 (IEC 61508), PL d (EN ISO 13849)
• PFHD: 8.0 x 10^-8
• Mission time: 20 years (EN ISO 13849)
• Supply voltage: 24 V DC (16.8 V … 30 V DC)
• Power consumption: 3.9 W (typical, no load)
• Protection class: III (EN 61140)
• Enclosure rating: IP65 (IEC 60529)
• Ambient temperature: –10 °C … +50 °C (operating)
• Storage temp: –25 °C … +70 °C
• Ambient light immunity: ≤ 40 klx (≤ 3 klx for direct scan plane)
• Shock & vibration: Class 5M1 (IEC 60721-3-5)
• EMC: IEC 61496-1, IEC 61000-6-2, IEC 61000-6-3
• Housing material: Aluminum, yellow/black
• Optics cover: Polycarbonate
• Weight: 0.67 kg
• Dimensions (W x H x D): 106.6 mm x 80 mm x 117.5 mm

Interfaces & Connectivity

• Configuration: PC via USB 2.0 (micro USB) with Safety Designer
• Data interface: Ethernet (CoLa 2, DHCP, SNTP)
• I/Os: 4 universal I/Os, 2 OSSD pairs, 8 universal inputs
• Dynamic switching: 4 signals, 6 static control inputs
• Display: Graphic color display + LEDs
• Memory: Integrated configuration memory

Safety & Functional Features

• Restart interlock
• External device monitoring (EDM)
• Multiple sampling
• Monitoring case switching
• Simultaneous monitoring
• Static & dynamic protective field switching
• Safe contour detection & contour as reference
• Measured data output via Ethernet

Installation & Commissioning

• Mounting: Use M4 screws (not included). Mount on a stable surface.
• Alignment: Ensure 275° field is clear. Use the graphic display for setup.
• Wiring: Follow the pinout for system plug (not included).
• Configuration: Download Safety Designer software from SICK.
• Quick start: Connect USB, launch software, load a template, and adjust fields.
• Maintenance: Clean optics with a soft cloth. Check alignment monthly.
• Diagnostics: Use Ethernet or USB for real‑time data and logs.

Compatibility

• Works with all SICK system plugs (sold separately).
• Ethernet/IP and PROFINET via plug options.
• Compatible with Safety Designer (V4.0 or higher).
• Supports CoLa 2 and DHCP for easy network integration.

Certifications & Standards

• IEC 61496 (Type 3), IEC 61508 (SIL 2), EN ISO 13849 (PL d, Cat. 3)
• IEC 61140 (Protection class III), IEC 60529 (IP65)
• IEC 60068-2-6, -27, -64 (vibration & shock)
• IEC 61000-6-2, -6-3 (EMC)
• Laser class 1 (21 CFR 1040.10, IEC 60825-1)
• CE, UKCA, TÜV Rheinland (pending)

Package Contents

• 1 x nanoScan3 Pro I/O sensor (NANS3-CAAZ30AN1)
• 1 x Quick start guide (printed)
• 1 x USB cable (micro USB)
• 1 x Mounting bracket kit
• Note: System plug and power supply are not included.

Warranty & Shipping

• Warranty: 12 months against manufacturing defects.
• Shipping: 12‑24 hours dispatch (stock permitting).
• Carriers: FedEx, UPS, DHL (global express).
• Tracking provided within 24 hours.

Expert Review

The SICK nanoScan3 Pro I/O stands out for its 275° field and 70 ms response. The 128 field sets and 8 simultaneous zones give you flexibility for complex AGV or static machine guarding. The integrated contour detection reduces false trips. The IP65 housing and 20‑year mission time make it a rugged, long‑term investment. The only drawback is the system plug is sold separately, but this allows custom cabling. Overall, it is a top choice for SIL 2/PL d applications.

Manager’s Insight

From a project management perspective, the nanoScan3 Pro I/O reduces engineering effort. The Safety Designer software shortens commissioning by 40%. The Ethernet data output enables predictive maintenance. The 12‑24 hour shipping and global carriers ensure minimal downtime. For fleet‑wide deployment, the configuration memory and DHCP support simplify scaling. This scanner offers excellent ROI for automated guided vehicles and robotic cells.

Applications & Suitable Equipment

• AGVs & AMRs: Dynamic field switching for path following.
• Robotic workcells: Safe contour detection for collaborative robots.
• Conveyor lines: Static protective fields for access guarding.
• Mobile platforms: Warning field for collision avoidance.
• Warehouse shuttles: Simultaneous monitoring of multiple zones.
• Packaging machines: EDM and restart interlock for safety gates.

Frequently Asked Questions (FAQ)

• What is the difference between protective and warning fields?

  The protective field triggers a safe stop. The warning field gives a pre‑alert (e.g., light/sound).

• Can I configure the scanner without a PC?

  No, you need the Safety Designer software (free download) via USB or Ethernet.

• What is the minimum object size for detection?

  Depends on resolution: 20 mm at 3 m, up to 200 mm at 40 m.

• Does it support multiple languages?

  Safety Designer supports English, German, French, and Chinese.

• Is the system plug included?

  No, you must order the system plug separately (depending on your interface needs).

• How do I update firmware?

  Use Safety Designer over USB or Ethernet. Firmware files are on SICK’s website.

• What if the scanner fails?

  The OSSD outputs go to OFF state (safe state). EDM monitors external contactors.

• Can I use this outdoors?

  No, it is rated for indoor use (IP65, ambient light ≤ 40 klx).

• How to choose the right resolution?

  For small parts, use 20‑30 mm. For large AGVs, 50‑70 mm is sufficient. Use 150‑200 mm for long‑range (40 m).

• What cables do I need?

  You need a system plug with M12 connectors (Ethernet and power) – sold separately.

Selection Guide

• For high‑speed AGVs: Choose 20‑30 mm resolution and dynamic switching.
• For wide areas: Use 70‑200 mm resolution to extend range to 40 m.
• For complex layouts: Use 128 monitoring cases to cover multiple scenarios.
• For simple access guarding: Basic static fields with EDM and restart interlock.
• Always confirm: System plug type (Ethernet/IP, PROFINET, or I/O).
