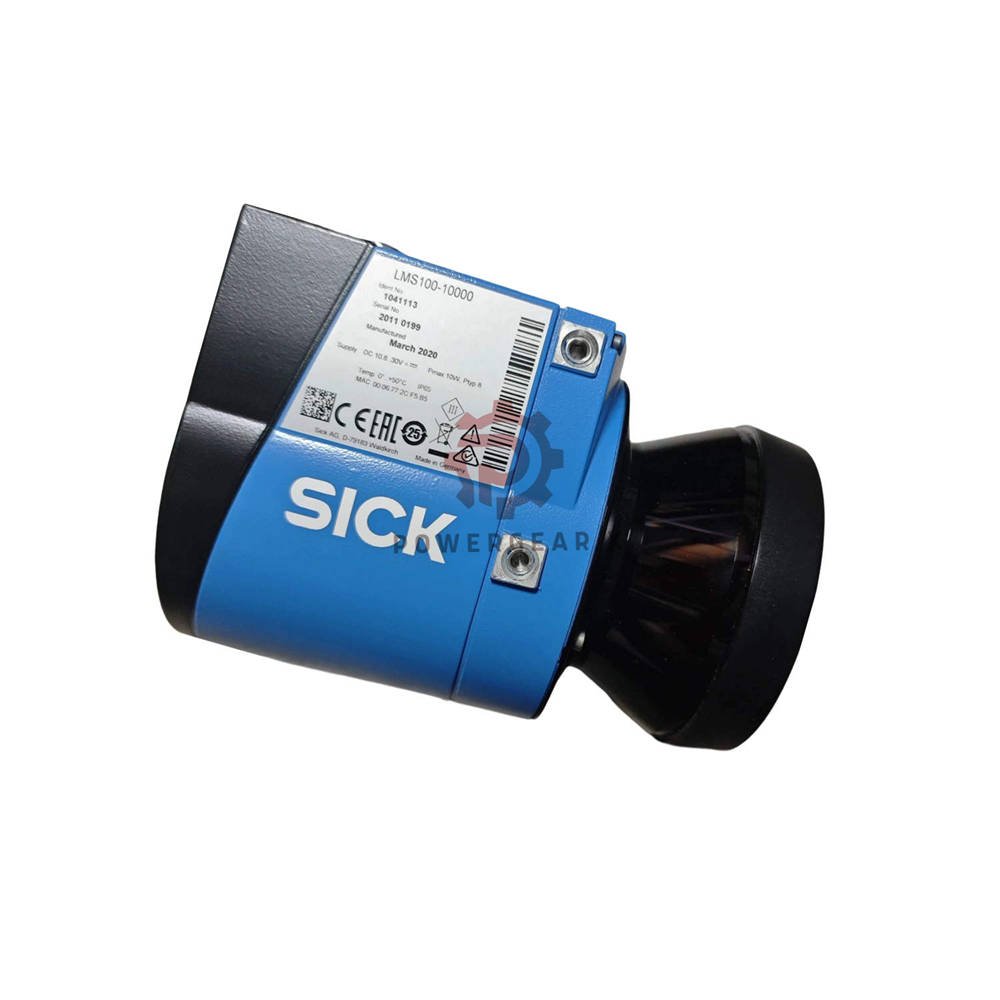

SICK LMS100-10000 2D Scanner – Indoor 270° 20m Range

LMS100-10000 – 2D Laser Scanner (Indoor)

Brand: SICK | Model: LMS100-10000 | Series: LMS100 | Type: 2D Laser Scanner for Indoor Use

This scanner covers a 270° aperture angle. It detects objects up to 20 meters away. Moreover, it works on almost any object shape. It offers Ethernet, RS-232, and CAN interfaces. Additionally, it features 10 field sets for flexible monitoring. Consequently, it is ideal for indoor automation and navigation tasks.

Key Features

• Wide scanning angle – 270° horizontal aperture
• Long working range – 0.5 to 20 m (up to 20 m at 90% remission)
• Multiple interfaces – Ethernet, RS-232, and CAN
• Flexible field sets – 10 fields with 10 simultaneous evaluations
• Fast scanning – 25 Hz or 50 Hz selectable
• High ambient light immunity – 80,000 lx
• Fog correction – included for challenging conditions

Technical Specifications

• Aperture angle – 270° horizontal
• Working range – 0.5 to 20 m
• Scanning range (10% remission) – 18 m
• Scanning range (90% remission) – 20 m
• Scanning frequency – 25 Hz or 50 Hz (configurable)
• Angular resolution – 0.25° or 0.5°
• Response time – ≥20 ms
• Systematic error – ±30 mm (typical)
• Statistical error – 12 mm (typical)
• Supply voltage – 10.8 to 30 V DC
• Power consumption – 22 W
• Weight – 1.1 kg
• Dimensions – 105 x 102 x 152 mm
• Housing color – Light blue (RAL 5012)
• IP rating – IP65
• Protection class – III

Interfaces & Connectivity

• Ethernet – TCP/IP, 10/100 MBit/s (data output)
• Serial – RS-232, 9.6 to 115.2 kBaud (data + service)
• CAN – for output extension
• Digital I/O – 2 inputs, 2 encoder inputs, 3 outputs
• Connection – system plug with screw terminal block
• Display – 7-segment + 5 LEDs for status and warnings

Environmental Data

• Operating temperature – 0 to +50 °C
• Storage temperature – -30 to +70 °C
• Ambient light immunity – up to 80,000 lx
• Object remission – 3% to >1000% (reflectors)
• Vibration resistance – EN 60068-2-6
• Shock resistance – EN 60068-2-27
• EMC – EN 61000-6-2 / EN 61000-6-3
• Heating – not available on this model

Manager’s Insight

“The LMS100-10000 is a versatile 2D scanner for indoor use. Its 270° field covers large areas. The multiple interfaces simplify integration. The 10 field sets offer great application flexibility. It is a solid choice for navigation and monitoring tasks.”

Expert Review

“We have used this scanner in AGV navigation and area monitoring. The 25 Hz scanning speed is sufficient for most applications. The fog correction helps in dusty environments. The IP65 rating gives confidence in industrial settings.”

Applications

• Automated guided vehicle (AGV) navigation
• Area monitoring and surveillance
• Object detection and positioning
• Warehouse automation
• Conveyor and material flow monitoring
• Indoor mapping and localization

Comparison Models

• LMS100-10000 – indoor, 20m range (this model)
• LMS100-10001 – with heating for cold environments
• LMS111-10100 – outdoor version with longer range
• LMS100-20000 – higher scanning frequency version

FAQ

• Is this a safety device?
  No, it is not a safety component as per machine safety regulations.
• What is the maximum range?
  20 meters on 90% reflective objects; 18 meters on 10% reflective objects.
• Can I use it outdoors?
  It is designed for indoor use only (temperature range 0 to +50 °C).
• How many fields can I configure?
  Up to 10 field sets with 10 simultaneous evaluations.
• Does it have heating?
  No, this model does not include heating.

Buying Guide

• Environment – ensure indoor use and temperature range (0 to +50 °C).
• Range – verify your max distance (up to 20 m).
• Interface – choose based on your system (Ethernet, RS-232, or CAN).
• Heating – select a heated model if ambient drops below 0 °C.
• Spare – keep a spare scanner to minimize downtime.
