Name: Sealtite 14847-34 Series Conduit – 1/2-14 NPT, 99ft Max, Probes &amp; Monitors
SKU: 14847-34
Price: 234.00 USD
Availability: InStock

Product details

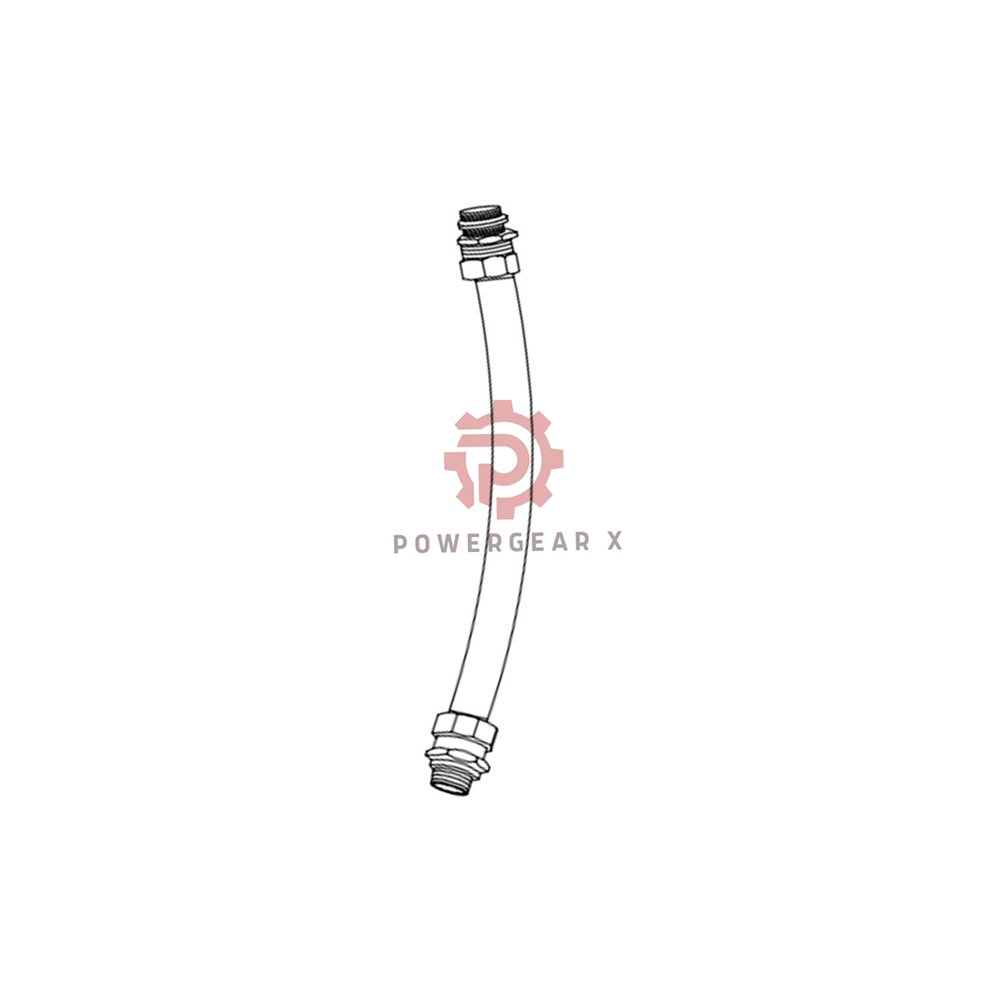

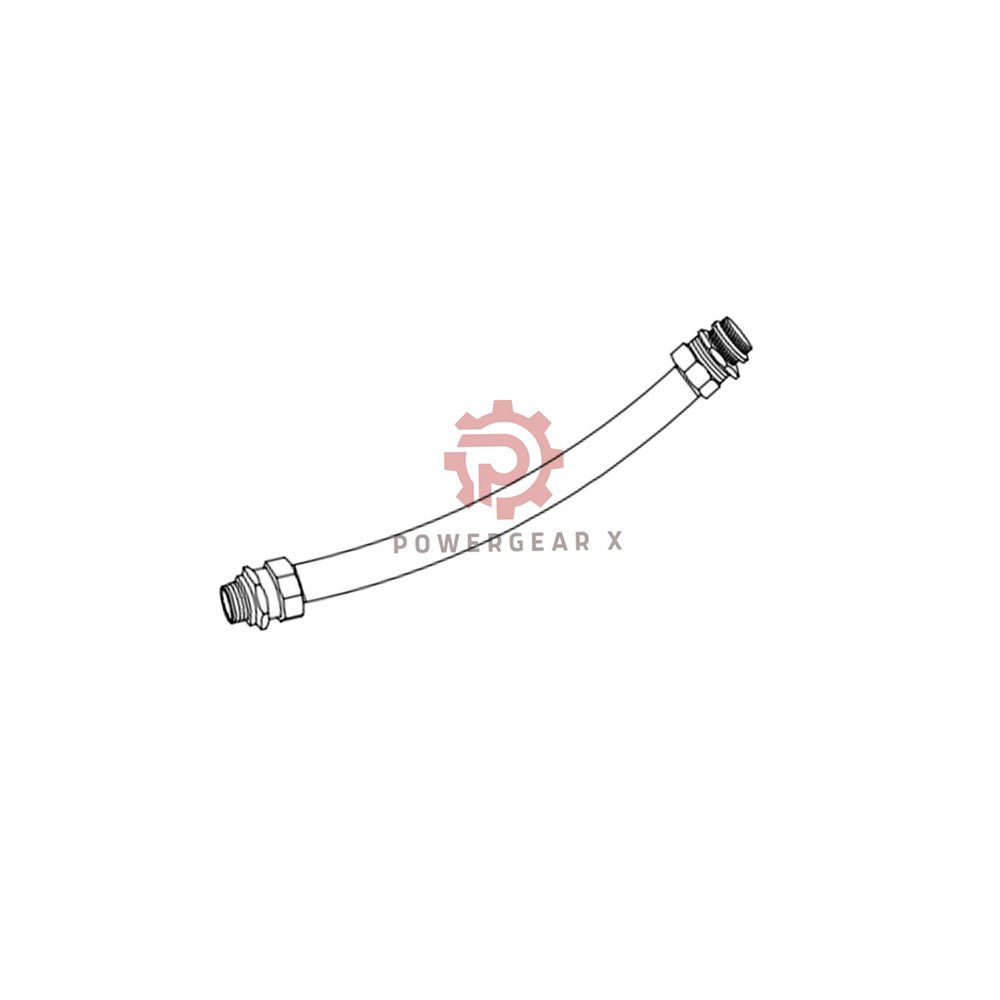

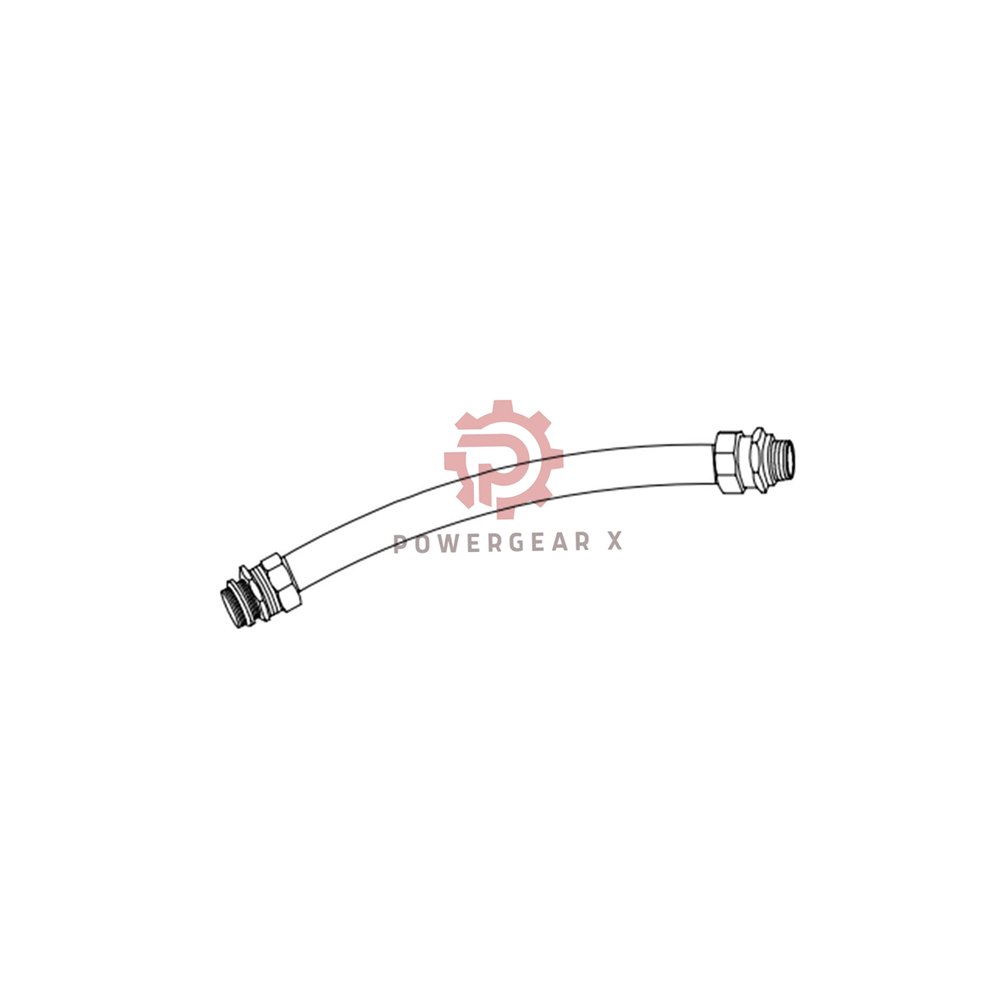

Sealtite™ Flexible Conduit – 14847 Series

Core function: routes probe cables safely to sensor housing & monitors.
Protection: shields wiring from splashing liquids and accidental contact.
Construction: galvanized steel core with extruded thermoplastic cover.
Fittings: steel with zinc-plated, chromate finish – compatible with watertight enclosures.

Technical Data

Brand: Sealtite™
Model: 14847-34 / 14847-AXX (where AXX = length in feet)
Thread type: 1/2-14 NPT assembly
Length options: order in increments of 1.0 ft (305 mm)
Min length: 1 foot
Max length: 99 feet
Example: 01 = 1 foot, 99 = 99 feet
Material: galvanized steel + thermoplastic cover
Finish: zinc-plated chromate on fittings

Length Ordering – Tree Structure

14847-AXX
- A = length code (feet)
  - XX = two-digit number (01 to 99)
  - 01 = 1 foot
  - 34 = 34 feet (standard stock)
  - 99 = 99 feet (max)
- Order step: 1.0 ft (305 mm) increments

Installation Guide

Cut conduit to required length with a hacksaw.
Deburr the cut end to avoid cable damage.
Attach NPT fittings to both ends – hand-tighten + 1/2 turn.
Route probe cable through conduit before final connection.
Secure to housing and monitors using standard NPT adapters.

Maintenance & Debugging

Inspect cover for cracks or wear every 6 months.
Check fitting tightness – re-torque if loose.
Replace if thermoplastic cover shows discoloration (heat stress).
No internal parts to calibrate – pure mechanical protection.

Compatibility

Works with all Bently Nevada 3300/3500 probe cables.
Fits standard 1/2-14 NPT ports on junction boxes.
Compatible with watertight enclosures from major brands.

Certifications

UL listed for safety.
CSA certified for hazardous locations.
RoHS compliant materials.

Package Contents

1 × Sealtite™ conduit (specified length).
2 × steel NPT fittings (pre-assembled).
Installation leaflet.

Warranty & Shipping

12-month warranty against defects in material and workmanship.
24-hour dispatch for in-stock lengths (01–99 ft).
Shipping: FedEx, UPS, DHL – tracking provided.

Expert Review

“Tough and flexible – the thermoplastic cover outlasts PVC in oil mist.” — Senior Reliability Engineer.
“Fittings grip perfectly. No thread galling even after multiple re-installs.” — Field Service Lead.

Manager’s Insight

“Order 10% extra length – you’ll always need a little more for service loops.” — Maintenance Manager.
“Pair with stainless probes for a corrosion-free solution.” — Product Director.

Typical Applications

Vibration monitoring on turbines and compressors.
Pump and motor cable protection in wet areas.
Retrofit for old conduit systems with 1/2-14 NPT threads.
Offshore and chemical plants where liquid splash is common.

Comparison with Other Models

4190-01 Adapter (for junction box mounting) – different function but same thread family.
3300 Probe Cable (bare cable) – requires conduit for protection.
3500 Extension Cable – can be routed through this conduit.

FAQ – Professional Questions

Can I bury this conduit underground?
No. The thermoplastic cover is for above-ground splash protection. Use rigid metal for burial.
What is the temperature range for the cover?
-20 °C to +80 °C. Above that, the cover may soften.
How do I order a custom length like 47 feet?
Specify 14847-47 in the order form. We cut to exact feet.
Does the conduit come with end caps?
No. End caps are sold separately, but fittings are included.
Is the galvanized steel core conductive?
Yes. It can act as a ground path – ensure proper grounding at one end.
