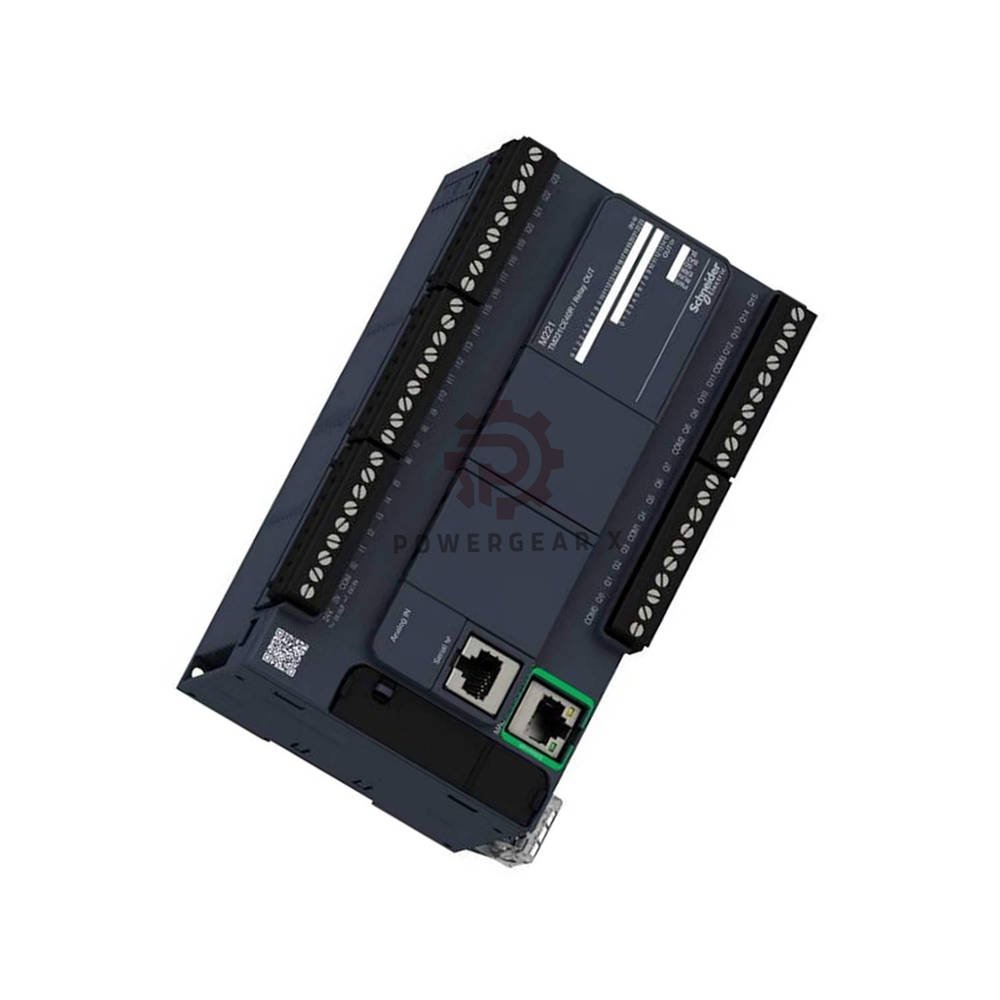

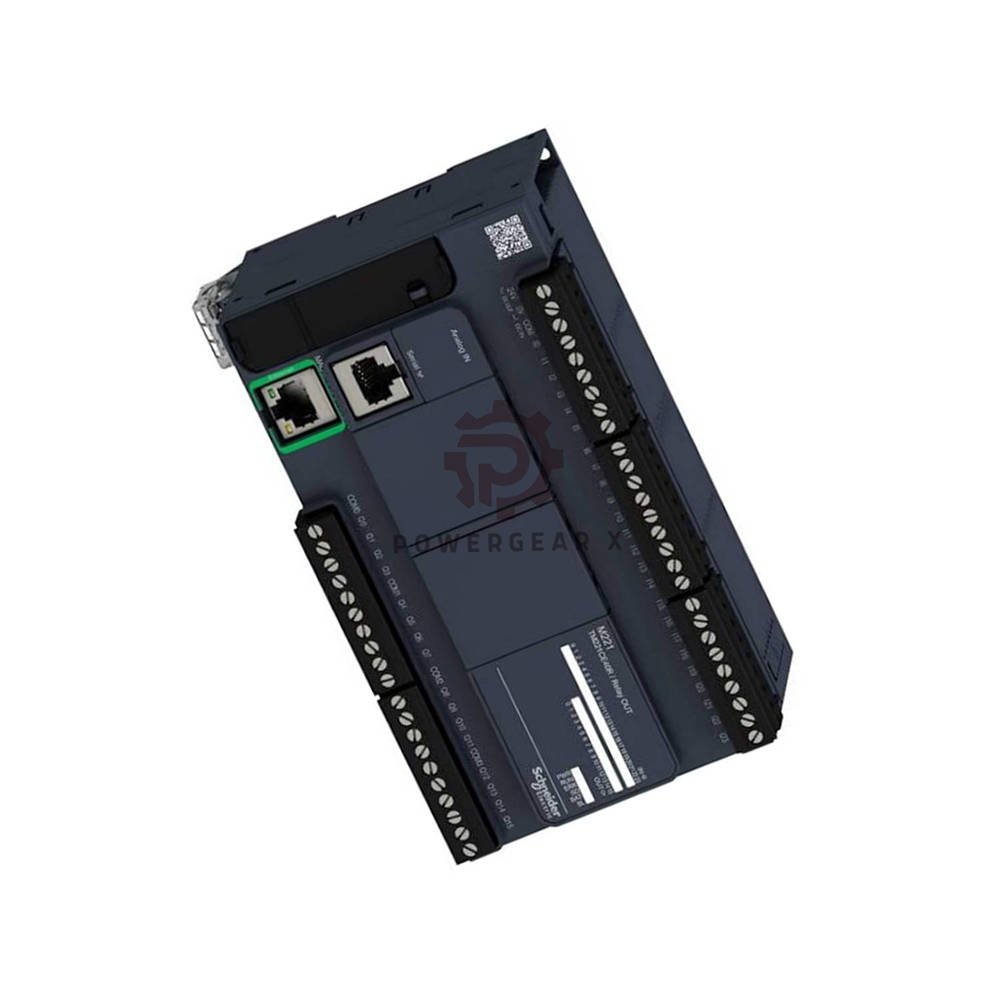

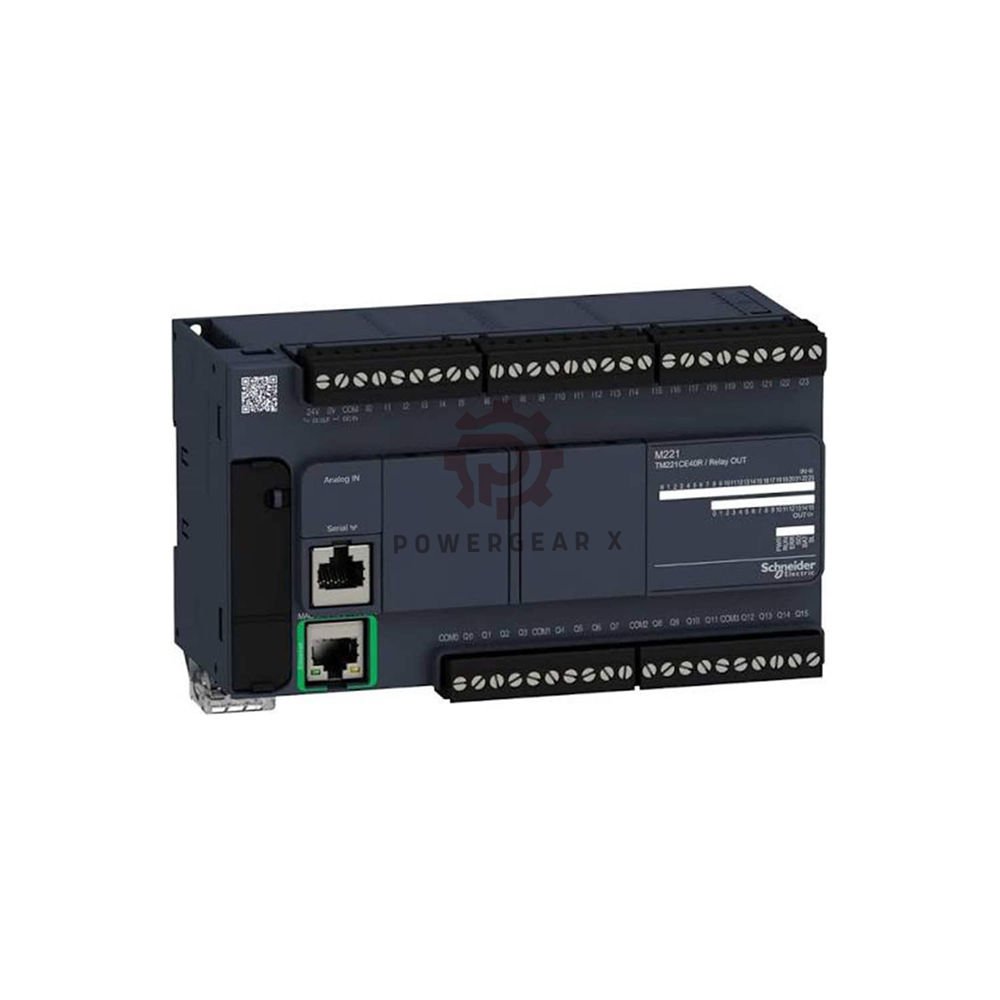

Schneider TM221CE40T Logic Controller M221 Series – 24V DC, 40 IO, Fast Shipping

TM221CE40T – Modicon M221 Logic Controller

Schneider Electric M221 – compact PLC with 40 I/O, transistor outputs, and Ethernet. Runs on 24 V DC. Great for small machines and simple automation.

Product Tree – Key Specs

• Range
  • Modicon M221 – logic controller
• Supply
  • 24 V DC (19.2…28.8 V limits)
  • Inrush ≤ 35 A
  • Power ≤ 17 W
• Discrete I/O
  • 24 inputs (sink/source, 24 V DC)
  • 4 fast inputs (response 5 µs)
  • 16 transistor outputs (0.5 A, 24 V DC)
  • 2 fast outputs (PWM/PTO up to 100 kHz)
• Analog
  • 2 inputs – 0…10 V
  • 10-bit resolution (10 mV per bit)
  • Accuracy ±1 % full scale
• Memory & Performance
  • 256 kB program memory (10k instructions)
  • 0.3 ms per 1k instructions
  • 0.2 µs per Boolean instruction
  • Optional SD card (2 GB)
  • BR2032 battery – 4 years life
• Communication
  • Ethernet (RJ45) – Modbus TCP client/server
  • Serial link (RS232/RS485) – Modbus master/slave
  • USB (mini B) – programming
• Environment & Certifications
  • CE, CSA, cULus, RCM, IACS E10
  • IP20 with cover
  • Operation: -10…55 °C (horizontal), -10…35 °C (vertical)
  • Humidity: 10…95 % RH (non-condensing)
  • Vibration: 3.5 mm (5…8.4 Hz), 3 gn (8.4…150 Hz)
  • Shock: 15 gn for 11 ms
  • EMC – IEC 61000-4-2, -3, -4, -5, -6, -8
• Installation
  • DIN rail (TH35-7.5 or TH35-15) or panel mount
  • Removable screw terminals for I/O
  • Mini USB for programming

Expert Review – Controls Specialist

“The M221 is a solid choice for basic logic and motion. Fast inputs respond in 5 µs – great for counting or positioning. Ethernet built-in saves cost. Easy to program with EcoStruxure Machine Expert.” – Senior Automation Engineer

Manager’s Insight – Production Manager

“We use 10 units on packaging lines. The transistor outputs are reliable – no relay failures. 17 W power keeps energy low. Setup is quick, and the SD card backup is a lifesaver during maintenance.” – Plant Operations Manager

Typical Applications

• Simple packaging machines (filling, capping, labeling)
• Conveyor control with speed monitoring
• Small assembly stations
• HVAC fan and damper control
• Water treatment – pump sequencing

Compatible Devices

• Schneider Magelis HMIs
• Altivar ATV12 / ATV320 drives
• TeSys D contactors
• Modbus RTU/TCP sensors and actuators

Comparison – Which M221 to choose?

• TM221CE40T (this model): 24 V DC, transistor outputs, Ethernet – best for small machines with fast counting.
• TM221C40R – relay outputs, 24 V DC – for lighter loads.
• TM221M16T – 16 I/O, transistor – compact and low cost.
• TM221ME32T – Ethernet, 32 I/O – more I/O for mid-size systems.

Selection Guide – Quick tips

• Need fast counting? This model has 4 fast inputs (5 µs) and 2 fast outputs (100 kHz).
• Need analog? 2 analog inputs are built-in – no extra module needed.
• Need relay outputs? Choose TM221C40R instead.
• Need more I/O? Add up to 7 expansion modules.
• Best value: TM221CE40T gives you Ethernet, analog, and fast I/O in one package.

Frequently Asked Questions

• • Q: What is the supply voltage range?
  • A: 19.2…28.8 V DC. Nominal is 24 V DC.

• • Q: How many fast inputs?
  • A: 4 fast inputs (I2…I5) with 5 µs response.

• • Q: Can I use it with 120 V AC?
  • A: No – this model is 24 V DC only. Use a power supply.

• • Q: Does it support PWM?
  • A: Yes – 2 fast outputs (Q0, Q1) support PWM up to 100 kHz.

• • Q: What software do I need?
  • A: EcoStruxure Machine Expert (free) or SoMachine.

• • Q: Is Ethernet built-in?
  • A: Yes – RJ45 port supports Modbus TCP.

• • Q: Can I expand I/O?
  • A: Yes – up to 7 expansion modules.

• • Q: How long is the warranty?
  • A: 12 months – parts and labor.

• • Q: What about shipping?
  • A: Orders ship within 12-24 hours via FedEx, UPS, or DHL.

• Q: Does it have a battery?
• A: Yes – BR2032 lithium battery lasts 4 years.

Pro Tips from the Field

• Use shielded cables for fast inputs and outputs – reduces noise.
• Set filter time to 0 ms for fastest response.
• Keep the controller at least 50 mm from high-voltage wires.
• Backup your program to the SD card after each change.
• Check the LED status – ERR, RUN, and I/O LEDs help quick troubleshooting.
