Name: Schneider Electric TSXCANKCDF90T Connector | 90-Degree CANopen
SKU: TSXCANKCDF90T
Availability: InStock

Product details

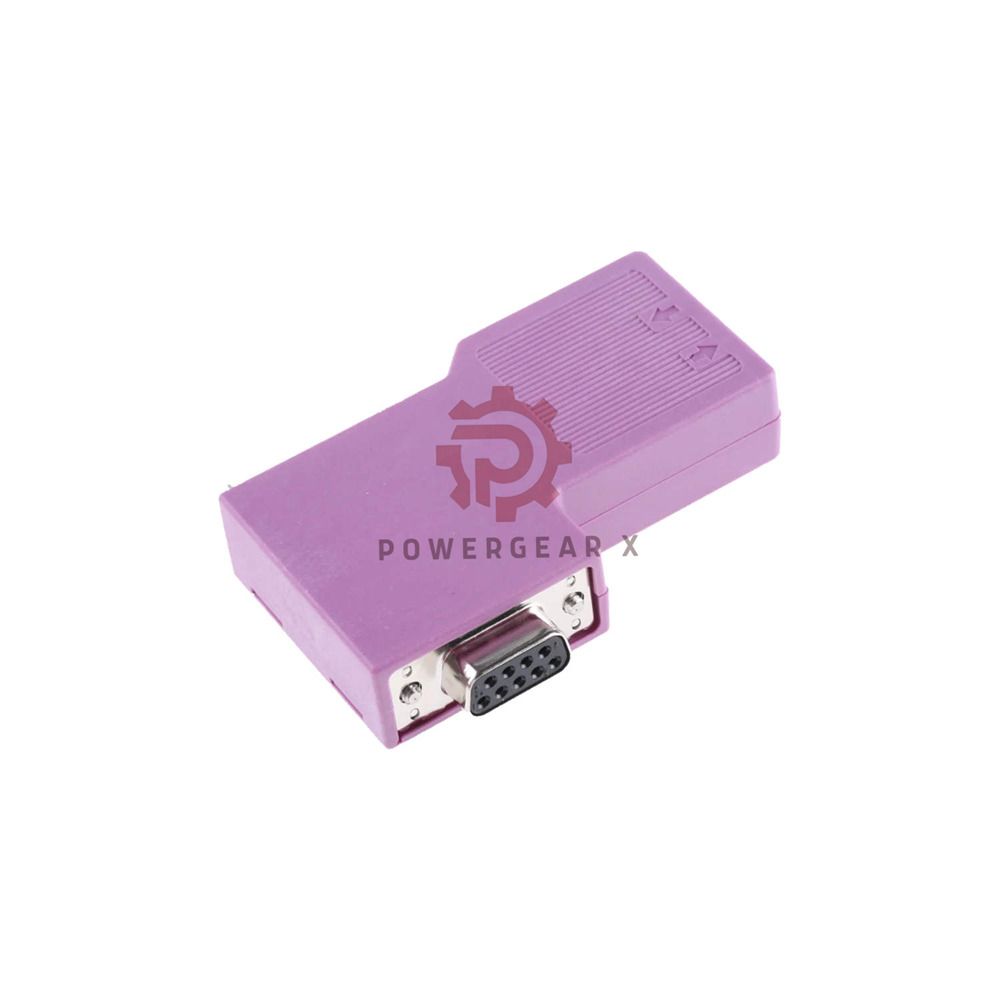

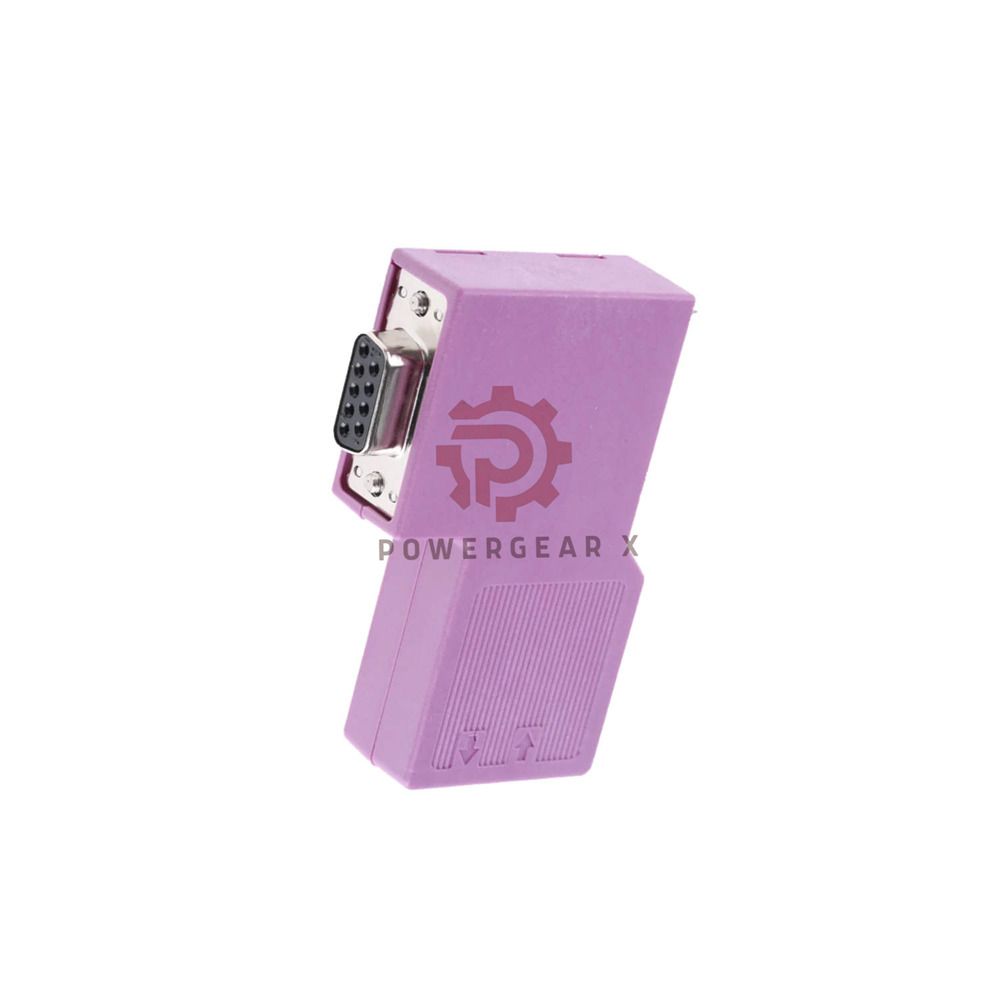

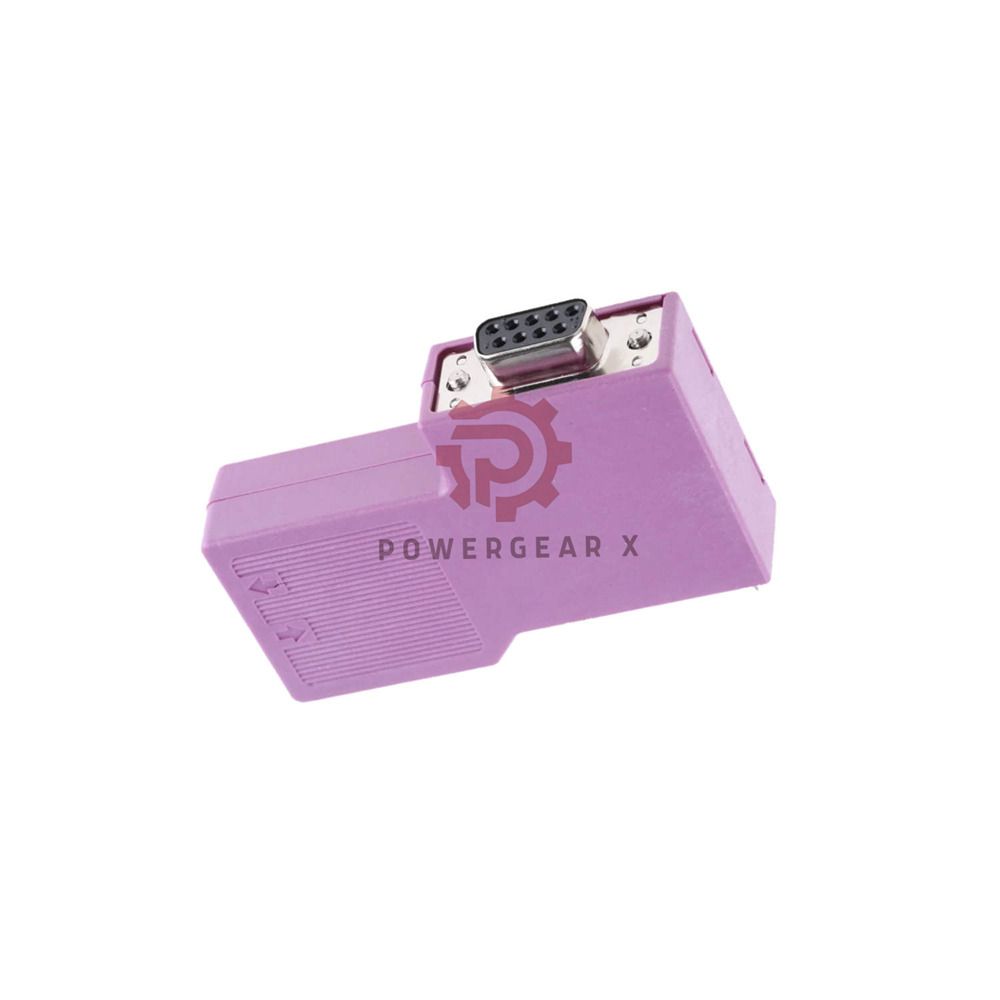

Schneider Electric TSXCANKCDF90T: Right-Angle CANopen Connector

This product is a single, right-angle female SUB-D9 connector. It includes a built-in line terminator for CANopen networks. The TSXCANKCDF90T is perfect for tight spaces in control cabinets.

Quick Details:

Key Features & Benefits

Saves Space: The right-angle design fits easily in crowded panels.
Built-in Terminator: Ensures stable network signal quality.
Durable Build: Robust housing protects the connection.
Easy Installation: Simplifies wiring for CANopen devices.
Wide Compatibility: Works with many CANopen systems.

Technical Specifications

Connector Gender: Female
Pin Count: 9-pins
Network Type: CANopen Bus
Termination Resistance: 120 Ohms (standard)
Operating Temperature: -25°C to +85°C
Country of Origin: Germany (DE)

Shipping & Support

Warranty: 12 months
Shipping: FedEx, UPS, DHL
Package: 1 unit per box
Need help? Contact: sales@powergearx.com or +86 18030005825

Frequently Asked Questions

What is the purpose of the built-in terminator?
It prevents signal reflection at the end of the CANopen bus line. This ensures reliable data communication.
Can I use this connector without the terminator?
No, the terminator is fixed inside the connector. It is always active for proper network function.
Is this connector male or female?
It is a female SUB-D9 connector. It connects to a male port on your device.
What does the ‘elbowed’ or ‘right-angle’ design mean?
The cable exits from the side, not the back. This saves depth space behind the panel.
Do you offer other connector types?
Yes, we have a full range of CANopen accessories. Email us for a complete list.
