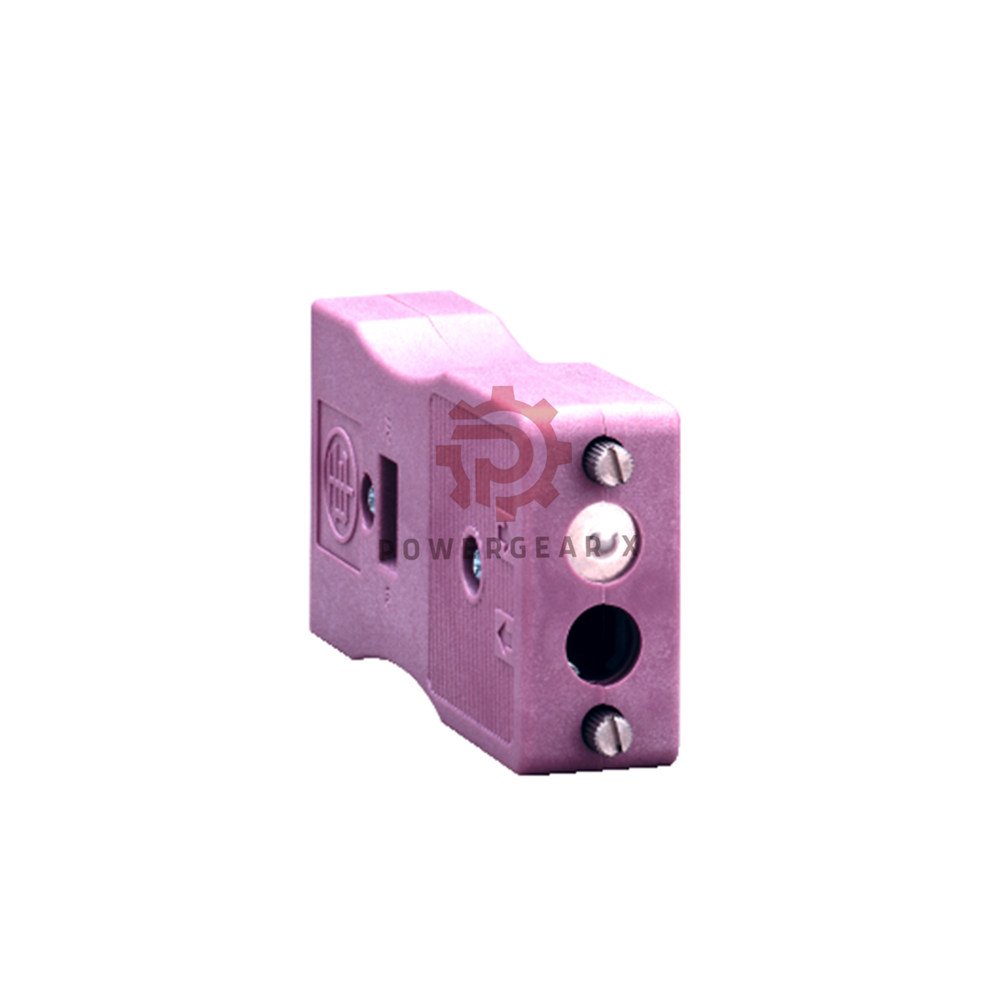

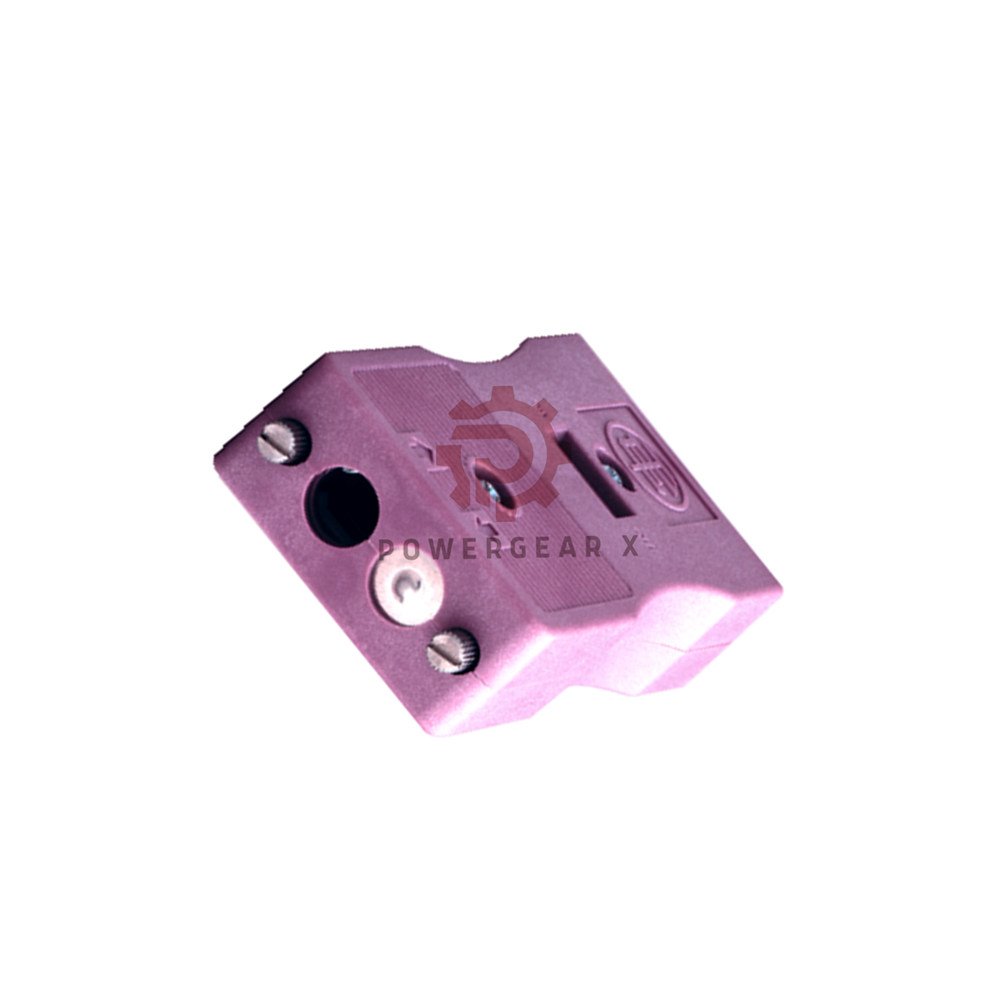

Schneider Electric TSXCANKCDF180T CANopen Connector
The TSXCANKCDF180T from Schneider Electric provides reliable CANopen connectivity. This connector features a built-in termination resistor for stable bus communication. Its compact design and IP20 rating make it ideal for industrial applications.
Product Highlights
- 9-pin SUB-D female connector with termination resistor
- IP20 protection for indoor industrial environments
- Easy plug-and-play installation
- Lightweight design at only 49 grams
- 120-ohm standard CANopen termination
- Operating temperature: -25°C to +70°C
- UL certified and CE marked
Technical Specifications
- Brand: Schneider Electric
- Model: TSXCANKCDF180T
- Connector Type: SUB-D 9-pin female
- IP Rating: IP20
- Termination Resistor: 120 ohms
- Weight: 0.049 kg
- Voltage Rating: 30V DC
- Current Rating: 1A per contact
Packaging Information
- Unit Package: 1 piece per box
- Dimensions: 11cm × 9cm × 2cm
- Weight: 45 grams
- Bulk Package: 300 pieces per carton
- Bulk Dimensions: 60cm × 40cm × 30cm
- Bulk Weight: 14.374 kg
Shipping & Warranty
- Global shipping via FedEx, UPS, DHL
- 12-month manufacturer warranty
- Fast dispatch within 24 hours
- Real-time tracking provided
Frequently Asked Questions
- What is the purpose of the termination resistor?
The 120-ohm resistor prevents signal reflection at bus ends, ensuring stable CANopen communication.
- Can this connector be used outdoors?
No, the IP20 rating is suitable for dry indoor environments only.
- Is compatible with standard CANopen devices?
Yes, the TSXCANKCDF180T works with any CANopen system using SUB-D 9-pin ports.
- What tools are needed for installation?
No special tools required – simply connect to compatible CANopen devices.
- Does it support daisy-chaining multiple devices?
Yes, the connector supports standard CANopen daisy-chain topology.
