Schneider Electric ABFM08S201 Modicon Quantum Analogue Connector

Schneider Electric ABFM08S201 Modicon Quantum Cabled Connector

• Author: Powergear X Automation
• The ABFM08S201 supports clean analogue signal flow in Quantum PLC systems.
• This connector fits compact panels with limited wiring space.

Why Choose This Connector

• Analogue Focus: Designed for stable analogue input signals.
• 8 Channels: Handles multiple inputs with one cable.
• SUB-D Interface: Ensures firm and repeatable connections.
• Ribbon Cable: Keeps routing neat inside control cabinets.

Product Layout

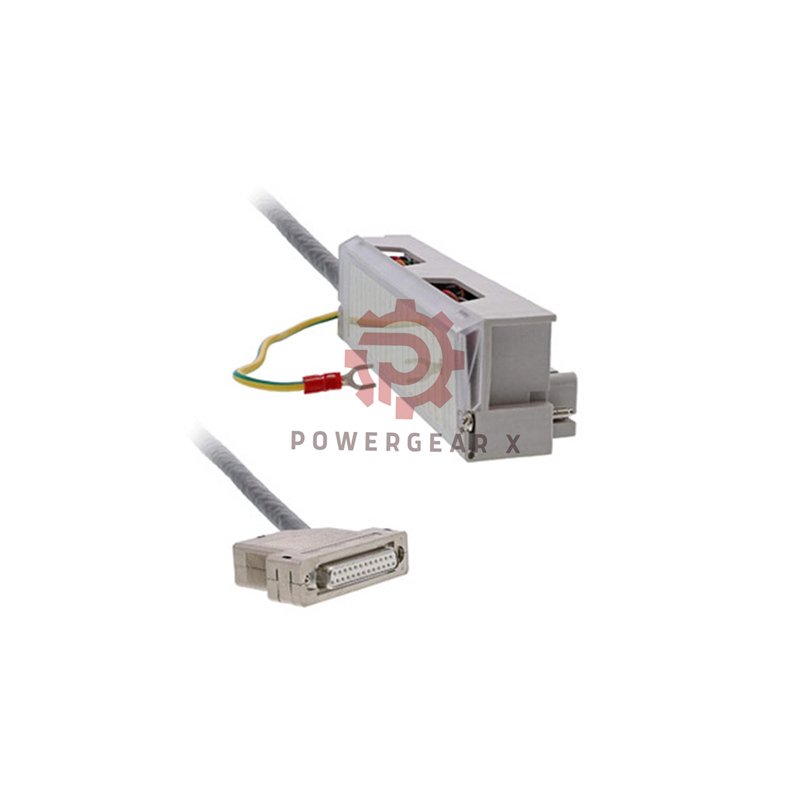

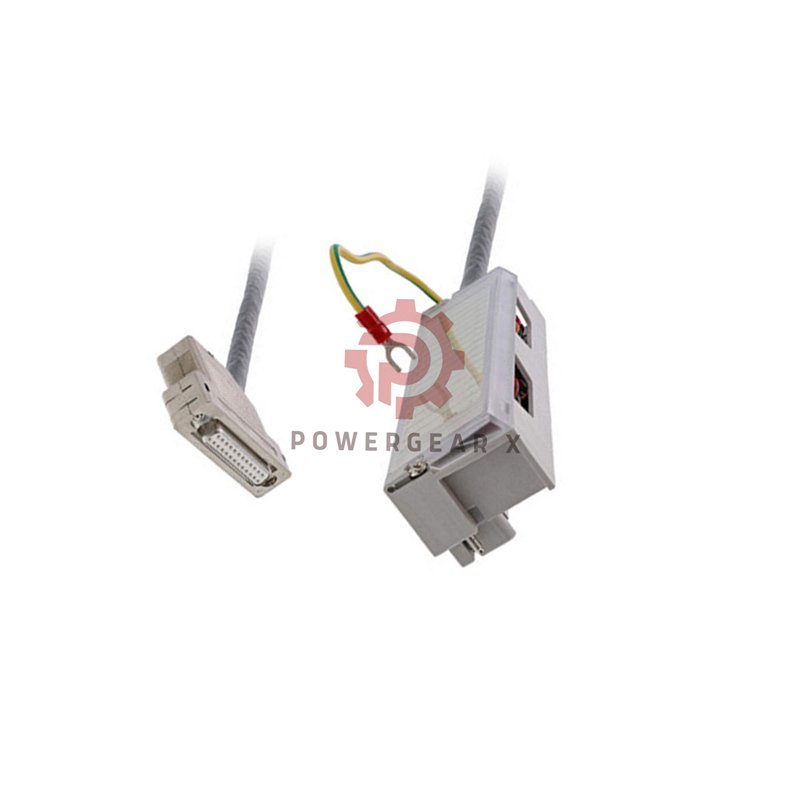

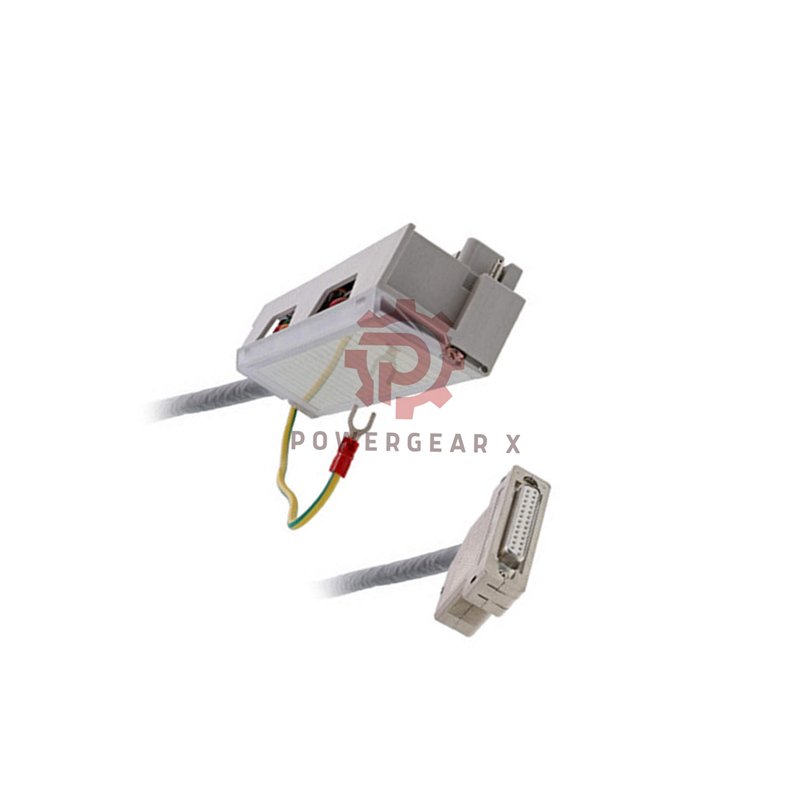

• Cabled Connector Assembly
  • Product Line: Modicon Quantum
  • Signal Type: Analogue input
  • Number of Channels: 8
  • Cable Length: 2 meters

Electrical Characteristics

• Rated Current: Up to 1 A per channel.
• Rated Voltage: Supports circuits up to 250 V.
• Wire Gauge: AWG 24 for precise analogue signals.
• Wire Area: 0.22 mm² copper conductor.
• Connector Pins: 25-way SUB-D design.

Environmental Performance

• Operates reliably between -20 °C and +60 °C.
• PVC insulation resists wear during daily operation.
• Ribbon structure limits signal cross-talk.

Installation Experience

• Install the SUB-D connector with even screw pressure.
• Keep analogue lines away from power cables.
• Use proper grounding to reduce noise.

Compatible Modules

• Modicon Quantum analogue input modules.
• Models such as 140AVI03000 and 140ACI03000.

What You Receive

• ABFM08S201 cabled connector.
• Factory-assembled 25-way SUB-D connector.

Warranty and Shipping

• 12-month standard factory warranty.
• Fast delivery via FedEx, UPS, or DHL.

Professional FAQ

• Does ribbon cable help with panel layout?
  Yes, it keeps wiring flat and organized.
• Is this connector suited for low-level signals?
  Yes, AWG 24 supports stable analogue transmission.
• Can this cable reduce installation errors?
  Yes, fixed pin layout lowers wiring mistakes.
• Does temperature affect signal stability?
  No, normal industrial ranges stay within limits.
• Is this connector easy to replace?
  Yes, the single SUB-D plug allows quick removal.
