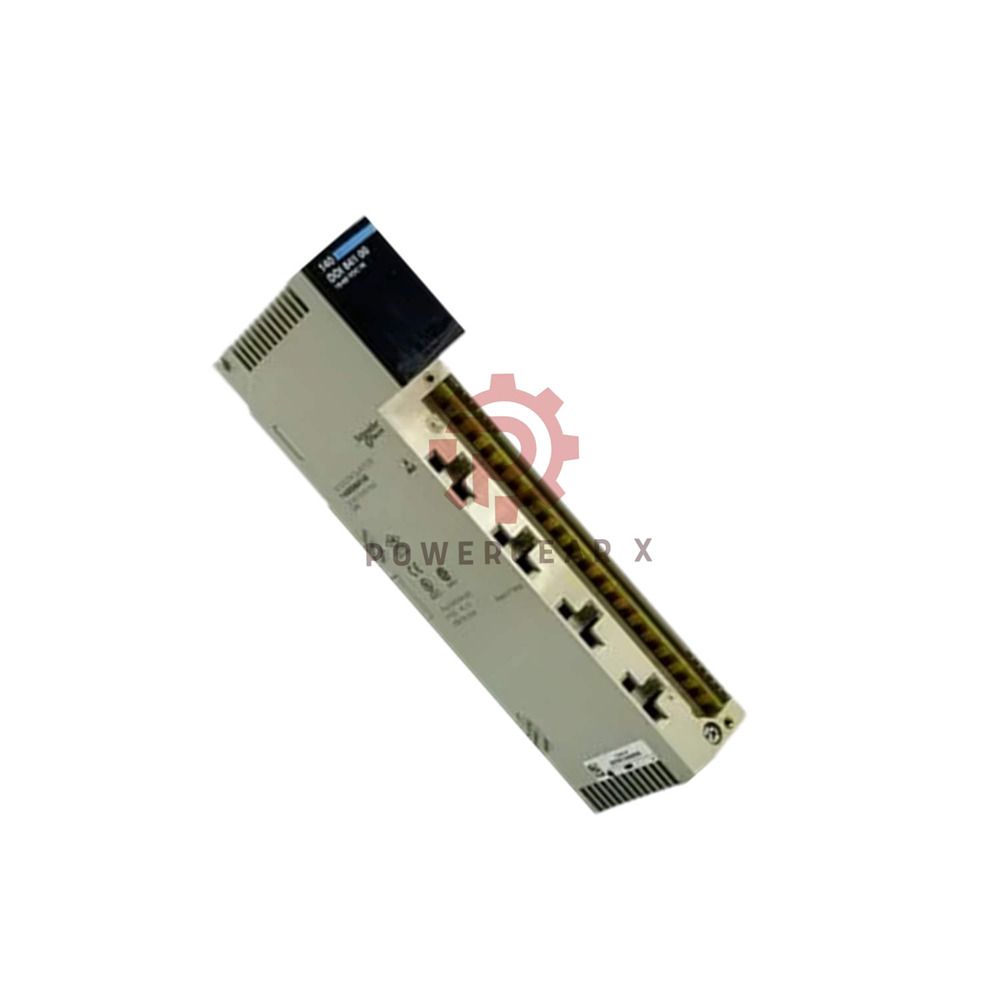

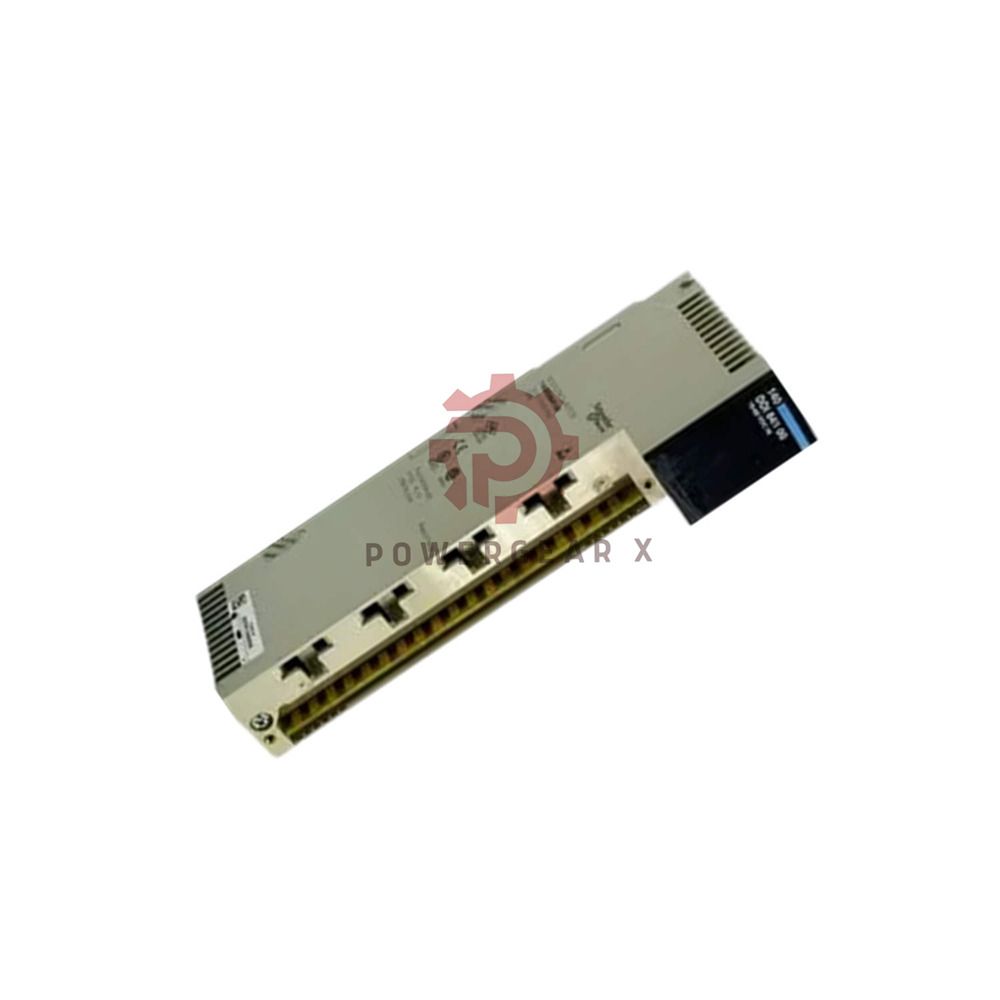

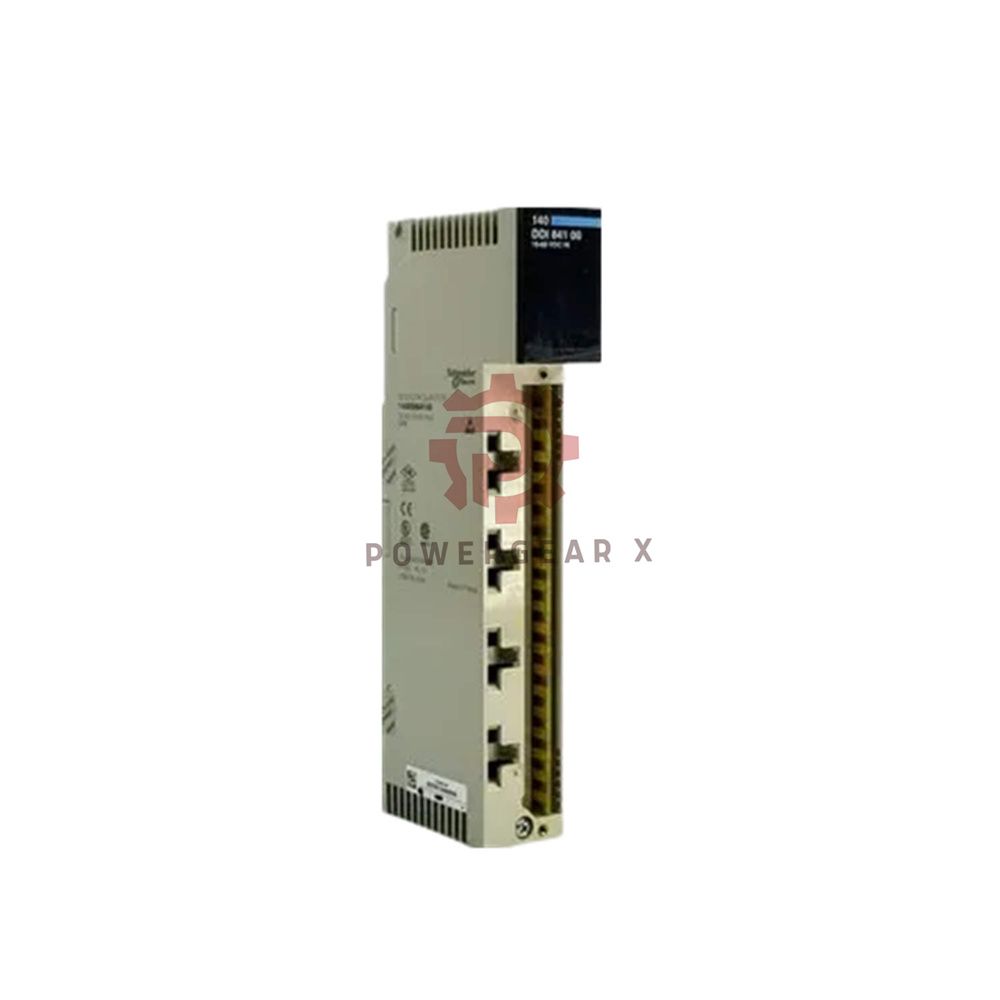

Schneider Electric Quantum Input Module
This is the 140DDI84100C input module. It reads 16 digital signals for your PLC. It works with many voltage levels. This module is tough for factory use.
Top Reasons to Buy This Module
- 16 Input Points: Connects many sensors and switches.
- Wide Voltage Range: Accepts 10V to 60V DC signals.
- Very Fast: Responds in just 4 milliseconds.
- Strong Protection: 2500V isolation keeps systems safe.
- Clear Status Lights: LEDs show every input state.
- Easy Setup: Uses only one word in PLC memory.
- Global Shipping: We use FedEx, UPS, and DHL.
- Quality Guarantee: All parts have a 12-month warranty.
Complete Specifications
- Brand: Schneider Electric
- Series: Modicon Quantum
- Model: 140DDI84100C (EAN: 3595861136649)
- Input Channels: 16 points in 8 groups
- Voltage Range: 10 to 60 V DC (75V max)
- Current per Point: 5-30 mA (depends on voltage)
- Response Speed: 4 ms (on and off)
- Isolation Rating: 2500 Vrms (group to bus)
- Power Use: 1 Watt typical
- Noise Resistance: 10 V/m electromagnetic fields
- ESD Protection: 4kV contact, 8kV air discharge
- Operating Temp: 0°C to 60°C (32°F to 140°F)
- Module Weight: 0.3 kg (0.7 lb)
Frequently Asked Questions
What type of signals does this module read?
It reads simple ON/OFF DC signals from devices like push buttons and sensors.
Can I use it with a 24V power supply?
Yes. The 140DDI84100C works perfectly with standard 24V DC systems.
How do I know if an input is active?
Each of the 16 points has a green LED that lights up when active.
What is a common wiring mistake?
Mixing the common wire between different voltage groups. Keep wiring neat.
Is this module safe for harsh environments?
Yes. It has conformal coating and high noise resistance for tough conditions.
Simple Purchase Guide
- Confirm you need a DC input module for Modicon Quantum.
- Count how many sensor inputs you need (up to 16).
- Check your signal voltage is between 10V and 60V DC.
- The exact model is 140DDI84100C.
- Contact us if you need help with compatibility.
