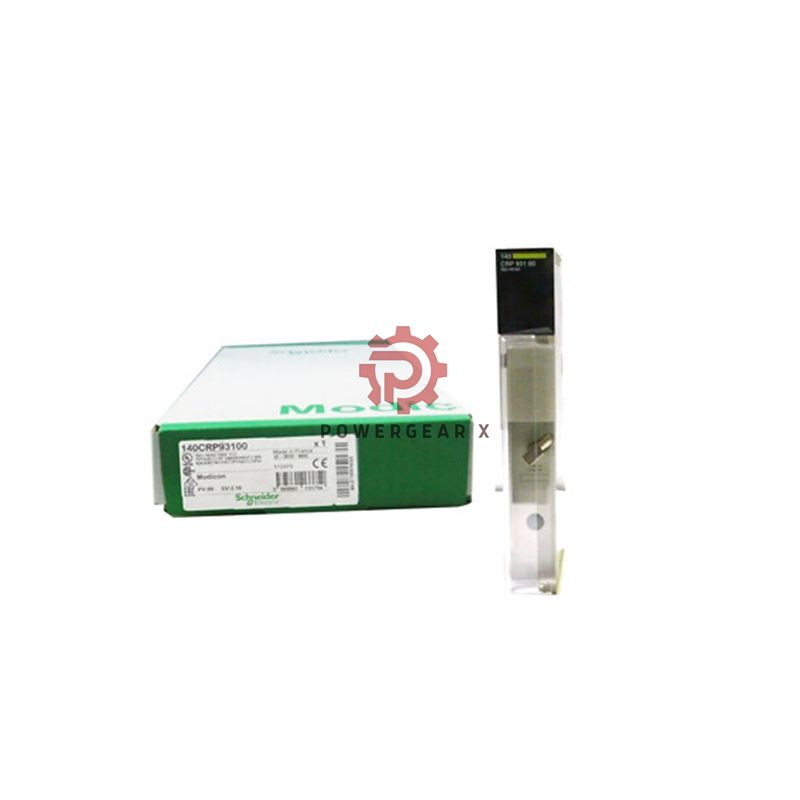

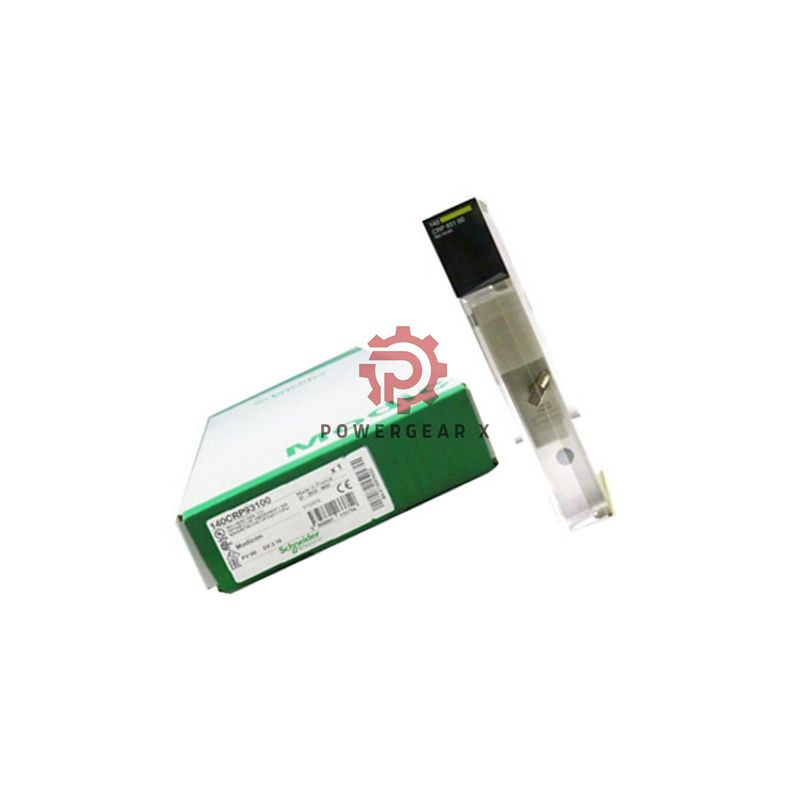

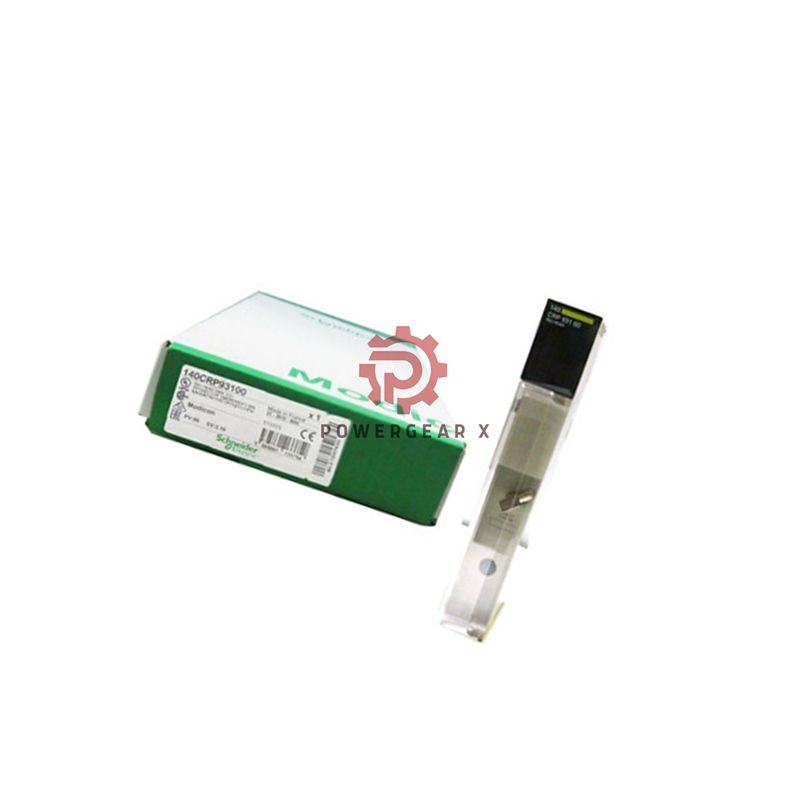

Schneider Electric 140CRP93100 – High-Speed RIO Head End Adaptor
The 140CRP93100 RIO head-end adaptor delivers lightning-fast data transmission for Modicon Quantum systems. This module enables reliable remote I/O communication with exceptional speed and performance.
Technical Specifications
- Brand: Schneider Electric
- Model: 140CRP93100
- Series: Modicon Quantum
- Type: RIO Head-End Adaptor Module
- Transmission Rate: 1544 Mbit/s (T1 speed)
- Cable Type: 75 Ohm coaxial
- Impedance: 75 Ohms matched impedance
- Dynamic Range: 35 dB signal quality
- Isolation Voltage: 500V DC (coaxial center to ground)
- Max Drops/Network: 31 remote drops
- I/O Words/Drop: 64 input + 64 output words
- Power Consumption: 3W per channel
- Bus Current: 600mA per channel
- Connector: F-type female elbow connector
- Operating Temp: 0°C to 60°C (32°F to 140°F)
- Certifications: FM Class 1 Div 2, UL 508, cUL
- Warranty: 12 months
Compatibility
- Quantum 200 series I/O modules
- Quantum 500 series I/O modules
- Quantum 800 series I/O modules
- Sy/Max systems (any mix configuration)
- All Modicon Quantum backplanes
Protection & Safety
- 500V DC isolation protection
- ESD protection: 4kV contact, 8kV air
- EMI resistance: 10V/m (80-1000MHz)
- Hazardous location certification (FM Class 1 Div 2)
- Industrial temperature operation
Physical Specifications
- Dimensions: 12.36″ × 6.42″ × 1.69″
- Weight: 17.6 oz (500 g)
- Enclosure: Standard module format
- Connection: F-type female elbow connector
- Cable Support: Single coaxial cable design
Shipping & Support
- Shipping Methods: FedEx, UPS, DHL Express
- Delivery Time: 2-5 business days
- Return Policy: 30-day return option available
- Technical Support: Available via phone and email
Frequently Asked Questions
- What is the maximum transmission distance?
It supports typical coaxial cable runs up to 10,000 feet with proper cabling. - Can this module be used in hazardous locations?
Yes, it carries FM Class 1 Division 2 certification for hazardous areas. - How many I/O points can it handle?
It supports 64 input and 64 output words per drop, with up to 31 drops. - What type of coaxial cable is required?
It uses standard 75 Ohm coaxial cable with F-type connectors. - Is this compatible with older Sy/Max systems?
Yes, it supports Sy/Max systems with any mix configuration.
