Schneider 170FNT11001 FIPIO Communication Module CE

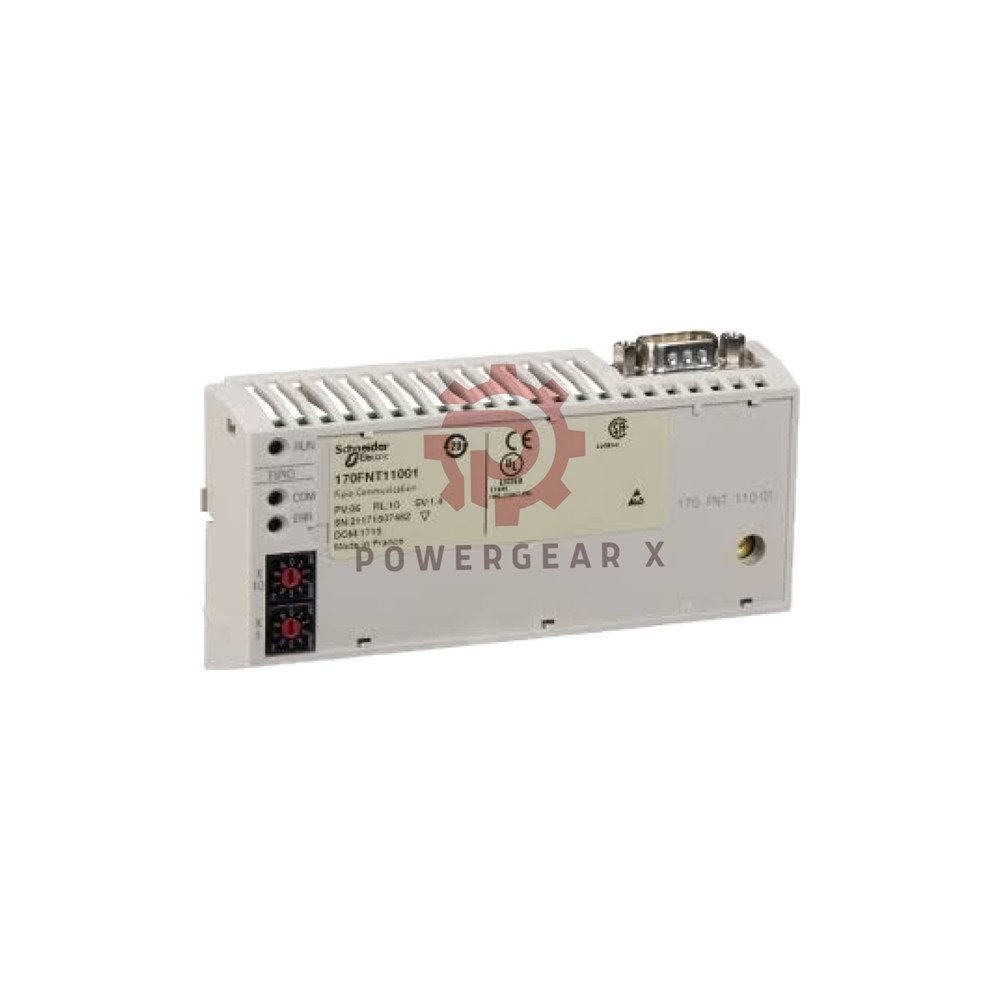

170FNT11001 Schneider Electric Modicon FIPIO Communication Module

The 170FNT11001 is a FIPIO communication module from Schneider Electric. It belongs to the Modicon Momentum platform. This module moves data at up to 1 Mbit/s. It keeps the last value or falls back to zero when a fault occurs. That design protects your process during interruptions. The module draws power from the I/O base. It works with optical fiber and shielded twisted pair cables. You can build flexible network layouts with extension or tap off cables. It is a strong choice for distributed control and factory networking.

Why This Module Stands Out

• Fast FIPIO communication. Transmission rate reaches 1 Mbit/s.
• Reliable fail state. Maintain value or fallback to zero.
• Long cable runs. Supports distances from 1000 m to 5000 m.
• Scalable segments. Up to 31 devices without a repeater.
• Repeater ready. Up to 97 devices with a repeater.
• Flexible wiring. Optical fiber and shielded twisted pairs.
• CE marked. Meets relevant regulatory standards.

Technical Data

• Brand: Schneider Electric
• Model: 170FNT11001
• Product Type: FIPIO Communication Module
• Product Line: Modicon
• Range: Modicon Momentum automation platform
• Component Type: FIPIO communication adaptor
• Bus Manager: Premium PLC
• Protocol: FIPIO
• Transmission Rate: 1 Mbit/s
• Access Method: Producer/consumer principle
• Fail State: Maintain value, fallback to zero, forcing to state zero, full scale value
• Supply: From I/O base
• Cable Type: Optical fiber, shielded twisted pairs
• Optical Fiber: 50/125 µm and 62.5/125 µm
• Topology: Extension or tap off cable
• Cable Length: 1000 m to 5000 m
• Max Cable Distance: 5000 m
• Devices per Segment: 0 to 31 without repeater, 0 to 97 with repeater
• Net Weight: 0.11 kg (0.24 lb)
• Protective Treatment: TC
• Marking: CE
• EAN / GTIN: 3389110896527

Core Parameters for Industrial Use

• Measurement Range: Not applicable for this communication module.
• Frequency Response: Not specified by the manufacturer.
• Sensitivity: Not applicable to FIPIO data transmission.
• Linearity: Not applicable for digital communication.
• Resolution: Not applicable for this module type.
• Temperature Range: Follow the host I/O base and cabinet rating.
• Environmental Resistance: TC protective treatment supports harsh settings.
• Anti Interference: Optical fiber and shielded twisted pairs reduce noise.

Installation Guide

• Mount the module on a compatible Modicon Momentum I/O base.
• Use optical fiber or shielded twisted pair cable for the FIPIO link.
• Keep cable length between 1000 m and 5000 m for stable traffic.
• Add a repeater when your segment needs more than 31 devices.
• Use extension or tap off cable topology to match your layout.
• Confirm the fail state setting before you start the line.
• Check CE marking and cabinet grounding before power up.

Commissioning and Maintenance Ease

• Power comes from the I/O base. That cuts extra wiring work.
• The producer/consumer method simplifies data sharing.
• Clear fail state choices help you recover faster.
• Light weight at 0.11 kg makes panel work easier.
• Standard FIPIO tools support fast setup and checks.
• Fiber and copper options give you room to adapt.

Compatibility Notes

• Works with the Modicon Momentum automation platform.
• Designed for FIPIO networks and Premium PLC bus management.
• Supports 50/125 µm and 62.5/125 µm optical fiber.
• Supports shielded twisted pair copper cable.
• Fits segments with up to 31 devices, or 97 with a repeater.
• Uses extension or tap off cable topology.

Certification Information

• CE Marking: Yes
• Protective Treatment: TC
• Regulatory Compliance: Meets relevant standards for the marked use.

Packing List

• 1 x Schneider Electric 170FNT11001 FIPIO Communication Module
• Package Type: PCE
• Units per Package: 1
• Package Height: 5.5 cm (2.2 in)
• Package Width: 18.0 cm (7.09 in)
• Package Length: 26.0 cm (10.2 in)
• Package Weight: 185.0 g (6.5 oz)

Warranty and Shipping

• Warranty: 12 months
• Dispatch Time: 12 to 24 hours
• Couriers: FedEx, UPS, DHL
• Order Support: sales@powergearx.com
• Quick Contact: +86 18030005825

Expert Review

The 170FNT11001 fits plants that already use FIPIO. It is not a general purpose Ethernet card. Its value comes from steady 1 Mbit/s traffic and a clear fail state. The module keeps the last value or drops to zero. That behavior helps safety and process teams during network faults. Fiber support is a big plus in noisy areas. Copper support keeps costs down on short runs. The 5000 m maximum distance suits large sites. The 31 device limit per segment is normal for FIPIO. Add a repeater when you need more nodes. The 0.11 kg weight and I/O base power feed make installation simple. For Modicon Momentum users, this module is a practical spare or expansion part.

Manager’s Insight

Buy this module when your system already runs FIPIO. It protects your existing architecture. It also avoids a full network migration. Stock it as a critical spare. A failed communication module can stop a line. The 12 month warranty and 12 to 24 hour dispatch reduce downtime risk. Use FedEx, UPS, or DHL for fast delivery. Contact sales@powergearx.com or +86 18030005825 for stock checks. This part suits maintenance teams that value simple drop in replacement.

Best Fits for Devices and Applications

• Modicon Momentum automation platform
• Premium PLC bus manager systems
• FIPIO distributed I/O networks
• Factory automation lines with long cable runs
• Process control cabinets with noise concerns
• Legacy systems that need a reliable spare module
• Water, energy, and manufacturing sites with FIPIO backbones

FAQ

Q: What is the 170FNT11001 used for?

A: It connects devices on a FIPIO network. It supports data exchange in Modicon systems.

Q: What is the top speed of this module?

A: The transmission rate is 1 Mbit/s.

Q: How does it behave when a fault occurs?

A: It can maintain the last value or fall back to zero.

Q: How many devices can one segment hold?

A: Up to 31 devices without a repeater. Up to 97 with a repeater.

Q: What cable types does it support?

A: It works with optical fiber and shielded twisted pairs.

Q: What is the maximum cable distance?

A: The maximum distance is 5000 m.

Q: Does it need a separate power supply?

A: No. It draws power from the I/O base.

Q: Is it CE marked?

A: Yes. It carries the CE marking.

Q: What is the warranty period?

A: The warranty is 12 months.

Q: How fast do you ship?

A: We dispatch in 12 to 24 hours. We use FedEx, UPS, and DHL.

Q: Can I use it with Ethernet?

A: No. It is a FIPIO module, not an Ethernet module.

Q: What should I check before buying?

A: Check your protocol, cable type, segment size, and PLC compatibility.

Q: Do you offer help with part selection?

A: Yes. Email sales@powergearx.com or message +86 18030005825.

Buying Guide

• Confirm your network uses FIPIO before you order.
• Check that your I/O base can host this module.
• Match the cable type to your site conditions.
• Plan repeater use if you need more than 31 nodes.
• Keep the 5000 m distance limit in mind.
• Order a spare for critical lines.
• Ask for stock and lead time before you pay.
• Use the 12 month warranty as a risk cover.
