S30A-7111CP Safety Scanner | SICK S3000 PROFINET PROFIsafe 7m

Product Overview

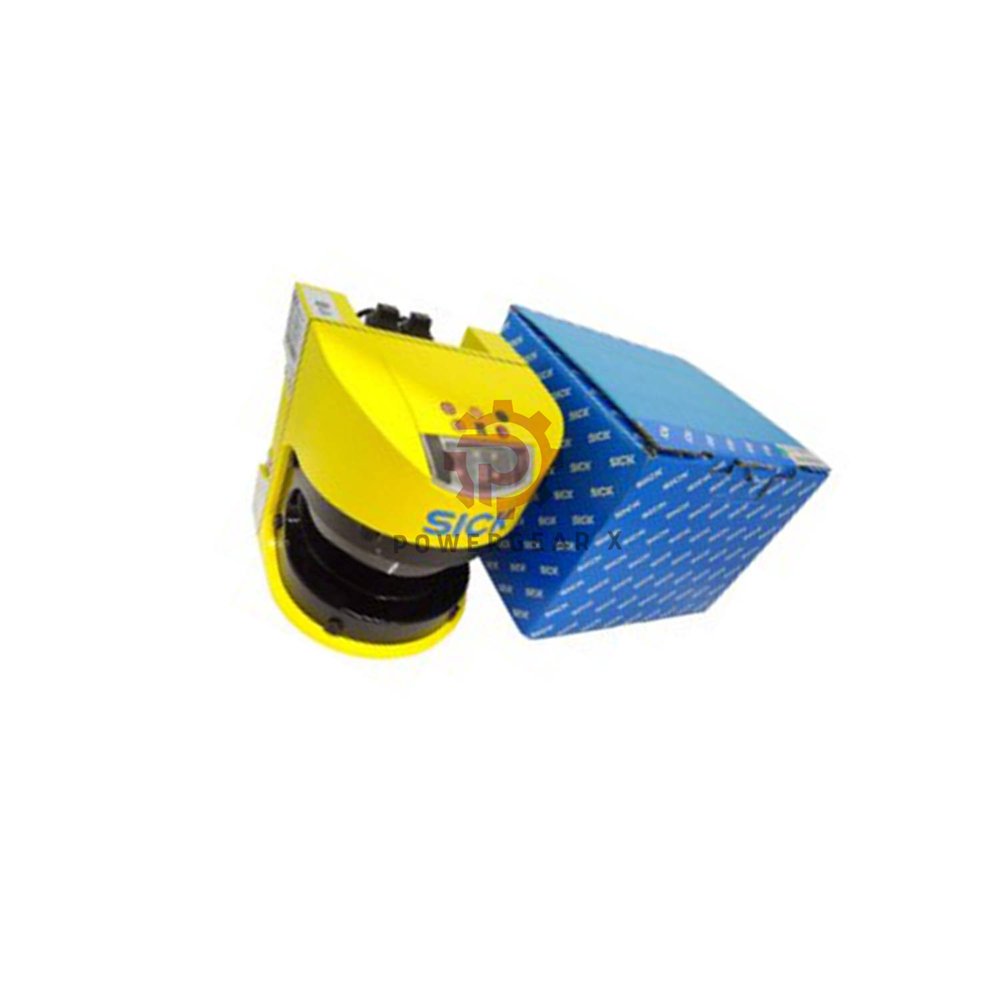

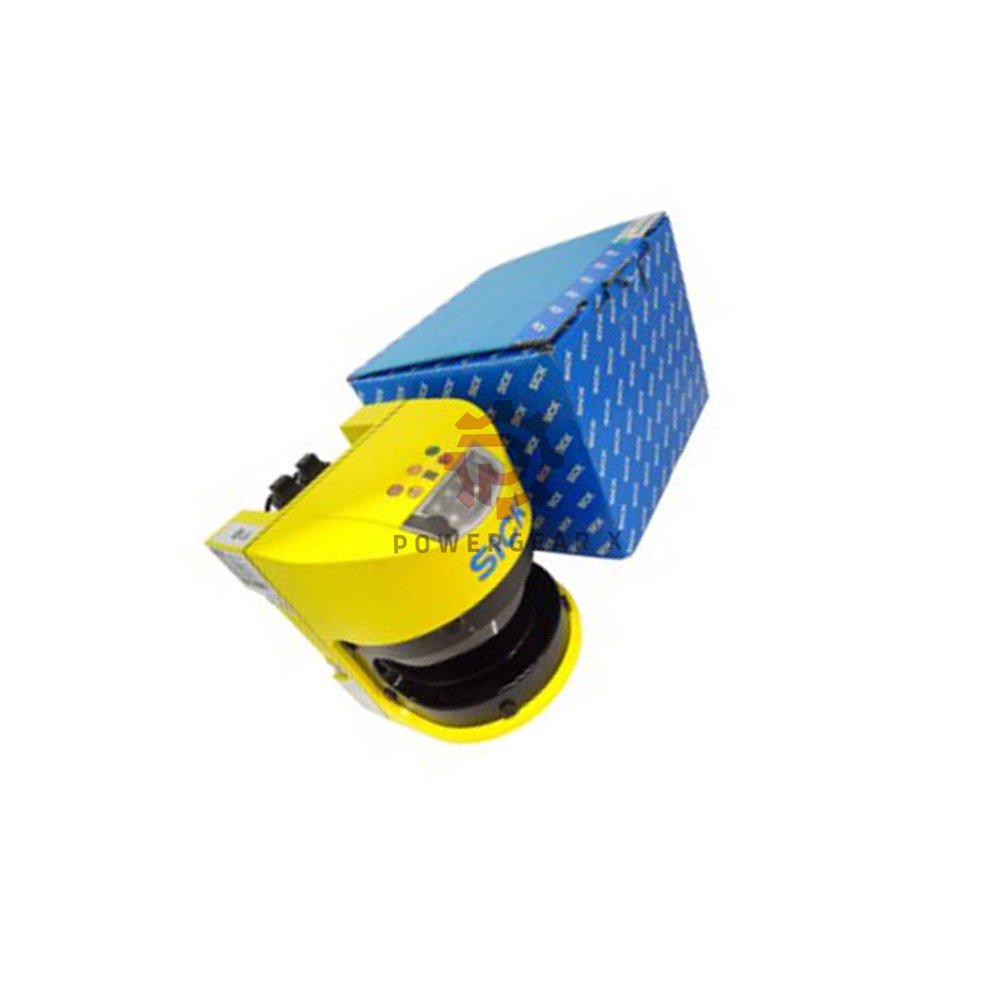

SICK S30A-7111CP is a safety laser scanner from the S3000 PROFINET IO series. It provides 7 m protective field and 49 m warning field. This sensor scans 190° for wide coverage. It integrates directly into PROFINET networks with PROFIsafe.

Key Features

• Protective field: 7 m (warning field 49 m)
• Scanning angle: 190°
• Resolution: 30..150 mm (configurable)
• Response time: 60 ms
• Safety level: Type 3, SIL 2, PL d
• PROFINET PROFIsafe integrated
• 4 field sets with 8 fields total
• IP65 rated for indoor environments

Technical Specifications (Hierarchical)

• General
  • Brand: SICK
  • Model: S30A-7111CP
  • Series: S3000 PROFINET IO Advanced
  • Type: Safety Laser Scanner
  • Application: Indoor
• Field Data
  • Protective field range: 7 m
  • Warning field range: 49 m (20 m at 20% reflectivity)
  • Distance measuring range: 49 m
  • Scanning angle: 190°
  • Angular resolution: 0.5° or 0.25°
  • Response time: 60 ms
  • Protective field supplement: 100 mm
• Configuration Options
  • Resolution: 30, 40, 50, 70, 150 mm
  • Field sets: 4 (dual field sets)
  • Fields: 8 total
  • Monitoring cases: 4
  • Simultaneous protective fields: 2
  • Multiple sampling: 2..16
  • Automatic reset delay: 120 ms..4920 ms
• Safety Ratings
  • Type: 3 (IEC 61496)
  • SIL: 2 (IEC 61508)
  • Category: 3 (EN ISO 13849)
  • Performance Level: PL d
  • PFHD: 8.0 x 10⁻⁸
  • Mission time: 20 years
• PROFINET Integration
  • Protocol: PROFINET PROFIsafe
  • Integration: Built-in
  • Device properties: IO device with 2-port switch
  • PROFIsafe: 6-octet input, 6-octet output
  • Cycle time: 4, 8, 16, 32 ms
  • Conformance: Class B
  • Topology: SNMP, MIB-2, LLDP, MRP client
  • I&M: I&M0 to I&M4
• Interfaces
  • Bus: 2 x RJ-45 (push-pull)
  • Supply: System plug
  • Diagnostics: RS-232 (9.6, 19.2, 38.4 kBaud)
  • TCP port: 9000
  • UDP port: 30718
• Electrical
  • Supply voltage: 24 V DC (16.8..28.8 V)
  • Power consumption: 0.8 A
  • Protection class: III
• Mechanical
  • Dimensions: 155 x 185 x 160 mm
  • Weight: 3.3 kg
  • Housing: Aluminum die cast (yellow RAL 1021)
  • Front screen: Polycarbonate with scratch-resistant coating
  • Enclosure rating: IP65
• Environmental
  • Operating temp: -10..+50 °C
  • Storage temp: -25..+50 °C
  • Vibration: Class 5M1
  • Shock: 50 m/s² (11 ms), 100 m/s² (16 ms)
• Optical
  • Light source: Pulsed laser diode (905 nm)
  • Laser class: 1 (eye-safe)
  • Detectable remission: 1.8% to >1000%

Expert Review

“S30A-7111CP delivers reliable safety scanning with PROFINET integration. The 7 m range and 190° angle cover large areas. PROFIsafe ensures safe communication with controllers. We recommend it for AGV navigation and stationary machine guarding.”

Manager’s Insight

“This scanner simplifies network integration with built-in PROFINET. The 20-year mission time ensures long service life. IP65 rating suits most indoor environments. With 12-month warranty and fast shipping, it is a solid investment.”

Applications & Compatible Devices

• Mobile: AGVs, autonomous mobile robots, forklifts
• Stationary: Machine guarding, hazardous area monitoring
• Industries: Logistics, automotive, warehouse automation
• Controllers: PROFINET PLCs with PROFIsafe (Siemens, Rockwell, etc.)

Installation & Configuration

• Mounting: Flexible mounting with 190° scanning angle
• Network: Connect via 2 RJ-45 ports (push-pull)
• Configuration: Safety Designer software via RS-232
• Field setup: Define up to 8 fields with 4 field sets
• PROFINET: Use GSDML file for controller integration

Frequently Asked Questions

• Q: What safety levels does this scanner meet?
  Type 3, SIL 2, PL d. Suitable for most industrial applications.
• Q: Can I use this scanner without PROFINET?
  No. This model requires PROFINET PROFIsafe for operation.
• Q: How many fields can I monitor?
  Up to 8 fields total with 4 field sets and 2 simultaneous.
• Q: What is the response time?
  60 ms, fast enough for AGV and robot applications.
• Q: How do I configure the scanner?
  Use Safety Designer software via RS-232 connection.

Experience-based Q&A

• Q: The scanner does not power up. What should I check?
  Verify 24 V DC supply (16.8..28.8 V). Check the system plug.
• Q: The PROFINET connection fails. What is wrong?
  Check IP address and network cables. Verify GSDML file is correct.
• Q: How to clean the front screen?
  Use a soft cloth with mild cleaner. Avoid scratching the coating.

Selection Guide

• For PROFINET networks, this model offers seamless integration.
• For long range up to 7 m, S30A-7111CP is ideal.
• For AGV navigation, the 190° angle provides wide coverage.
• For safety applications, PL d and SIL 2 meet most requirements.
• For easy diagnostics, RS-232 interface supports troubleshooting.

Comparison with Similar Models

• S30A-7111CP – 7 m, PROFINET, PROFIsafe.
• S30A-6011BA – 5.5 m, standard I/O (no PROFINET).
• S30A-4011BA – 4 m, lower cost, basic features.

Package Contents

• S30A-7111CP safety scanner (1 unit)
• System plug
• Quick start guide
• Safety Designer software download instructions
• GSDML file (download)
• Warranty card (12 months)
