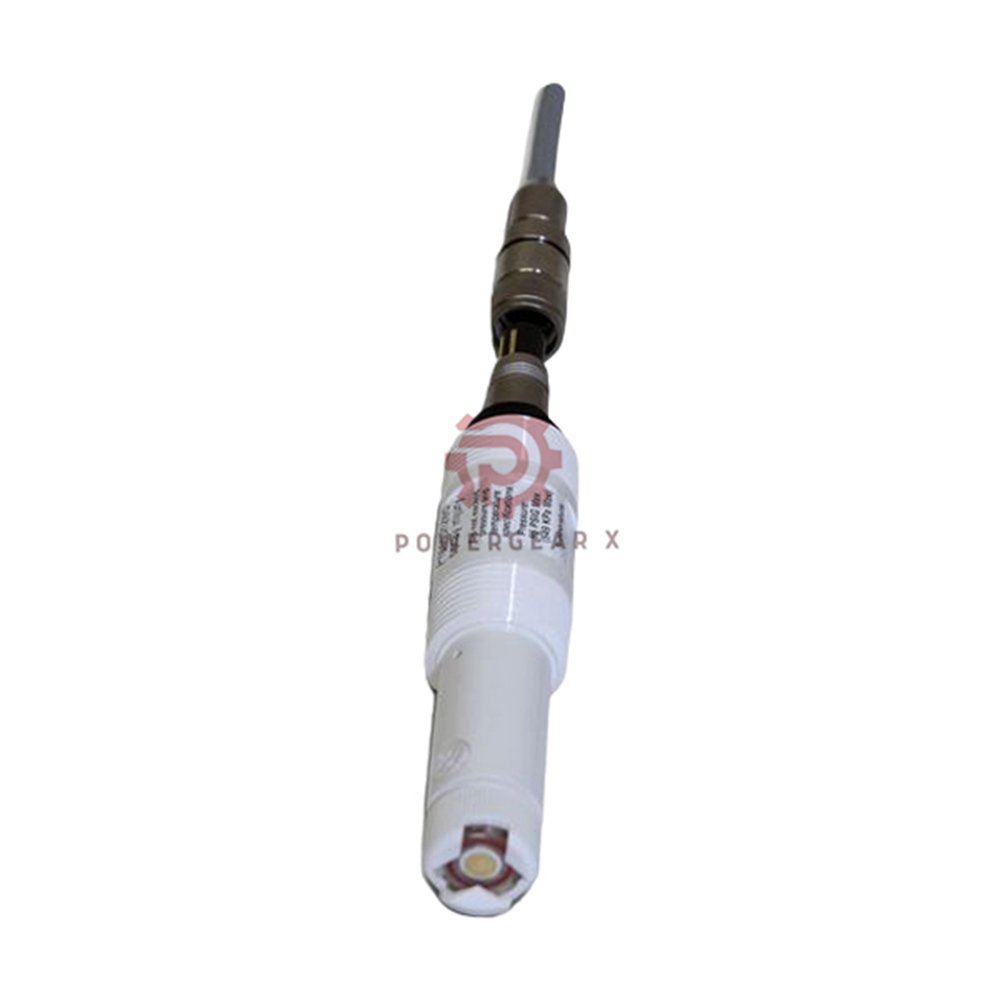

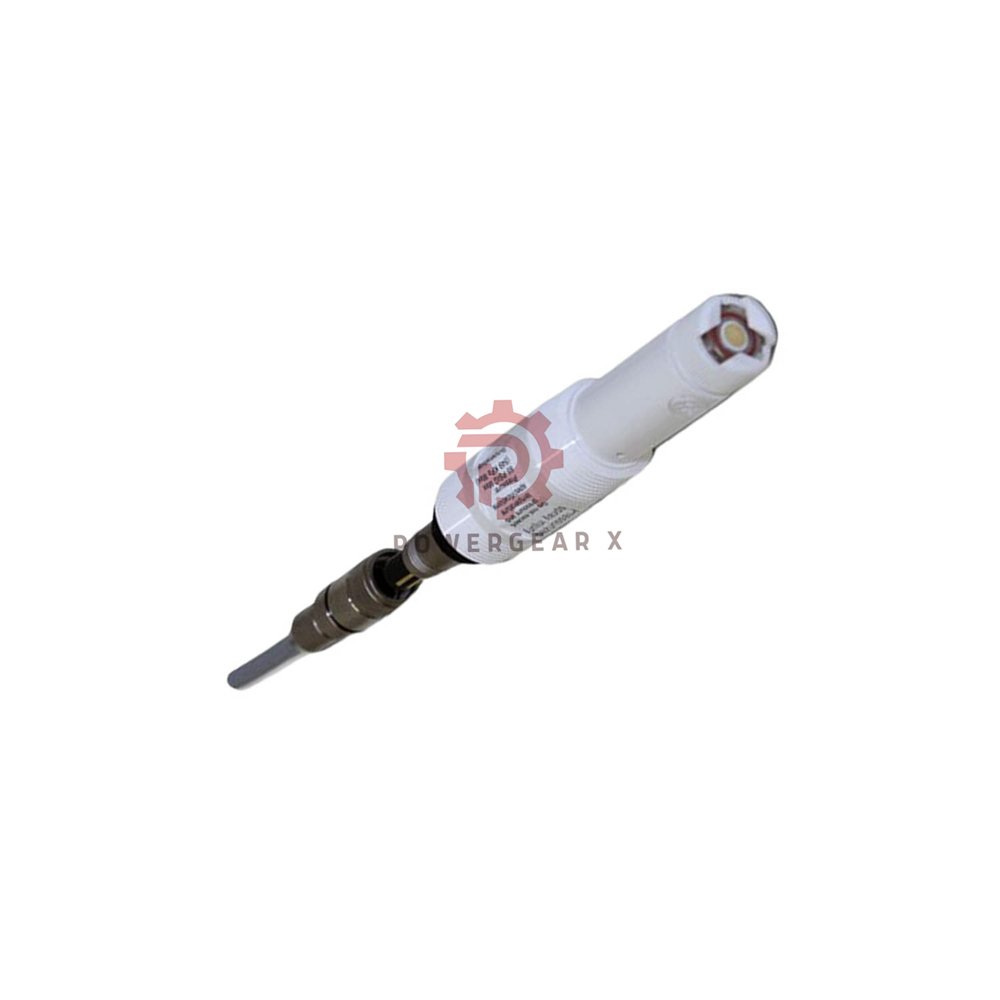

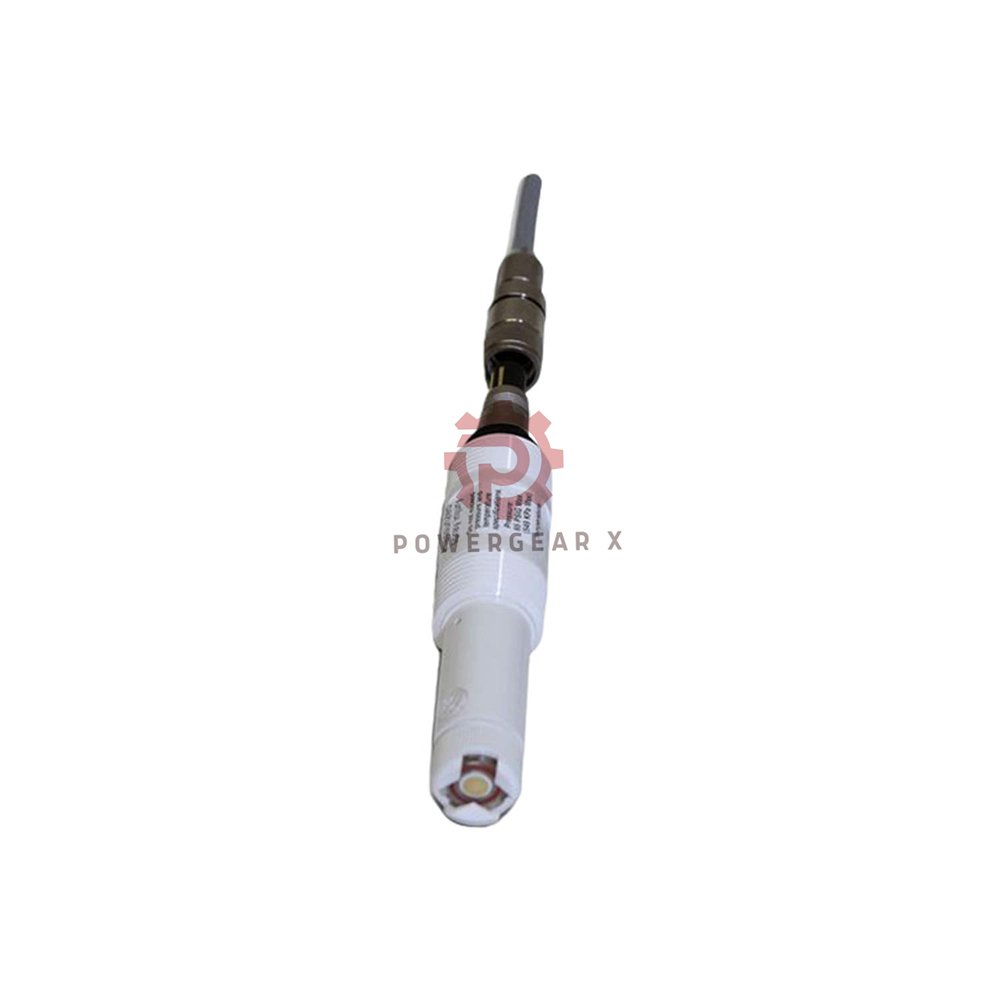

Rosemount 499AOZ Ozone Sensor 499AOZ-54-03CC | Water Treatment

MICS3-ABAZ90PZ1P01 – SICK microScan3 Core Safety Laser Scanner

Brand: SICK | Model: MICS3-ABAZ90PZ1P01 | Series: microScan3 Core | Type: Safety Laser Scanner

Compact safety scanner with PROFINET/PROFIsafe communication. 9 m protective range, 275° scan angle. Type 3, SIL 2, PL d. Configurable resolution 30-200 mm. For indoor machine guarding and AGV applications.

Key Features

• Protective field – 9 m range
• Warning field – 64 m
• Wide scan angle – 275°
• PROFINET/PROFIsafe – direct network integration
• Configurable resolution – 30-200 mm
• Safety rated – Type 3, SIL 2, Category 3, PL d

Technical Specifications

• General
  • Manufacturer: SICK
  • Model: MICS3-ABAZ90PZ1P01
  • Series: microScan3 Core
  • Variant: PROFINET with system plug
  • Application: Indoor
  • Weight: 1.45 kg
• Performance
  • Protective field: 9 m
  • Warning field: 64 m
  • Scanning angle: 275°
  • Angular resolution: 0.1°
  • Response time: 115 ms
  • Resolution: 30/40/50/60/70/150/200 mm (selectable)
  • Simultaneous fields: ≤4
  • Field sets: 8 | Monitoring cases: 8
• Safety Ratings
  • Type: 3 (IEC 61496)
  • SIL: 2 (IEC 61508)
  • Category: 3 (EN ISO 13849)
  • PL: d (EN ISO 13849)
  • PFHD: 8.0 x 10⁻⁸
  • Mission time: 20 years
  • Safe state: Safety outputs via network = logic 0
• Interfaces
  • Fieldbus: PROFINET with PROFIsafe
  • Connections: M12 (power, 4-pin) + 2 x M12 (Ethernet, D-coded)
  • Safety outputs via network: 4
  • OSSD pairs: 0 (safety over PROFIsafe)
  • Configuration: USB, Ethernet, SICK Safety Designer
  • Cycle time: 1-16 ms (selectable)
  • Switch: 2-port real-time (IEEE 802)
• Optical
  • Light source: Pulsed laser diode (845 nm)
  • Laser class: 1 (IEC 60825-1)
  • Detectable remission: 1.8% to >1000%
• Electrical
  • Supply voltage: 24 V DC (16.8-30 V)
  • Power consumption: 7.2 W (typical)
  • Protection class: III (EN 61140)
• Mechanical
  • Dimensions: 112 x 150.7 x 111.1 mm (W x H x D)
  • Housing: Aluminum (yellow/black)
  • Cover: Polycarbonate with scratch-resistant coating
  • Protection: IP65 (IEC 60529)
• Environmental
  • Operating temp: -10…50 °C
  • Storage temp: -25…70 °C
  • Ambient light immunity: ≤40 klx
  • Vibration: Class 5M1 (IEC 60721-3-5)
  • Shock: 100 m/s² (16 ms) / 150 m/s² (6 ms)
  • EMC: IEC 61496-1, IEC 61000-6-2, IEC 61000-6-4

Installation & Commissioning

• Mounting: Bracket mount – 275° field of view.
• Wiring: M12 connectors – simple and secure.
• Configuration: Use SICK Safety Designer software (USB/Ethernet).
• Integration: PROFINET/PROFIsafe – direct to PLC.
• Display: Graphic color display and LEDs for diagnostics.

Compatibility & Applications

• Controllers: Any PROFINET/PROFIsafe capable PLC.
• Mobile: AGVs, mobile robots, automated guided vehicles.
• Stationary: Machine guarding, hazardous area protection.
• Use cases: Collision avoidance, perimeter safety.

Package & Delivery

• Package: 1 scanner with system plug + documentation.
• Warranty: 12 months.
• Shipping: FedEx, UPS, DHL – dispatched within 12-24 hours.

Expert Review

“Excellent safety scanner for network-based systems. PROFINET/PROFIsafe eliminates hardwired safety outputs. The 64 m warning field gives early detection.”

Manager’s Insight

“Perfect for AGV fleets. Direct PROFIsafe connection saves wiring. The 275° angle covers wide areas. Use Safety Designer for fast configuration.”

Application Scenarios

• AGV and mobile robot navigation safety
• Machine guarding with network-based safety
• Perimeter protection in logistics centers
• Hazardous area monitoring with PLC integration

Comparison with Similar Models

• MICS3-ABAZ90PZ1P01 – microScan3 Core, PROFINET, 9m/64m.
• MICS3-ABAZ60PZ1P01 – 6m protective range.
• MICS3-ABAZ90PB1P01 – PROFIBUS variant.
• S30B-3011GB – S300 Expert, different interface options.

FAQ

• What is the protective field range?
  9 meters.
• What communication protocol does it use?
  PROFINET with PROFIsafe.
• Does it have OSSD outputs?
  No – safety outputs are via PROFIsafe.
• What scanning angle does it have?
  275°.
• What resolution options are available?
  30, 40, 50, 60, 70, 150, 200 mm.
• Is it rated for safety?
  Yes – Type 3, SIL 2, Category 3, PL d.
• What software do I need?
  SICK Safety Designer (free download).
• How to choose between microScan3 and S300?
  microScan3 for PROFINET/PROFIsafe; S300 for hardwired safety outputs.

Selection Guide

• For PROFINET/PROFIsafe networks: MICS3-ABAZ90PZ1P01.
• For shorter range (6m): MICS3-ABAZ60PZ1P01.
• For PROFIBUS networks: MICS3-ABAZ90PB1P01.
• For hardwired OSSD outputs: S30B-3011GB (S300 Expert).
