Product details

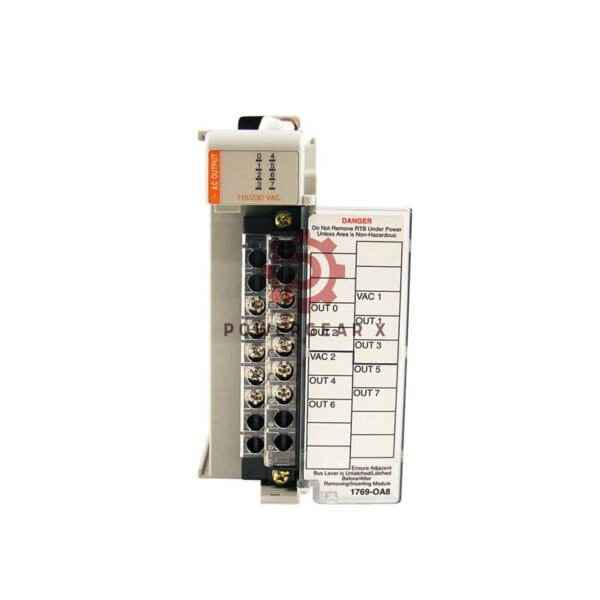

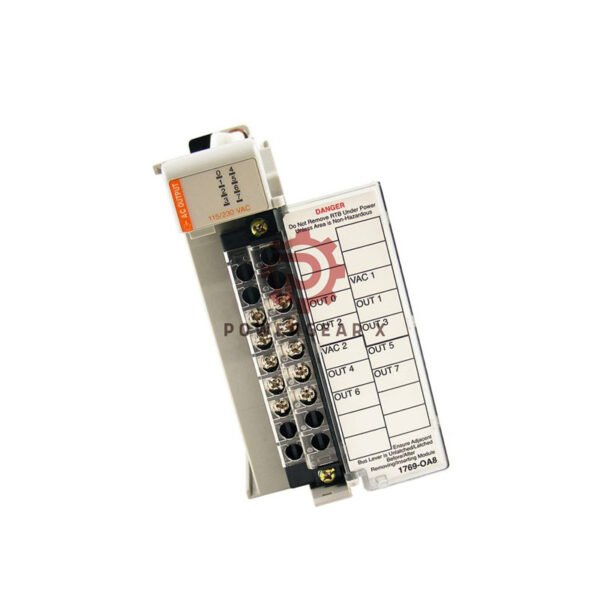

Allen-Bradley 1769-OA8 AC Output Module
The 1769-OA8 controls AC devices in automation systems. It works with CompactLogix and MicroLogix 1500 controllers. This module handles high voltage loads safely. It is perfect for industrial machines and equipment.
Technical Details
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1769-OA8
- Output Type: 8 AC outputs
- Voltage Range: 85-265V AC
- Frequency: 47-63 Hz
- Grouping: 2 groups of 4 outputs
- Power Consumption: 145 mA @ 5V DC
- Heat Dissipation: 2.12 Watts
- Wire Size: 22-14 AWG solid, 22-16 AWG stranded
- Response Time: 1/2 cycle turn on/off
- Weight: 0.3 kg (0.66 lb)
- Operating Temperature: 0° to 60°C
Installation Notes
- Mount within 8 modules of power supply
- Use proper wire size for safe operation
- Follow local electrical codes
- Allow space for heat dissipation
- Use compatible power supplies: 1769-PA2, PB2, PA4, PB4
What You Get
- 1769-OA8 AC Output Module
- Installation guide
- 12-month product warranty
- Worldwide shipping via FedEx, UPS, DHL
Common Questions
- What controllers work with the 1769-OA8? It works with CompactLogix and MicroLogix 1500 systems.
- Can I mix different voltages? Yes, each group can use different AC voltages.
- What devices can it control? Contactors, motor starters, VFDs, solenoids, and lamps.
- What is the maximum load per output? Each output handles up to 2A continuous current.
- Is isolation between groups provided? Yes, the two groups have separate common terminals.
