1769-L36ERM Controller – Allen-Bradley CompactLogix

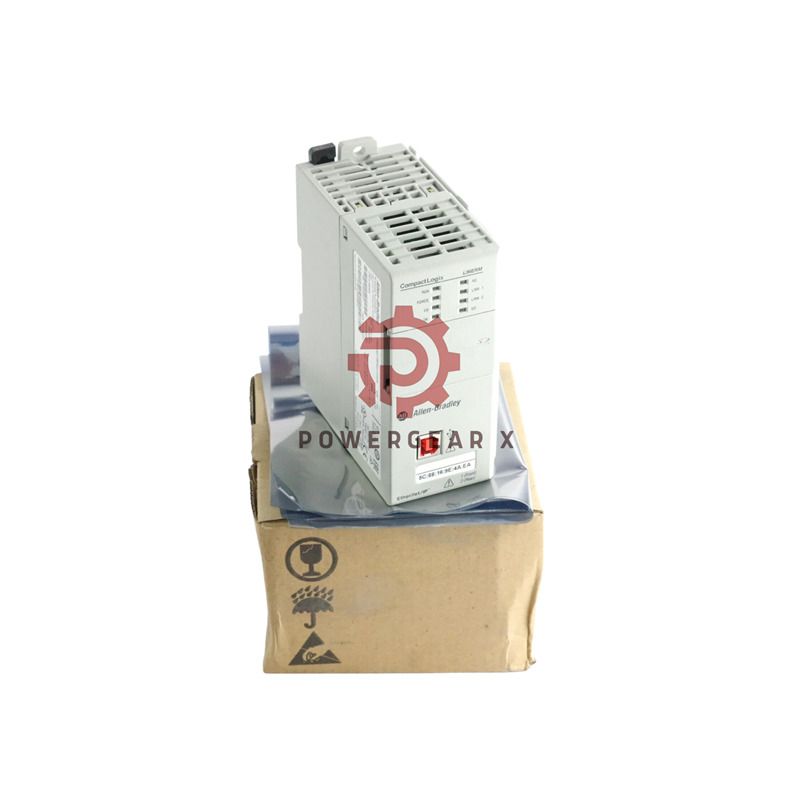

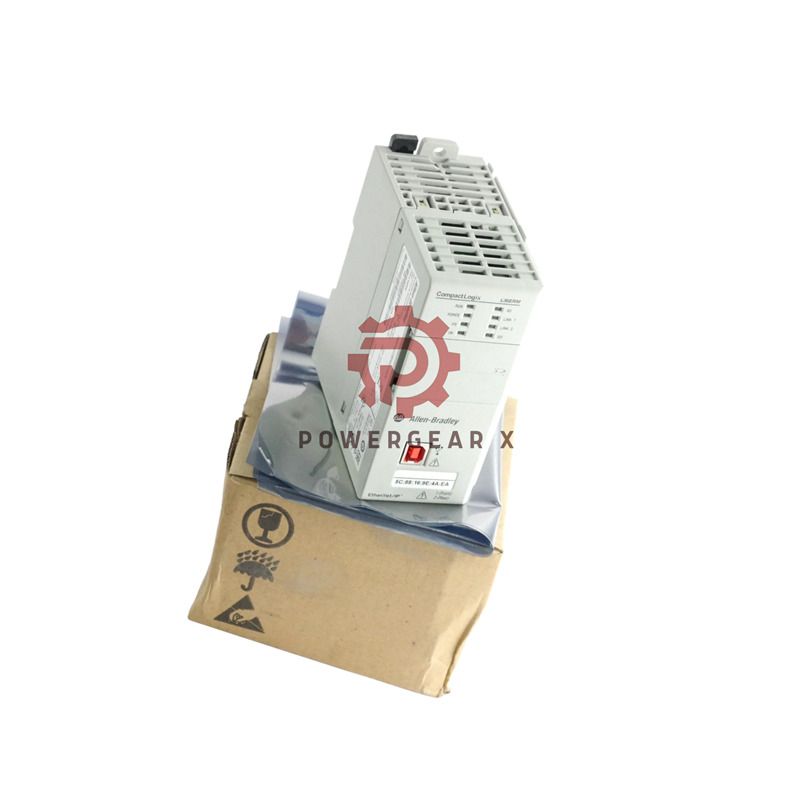

Allen-Bradley 1769-L36ERM: CompactLogix Ethernet Controller

The Allen-Bradley 1769-L36ERM is a powerful programmable automation controller. It features dual Ethernet ports and integrated motion control. This compact controller handles complex automation tasks with ease.

Technical Specifications

• Brand & Model: Allen-Bradley 1769-L36ERM
• Memory: 3MB user + 1GB SD card (expandable to 2GB)
• Communication Ports: 2x Ethernet/IP, 1x USB
• Motion Control: 16 axes integrated
• I/O Capacity: 30 local modules maximum
• Expansion Banks: 3 banks supported
• Programming: IEC 61131-3 compliant languages
• Power Rating: 4 modules from power supply
• Operating Temperature: 0° to 60°C (32° to 140°F)
• Shock Resistance: 20g operating shock
• Vibration: 5g at 10-500Hz
• Weight: 2lbs (shipping weight)

Package Contents

• 1769-L36ERM Controller Unit
• 1784-SD1 1GB memory card
• Installation documentation
• 12-month manufacturer warranty
• Shipped via FedEx, UPS, or DHL

Frequently Asked Questions

• How many axes can it control?
  Supports up to 16 motion axes over Ethernet/IP
• What memory options are available?
  3MB internal + 1GB SD card (expandable to 2GB)
• Can it handle remote I/O?
  Yes, supports distributed I/O systems
• What programming software is needed?
  Studio 5000 Logix Designer
• Is it suitable for harsh environments?
  Yes, industrial-rated for manufacturing use
