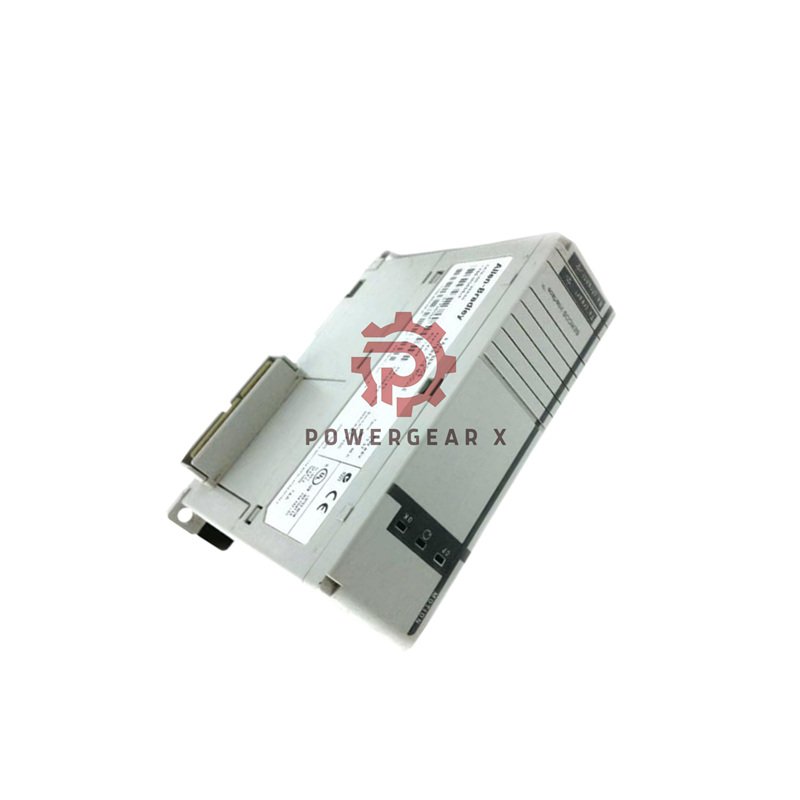

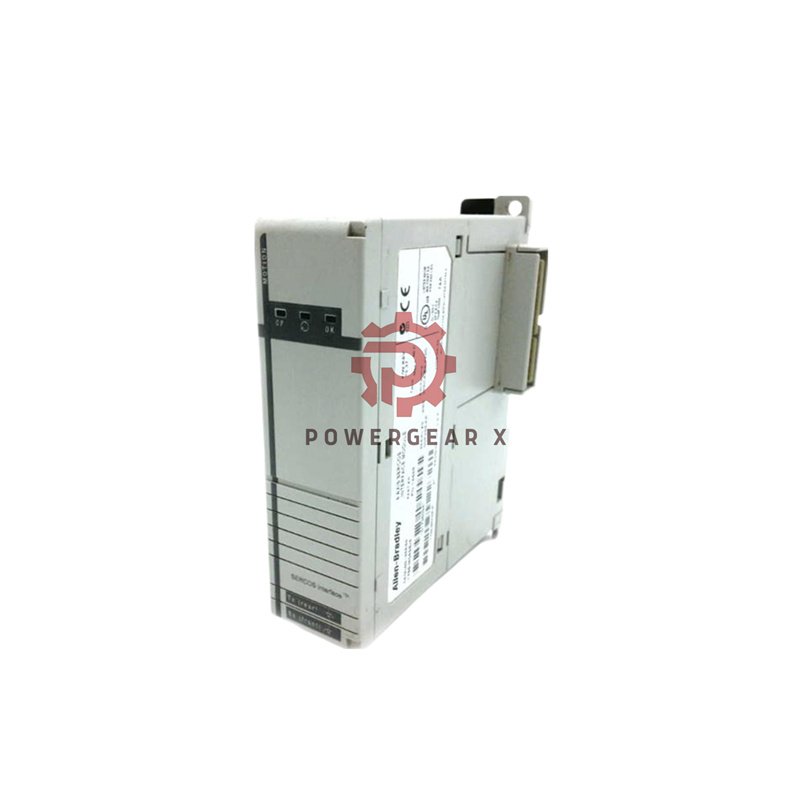

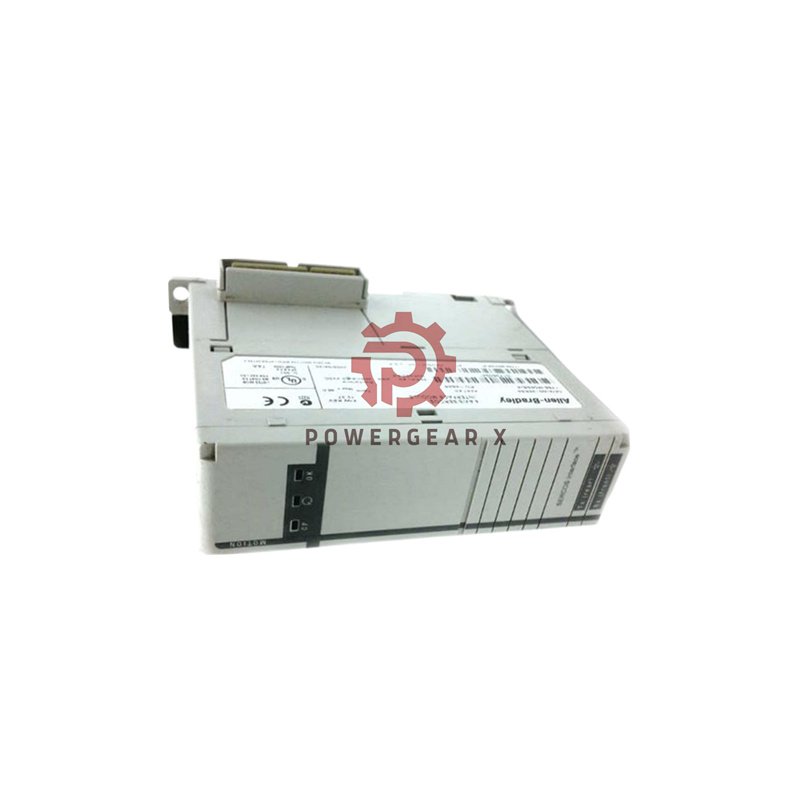

Allen-Bradley 1768-M04SE SERCOS Motion Interface Module
Add high-performance motion control to your CompactLogix system with the 1768-M04SE SERCOS interface module. This powerful module connects and controls up to four servo drives with ultra-fast response times.
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1768-M04SE
- Product Line: CompactLogix
- Compatible Controllers: 1768-L43 and 1768-L45
- Maximum Drives: 4 drives
- Data Rates: 4 Mbps or 8 Mbps
- Cycle Time: 0.5 ms (2 drives) to 1.0 ms (4 drives)
- Power Consumption: 5.04W
- Connector Type: F-SMA fiber optic
- Isolation Voltage: 30V continuous
- Operating Temperature: 0-60°C
- Backplane Current: 1.4A @ 24V DC
Package Contents
- One (1) Allen-Bradley 1768-M04SE SERCOS Interface Module
- Installation documentation
Shipping & Warranty
- Includes 12-month warranty
- Worldwide shipping via FedEx, UPS, and DHL
- Standard processing time: 1-2 business days
Frequently Asked Questions
- Q: How many drives can the 1768-M04SE control?
A: The module can control up to 4 servo drives simultaneously. - Q: What controllers work with this module?
A: It works with 1768-L43 and 1768-L45 CompactLogix controllers. - Q: What types of control does the module support?
A: It supports both position and velocity control modes. - Q: What is the maximum cycle time?
A: Cycle times range from 0.5ms to 1.0ms depending on configuration. - Q: What fiber optic cables are compatible?
A: It works with 2090-SCEP, 2090-SCVP, and 2090-SCNP series cables.
