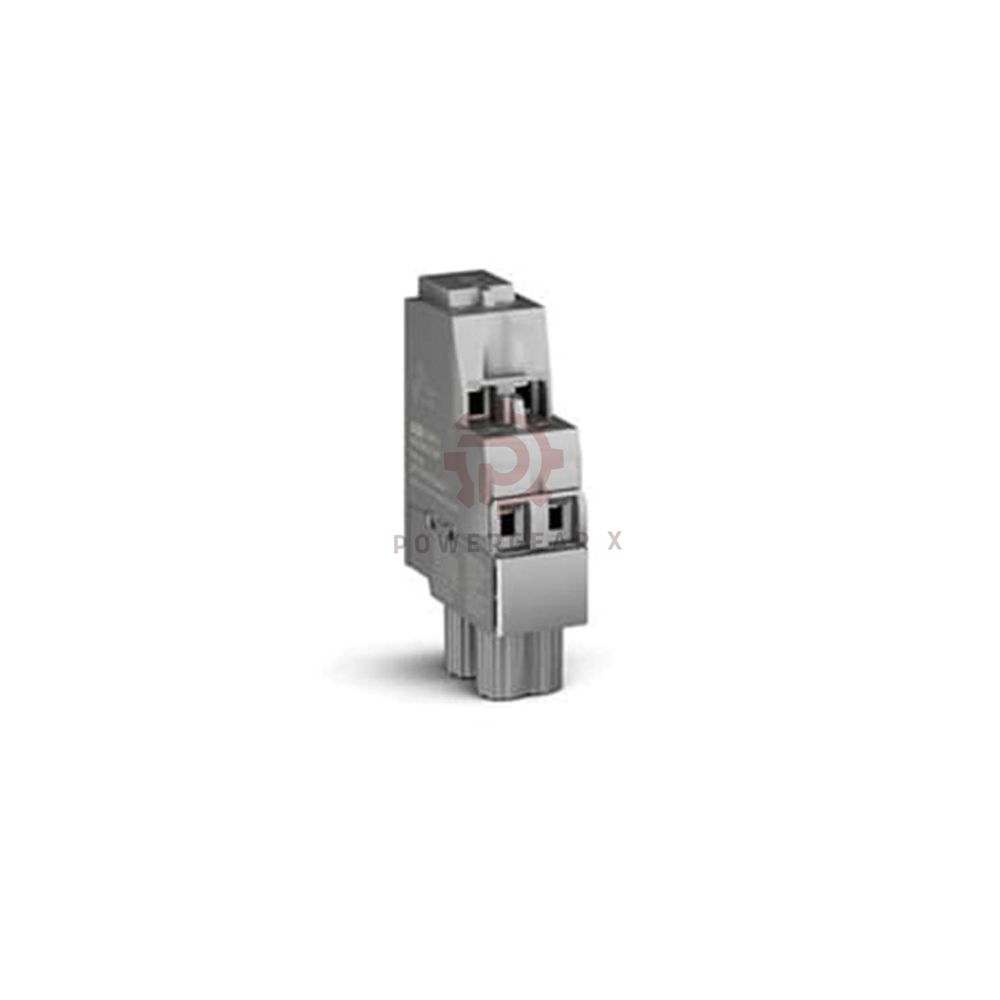

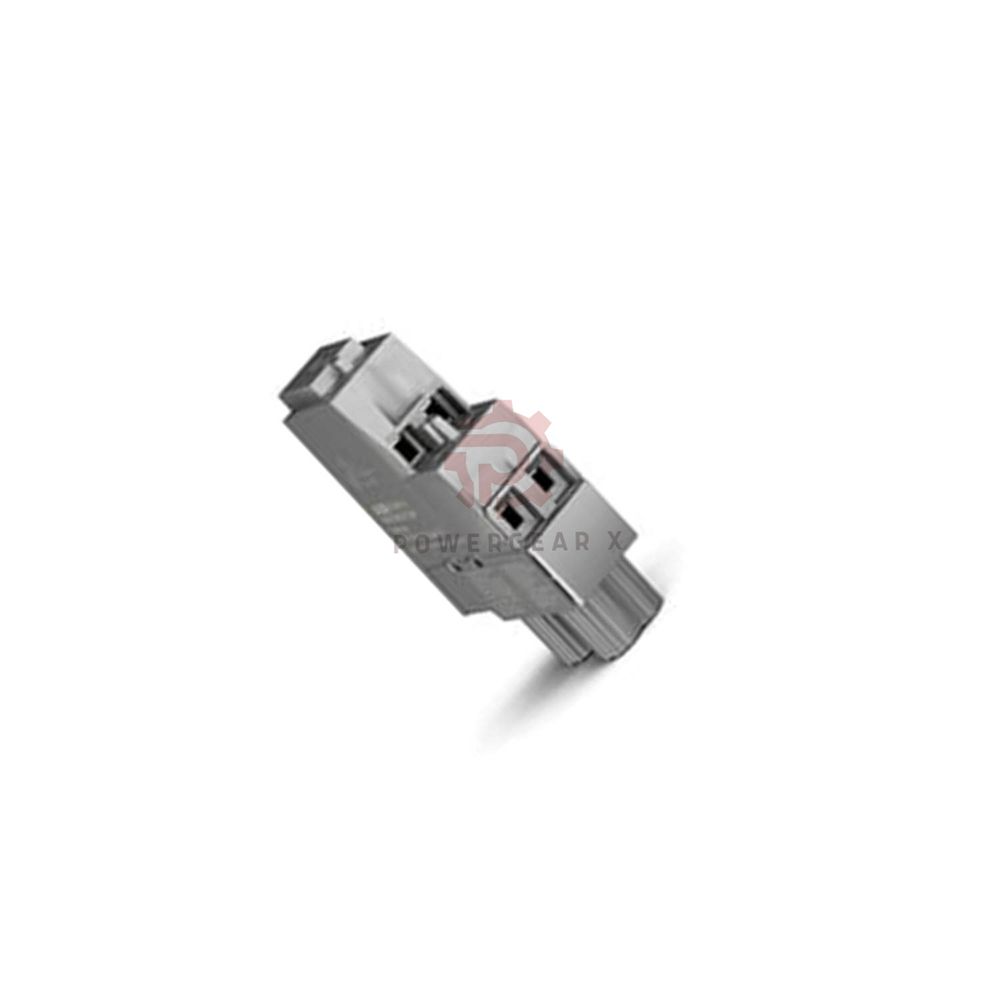

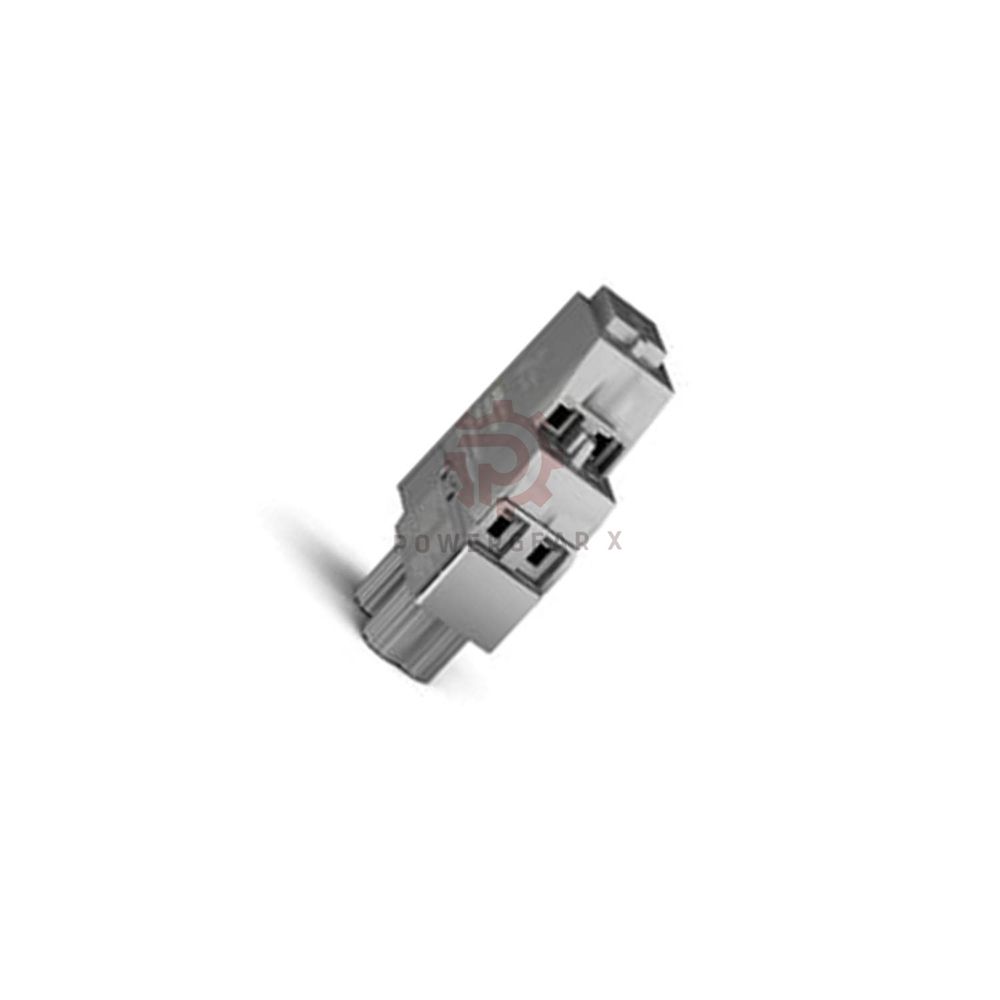

🔌 ABB PTB810K01 – power injection terminal block (Select I/O)
- ABB PTB810K01 (3BSE088182R1) – power injection terminal block for Select I/O system.
- Works with ABB Ability™ System 800xA automation platform.
- Injects 24 V field power to high power SCMs on MTU (TUS810).
- Two PTB810K01 units needed per MTU for redundancy.
- Supports digital output SCMs: DOS810, DOS880, DOS885 and high amp AIS885.
- Package contains 10 pieces – ready for multiple installations.
⚙️ technical specs – tree structure (ABB PTB810K01 3BSE088182R1)
- ABB PTB810K01 – 3BSE088182R1
- type – power injection terminal block (Select I/O mechanics)
- power rating
- injects 24 V DC field power
- maximum current: 20 A
- installation
- mounts on TUS810 MTU
- requires two units per MTU
- daisy‑chain option via four screws
- environmental
- operating temp: -40°C to +70°C
- storage temp: -40°C to +85°C
- humidity: 5% to 95% non‑condensing
- altitude: -1000 to 5000 m
- pollution degree 2 (IEC 60664-1)
- corrosive atmosphere: G3 coated
- protection & safety
- IP20 (IEC 60529)
- overvoltage category II
- EMC: IEC/EN 61000-6-4, 61000-6-2
- physical
- H×W×D: 19.2×41.4×72.6 mm
- weight: 38 g (0.08 lbs)
⚠️ hazardous area approvals – tree
- ATEX (II 3G)
- Ex nA IIC T4 Gc
- Ex ec IIC T4 Gc
- Ex ic nA IIC T4 Gc
- Ex ic ec IIC T4 Gc
- IECEx
- Ex nA IIC T4 Gc
- Ex ec IIC T4 Gc
- Ex ic nA IIC T4 Gc
- Ex ic ec IIC T4 Gc
- US/CAN (cULus)
- Class I, Zone 2, AEx ec IIC T4 Gc
- Class I, Zone 2, AEx nA IIC T4 Gc
- Class I, Division 2, Groups A-D T4
- CCC Ex
- Ex ec IIC T4 Gc
- Ex ec ic IIC T4 Gc
✅ certifications & compliance – tree
- safety standards
- IEC/EN 61010-1, 61010-2-201
- UL 61010-1, UL 61010-2-201
- CSA C22.2 No. 61010-1-12, 61010-2-201
- marine certification
- DNV, ABS
- EMC
- IEC/EN 61000-6-4 (emission)
- IEC/EN 61000-6-2 (immunity)
- environmental compliance
- CE, UKCA, RoHS (EU/UAE/CN), WEEE (EU)
⭐ key features – tree
- power injection
- 24 V DC for high power SCMs
- supports up to 20 A continuous
- design for testing
- test probe holes on each terminal
- easy troubleshooting without disconnecting
- installation flexibility
- daisy‑chain screws for power sharing
- two units per MTU for redundancy
- hazardous locations
- ATEX, IECEx, cULus, CCC Ex approved
- G3 corrosion resistant coating
📦 package / warranty / fast delivery – tree
- package includes
- 10 x ABB PTB810K01 (3BSE088182R1)
- mounting hardware included
- warranty
- 12‑month against defects
- original ABB sealed packaging
- shipping
- FedEx, UPS, DHL – tracked & insured
- express 2‑5 days worldwide
🏭 typical applications – tree
- process automation
- ABB Ability™ System 800xA
- oil & gas, chemical, power plants
- high power output modules
- with DOS885, AIS885 SCMs
- provides 24 V field power locally
- hazardous areas
- Zone 2 / Division 2 installations
- marine & offshore (DNV/ABS)
❓ FAQ – expert insights & buying guide
- Q: Why do I need two PTB810K01 per MTU?
- A: Select I/O MTU supports redundant power feeds. Two units provide independent 24 V injection for high availability.
- Q: Can PTB810K01 be used in Zone 2 hazardous areas?
- A: Yes. It carries ATEX, IECEx, cULus Class I Zone 2 approvals. Also suitable for Division 2.
- Q: What SCMs require this power injection block?
- A: Digital output SCMs DOS810, DOS880, DOS885 and high amp analog AIS885 need PTB810K01.
- Q: Does the 12‑month warranty cover industrial use?
- A: Yes. Warranty covers manufacturing defects under normal industrial operating conditions.
- Q: How fast is shipping via FedEx/UPS/DHL?
- A: Express shipping takes 2‑5 business days worldwide. Tracking provided.
