Proximity Probes | Bently Nevada 330103-00-07-10-02-00

Overview

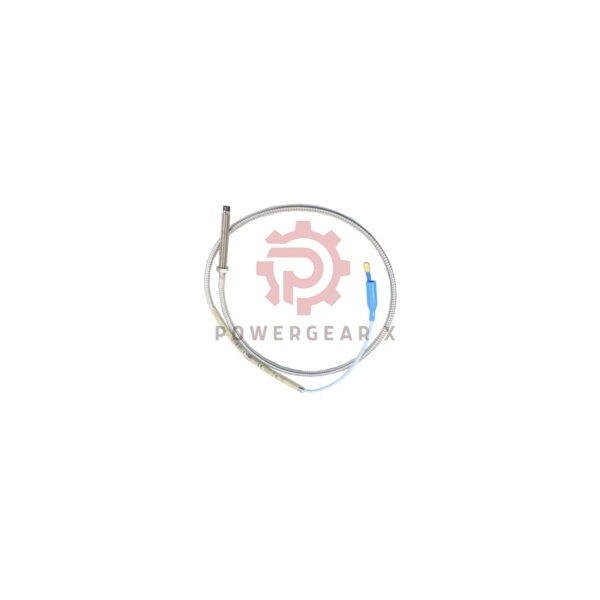

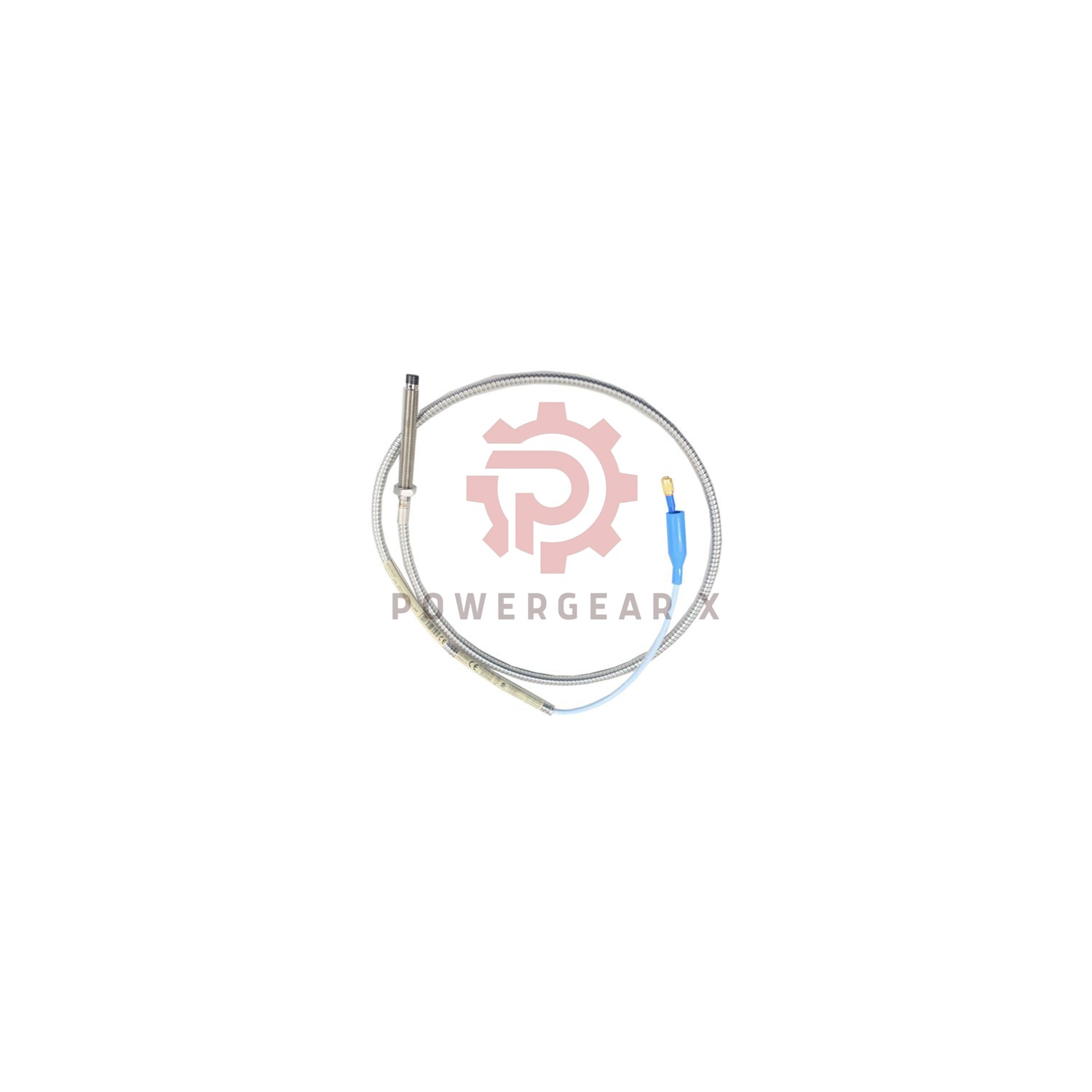

The Bently Nevada 330103-00-07-10-02-00 is a 3300 XL 8 mm Proximity Probe. It is designed to effectively seal the differential pressure between the probe tip and the case. With a range of options for length, connector, and cable type, it is suitable for a variety of industrial applications.

Technical Specification

• Brand: Bently Nevada
• Model: 330103-00-07-10-02-00
• Product Type: 3300 XL 8 mm Proximity Probes
• Probe Details:
  • Thread: M10x1 thread, without armor
  • Unthreaded Length: 00 indicates 00mm
  • Overall Case Length: 07 represents 70mm
  • Total Length: 1.0 meter (3.3 feet)
  • Connector and Cable – Type: Miniature coaxial ClickLoc connector, standard cable
  • Agency Approval: Not required
• Environmental Specs: Temperature Range: Standard: -52°C to +177°C (-62°F to +350°F); Extended: -52°C to +218°C (-62°F to +425°F) for the probe tip, -51°C to +260°C (-60°F to +500°F) for the cable and connector. Temperatures below –34˚C (-30˚F) may cause premature failure of the pressure seal.
• Safety Ratings: nA, ec: When installed with a non – incendive circuit connected per drawing 140979, it is suitable for Class I, Zone 2 etc.
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG). It is recommended to use 3 – conductor shielded triad cable and tinned field wiring. The maximum length between the 3300 XL Proximitor Sensor and the monitor is 305 meters (1,000 feet). Longer field wiring lengths may cause signal roll – off at high frequencies.
• Linear Range: 2 mm (80 mils), starting approximately 0.25 mm (10 mils) from the target, ranging from 0.25 to 2.3 mm (10 to 90 mils) (approximately –1 to –17 Vdc).

• Mechanical Specs:
  • Probe Case Material: AISI 303 or 304 stainless steel (SST)
  • Probe Case Thread: M10x1 with a maximum thread engagement of 15 mm

Contact Information

For any inquiries, please contact: sales@powergearx.com
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
