Product details
Protected Connector Hazardous Area Probe

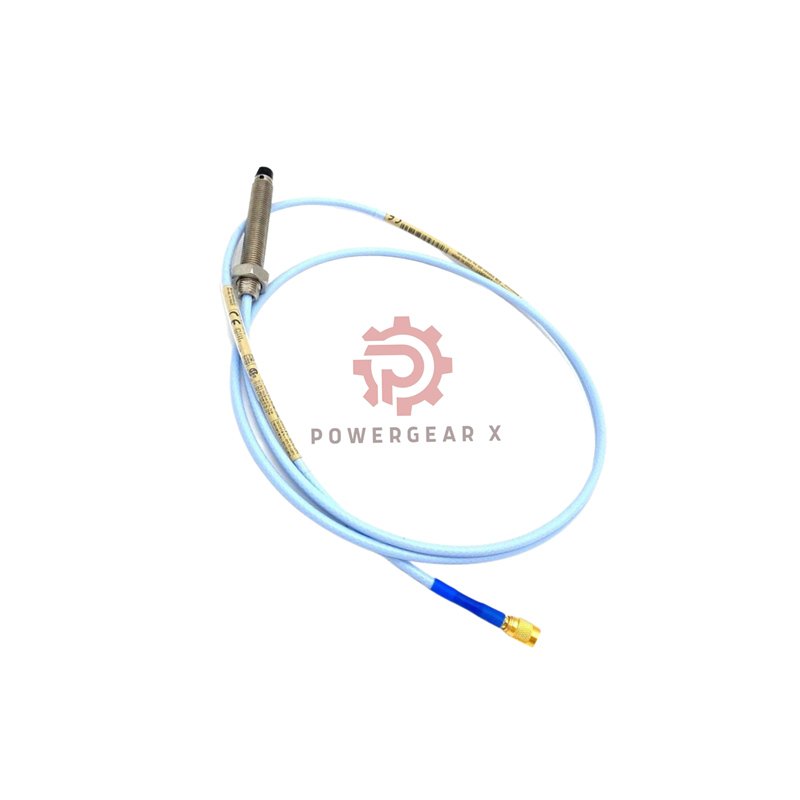

The Bently Nevada 330101-00-20-10-01-05 combines a protected connector with full hazardous area certification. This 2-inch case probe with 1-meter cable features a connector protector for added durability in challenging environments. Certified for CSA, ATEX, and IECEx applications.
Need a protected probe for tough conditions? Contact: sales@powergearx.com or +86 18030005825.
Product Configuration & Advantages
- Protected Connector: ClickLoc connector with protective boot for impact resistance
- Full Hazardous Area Certification: CSA, ATEX, and IECEx approvals included
- Standard Case Length: 2-inch case for versatile mounting applications
- Practical Cable Length: 1-meter cable offers installation flexibility
- Model Code Analysis 330101-00-20-10-01-05:
- 330101: 3300 XL 8mm Probe Series
- 00: No Unthreaded Section
- 20: Case Length = 2.0 inches
- 10: Cable Length = 1.0 meter
- 01: ClickLoc with Connector Protector
- 05: Full Safety Certifications
Technical Specifications
- Product Identification: Bently Nevada 330101-00-20-10-01-05
- Measurement Range: 0.25 mm to 2.3 mm (10-90 mils)
- Optimal Gap Setting: 1.27 mm (50 mils)
- Sensitivity: 7.87 V/mm (±5%)
- Electrical Resistance: 7.59 Ω ± 0.50 Ω
- Temperature Range: -52°C to +177°C
- Case Material: Stainless Steel AISI 303/304
- Tip Material: PPS Plastic
- Thread Type: 3/8-24 UNF
Installation & Order Information
Installation Notes: The connector protector does not interfere with mating. Maximum thread engagement: 0.563 inches. Follow torque specifications during installation.
System Compatibility: Compatible with Bently Nevada 3300 XL monitoring systems.
Certification Details: Factory certified for Zone 1/21 hazardous areas with complete documentation.
Shipping & Support: 12-month manufacturer warranty. Global shipping via FedEx, UPS, and DHL available.
Frequently Asked Questions
Connector Protection
What does the connector protector do?
The protective boot on the 330101-00-20-10-01-05 shields the ClickLoc connector from physical impact, dust, and minor moisture during installation and operation.
Can I remove the connector protector?
No, the connector protector is an integral part of the design and should remain in place for continuous protection of the electrical connection.
Application Questions
Where is this probe typically used?
This model is ideal for hazardous areas where connector protection is needed, such as mining, chemical processing, or oil and gas applications with physical hazards.
Does the protector affect signal quality?
No, the protector is a mechanical shield only and does not affect the electrical signal quality or connection reliability.
Ordering Questions
What documentation comes with this probe?
Full certification documentation including CSA, ATEX, and IECEx certificates are provided with each 330101-00-20-10-01-05 probe.
