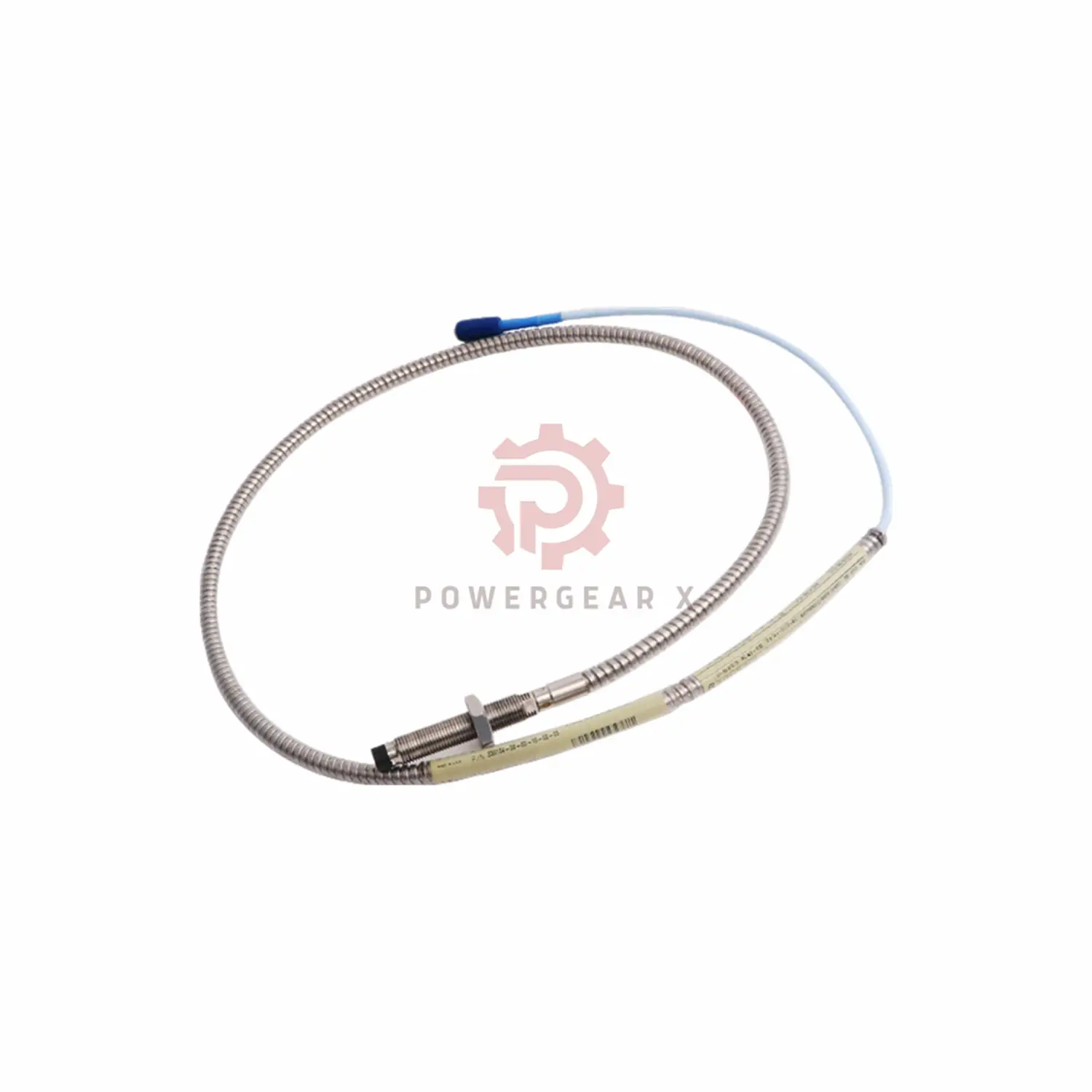

Bently Nevada 330104-19-25-10-11-05 with 250mm Case & FluidLoc

Bently Nevada Extra-Long Reach Industrial Probe

This is a heavy-duty vibration probe. It has a very long 250mm case. The cable is protected against fluids. It meets the toughest global safety standards. Use it in demanding industrial applications.

Key Product Features

• Maximum Reach: 250mm case length for deep or obstructed mounts.
• Protected Cable: FluidLoc jacket resists oils and coolants.
• Global Compliance: Includes CSA, ATEX, and IECEx approvals.
• Robust Design: Long 190mm unthreaded section for sleeves.
• High Accuracy: Standard 2mm linear vibration range.

Detailed Model Breakdown

• 330104 – 3300 XL 8mm Armored Probe
  • -19 Unthreaded Length = 190 mm
  • -25 Overall Case Length = 250 mm
  • -10 Cable Length = 1.0 Meter
  • -11 Cable/Connector = FluidLoc with Protector
  • -05 Approvals = CSA, ATEX, IECEx

Technical Specifications

• Brand: Bently Nevada
• Model: 330104-19-25-10-11-05
• Type: 3300 XL 8mm Proximity Probe
• Linear Range: 0.25 to 2.3 mm
• Gap Setting: 1.27 mm (≈ -9 Vdc)
• Resistance: 7.59 Ω ± 0.50
• Temp. Rating: -52°C to +177°C (Standard)
• Case Material: 303/304 Stainless Steel
• Seal: Viton® O-ring
• Cable Type: FluidLoc, oil-resistant
• Mounting Torque: Tighten to 11.2 N•m

Installation Notes

• Ensure the mounting path is clear for 250mm.
• The long unthreaded section (190mm) slides through bushings.
• Only the last 15mm of threads should engage in the hole.
• Use the connector protector during installation.
• Connect to approved monitor systems only.

Global Certifications

• CSA: Certified for Canada & US (where applicable).
• ATEX: EU Directive for explosive atmospheres.
• IECEx: International explosion-proof standard.
• Intrinsically Safe (ia) for Zone 0.

Ordering & Support

• Package Contents: 1 Probe with connector protector.
• Warranty Period: 12-month manufacturer warranty.
• Shipping Options: FedEx International, UPS, DHL Express.
• Lead Time: Contact for stock availability.

Specialist FAQ

Q: When is a 250mm long case probe necessary?

A: It is used when you must mount through very thick structural members, insulation jackets, or complex assemblies to reach the measurement point.

Q: What is FluidLoc cable and why is it important?

A: FluidLoc cable has a special jacket that resists oil, grease, and coolant absorption. It prevents fluid wicking that can damage the connector.

Q: What does the “-11” connector option include?

A> It includes the standard ClickLoc connector plus a protective boot (connector protector) and the FluidLoc cable for harsh environments.

Q: Are all three approvals (CSA, ATEX, IECEx) active simultaneously?

A: Yes. This probe model is certified to meet all three standards. This is required for global projects or equipment sold in multiple regions.

Q: How do I handle and store such a long probe to avoid damage?

A: Avoid bending the case. Support it along its length. Use the connector protector. Store it in a long, rigid container if possible.

For pricing and delivery of this premium long-reach probe, email us or message on WhatsApp at +86 18030005825.
