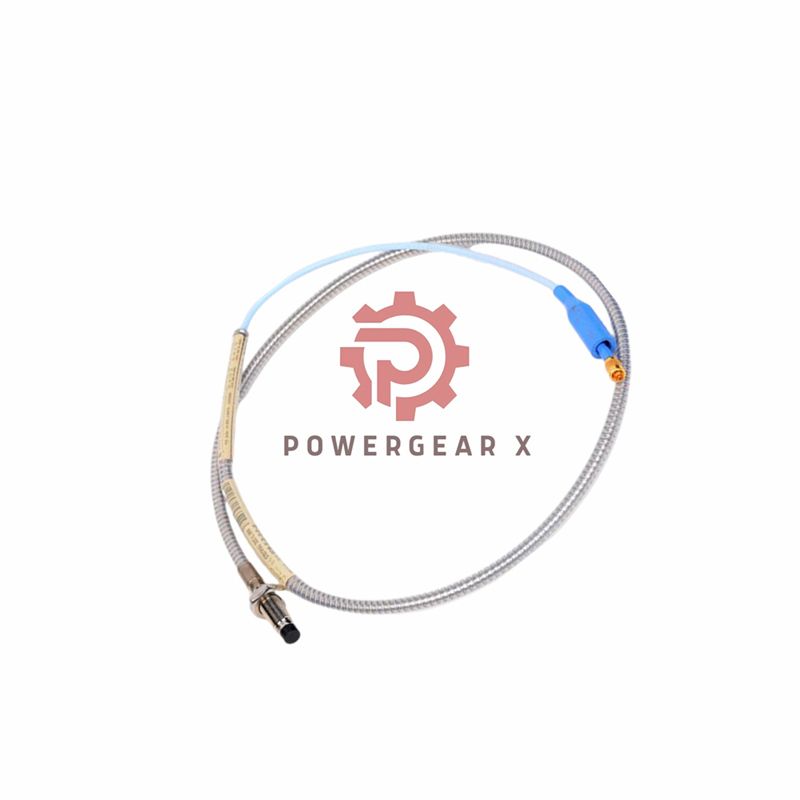

Name: Probe 330104-05-13-10-02-00 | Bently Nevada 3300 XL for Deep Mounting
SKU: 330104-05-13-10-02-00
Availability: InStock

Product details

Long-Reach Probe for Deep Mounting Applications

The Bently Nevada 330104-05-13-10-02-00 is engineered for situations requiring extended reach. Its 130mm case and 50mm unthreaded section provide versatility for challenging installations.

Model Number Decoder

Product Family: 330104
- 3300 XL 8mm Proximity Probe
- Armored Construction, M10x1 Thread
Specific Configuration:
- -05: Unthreaded Length = 50 mm
- -13: Overall Case Length = 130 mm
- -10: Cable Length = 1.0 meter
- -02: Connector = Miniature ClickLoc Coaxial
- -00: Approval = Standard

Essential Technical Data

Brand: Bently Nevada
Series & Full Code: 3300 XL | 330104-05-13-10-02-00
Device Type: 8mm Diameter Eddy-Current Probe
Performance Characteristics:
- Linear Detection Range: 0.25 to 2.3 mm
- Standard Gap Setting: -9 Vdc (~1.27 mm standoff)
- Probe Resistance: 7.59 Ω ± 0.50
Mechanical Design:
- Body: Corrosion-Resistant AISI 303/304 SST
- Sensing Face: Wear-Resistant PPS
- Environmental Seal: Viton O-Ring
Installation Specifications:
- Mounting: Standard M10 x 1.0 Metric Thread
- Key Feature: 50mm unthreaded shaft for positioning.
- Total Length: 130mm long case for deep access.
- Torque Spec: Tighten to 11.2 N•m (100 in-lbf).
- Thread Engagement: Do not exceed 15 mm.
Operating Environment:
- Temperature: Reliable from -52°C to +177°C
- Humidity: Stable performance in high humidity.
- Safety: Suitable for use in classified areas with proper isolators.

Expert Answers to Your Questions

Design & Application

What is the main advantage of the 130mm case length?
It allows the probe to reach through deep cavities, brackets, or thermal insulation to get close to the measurement point on a shaft.

How does the 50mm unthreaded section help during installation?
It provides a long smooth area to guide the probe through a mounting sleeve or bushing before the threads engage, ensuring straight alignment.

Selection Guidance

My equipment has a long standoff to the bearing housing. Which probe should I use?
This 330104-05-13-10-02-00 model is an excellent choice for such applications due to its 130mm extended body.

Is this probe suitable for high-temperature environments?
Yes, its standard rating goes up to +177°C. For higher temps, inquire about the extended range option.

Purchasing & Support

What after-sales support do you provide?
We offer comprehensive support including a 12-month warranty. Your order ships quickly via FedEx, UPS, or DHL to keep your project on schedule.
