PM150V08 ABB Processor Module 8MByte Advant Master CPU 3BSE009598R1

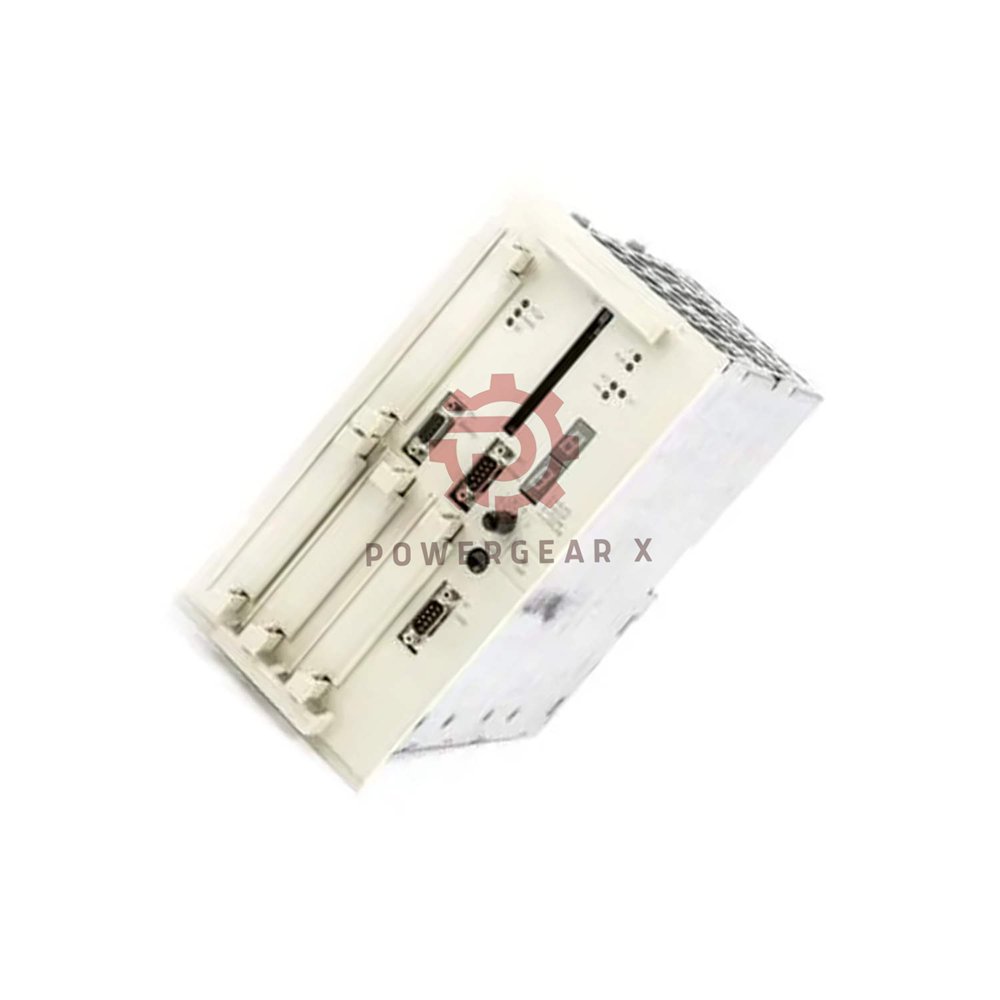

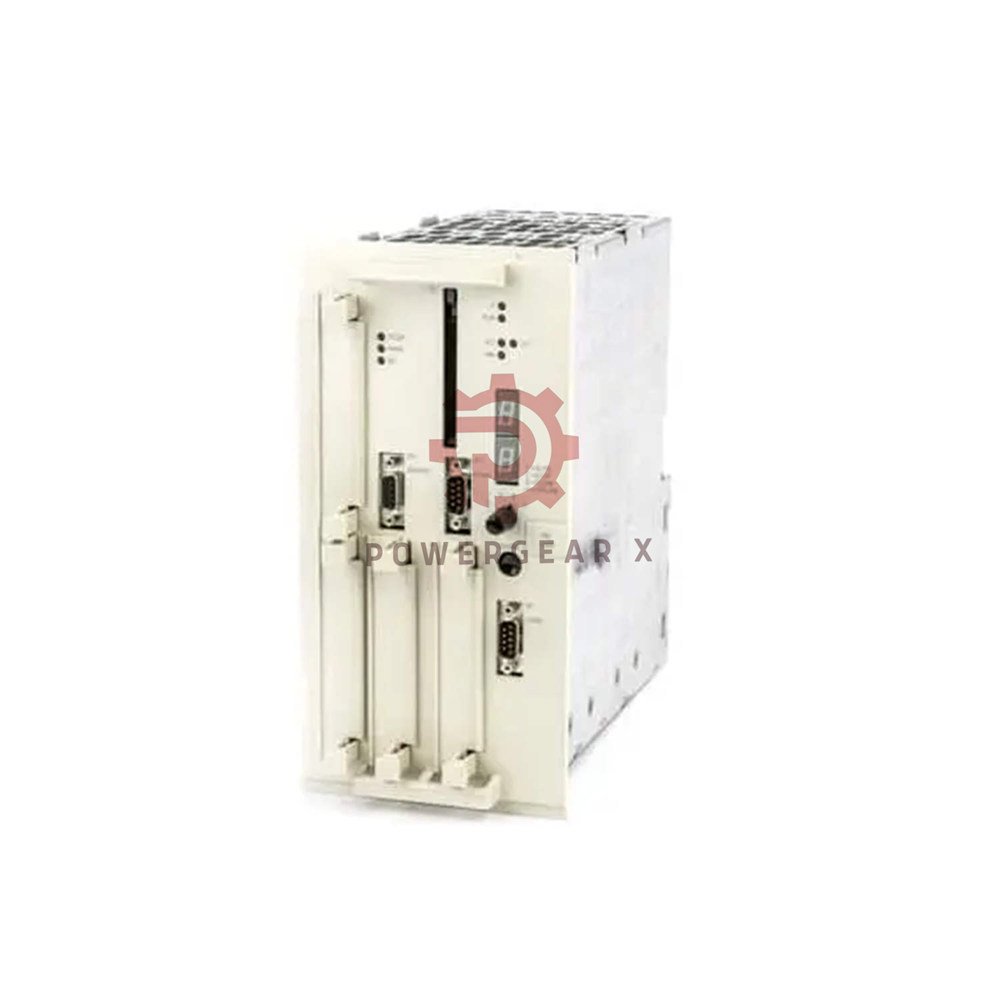

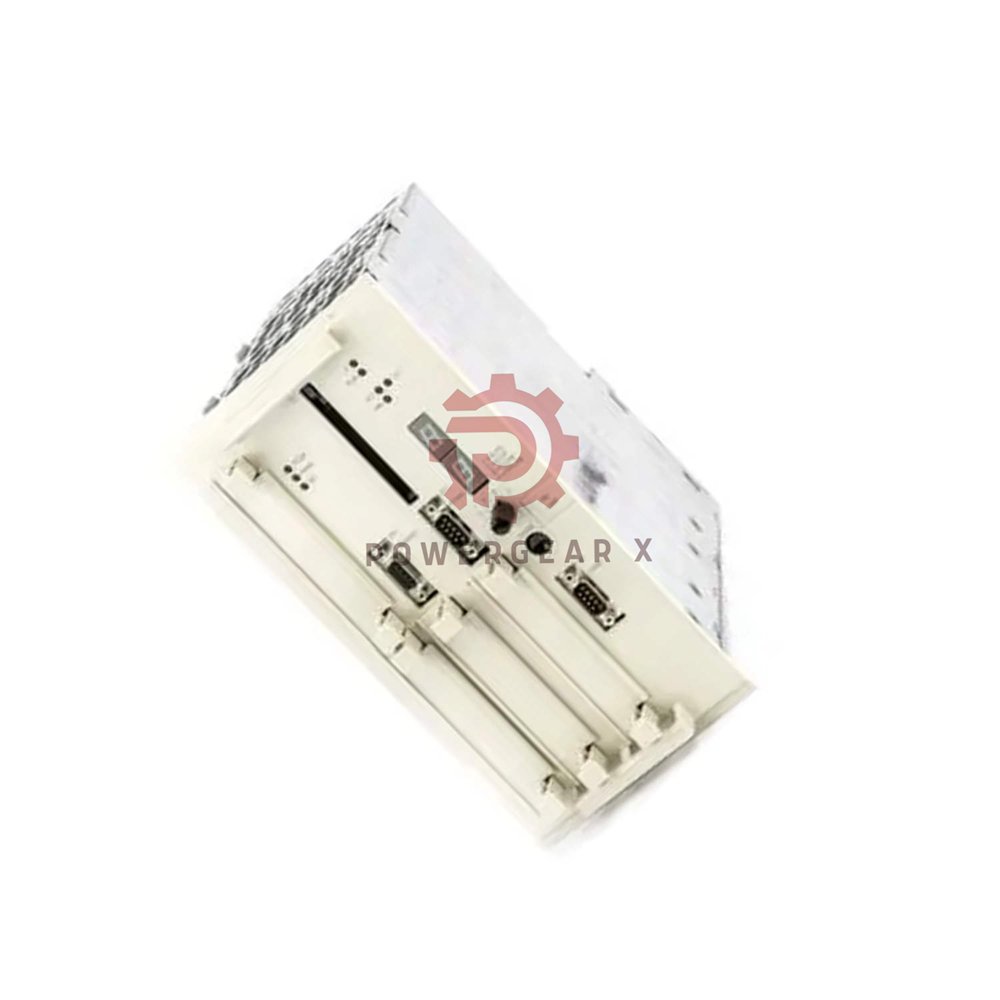

ABB PM150V08 – Advant Master processor module (8 MByte)

Powerful CPU for ABB Advant Master – 8 MByte memory, includes spare SIMM (3BSC120004R5). Designed for process control systems. Reliable, field‑tested, and RoHS exempt per EU Directive 2011/65/EU.

1. Key product highlights

• 8 MByte processor memory – ample space for complex control programs.
• Includes spare SIMM – extra memory module 3BSC120004R5 included.
• RoHS exempt – per Article 2(4)(c), (e), (f), (j) of 2011/65/EU.
• Industrial form factor – 216×99×234 mm, 2.85 kg, robust for cabinet mounting.
• Exchange number EXC3BSE009598R1 – easy replacement identification.

2. Technical specifications – ABB PM150V08

• Brand: ABB · Model: PM150V08 · Series: Advant Master
• ▸ Processor & memory
  • Central processing unit
    • Processor type: PM150V08 for Advant Master
    • Memory: 8 MByte (includes spare SIMM 3BSC120004R5)
    • Exchange number: EXC3BSE009598R1
• ▸ Physical characteristics
  • Dimensions & weight
    • Net depth / length: 216 mm
    • Net height: 99 mm
    • Net width: 234 mm
    • Net weight: 2.85 kg
• ▸ Environmental & compliance
  • RoHS status
    • Directive: 2011/65/EU
    • Exemption: Article 2(4)(c), (e), (f), (j) – exempted from RoHS scope
    • Declaration ref: 3BSE088609 (EU DOC)
  • WEEE & SCIP
    • WEEE category: 5 – Small Equipment (<50 cm)
    • SCIP number: be4380bd-b7b0-49eb-9406-6753ec184d7d (Sweden)
    • Batteries: 0 (no batteries included)
• ▸ Ordering & customs
  • Classification
    • HS code: 853890 (parts for electrical apparatus)
    • Customs tariff: 85389091
    • Product type: Central_Unit

3. Installation & compatibility

• Mounts in ABB Advant Master cabinet – standard 19″ rack compatible.
  • Requires backplane (sold separately) for I/O communication.
  • Spare SIMM memory (3BSC120004R5) included – easy field upgrade.
  • Use with ABB S100 I/O or S800 I/O via Advant Master bus.

4. System integration

• Designed for ABB Advant Master process control system (800xA, Melody).
  • Communicates via MB300 or similar Advant protocols.
  • Compatible with legacy ABB control software (Control Builder).
  • Exchange number EXC3BSE009598R1 ensures correct replacement.

5. Commissioning & maintenance

• LED status indicators on front panel – power, run, error.
  • No batteries to replace – maintenance‑free memory backup.
  • If processor LED shows error, check backplane connections.
  • Firmware can be updated via serial port (tools required).

6. Typical applications

• Process control in chemical, oil & gas, power generation.
  • Upgrade or replace existing Advant Master CPUs.
  • Use as spare part for legacy ABB control systems.
  • Ideal for continuous process automation (batch, continuous).

7. Packaging & logistics

• Included: PM150V08 processor module, spare SIMM memory (3BSC120004R5), anti‑static packaging.
  • Warranty: 12 months against defects in materials and workmanship.
  • Shipping partners: FedEx, UPS, DHL – express insured delivery.
  • HS code 85389091 – customs clearance assistance available.

8. Frequently Asked Questions (FAQ) – expert insights

• Q: Is the PM150V08 still supported by ABB?A: It’s a legacy product but widely used. We offer technical support and 12‑month warranty. For new projects, consider ABB AC800M series.
• Q: Does it come with firmware pre‑loaded?A: Yes, the module is tested with base firmware. You may need to load application from Control Builder.
• Q: What backplane is compatible with this CPU?A: It fits standard Advant Master backplanes like TB807 or TB820. Check your cabinet type.
• Q: Can I use this module in a 800xA system?A: Yes, with appropriate communication interfaces (e.g., CI854). It acts as a sub‑controller.
• Q: The module shows RoHS exempt – is it safe for EU use?A: Absolutely. Exemption means it contains lead in solder (allowed for industrial equipment). Fully compliant with EU Directive.

9. Selection guide – Advant Master processor variants

• PM150V08 (this model) – 8 MByte, includes spare SIMM, exchange EXC3BSE009598R1.
  • PM150V16 – 16 MByte version for larger applications.
  • PM802F – newer AC800M controller (if upgrading).
  • Need memory only? Order spare SIMM 3BSC120004R5 separately.
