Product Overview

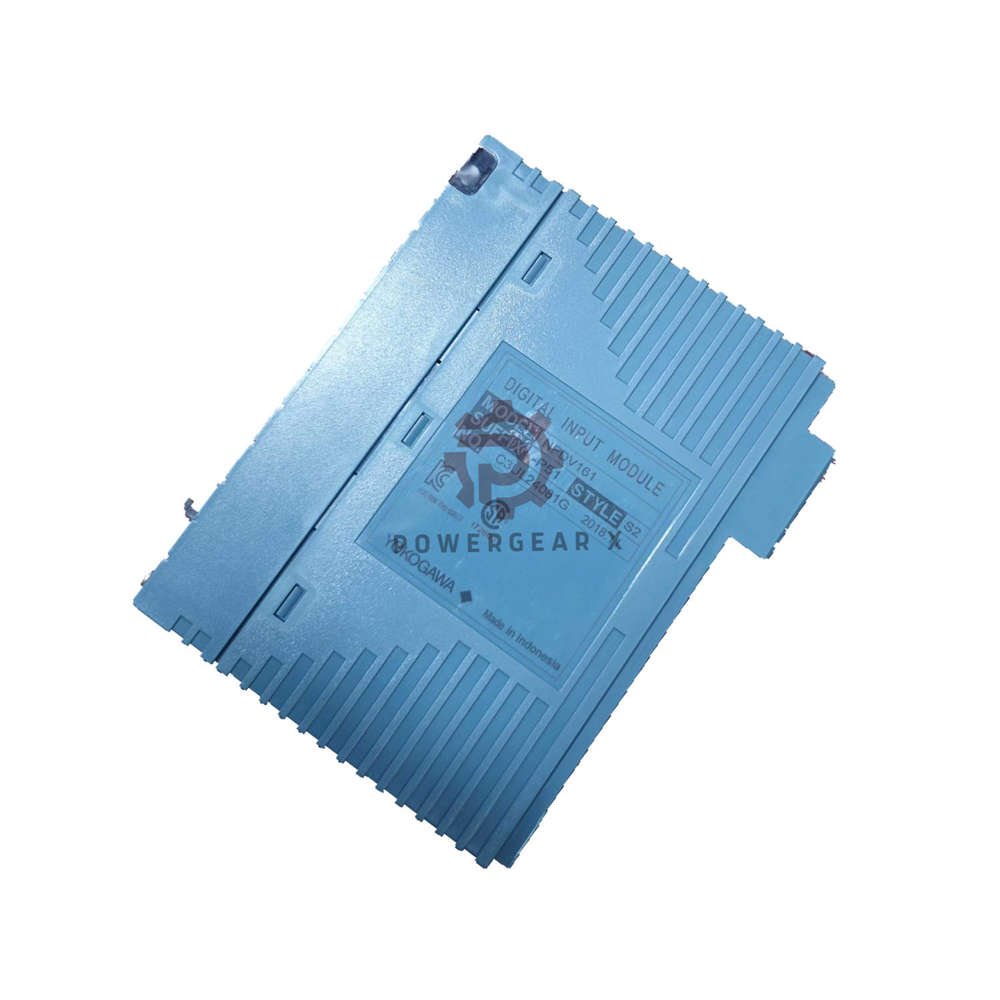

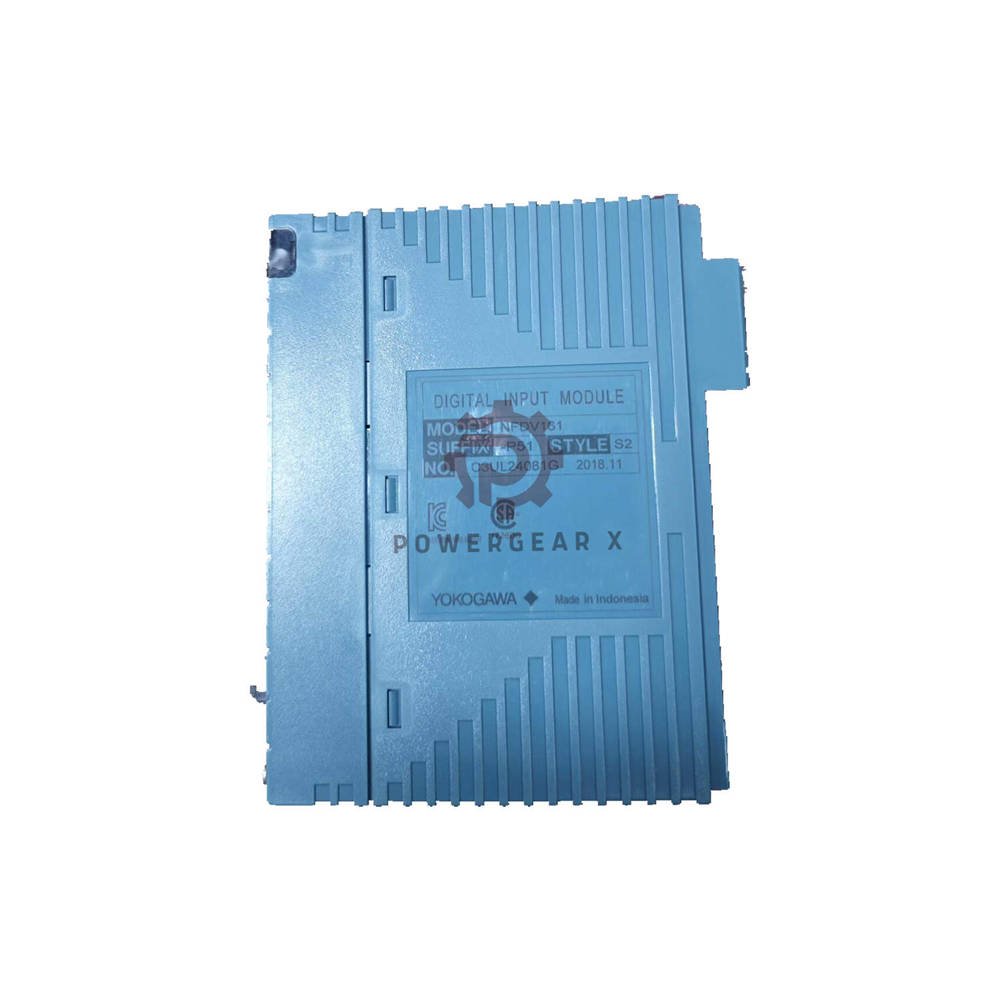

NFDV161-P51 is a digital input module from Yokogawa. It has 64 channels. Each channel uses 24V DC. The channels are isolated for safety. It supports status and push button inputs.
Key Features
- 64 Digital Inputs: 24V DC, isolated channels.
- Two Input Modes: Status and push button.
- Fast Response: 8 ms for status input.
- Edge Counting: Push button inputs with edge count.
- Common: Shared per 16 channels (plus or minus).
- Connector: 50-pin MIL connector (2 sets).
Technical Specifications
- Brand: Yokogawa
- Model: NFDV161-P51
- Type: Digital Input Module
- Channels: 64 inputs
- Voltage: 24V DC
- Isolation: Between channels and system
- Response Time: 8 ms max (status input)
- ON Detection: 20 ms min (push button)
- Max Frequency: 25 Hz (push button)
- Current Consumption: 550 mA (5V DC)
- Weight: 0.3 kg
Input Modes
- Status Input: Response time ≤8 ms.
- Push Button Input: ON detection ≥20 ms.
- Edge Counting: Counts transitions on push button inputs.
- Common Wiring: Shared per 16 channels (plus or minus).
Mounting & Installation
- Insert the module into a Yokogawa base.
- Secure it with the locking mechanism.
- Connect field wires to the MIL connectors.
- Set the common type (plus or minus) per group.
Debugging & Maintenance
- Check LED indicators for channel status.
- Use the edge count function for diagnostics.
- Monitor input signals with a multimeter.
- Replace the module if it fails.
Compatibility
- Works with Yokogawa CENTUM VP and CS 3000.
- Compatible with ProSafe-RS safety systems.
- Use with standard Yokogawa bases.
Certifications
- CE marked for European standards.
- RoHS compliant.
- Marine approvals (LR, ABS, DNV-GL).
- ISO 9001 manufacturing.
Package Contents
- NFDV161-P51 module
- Quick start guide
- Warranty card
Warranty & Shipping
- Warranty: 12 months from purchase date.
- Shipping: Dispatched within 12-24 hours.
- Carriers: FedEx, UPS, DHL.
Expert Review
“The NFDV161-P51 is a high-density digital input module. Its 64 channels save space in control cabinets. The 8 ms response time is fast for most applications. The dual-mode inputs add flexibility. It is a reliable choice for large-scale automation.”
Manager’s Insight
“For plant managers, this module reduces wiring and cost. The 64 channels per module lower the number of units needed. The common per 16 channels simplifies field wiring. The 25 Hz frequency suits push button monitoring. It is a practical solution for digital input needs.”
Applications & Suitable Equipment
- Process Control: Monitoring switches, sensors.
- Factory Automation: Conveyors, packaging machines.
- Building Automation: Fire alarms, access control.
- Equipment: Yokogawa CENTUM VP, CS 3000, ProSafe-RS.
FAQ – Frequently Asked Questions
- What voltage does this module use?
24V DC.
- How many channels does it have?
64 digital inputs.
- Are the channels isolated?
Yes, isolated from system and each other.
- What is the response time?
8 ms for status input.
- Can I use it for push buttons?
Yes, with 20 ms ON detection.
- What is the max frequency?
25 Hz for push button input.
- How many connectors does it have?
Two 50-pin MIL connectors.
- What is the common wiring?
Shared per 16 channels (plus or minus).
Selection Guide
Choose NFDV161-P51 for high-density digital input needs. It suits systems with many switches and sensors. For fewer channels, consider NFDV161-P50. This module is ideal for new or expanding automation projects.
Comparison with Similar Models
- NFDV161-P50: 32 inputs, no push button mode.
- NFDV161-P52: 64 inputs, 5V TTL level.
- NFDV161-P53: 64 inputs, with interrupt function.
- NFDV161-P54: 128 inputs, higher density.
- NFDV161-P55: 64 inputs, with diagnostic LEDs.
Contact Information:
For inquiries, please contact us at sales@powergearx.com or +86 18030005825.
