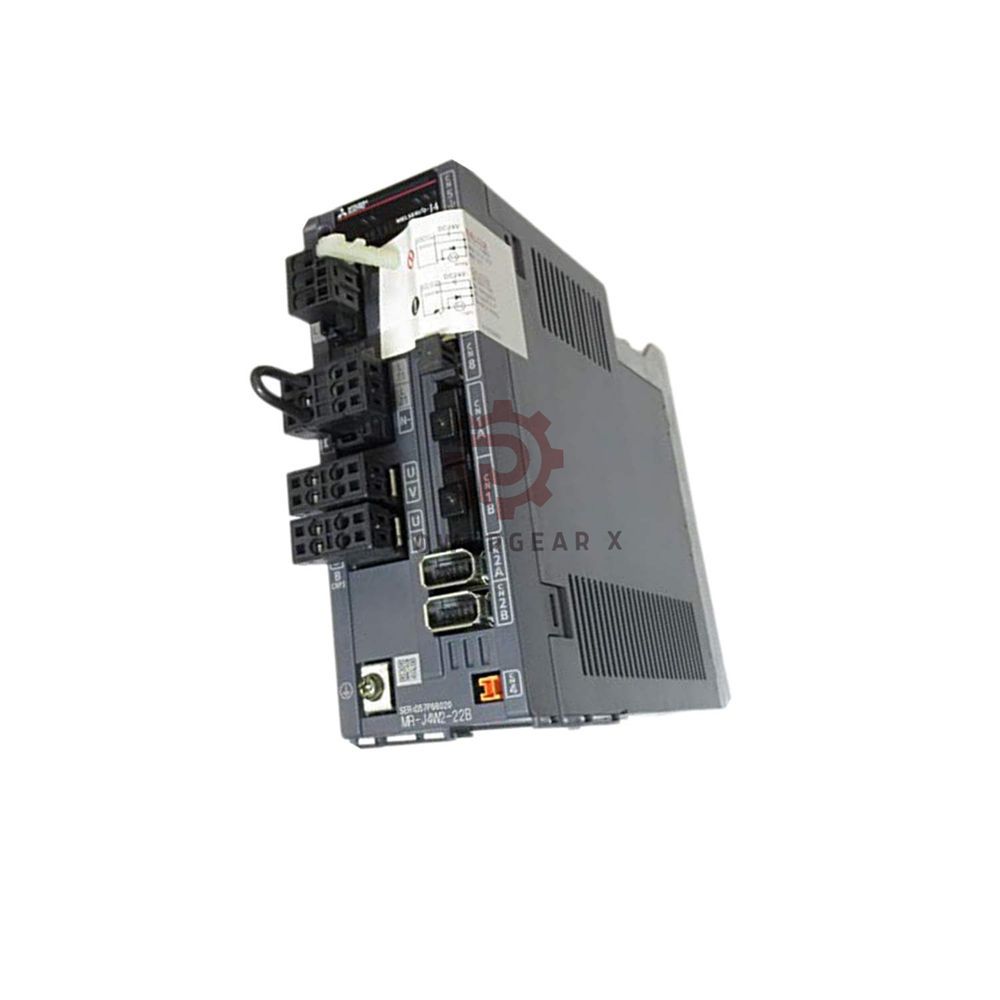

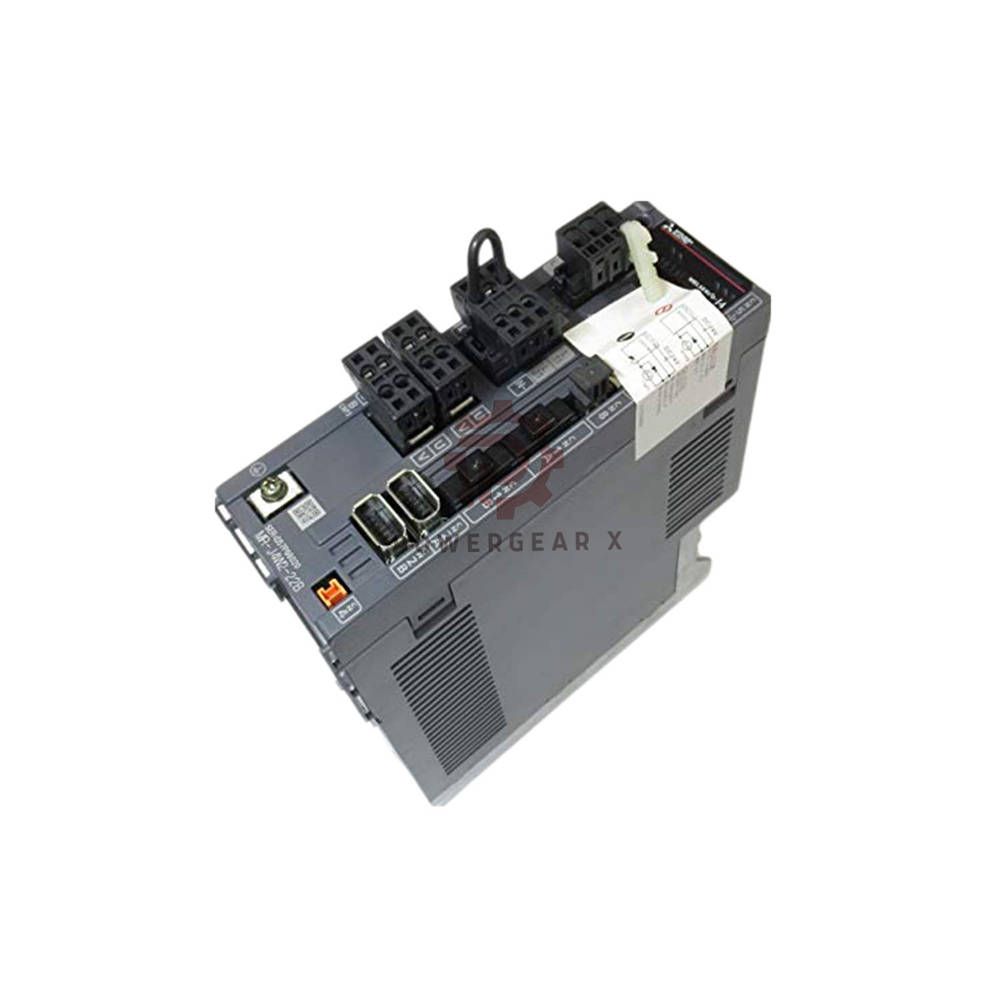

MR-J4W2-22B – Mitsubishi MELSERVO-J4 2-Axis Servo Amplifier

MR-J4W2-22B is a compact 2-axis servo amplifier. It delivers 170V AC output per axis. Ideal for multi-axis machines. Saves space and cuts wiring time.

📁 Technical Specifications – Tree View

• ├─ Core Identification
  • │ ├─ Brand: Mitsubishi
  • │ ├─ Model: MR-J4W2-22B
  • │ ├─ Series: MELSERVO MR-J4
  • │ └─ Type: 2-axis servo amplifier
• ├─ Electrical Ratings (per axis)
  • │ ├─ Output voltage: 170 V AC (3-phase)
  • │ ├─ Rated current: 1.5 A per axis
  • │ └─ Power consumption: 55 W total
• ├─ Main Circuit Power
  • │ ├─ Voltage: 200–240 V AC (3-phase or 1-phase)
  • │ ├─ Frequency: 50/60 Hz
  • │ ├─ Rated current: 2.9 A
  • │ └─ Voltage fluctuation allowed: 170–264 V AC
• ├─ Control Circuit Power
  • │ ├─ Voltage: 1-phase 200–240 V AC, 50/60 Hz
  • │ ├─ Rated current: 0.4 A
  • │ └─ Voltage fluctuation allowed: 170–264 V AC
• ├─ Interface & Control
  • │ ├─ Interface supply: 24 V DC ±10% / 0.35 A
  • │ ├─ Control method: Sine-wave PWM + current control
  • │ ├─ Communication: SSCNET III/H (0.222/0.444/0.888 ms cycle)
  • │ └─ USB port: For easy setup and monitoring
• ├─ Braking & Protection
  • │ ├─ Built-in regenerative resistor: 20 W
  • │ ├─ Dynamic brake: Yes
  • │ └─ Ingress protection: IP20
• └─ Physical Data
  • ├─ Weight: 3.44 lbs (1.56 kg)
  • └─ Cooling: Natural cooling (no fan)

🔧 Setup & Maintenance

• Easy wiring: Spring-clamp terminals save time.
• Auto-tuning: One-click adjustment for each axis.
• USB connection: Use free MR Configurator2 software.
• LED status: Clear alarms and ready signals.
• No fan needed: Natural cooling reduces dust issues.

🔄 Compatibility

• Works with Mitsubishi HG-KR and HG-SR servo motors.
• Supports SSCNET III/H controllers (MELSEC iQ-R, Q series).
• USB port works with Windows 10/11 PCs.
• Compatible with 3300 5mm Proximity Probes for vibration sensing.

✅ Certifications

• CE marked (EN 61800-3, EN 61800-5-1)
• UL/cUL recognized
• RoHS compliant
• IP20 (IEC 60529)

📦 Package & Warranty

• In box: MR-J4W2-22B drive, quick start guide, CD with manual, connector kit.
• Warranty: 12 months from invoice date.
• Shipping: 12-24 hours dispatch after order.
• Carriers: FedEx, UPS, DHL express worldwide.

📌 Expert Review & Manager’s Insight

• 🔍 Expert Review – Senior Drive Engineer:

  “Two axes in one unit. Saves 40% panel space. SSCNET III/H at 0.222ms cycle gives fast response. Built-in 20W regen resistor handles small decelerations well. A smart choice for compact machines.”

• 📈 Manager’s Insight – Automation Product Manager:

  “Lower total cost vs two single drives. Natural cooling means zero fan maintenance. USB setup cuts commissioning time by half. For OEMs building pick-and-place or small conveyors, this is gold.”

🏭 Applications & Suitable Equipment

• Pick-and-place robots: Two independent axes, fast positioning.
• Small CNC routers: X-Y stage control.
• Labeling machines: Precise speed and torque.
• Conveyor belts: Dual motor sync.
• Automatic winding machines: Tension control.
• Test equipment: Load simulation with 2 axes.

❓ FAQ – Professional Answers

• Q1: Can I use MR-J4W2-22B with only one axis active?

  Yes. You can run just one axis. The second axis can stay unused with no problem.

• Q2: What happens if main power is single-phase 220V?

  It works fine. The main circuit accepts 1-phase 200-240V AC. No derating needed for light loads.

• Q3: How to connect to a PC for tuning?

  Use the USB mini-B port. Download MR Configurator2 free from Mitsubishi. Plug and play.

• Q4: (Experience) Drive trips alarm “AL.16” – what to do?

  AL.16 means regenerative overload. Check deceleration ramp. Add external regenerative resistor if stopping heavy load often.

• Q5: Buying guide – warranty and delivery?

  We provide 12 months repair/replace warranty. Ship within 12-24 hours. Carriers: FedEx, UPS, DHL. Fast customs clearance support.

🛒 Selection Tips

• Check your motor’s rated current (≤1.5A per axis).
• For high inertia loads, buy external regenerative resistor (≥40W).
• Use shielded cables for SSCNET III/H communication.
• Keep ambient temperature below 55°C. Natural cooling needs open space.
• Order connector kit separately if lost. Ask us for bundle deals.
